(MMPE – 7) Trailer with Treatment(255 CFM @ 24″ hg – Oil sealed)

TRAILER # 19 COMPONENT SPECS.

MMPE trailer with full treatment train.

300 CFM @ 24″ hg – Oil sealed

  1. K/O tank transfer pump – Moyno Model 36701 s/n 06/03 with marathon motor model # AC145TTGN4027ODP 2HP 3FLA 1735 RPM
  2. K/O GPM meter – Master Meter # 128222 1 ½ X 1 ½

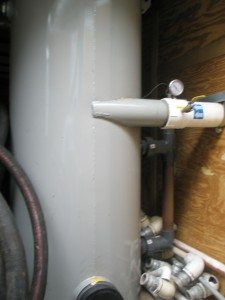

  3. OWS K/O tank – Ace Rotomold VT00160 SW vertical 160 gal. with intrinsically safe level switches. Stainless Steel.
  4. OWS transfer pump – Myers pump with 6” impeller. Motor – Dayton model # 36653XP 1HP 3.2 FLA. 3450 RPM.
  5. A/S Blower – Chicago Blower s/n 258157 Size 1800. Motor – WEG model # BI73154 3HP 7.4FLA @ 230V 3500 RPM.
  6. A/S IN GPM – ISTEC P/N 1740 temp 200  160psi. Flow range  min. .80  cont. 44 max. 90gpm.

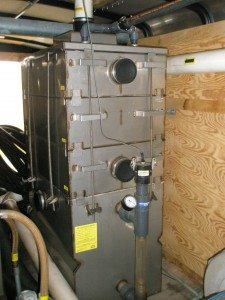

  7. A/S OUT GPM – ISTEC P/N 1720 temp. 200 Flow range min. .50  cont. 26.4 max. 50gpm. Stainless steel tray Air-Stripper
  8. Exhaust fan – XP Dayton model 6x794s ¼ HP 4.5FLA.
  9. Magnehelic – 0 -2 in. hg measures Dekker pump stack pressure.
  10. All flex going to motors and switches is OZ Gedney XP flex.
  11. All junction boxes are Crouse Hinds XP junction boxes.
  12. A/S transfer pump. Myers pump with 6” impeller. Motor – Leeson 1HP model #A6T34XC20F XP 3.6FLA 2850rpm.
  13. VMX0453-KA1 Dekker 410 CFM liquid ring vacuum pump 25HP 200V 72.9FLA
  14. *This system requires a 208V 3PH 200A Service.*

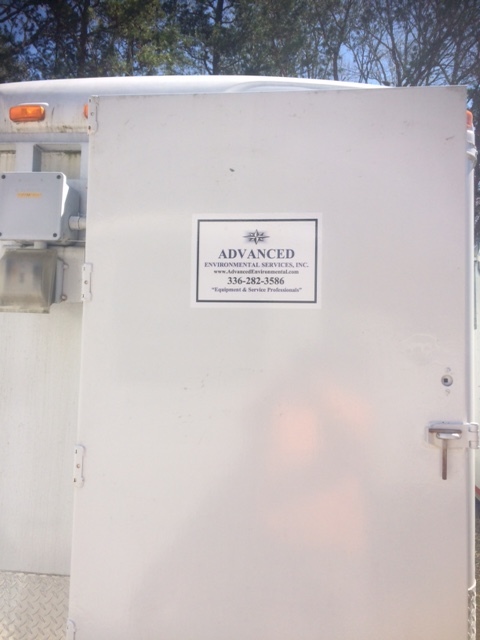

18′ Trailer dual axle trailer – 2 and 5/16 ball

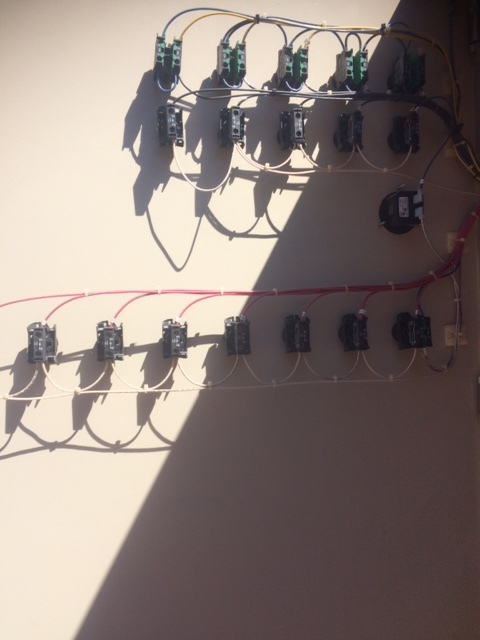

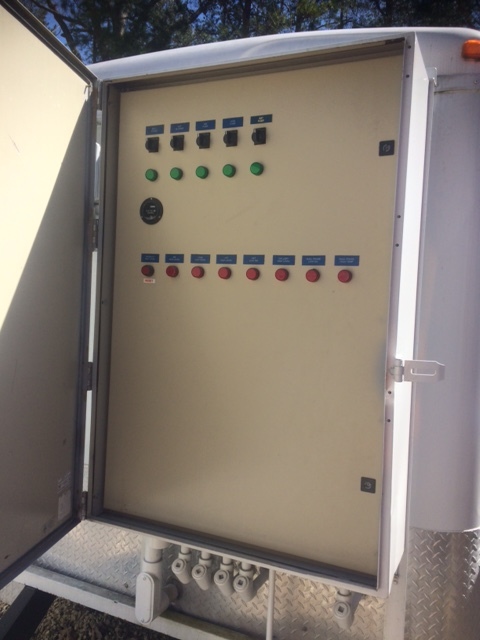

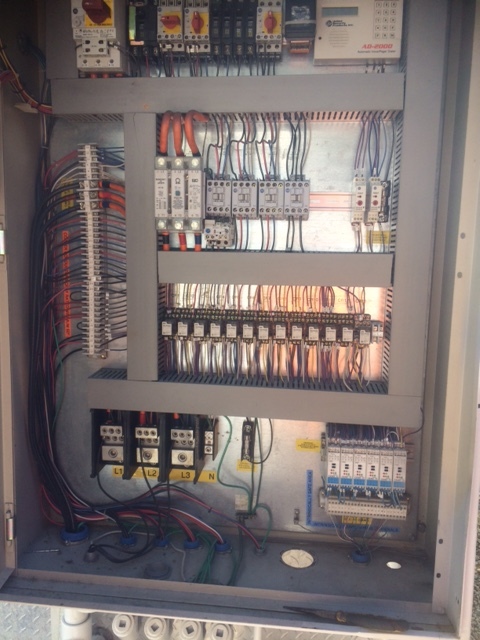

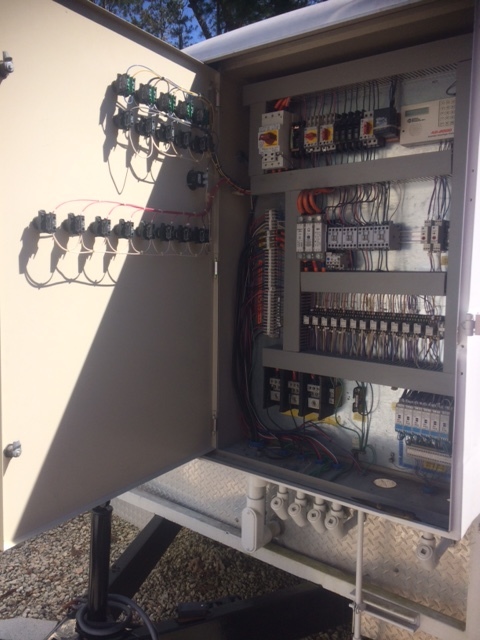

Panel, controls, switches, regulator valves, sampling ports
