(SVE/SPARGE-25) TRAILER, SVE/AIRSPARGE (#AES015F)

(SVE/SPARGE-25) TRAILER, SVE/AIRSPARGE (#AES015F)

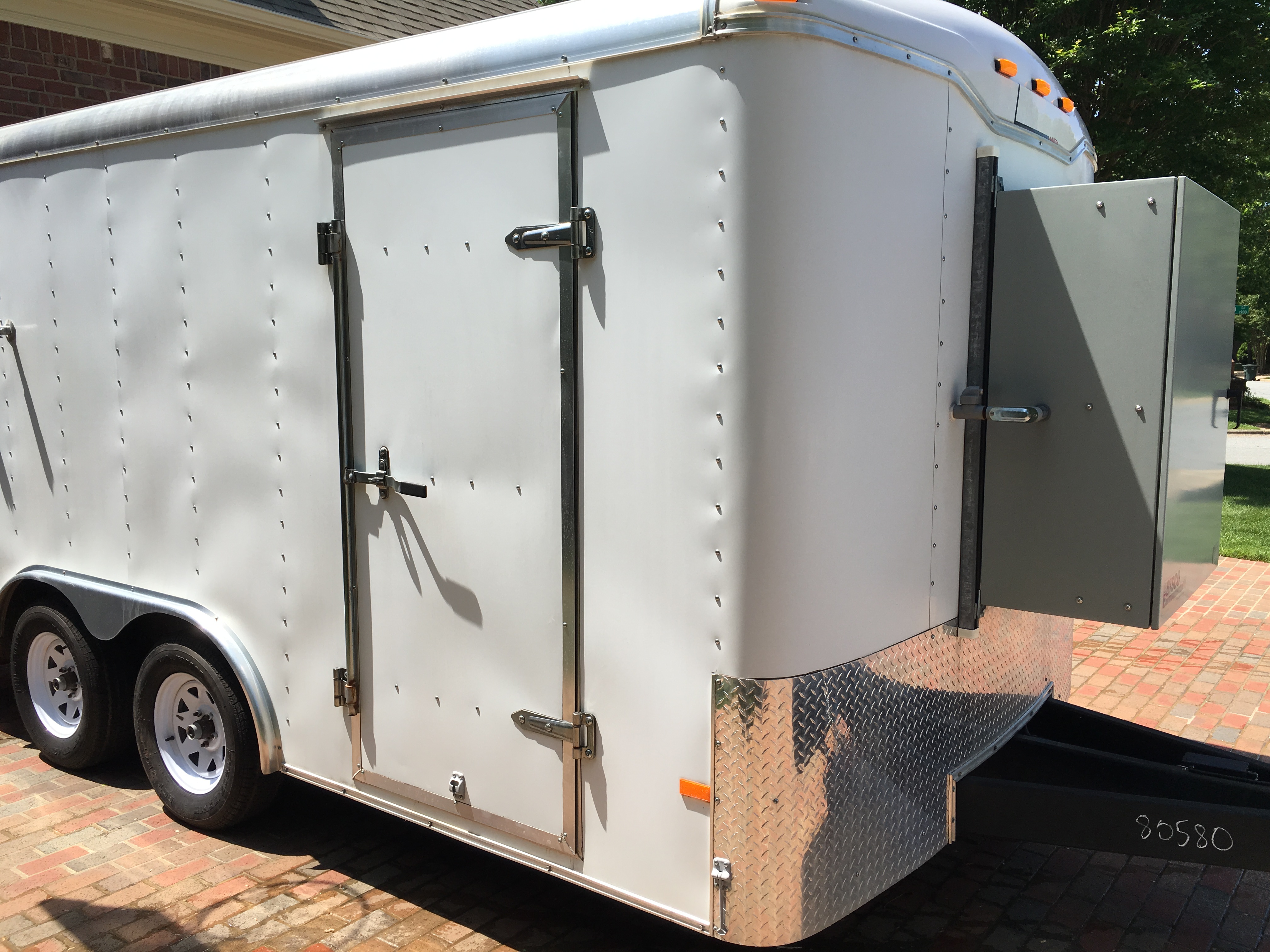

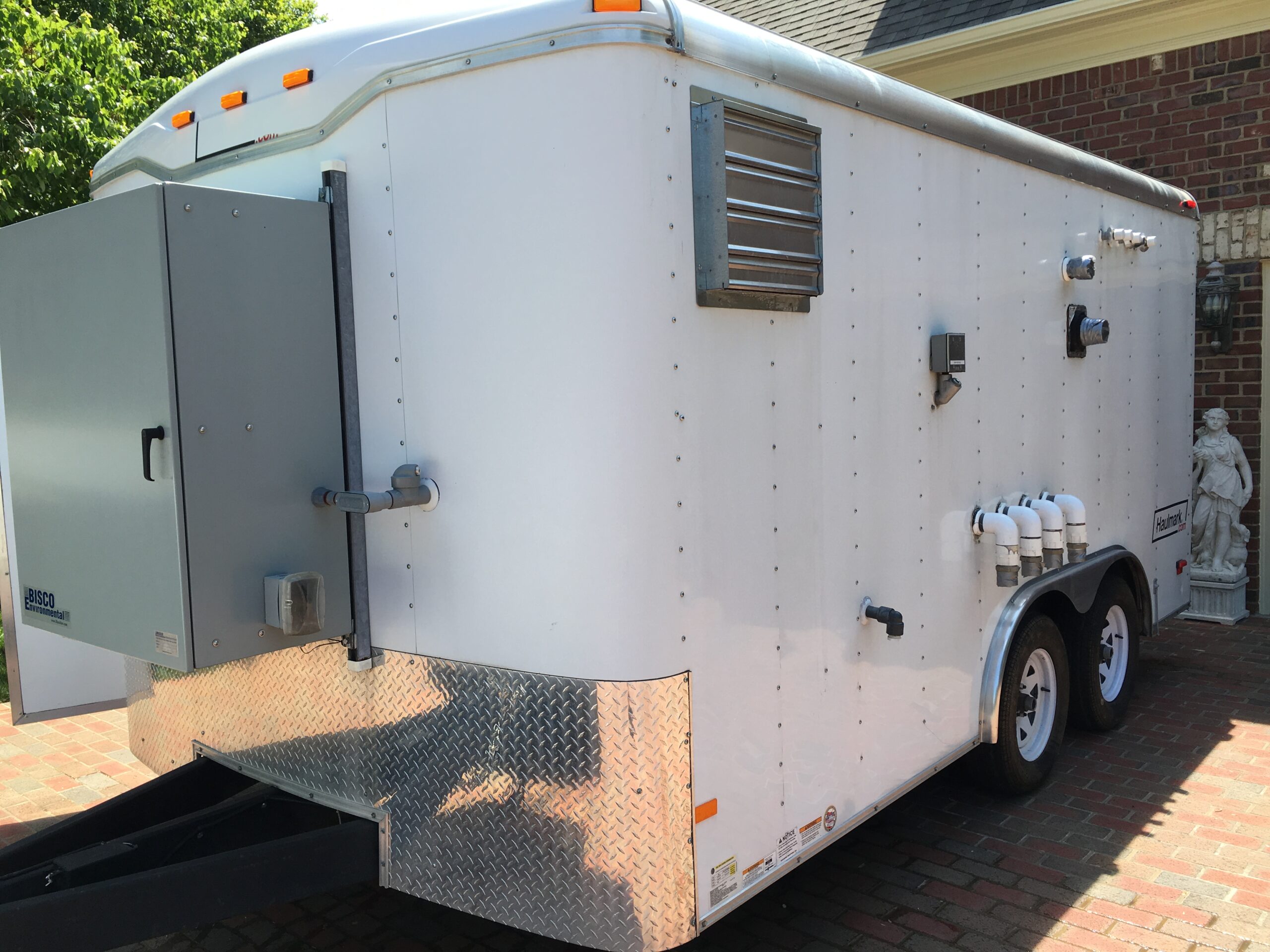

Trailer 8.5 x 20 Make/ Model—Specs: Haulmark Custom (2011)

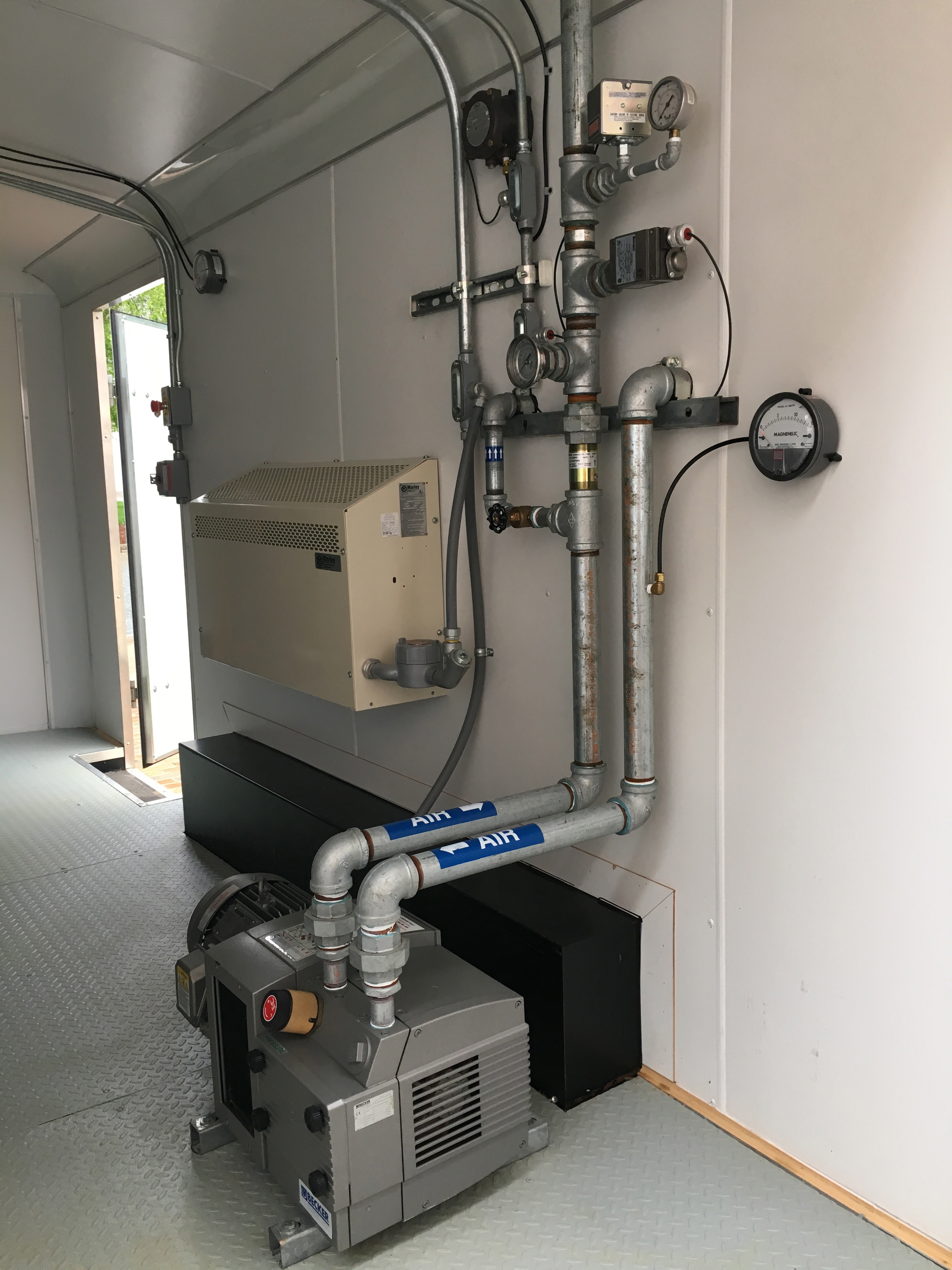

Compressor Rotary Claw Year Make/ Model—Specs: Becker KDT 3.60  Power HP: 5  Volts 208 Phase: Phase 3 –  (39 CFM@ 22 PSI)

Blower Rotron EN 656 HP:3  208 volts Phase 3 – (3hp) 115 cfm @ 2″hg

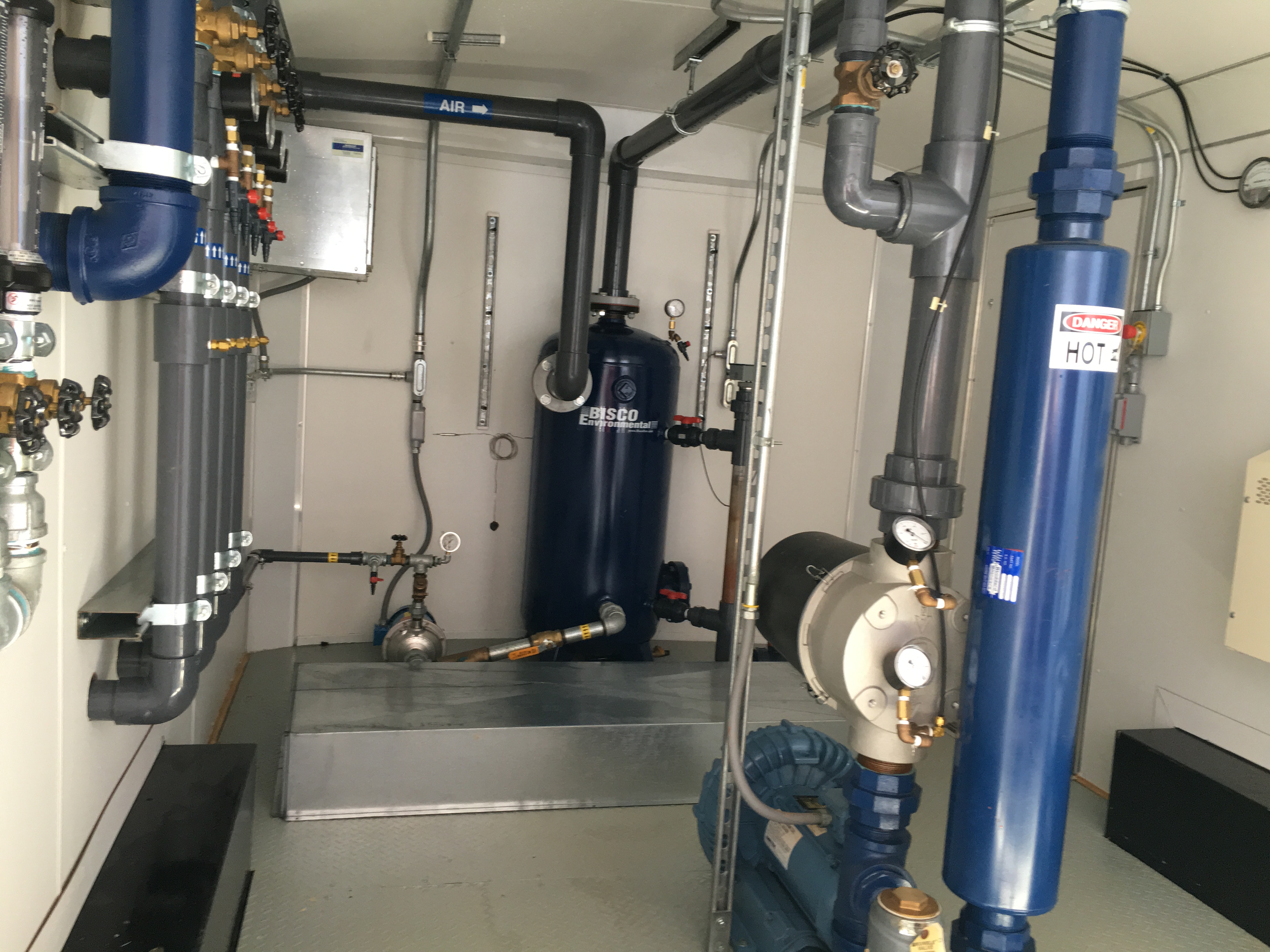

VE Manifold & Module

Heat Exchanger Year Purchased: Make/ Model—Specs: AIHTI ACA 4302-3 Power HP: 0.5 Frequency: RPM 950-1140 Flow Rate/Vapor: 4450 CFM Potential: Volts 230/460

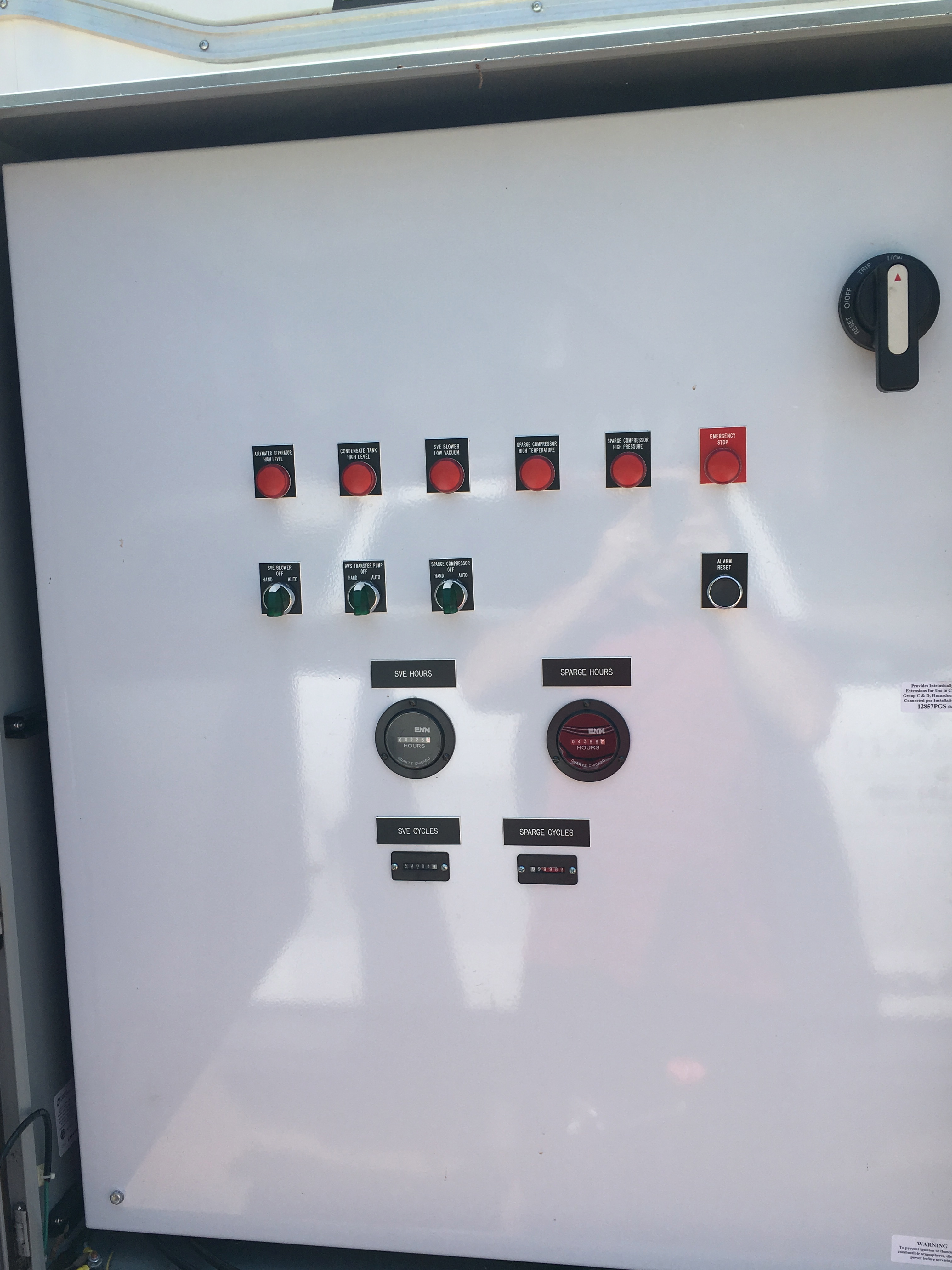

Control Panel Year Make/ Model—Specs: Bisco Custom Potential: Volts 230/460 Phase: Phase 3
