(SVE/SPARGE-21) TRAILER, SVE/AIRSPARGE (#AES0011F)

(SVE/SPARGE-20) TRAILER, SVE/AIRSPARGE (#AES0010F)

Trailer 8 x 16 x 7.8 Express Trailers Fabricator (2010)

Compressor Rotary Claw Make/ Model—Specs: Rietschle DLR 400 Power HP: 25 Flow Rate/Vapor: 272 CFM Pressure: 14.5-29 PSIg Potential: Volts 230/460 Phase: Phase 3

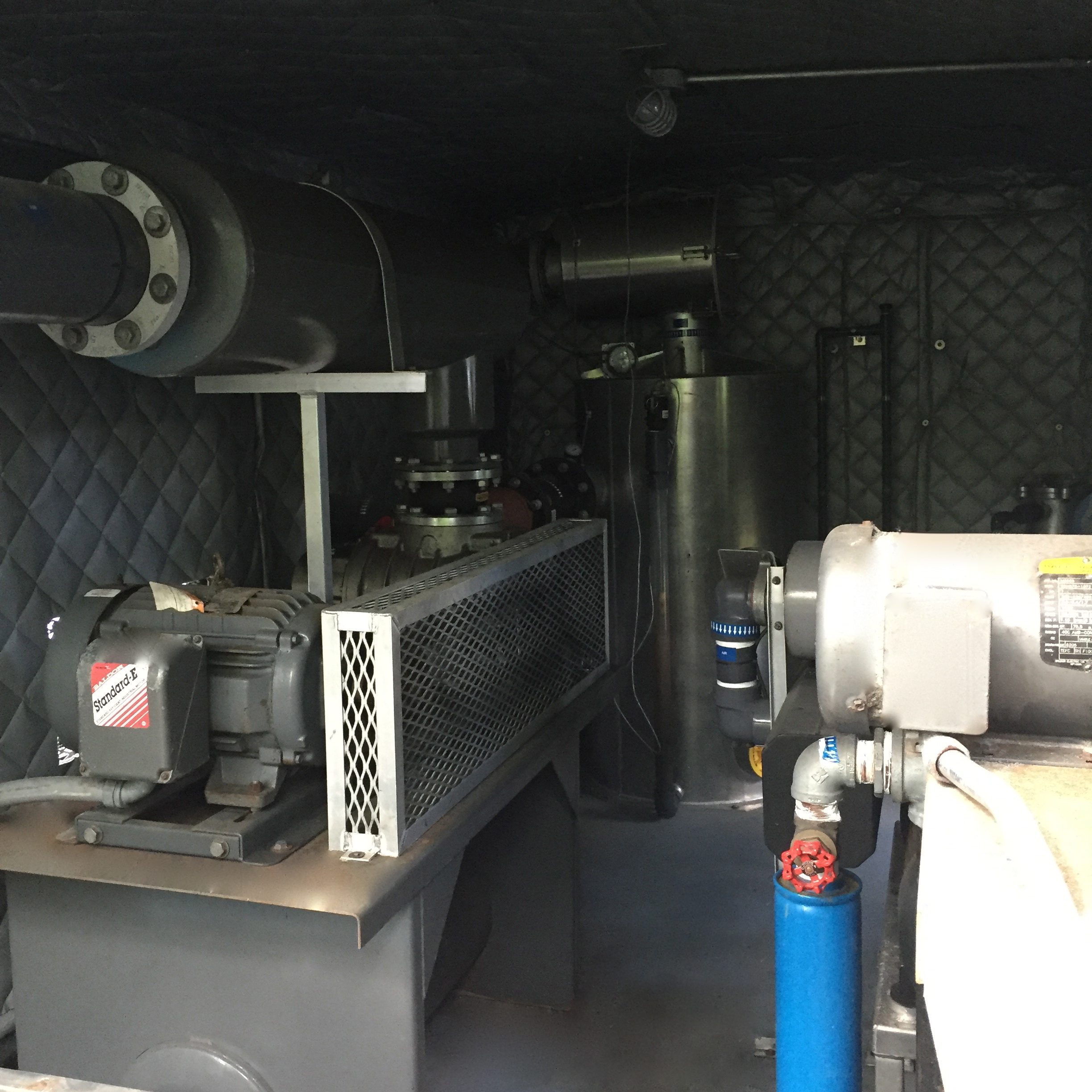

Blower Rotary Lobe Roots – 20hp

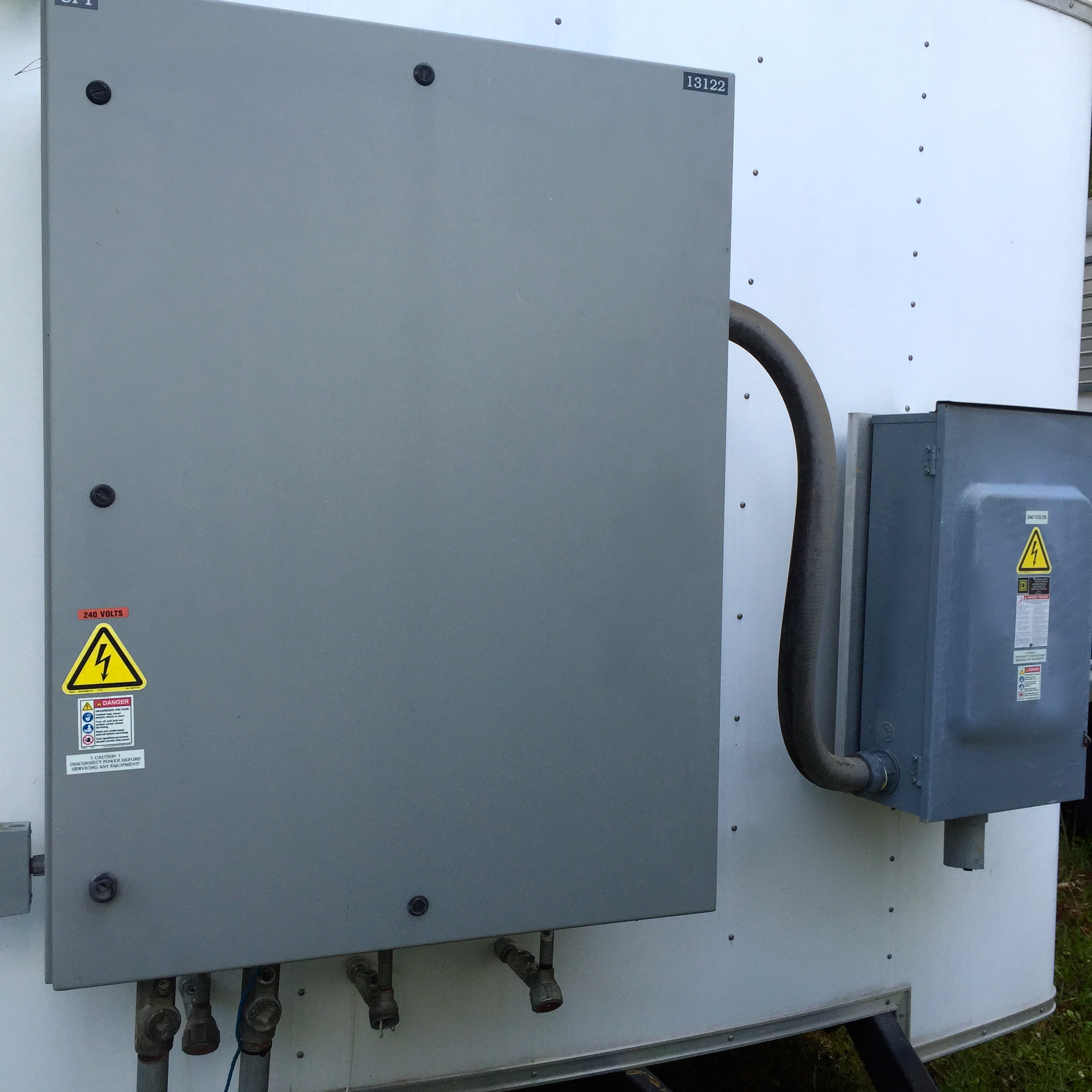

Control Panel  Make/ Model—Specs: ESD Custom Potential: Volts 230/460 Phase: Phase 3

Liquid Phase Carbon Vessels & AS Manifold  Make/ Model—Specs: VLHP-100 Weight: LBS: 100 Each

Heat Exchanger Year Purchased: 2010 Make/ Model—Specs: AIHTI ACA 6302-3 Power HP: 1 Potential: Volts 230/460 Phase: Phase 3

Sparge Manifold

100 Gallon Knockout Tank – Gallon

Float Switches

Transfer Pump

Bag Filtration with Flow Meter/Totalizer

Point SVE Manifold
