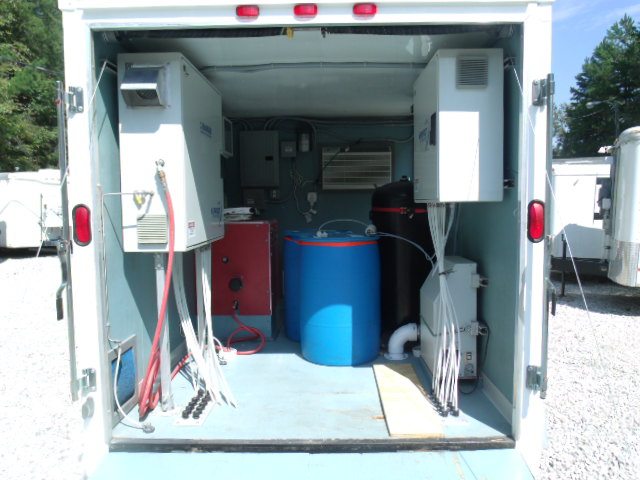

(A+ OZONE Injection / Sparge System # 1) – Perozone

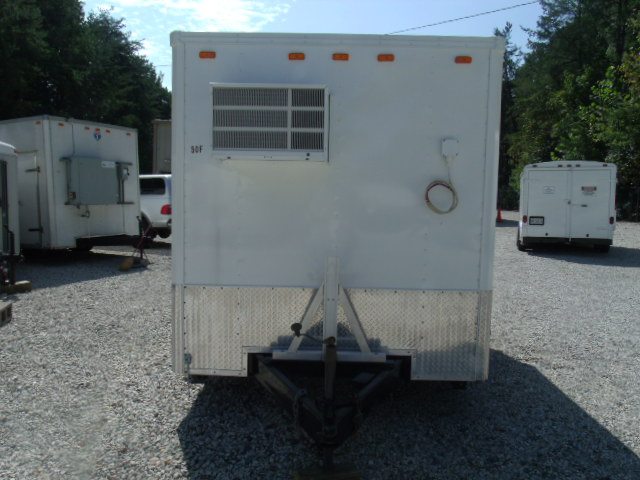

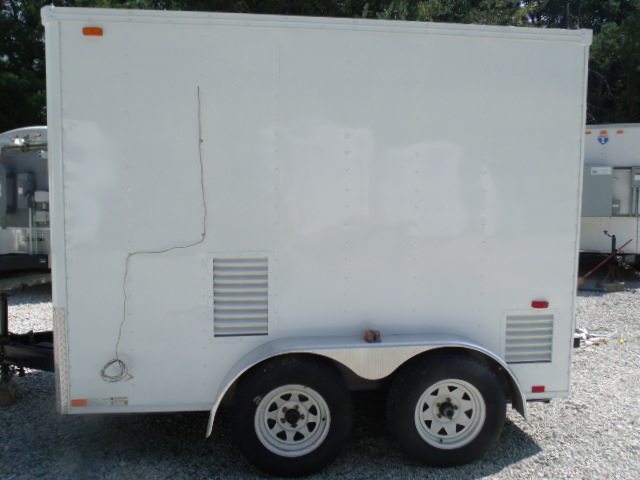

Trailer 50 F – Trailer – Interstate 10 X 6 X 7 tandem 3,500 lb. axles 2 5/16” ball

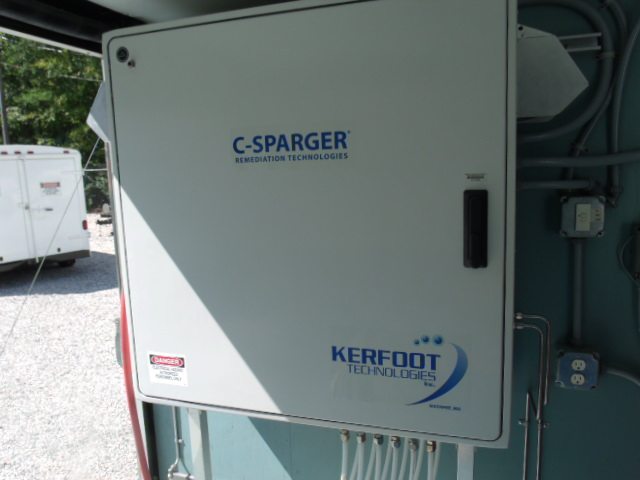

KerFoot technologies used for Ozone Sparge and Hydrogen Peroxide Injection

Model 8600 Perozone System

AIRSEP Oxygen Concentrator – model# AS-12  item # AS013-3NL 120v 5aStandard Product Flow: 12 SCF/hr1 (0.31 Nm3/hr2)
Standard Product Pressure: 0–9 psig (0–62.1 kPa)
Minimum Product Purity: 90%
Product Dew Point: -100°F (-73°C)

http://apps.watersurplus.com/techlib/AirSep/AS-12_mk0321a.pdf

C – Sparge System – Dia-vac Model R202FP-FP-MA1

O3 Generator – AZZO ZON Industries Limited

VMUS-4KT  – 120 AC 2-amp

(2-5 SCFM) continuous service compressor
8-16 gr/hr (0.42-0.84 lbs/day) ozone output
0-40 mL/min hydrogen peroxide injection

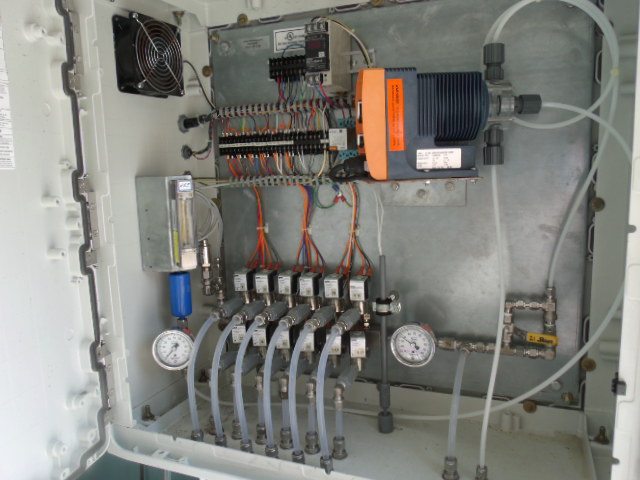

Ozone delivery and Injection System

12 – pass thru injection points for 1/2 “ tubing

ProMinent BT4A – Injection pump rated 37 gph max. 253 PSI

12 – pass thru sparge points 3/8” tubing

PowerEx – Compressor – model# SE131701AJ

SCFM – max. 8.6 at 100psi /115psi

3HP 115/230V 17/8.5 fla

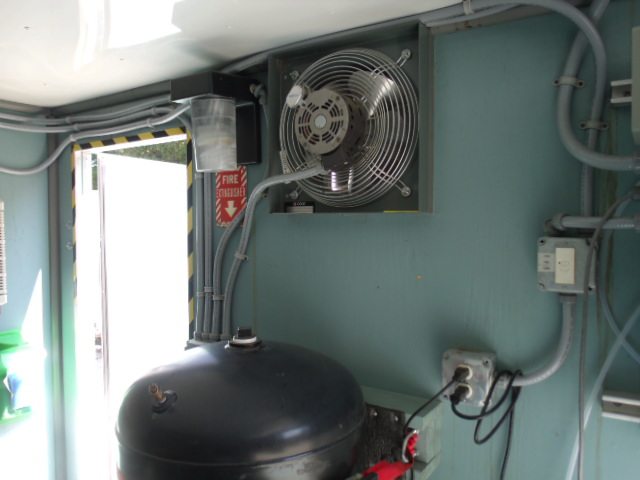

Exhaust fan – Cook model#12S15D  tag# 24431820

Air conditioned – Friedrich WallMaster

2 interior lights

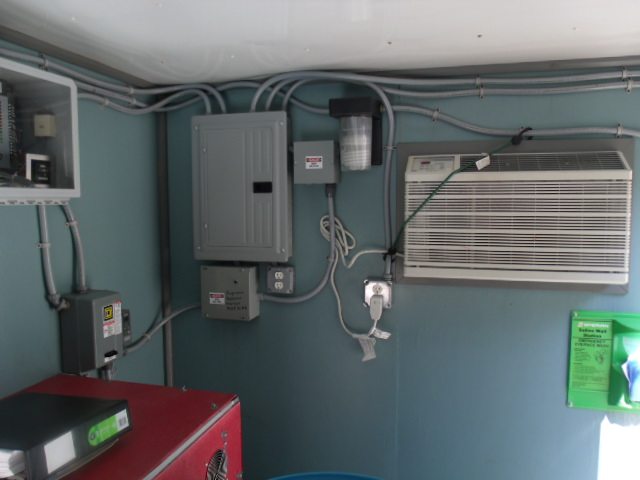

Breaker Panel – 100A main 230V 1ph
