(Treatment System-Water) Trailer # 1 (AES#-11F)

TRAILER 11F

Treatment System Water

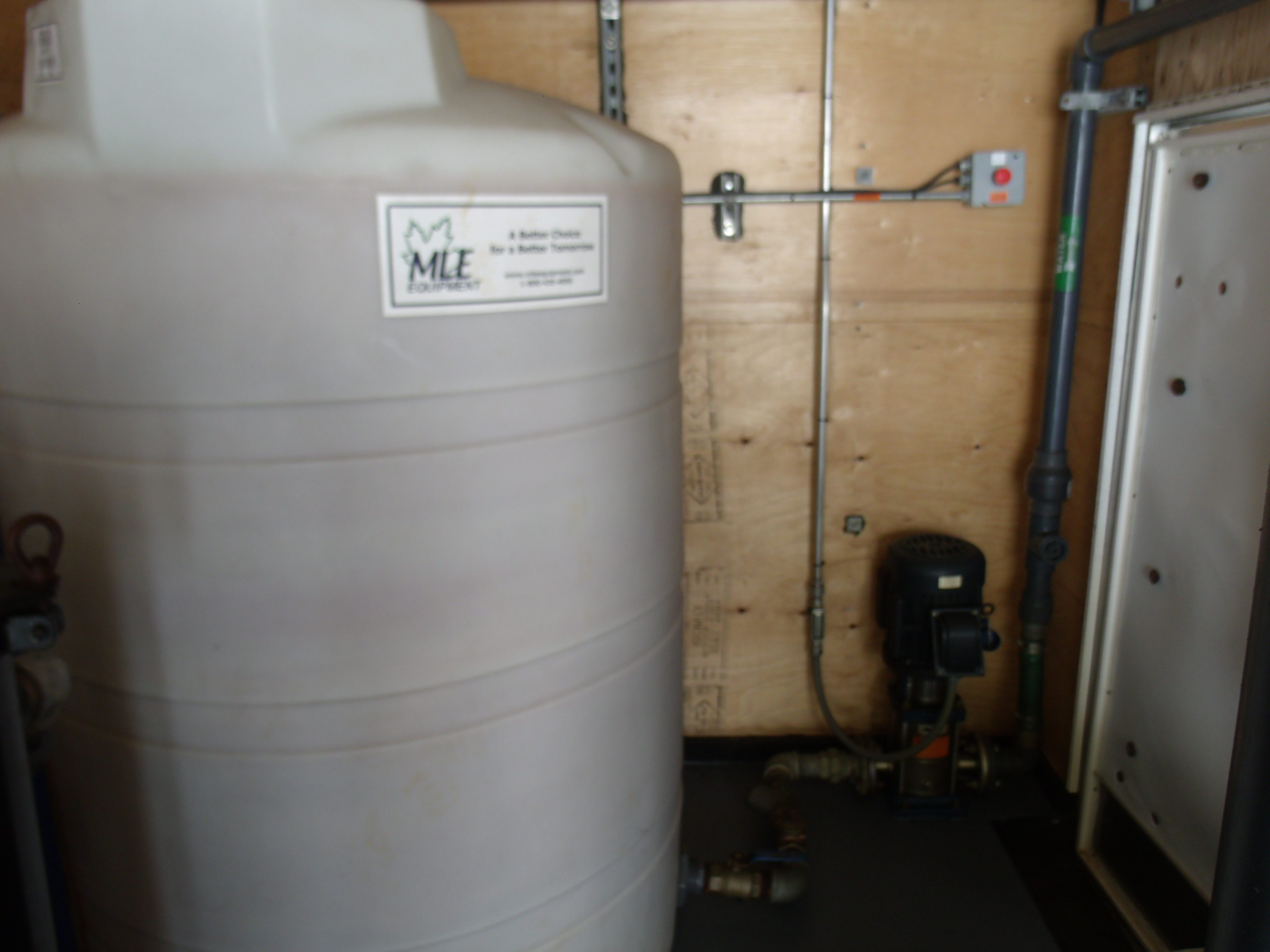

K/O tank – 500 gal. with float switches

K/O tank transfer pump – 232 Goulds G & L series 35VBK2T vertical

2hp 230/460V 7.10/3.55FLA max. flow 380 gal.

AS Blower – New York Blower 450 CFM 3hp 230/460V 7.61/3.80FLA

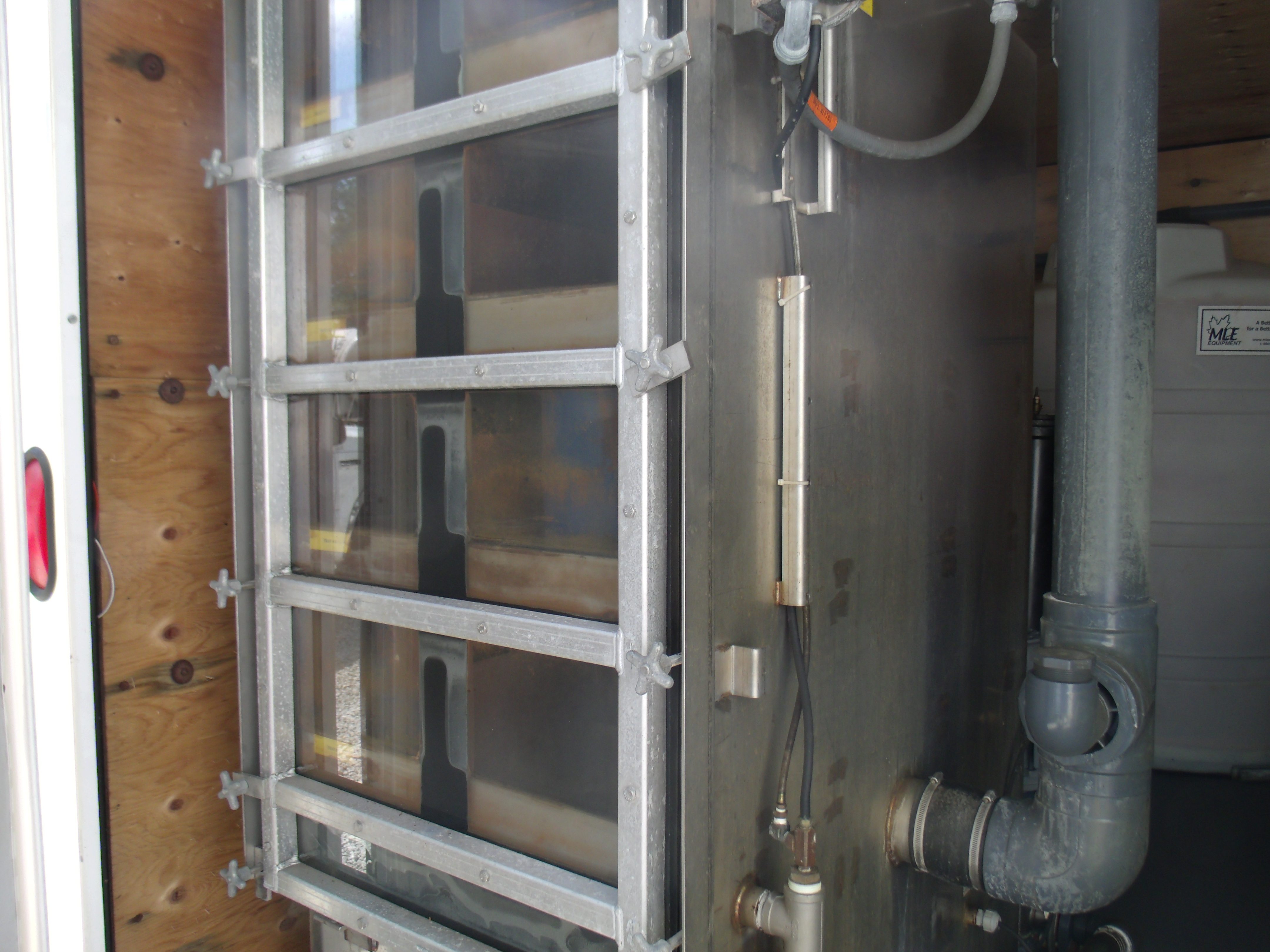

Air Stripper – EZ-TRAY EZ-8-455 4 tray

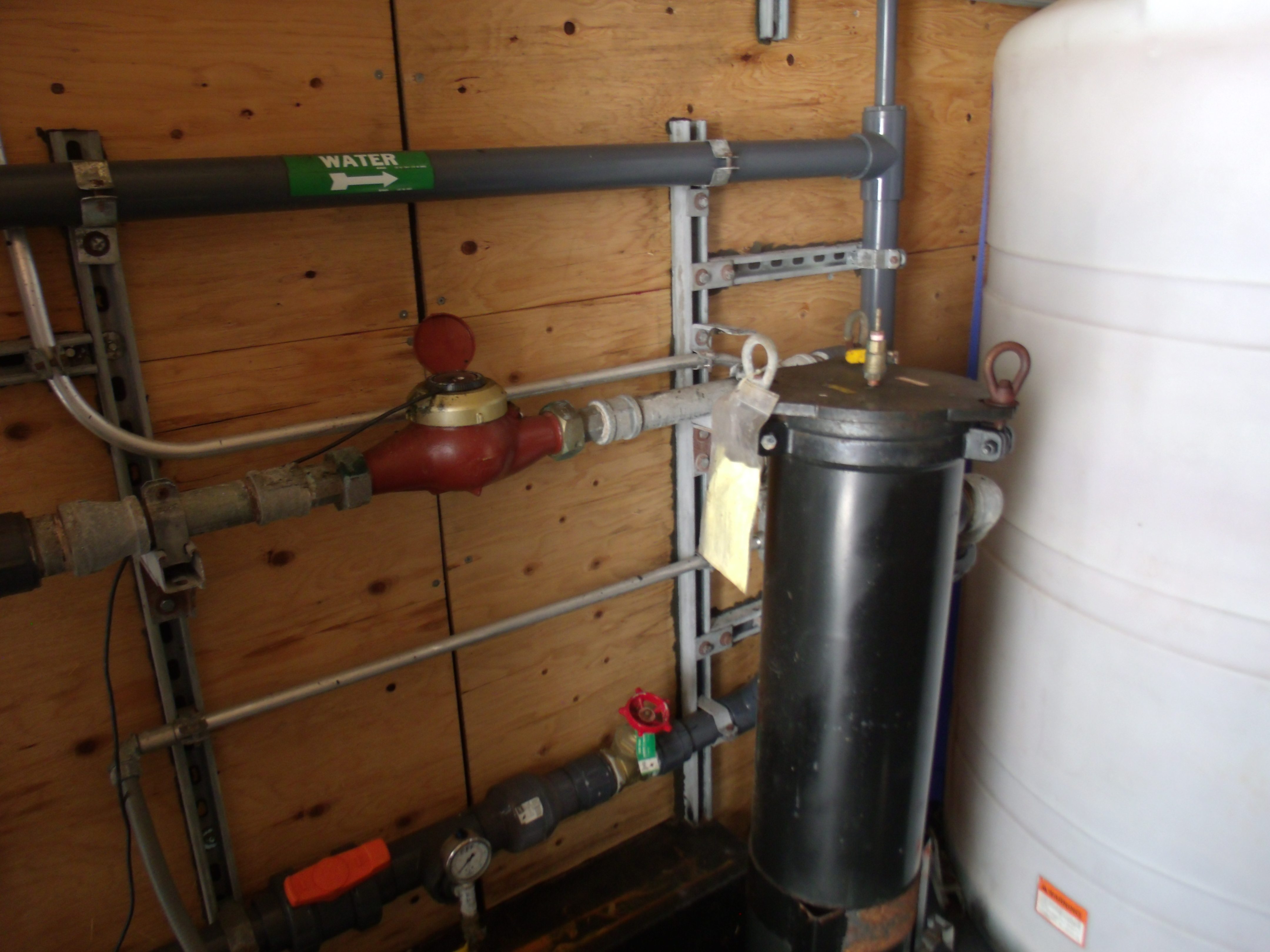

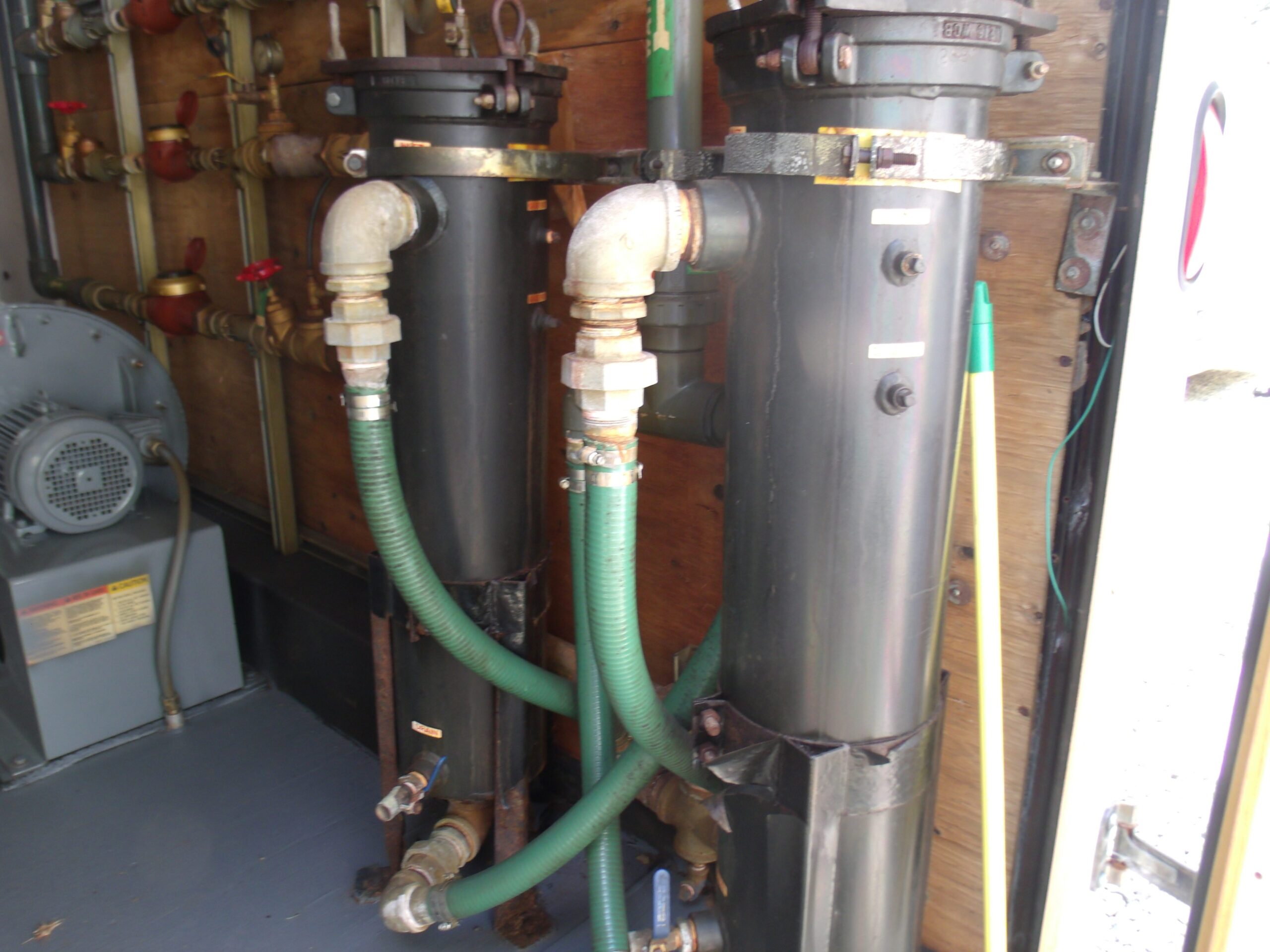

Bag Filters – 2 paralleled pre air stripper 1 post air stripper on outlet

AS transfer pump – Goulds G & L series35VBK2T vertical

2hp 230/460V 7.10/3.55FLA

Exhaust Fan – XP 1/3hp 120/208V 1ph 6.6/3.1FLA

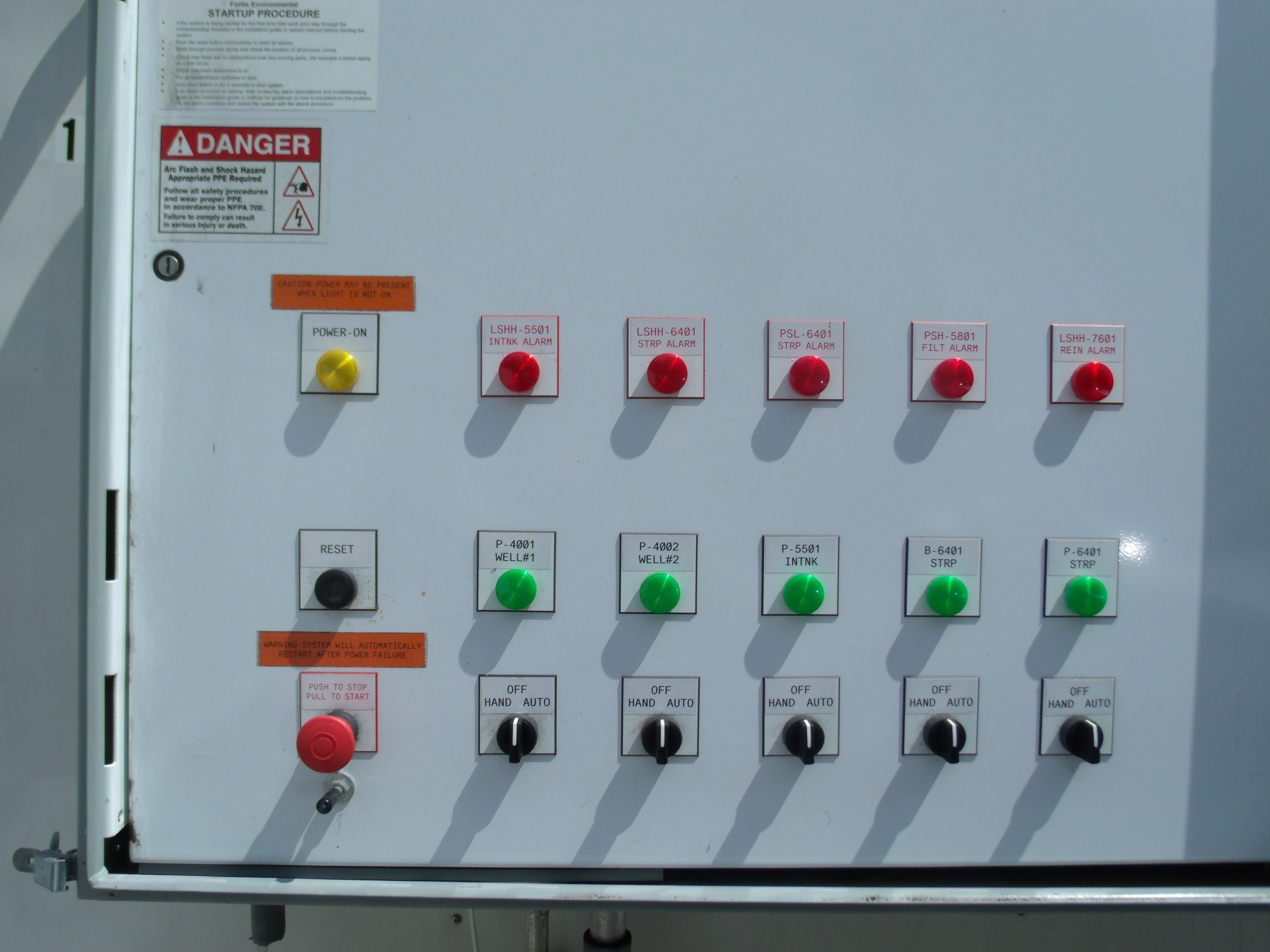

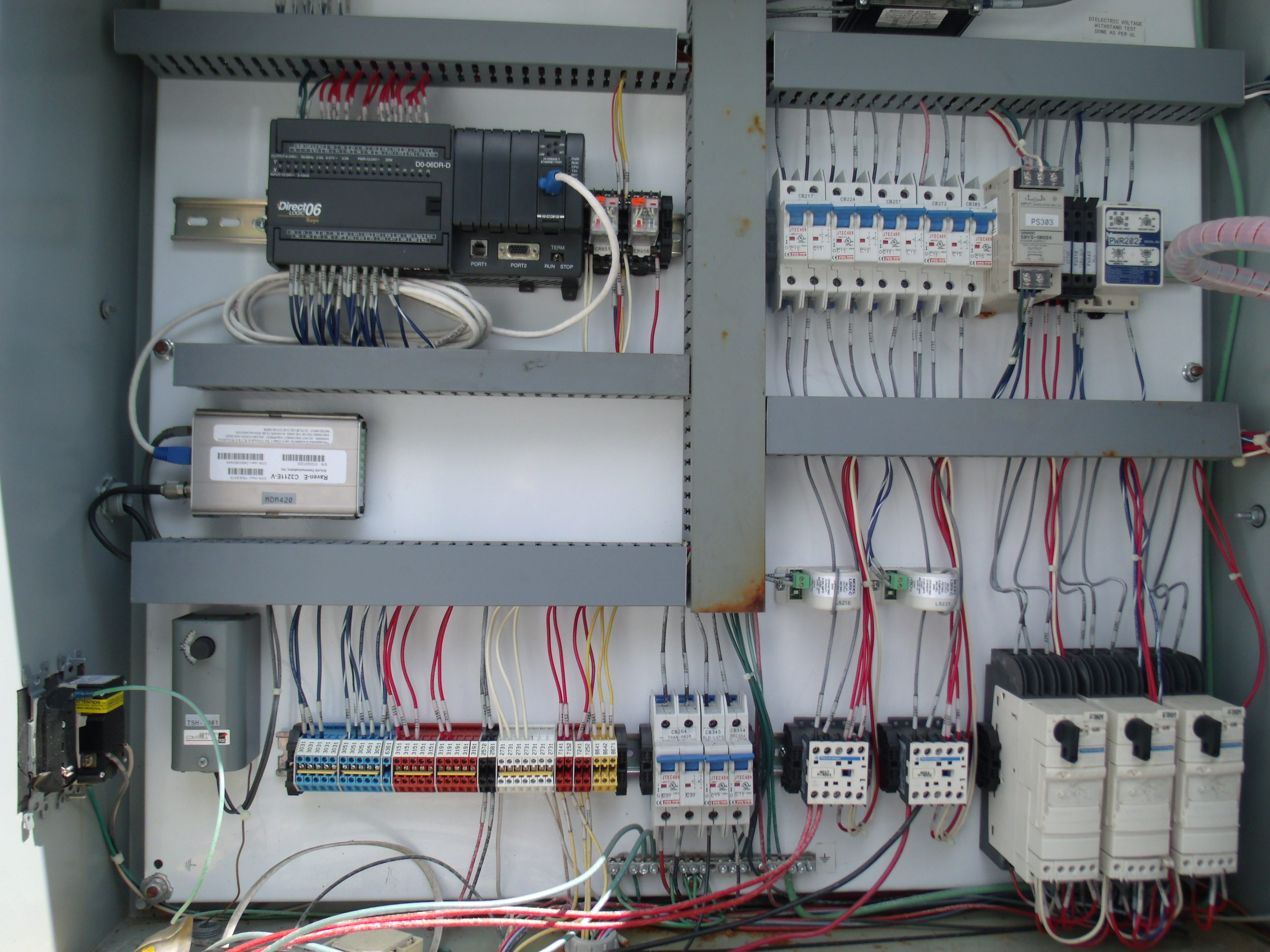

Control Panel – 36 X 30 X 8 front mounted type 4 with dead front mount controls. PLC is Direct Logic 06. Intrinsically safe devices are Pepper and Fuches, motor starters are Telemecanique.

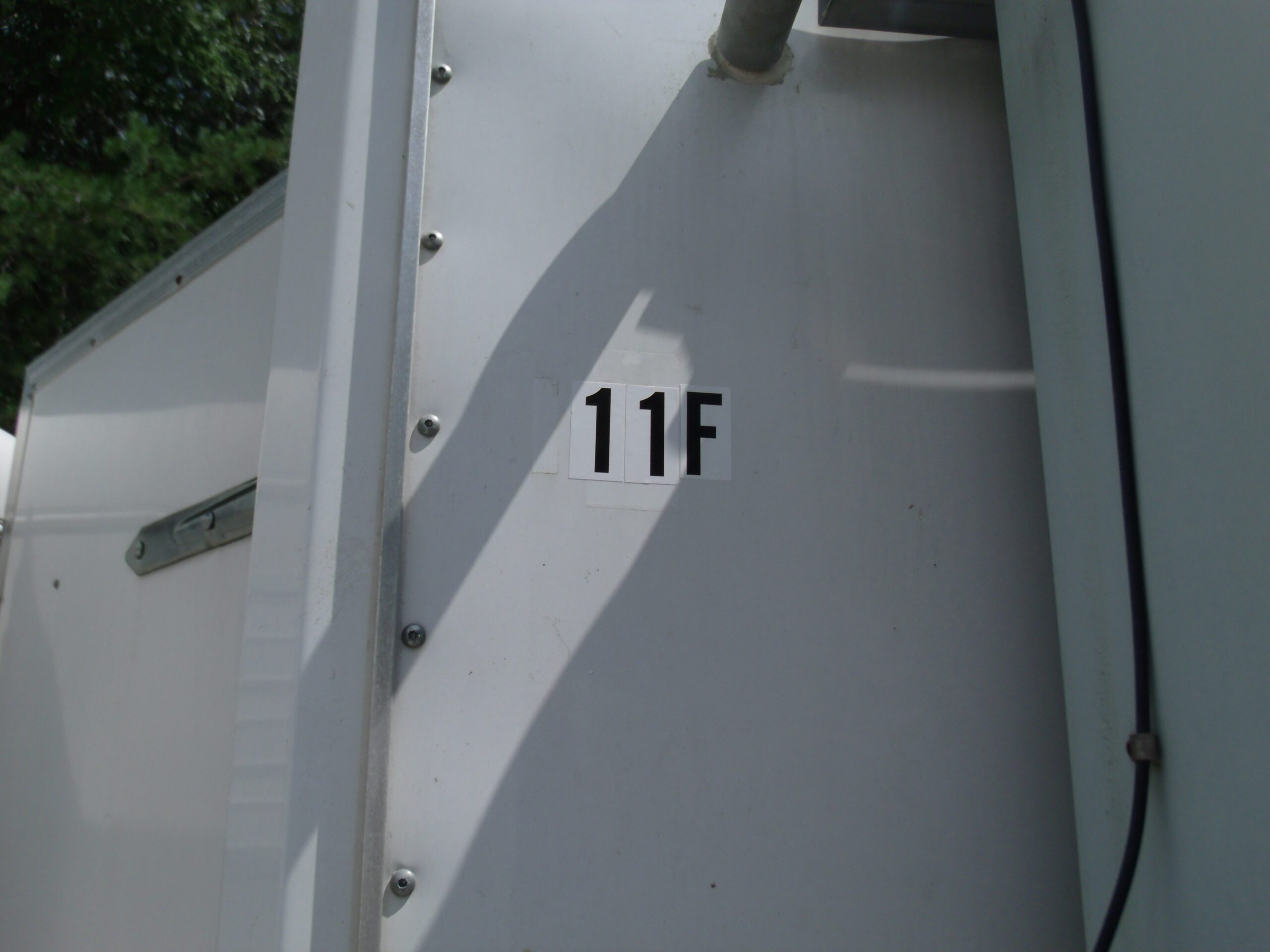

Trailer – 14 X 8 X 8 Interstate tandem axle. Tongue length 54 in.

VIN # 1UK500FZ481064798
