CONTROL PANEL Telemetry Control and Monitoring SCADA – Model# 3000 FGD *** $1,150.00 ***

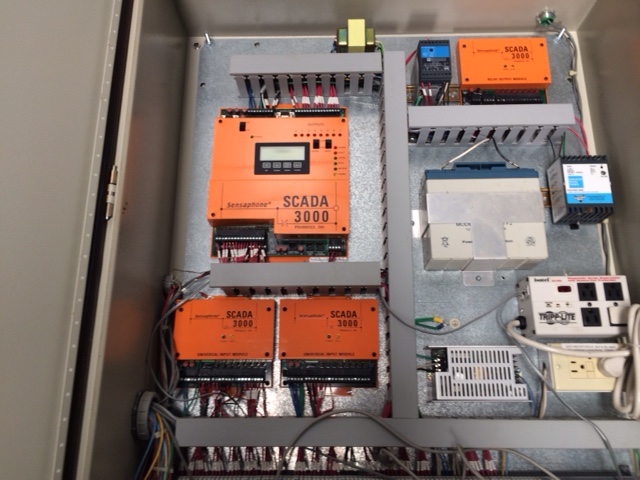

SCADA 3000 FDG with Components.   ($ 1,350.00 OBO)









SCADA 3000: The fully integrated control system.
With the SCADA 3000, the high cost of control is history!

SCADA group

SCADA 3000 provides everything you need–from software to modules–in one comprehensive package.
Flexible Communication
: Use standard data radio, ordinary phone lines, or a mix of both.
Built-in Alarm Notification: Alarm reports using custom voice, numeric pager, alphanumeric pager, fax, or E-mail.
Built-In Data Logging: Time-stamped data. The SCADA 3000 package includes software for data logging radio network applications, too.
Powerful Programming Options: Ladder, C-Programming, PID Functions, and even remote access programming.
Flexible Power Sources: with intelligent battery charging, safe battery cut-off and even built-in support for solar power.
Live Web Pages: generate reports as web pages on your internet or intranet site, with customizable features and programmable time intervals.

Free, powerful 32-bit SCADA software with critical built-in features:

  • Ladder Editor: the preferred language for control functions. SCADA 3000 supports up to 128 FPU variables and 4096 bits organized as 255 16-bit words. It uses standard Ladder elements and instructions.

Ladder screenLive Web Page link

  • C-Program Editor: for sophisticated control programming, define up to 1024 variables with up to 15 characters per variable name. Run the C program synchronously or asynchronously with the ladder program.
  • PID Programming: eight built-in programmable PID control algorithms allow the SCADA 3000 to operate as a feedback controller.
  • Alarm Functions: Alarm up to 64 events from any input, output variable or value that has a UAF. Program recognition time, high and low limits, and reset time. Record custom voice messages for any alarm.
  • Real Time Screen Builder: Create a custom screen to show the real-time status of I/O values and process variables. Use standard graphical representations of your processes.

RealTime editor

  • Data Logging: Store up to 50,000 samples from up to 128 I/O points or system variables (UAFs). Date and time stamp. Query multiple units and display the information in grid format.
  • Communications Manager: Communicate by data radio to keep your PC in constant communication with all connected RTUs, or by phone line if you want to receive information from RTUs on an as-needed basis. Configure up to four serial ports for radio and/or phone communication.

Hardware Configuration

16 Universal Inputs: Contact closures, Thermistors, 4-20mA Analog, 0-5V Analog, Run time accumulator
8 Outputs: Latching 2 amp relays, LED status indicators
2 RS232 Ports: Local programming, Data radio communications; RJ11 Phone interface
LCD: 4×20 character scrolling display; user-customized content for local viewing.


Data Logging: User-programmable, built-in data storage for I/O points or calculated values.
Event Logging: Internal tracking of alarms and events
Ladder Logic Programming: for true PLC-type control; visual ladder editor standard in the software package.
C-Programming: Built-in C-compiler, which can run independent of ladder program.
PID: Eight PID loops built into the internal programming. Any I/O points may be used for PID calculations.
Web Page Generation: Software to upload I/O status and alarm data as a customizable web page to the URL of your choice.
AGA Gas Flow Calculation


Input/Output: expandable to 144 points, with these additional SCADA 3000 Modules:

  • Universal Inputs (identical to the 16 built into the main unit)
  • High Speed Pulse Count Inputs (up to 10kHz)
  • Thermocouple Inputs (Types J, K, R, S, T and E)
  • Relay Outputs
  • Analog Outputs (4-20mA)
  • Annunciator

Communication: Phone modem; voice module.
Power Supply: Hard-wired for 110 or 220 VAC; Plug-in for 110 or 220 VAC; standard or extended battery backup.

Sensaphone SCADA 3000

The FGD3000 is a fully integrated control and monitoring solution with ladder logic, relay and analog output, universal inputs and pulse counting. It supports RS232, radio and POTS telephone connections and can monitor up to 64 contacts in case of an alarm condition.


  • Windows® software with integrated Ladder/C compilers and real-time HMI design
  • Expansion modules include relay/analog output, universal input, and pulse count
  • Communicates through RS-232, radio, and phone lines
  • Notifies up to 64 contacts by phone, email, text, fax, or pager

Expandable Input/Output Points

Standard on each Sensaphone SCADA 3000 are 16 universal inputs and 8 relay outputs. The inputs can accept contact closures, 4-20mA transducers, 0-5 Volt sensors, and even thermistors.

As you grow and bring new machinery or facilities on-line, the Sensaphone SCADA 3000 can expand to meet your needs. Expansion modules are available to add specialized inputs such as thermocouples or high speed pulse counters, or even additional universal inputs.

Outputs can be expanded to add more relay channels, or 4-20mA analog output channels. You can add modules to the Sensaphone SCADA 3000 and keep expanding up to a total of 144 I/O points. With the wide variety of I/O types available to be used directly with the RTU, buying costly signal conditioners is a thing of the past!

Built in Data Logging
Fully programmable time-stamped data is not only standard, but it includes several unique options. Sensaphone SCADA 3000 not only internally logs and stores data, it produces reports via phone modem directly to your main computer or even a fax machine.

Radio network applications will have data logging performed from within the main computer’s free software.

Ladder Programming
Ladder Logic is the most easily understood and usable control language in use today. The Sensaphone SCADA 3000 makes it even easier. A full set of standard ladder instructions are built in along with counters, timers, and even analog capability.

There is no additional programming software to buy. The free software package comes complete with a Windows®-based drag and drop ladder editor that significantly reduces your setup time.

The Sensaphone SCADA 3000 has built-in C-programming to handle any control algorithms, which may be too complex for Ladder Logic. Though the C-program can run independently of ladder programs, we have built-in the capability of both programs to share and pass information back and forth for ultimate control. Of course, the necessary software to develop C-programs is included in our free software package!

PID Functions
Not only does Sensaphone SCADA 3000 built-in ladder and C-programming, we complete your control needs with built-in Proportional Integral Derivative control functions. Any analog input and output channel pair can be associated with up to 8 PID algorithms. Each algorithm will have its own set of fill-in-the-blank parameters.

Remote Programming Access
The Sensaphone SCADA 3000 has another unique function that sets it apart from other RTUs and PLCs: total programming is possible from local or remote locations! There are no chips to “ burn” and programming remains safe in case of power loss. You are in constant communication with your “remotes,” allowing you to program new control or alarm parameters 24 hours a day! Updating Ladder and C- programs can also be done remotely, allowing for maximum flexibility in communication and control.

SCADA 3000 – Specifications

  • Communication Method: Phone line
  • Number of Inputs 16 standard, expandable to 136
  • Input Types Contact, 10K, 4-20mA
  • Temperature Sensing Range -100° to 300°F | -65° to 150°C
  • Output Relay Eight universal output relays standard, expandable to 128 total
  • Remote Access Call in to check status and make programming changes
  • Local Access Keypad and speaker for local programming
  • Easy voice prompted programming
  • Password Protected
  • Four line LCD display
  • LED’s
  • Alarm Notification 64 custom voice phone calls
  • Data Logging 50,000 time stamped records
  • Power Supply Hard wired, optional battery backup
  • Dimensions 9.4 x 12.2 x 2” | 239 x 310 x 51mm • 3lbs | 1.3kg
  • Warranty 3 Years
  • Standards FCC Part 15 Class A, USA Emission Standards
  • FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards

SCADA 3000 – Included

  • 1 – Sensaphone 3000
  • Includes 16 input channels
  • Includes 8 output channels
  • Includes built in 24VDC power supply
