(SVE/SPARGE-51) TRAILER, SVE/AIRSPARGE (#AES-42F)(295-345 CFM / 88-56″h20/90 CFM – 22 psi)

Trailer 42F SVE/Sparge

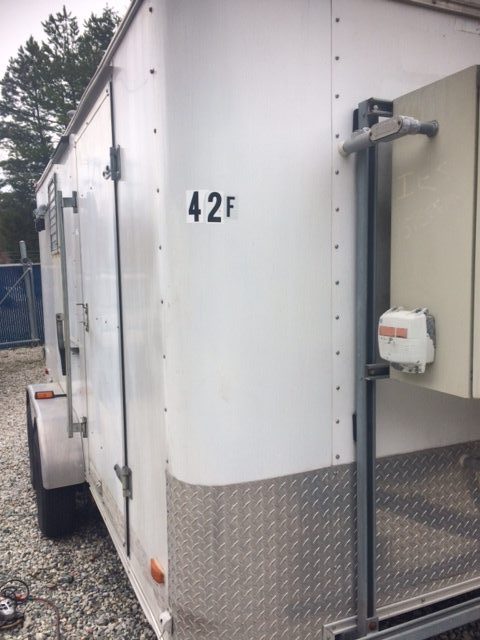

Trailer – Transport 14 X 8 X 7 tandem 3,500lb axles 5 lug 2 5/16” ball

Disconnect – SQ D 230V 3ph 100A fused front mounted

Control Enclosure – front mounted with dead front controls

Control – Direct Logic 06 PLC

SVE

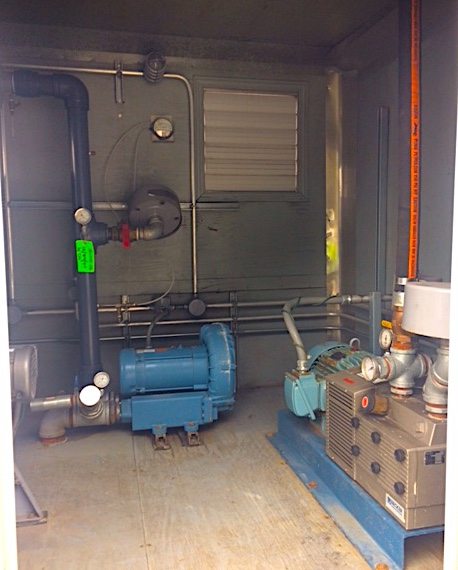

Vacuum Blower – Ametek EN707F72MXL 5HP 230V 3ph 14FLA

295-345 CFM / 88-56″h20

In line filter – Soleberg C5C 335P-300

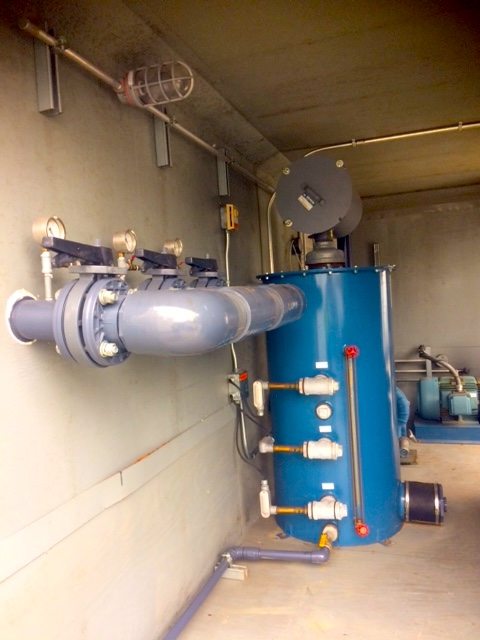

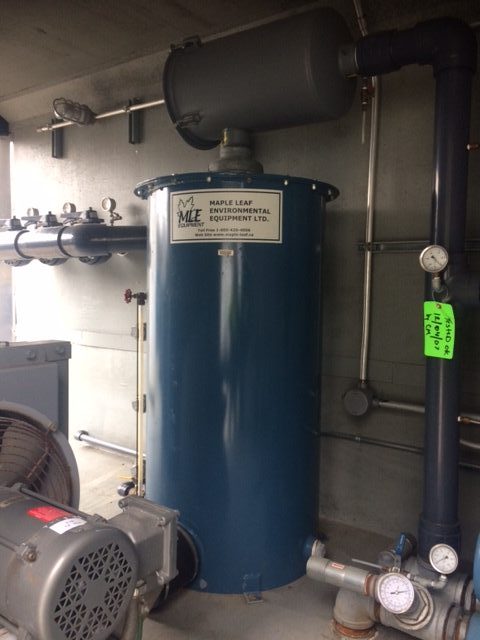

A/W separator tank – Maple Leaf 60 gallon with ½ “ site tube

Level switched – WE Anderson B23 level switches

3 – 3” in with vacuum gauges

3 – 4” manual gate valves with vacuum gauges and bleed valves

4” manifold into A/W separator tank

Sparge

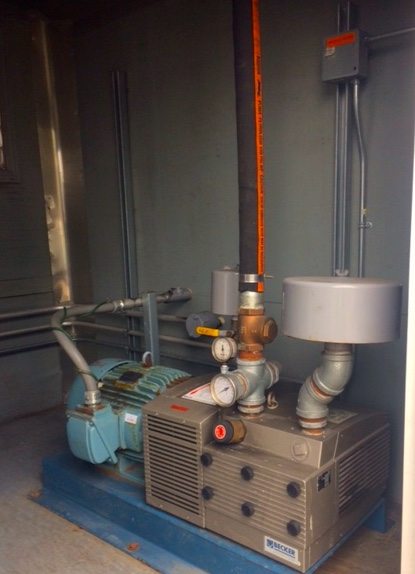

Compressor – Becker KDT 3.14 15HP 230V 3ph 34.5FLA

Max. 90 CFM / 22 psi

THE KDT SERIES

Heat Exchanger – American Ind. ACA3182-3-E ¼ HP 230V 3ph 1.3FLA

Temp Switch – United Electric B100-120

9 position 1 ½ “ manifold to ¾ “

Dwyer 0-50 scfm and 0-10 scfm flow rate meters

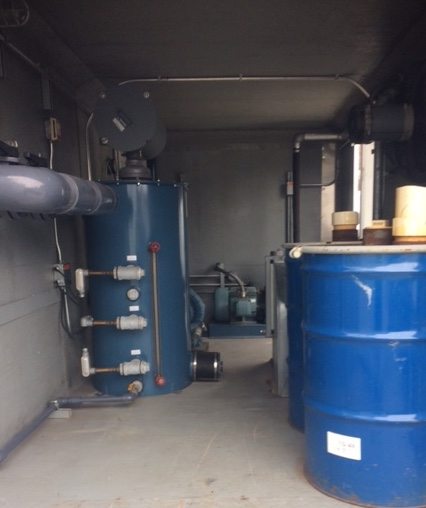

Carbon vessels – Remediation Services 55 gallon drum type

Exhaust Fan – Canarm XP 24” ½ HP 3ph 230V 3.1FLA

XP lighting and switches
