(SVE/SPARGE-39) TRAILER, SVE/AIRSPARGE (#AES-18F). *** $32, 500.00 ***

Trailer 18F SVE/Sparge

Trailer – Hallmark 17 X 7 X 8 tandem 3,500lb axles 5 lug 2 5/16” ball

Circuit Breaker Panel on power input

Front mounted control panel with dead front controls

Control logic – Idec Micro logic PLC with extension module

Signet model 855D-1 digital flow meter mounted in dead front

Warrick 67 series level controls

SVE 16 points

Separate SVE and Sparge rooms

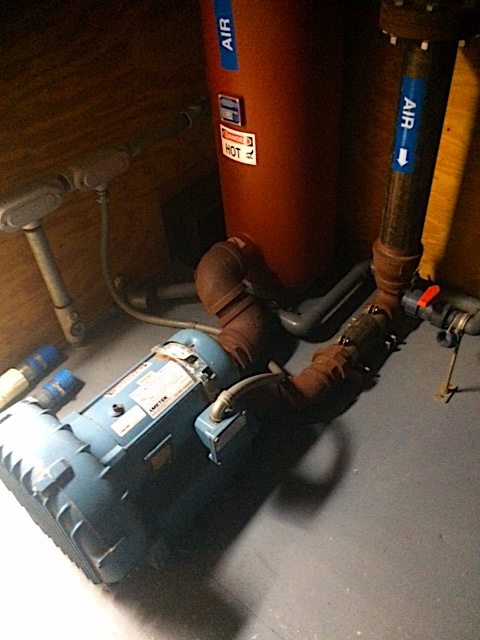

Vac Blower – Ametek model EN707F72MXL 5HP 230V 3ph 14FLA

Stoddard model D1311-4 Silencer with temperature and pressure gauges

Discharge Pressure magnahelic

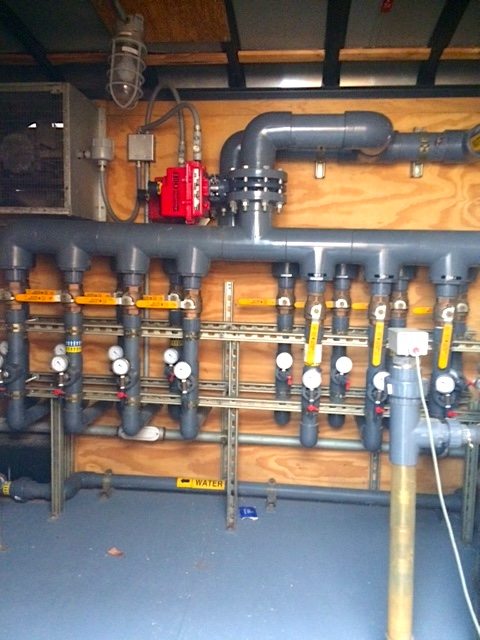

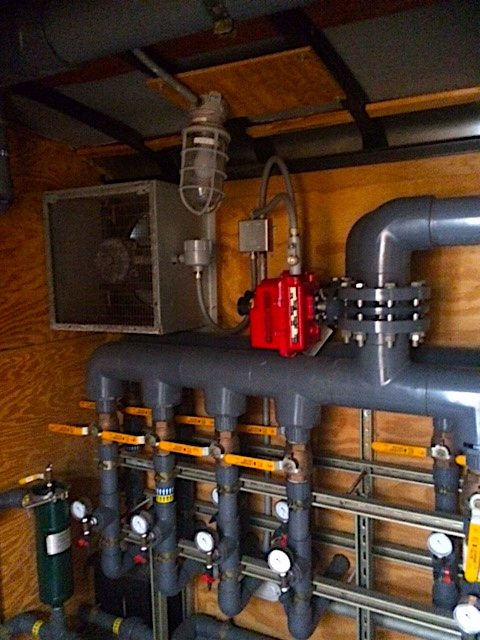

2 – 8 point manifolds 2”

2 – Uarter Master Chief model S92XWJ automatic actuated valves

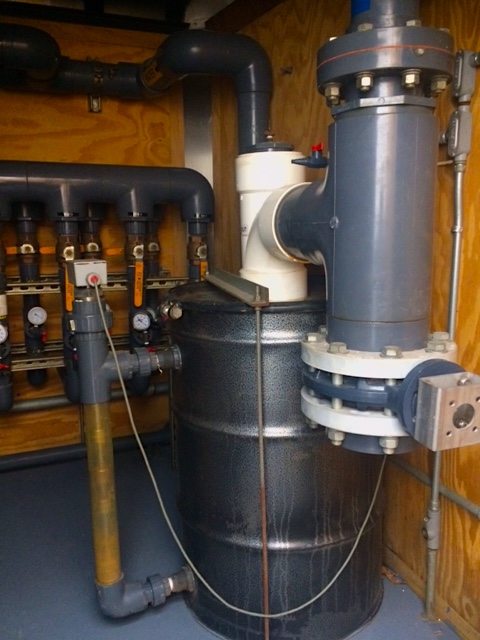

A/W separator Tank – 55 gallon with site glass and L500 level switch array

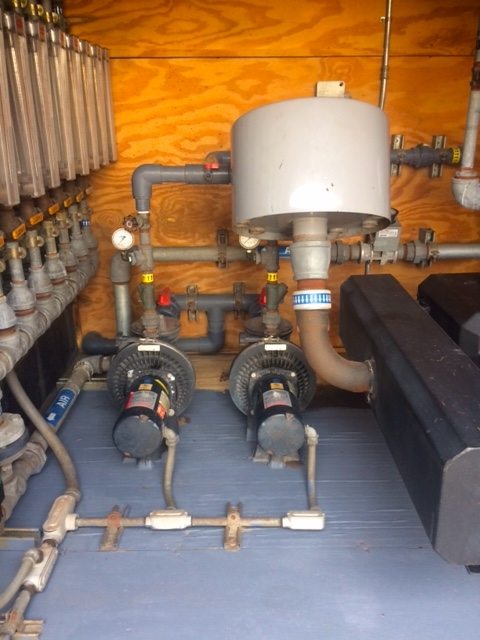

2- Transfer pumps – Sta-Rite model P2RA50-1806 230V 1ph 3/4HP 6.7FLA

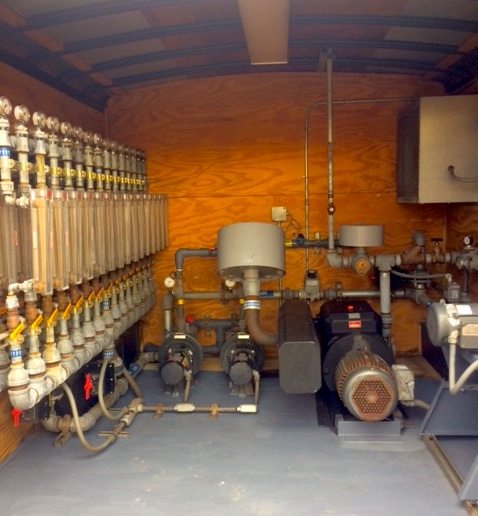

Sparge 30 point

Sparge Pump – Rietschle DLR 250 15HP 230V 37FLA

Heat Exchanger – American Industrial model ACA3242-91684

In line temperature and pressure gauges

Barksdale model ML1H-H203 temperature switch

Ametek model FM20C225Q in line flow rate meter

Uarter Master automatic actuated valves on 2 – 15 point manifolds

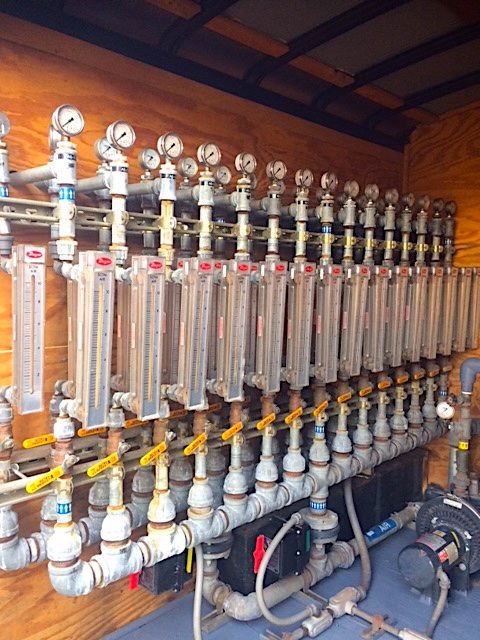

30 – Dwyer RMC series 0-10 scfm flow rate meters with pressure gauges and ball valves

Dayton XP exhaust fans in both rooms

XP lighting in SVE room

Florescent lighting in sparge room

Emergency shutoffs in both rooms
