(SVE/SPARGE-38) TRAILER, SVE/AIRSPARGE (#AES-17F)

Trailer 17F   SVE/Sparge

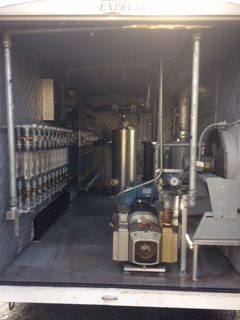

Trailer – Express 16 X 8 X 8 tandem 3,500lb axles 5 lug 2 5/16” ball

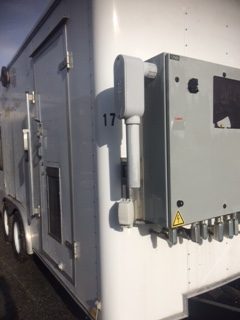

Control Panel – Front mounted with dead front controls UL listed

230V 3ph 200A main breaker in panel

Control – relay logic

SVE 13 points 2”

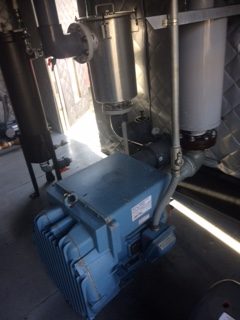

Vacuum Pump – Ametek modelEN909BG72WL 15HP 230V 34FLA

Input and exhaust filters with temperature and flow gauges on exhaust

Pre and post filter vacuum gauges on inlet

13 inputs with ERDCO model 711-O8T 100S flow rate meters, vacuum gauges, sample ports and manual valves

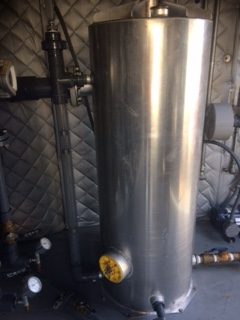

A/W Separator Tank – 120 gallon aluminum with site glass and level switch array

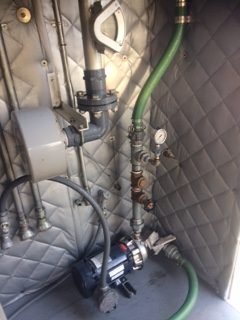

A/W Separator Transfer Pump – Gould NPE 230V 3ph 4.8FLA with output sample port

Bag Filter housing – Krystal Kleer model 18830

Differential Pressure Switch – Dwyer model 1950

Sparge 19 Point

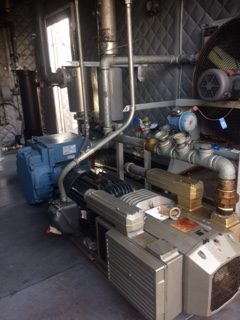

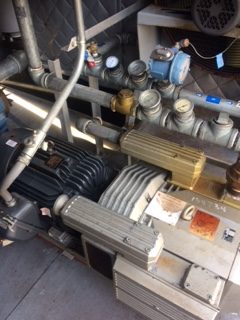

Sparge Compressor – Becker model DTLF 250 20HP 230V 3ph 54.7FLA

In line temperature and pressure gauges

United Electric model B1-120 thermal cutoff switch

Heat Exchanger – American Industrial model ACA3302-3-E

1 manifold

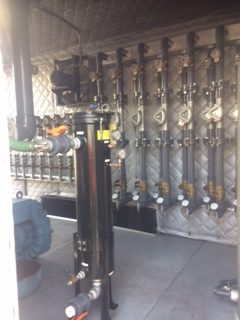

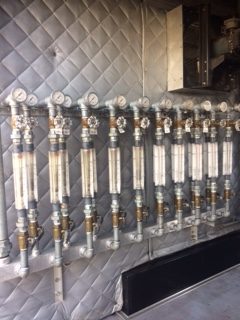

(19) Dwyer model VFC-121-EC 0-25scfm flow rate meters

Pre and post meter manual valves and pressure gauges

All 1” out

XP exhaust fan and lighting
