(SVE/SPARGE-37) TRAILER, SVE/AIRSPARGE (#AES-43F). *** $ 28,500.00 ***

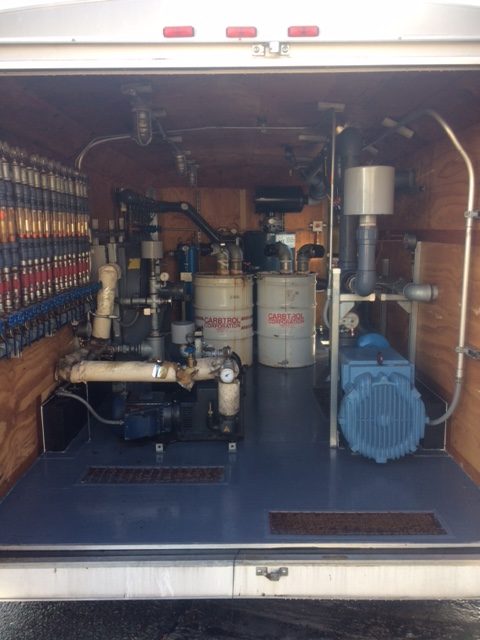

Trailer 43F SVE/Sparge

Trailer – Middlebury 16 X 8 X 7 tandem 3,500lb axles 5 lug 2 5/16” ball

Square D 100A fused disconnect

Control Panel – Front mounted with dead front controls

Control – relay logic

SVE

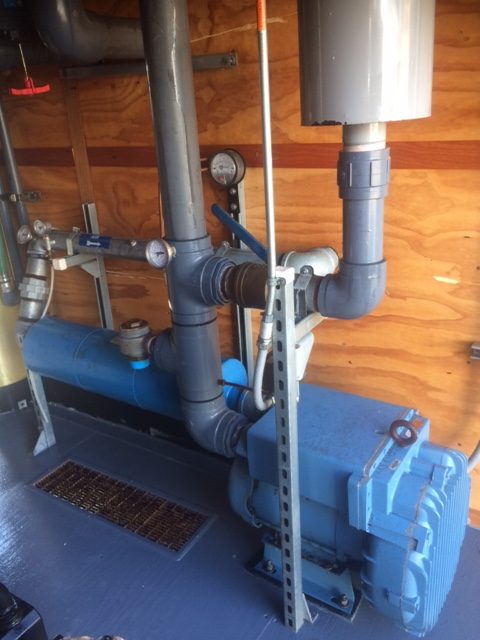

Vacuum Pump – Ametek model EN858BD72WL 10HP 230V 24FLA with input filter and vacuum gauge

Rotron EN757 1-Phase Regenerative Blowers
Rotron EN858 Regenerative Blowers
Brand Ametek Rotron
Model EN858BD72WL
Max Pressure 120 in H₂O
Max Vacuum 95 in H₂O
Max Air Flow 380 CFM
Motor
Explosion Proof
Yes
Horsepower
10.00 HP
Phase
3
Voltage
230 / 460

Silencer – Universal model URB-3 on exhaust

6 – recovery points with vacuum gauges

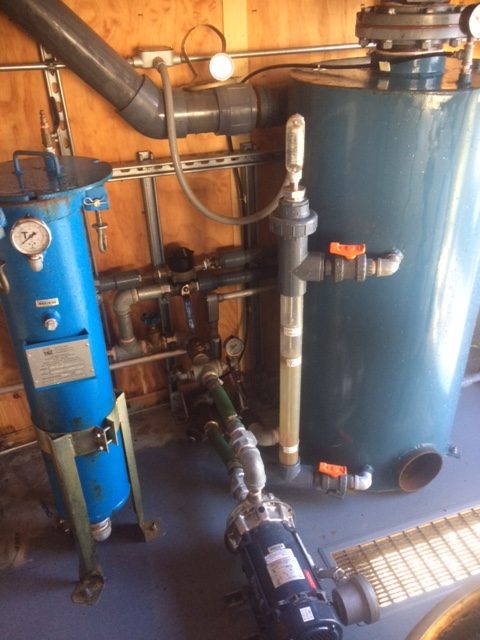

A/W separator Tank – 70 gallon with site glass and level switch array

A/W separator Transfer Pump – Gould NPE 1 1/2HP 230V 3ph 4.8FLA

Bag Filter Housing – Maple Leaf model EB112-2P-SW

Carbon Vessel – Carbtrol 200lb also 2 Carbtrol 55 gallon carbon vessels

Sparge 18 point

Sparge Pump – Rietschle DLR 100 7.5HP 230V 3ph 17.8FLA

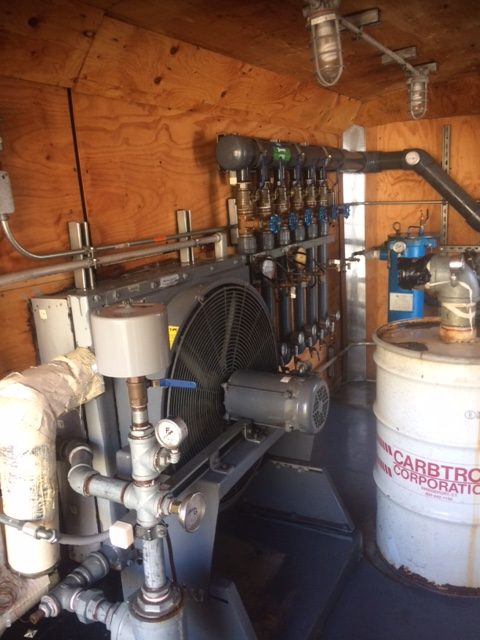

Heat Exchanger – American Industrial model ACA3302-3-E

Mercoid series A1 differential pressure switch

Temp and pressure gauges heat exchanger out to 1 manifold

18 – Chemline 0-16scfm flow rate meters with gate valves and pressure gauges 1” out

XP lighting
