(SVE/SPARGE-35) TRAILER, SVE/AIRSPARGE (#AES-27)(300 CFM @ 21” hg)(35 CFM @ 175 psi)

Trailer # 27 – Dual Phase Extraction and Air Sparge System

480V 3 phase input

System Contents

  1. Hallmark Grizzly model GR85X22WT4 23 X 8 X 7 tandem 7,000 lb. axles 2 5/16 ball with non-classified and hazardous rooms.
  2. Dual phase extraction vacuum pump
  3. Phase separator
  4. Phase separator transfer pump
  5. Air compressor with sparge manifold

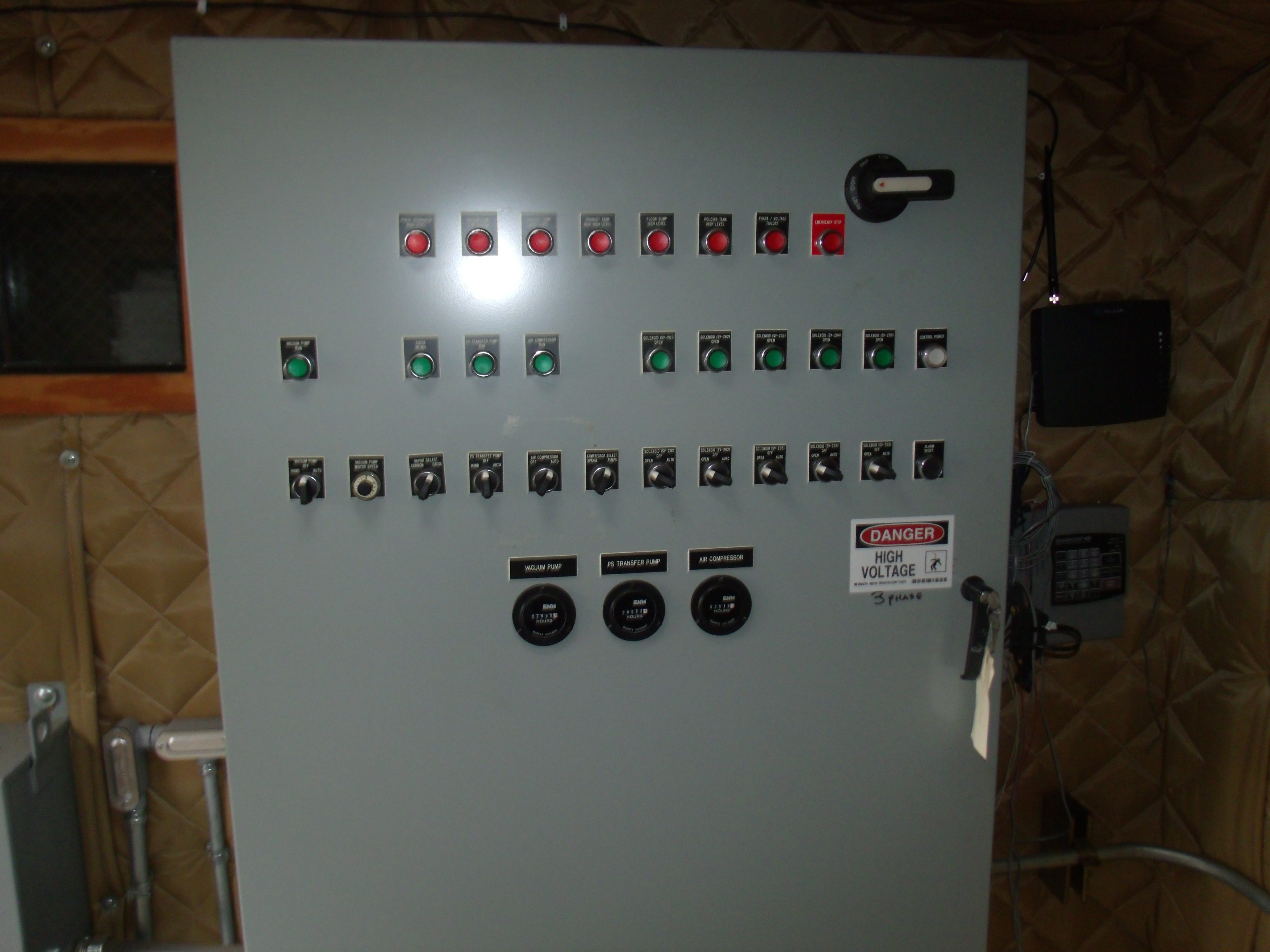

  6. Master control panel

Conponents

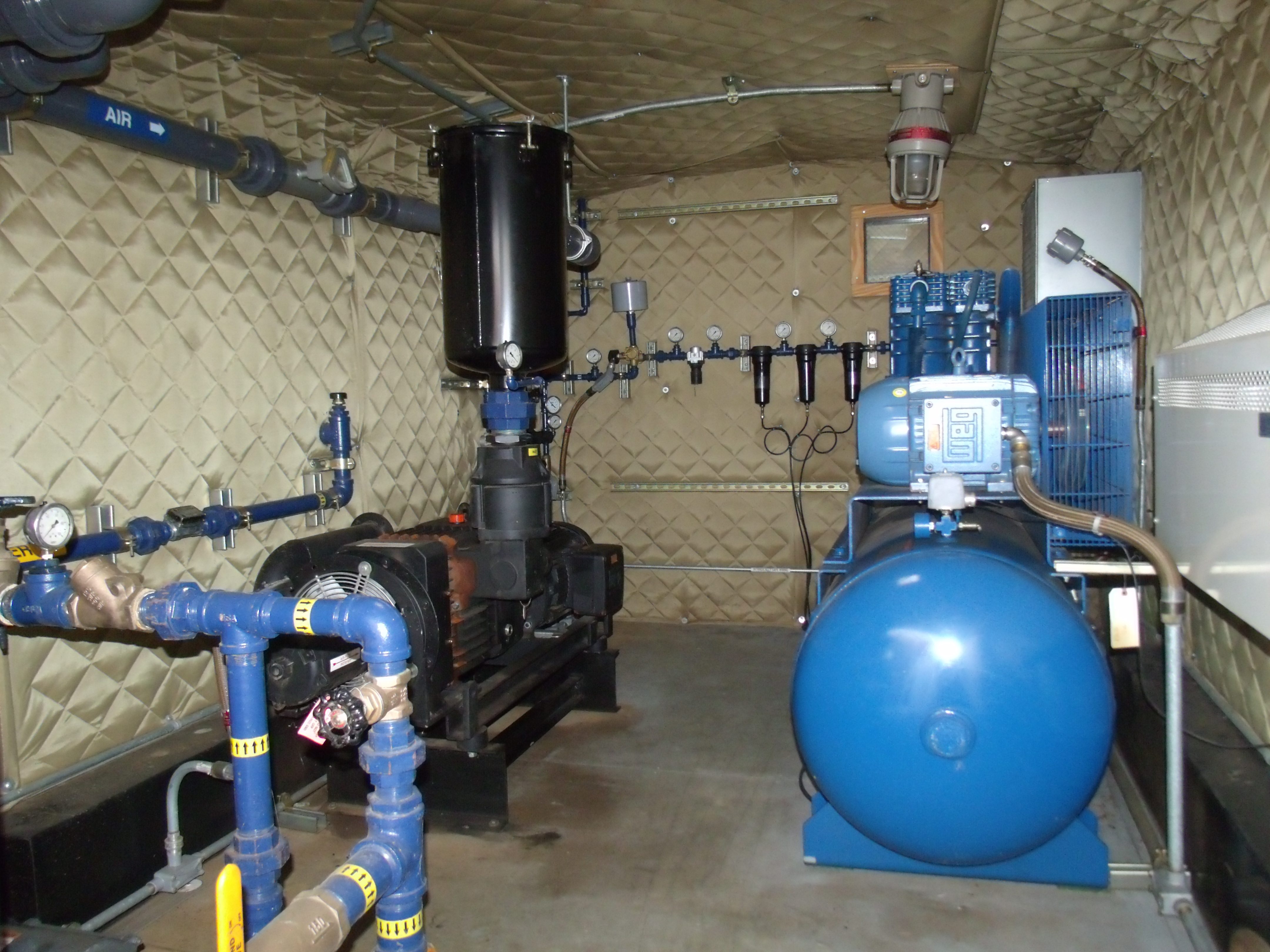

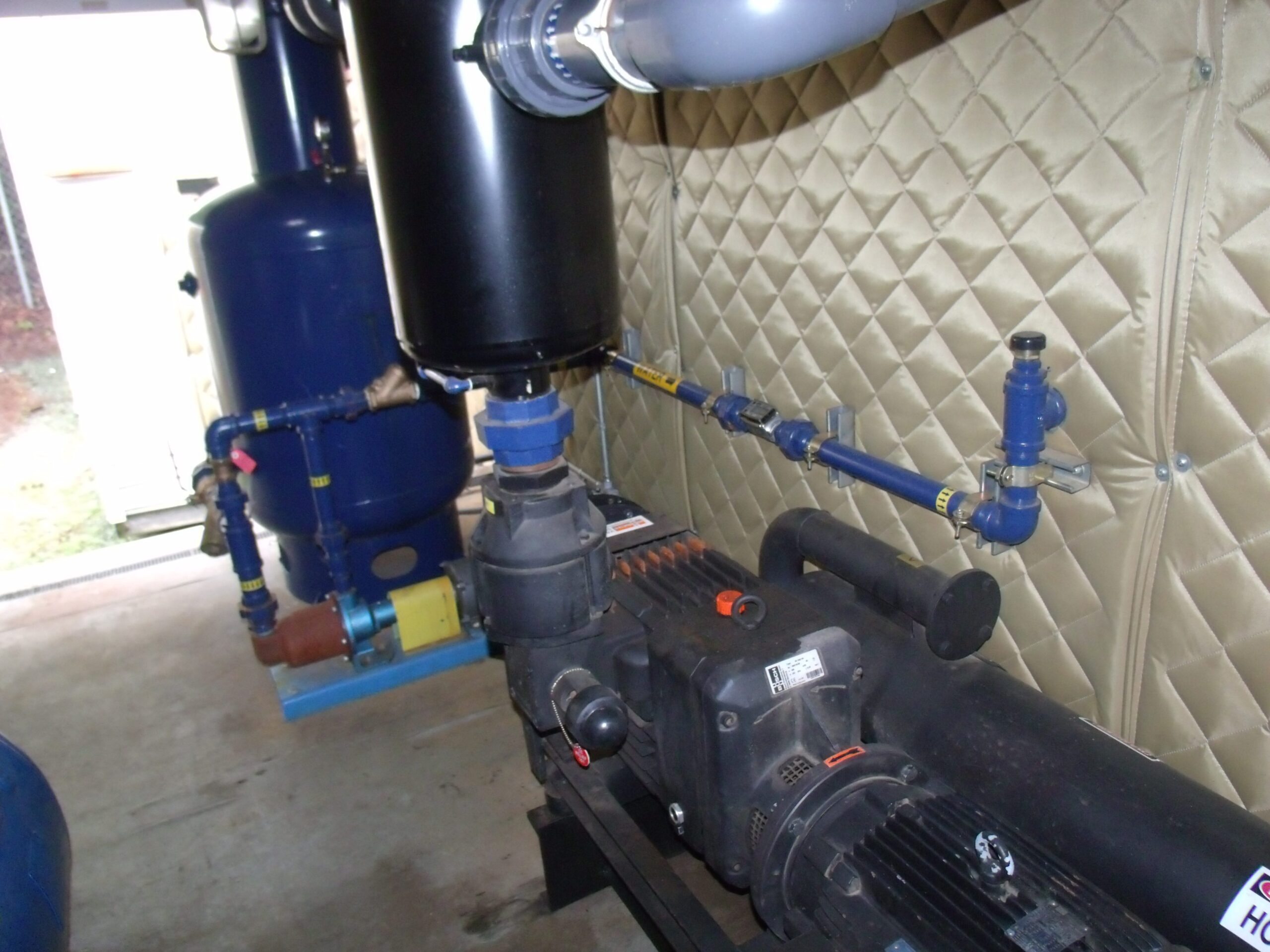

  1. Vacuum Pump – Busch Mink model M1 1502 BV rotary claw – 20HP 23.3FLA TEFC-XP 300CFM @ 21” hg. 376 CFM max. with Hitachi series L300P VFD
  2. Air Compressor- Quincy QT-10-120 – 10HP 12.8FLA TEFC-XP
  3. Three Stage Coalescing Filter with Pressure gauges/controls, solenoid controlled bleed with canister filtration.
  4. Transfer Pump – Moyno model # 35601 – 1.00HP 1.1FLA

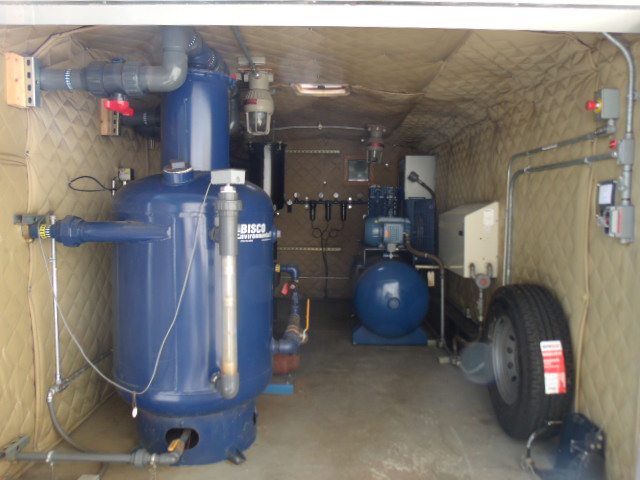

  5. Knockout tank – Bisco 100 gal. with Innovative Solutions L500 level switches and sight glass

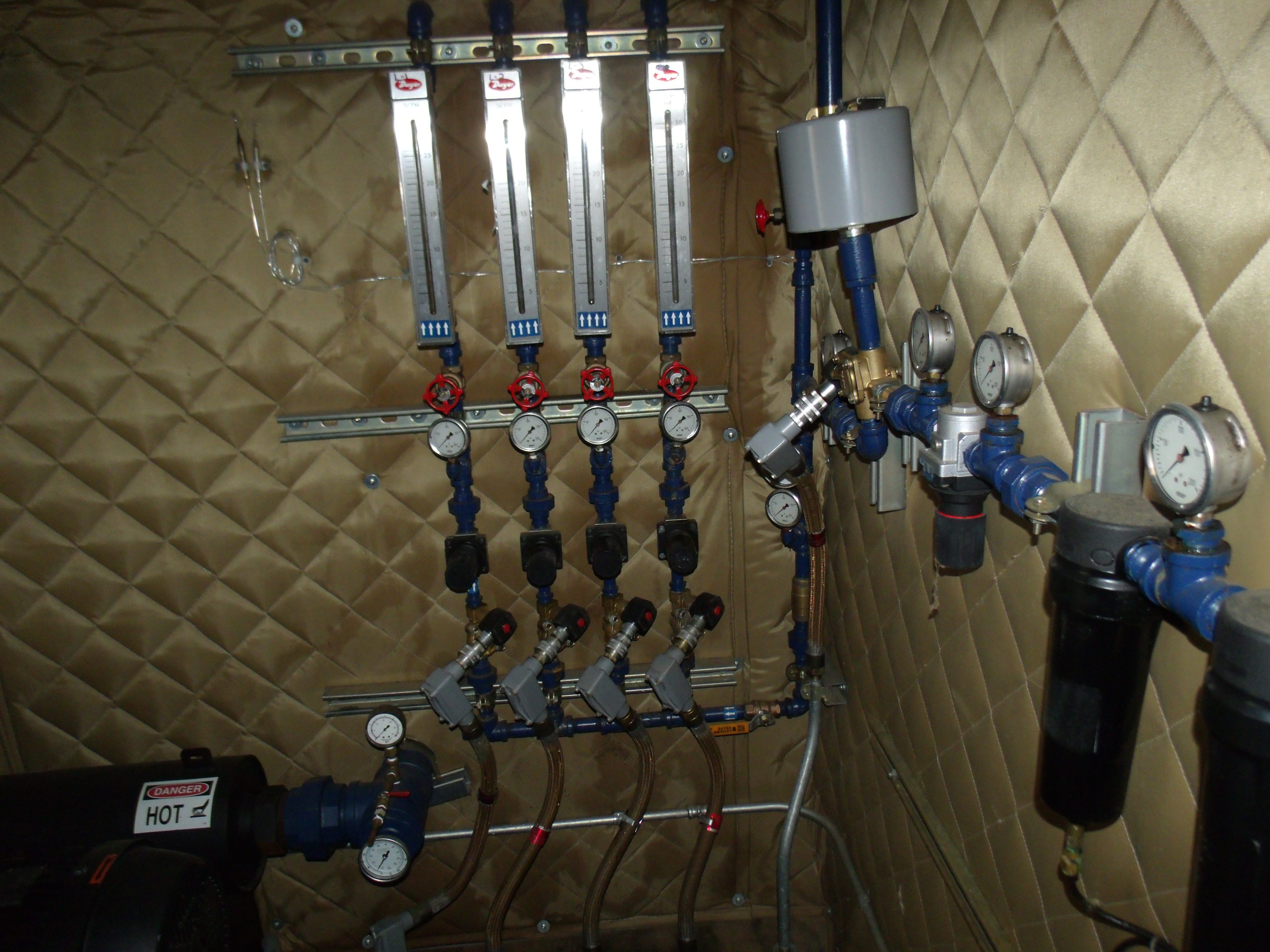

  6. Sparge Manifold – 4 Dwyer Rate Master flow rate meters 0- 30 SCFM with regulators ASCO solenoids and Pressure Gauges
  7. Morning Star solar panel with Sun Saver 10 solar controller 12vdc- powers telemetry
  8. Heater – Dayton model 2YU59 480v 3kw
  9. Heater – haz. Area – Marley 480v 3.6kw 4.1a
  10. (2) Exhaust fans – Dayton 1/4hp 12” 120v 5a TEFC
  11. 4’ florescent in nonhaz. Area
  12. Johnson controls thermostats

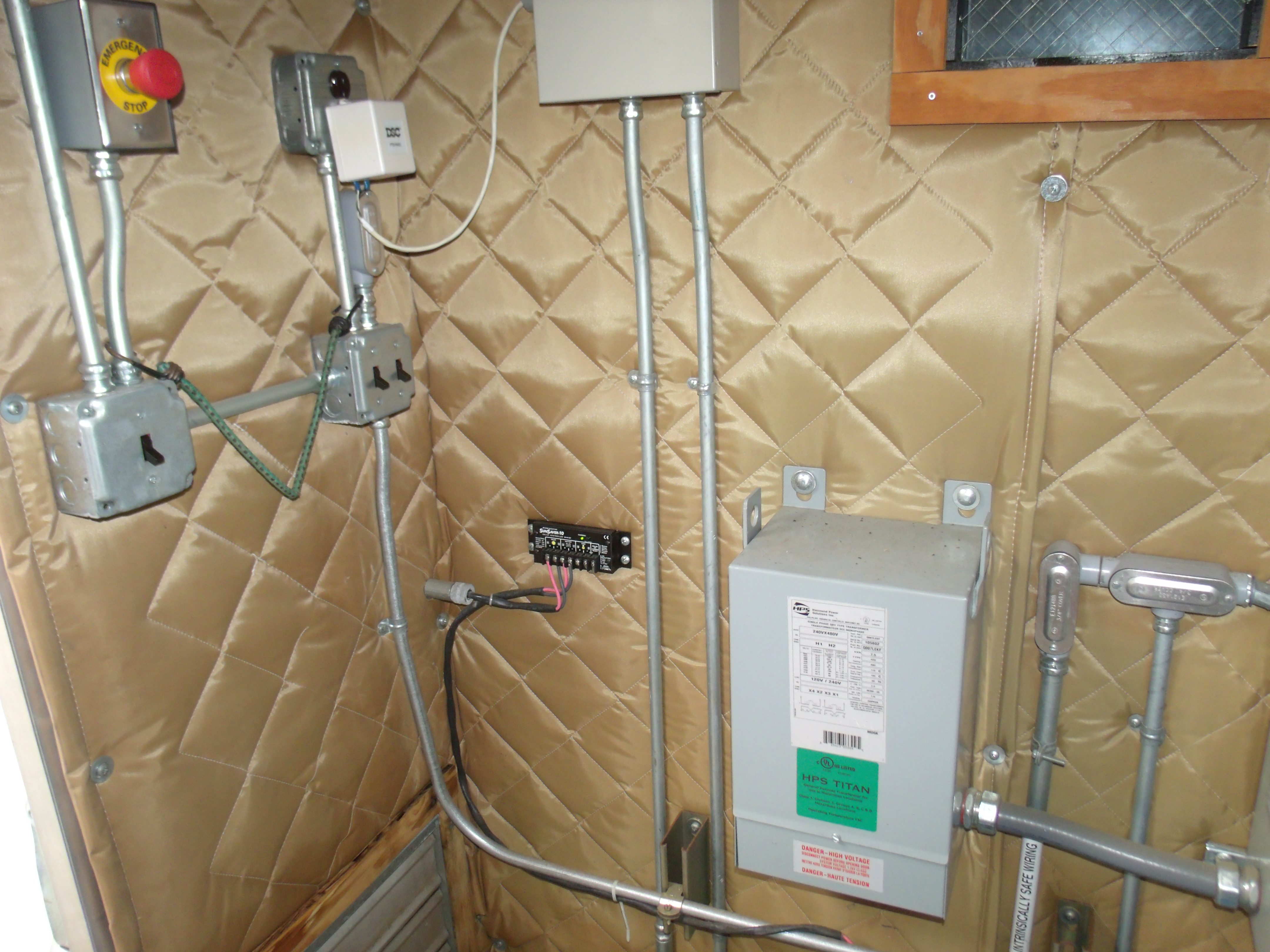

  13. HPS Titan Tranformer

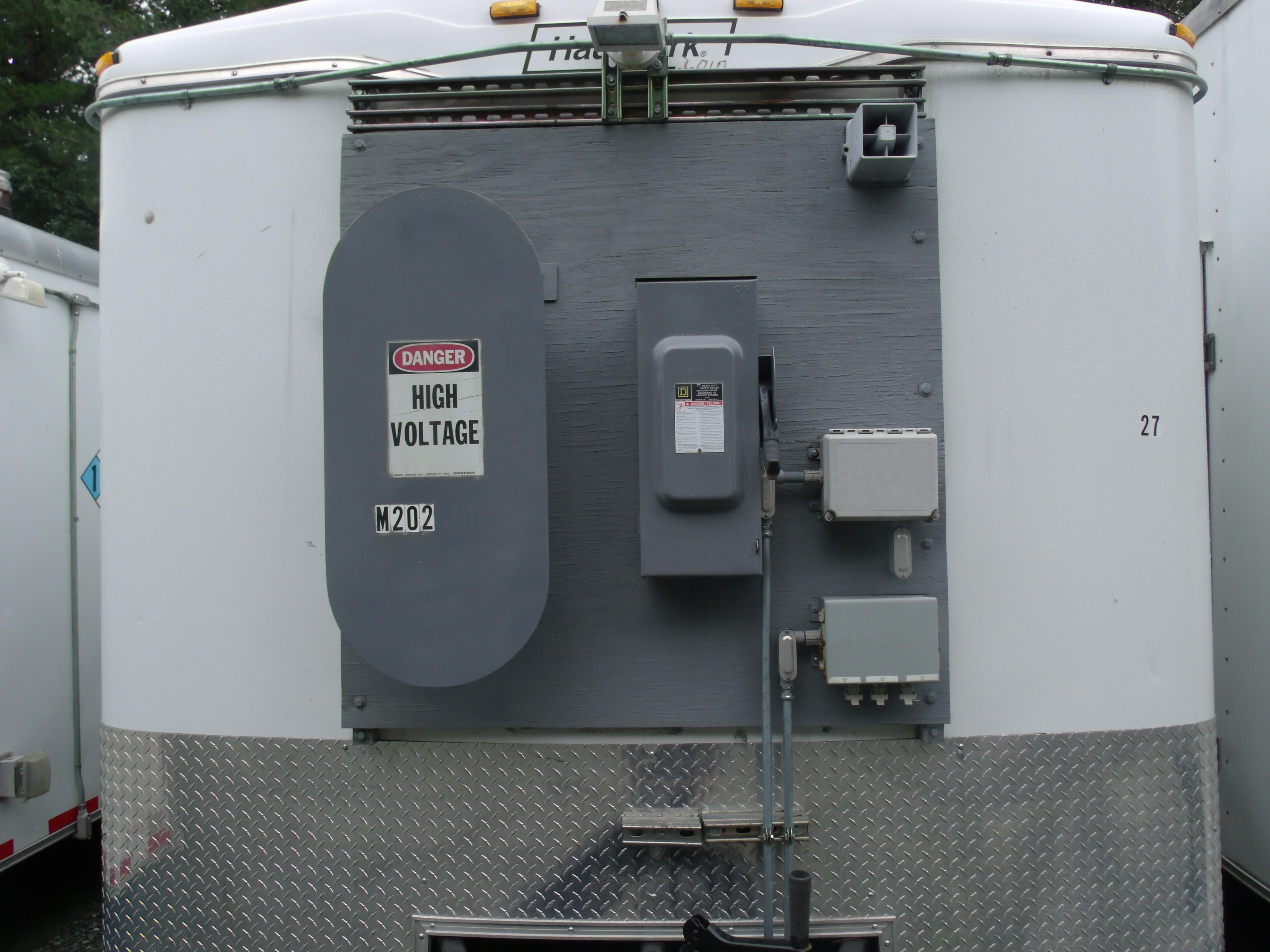

  14. Disconnect – Square D 3Phase
  15. Emergency Shutoffs
  16. Two Explosion proof overhead ;ights
  17. New Spare Tire
  18. Sound Proofing
  19. Exterior Lighting
  20. Observation Window
  21. Fire Extinguisher Mount
  22. Erdco Flow meter
