(SVE/SPARGE-31) TRAILER, SVE/AIRSPARGE (#AES-26F). *** $ 39,000.00 ***

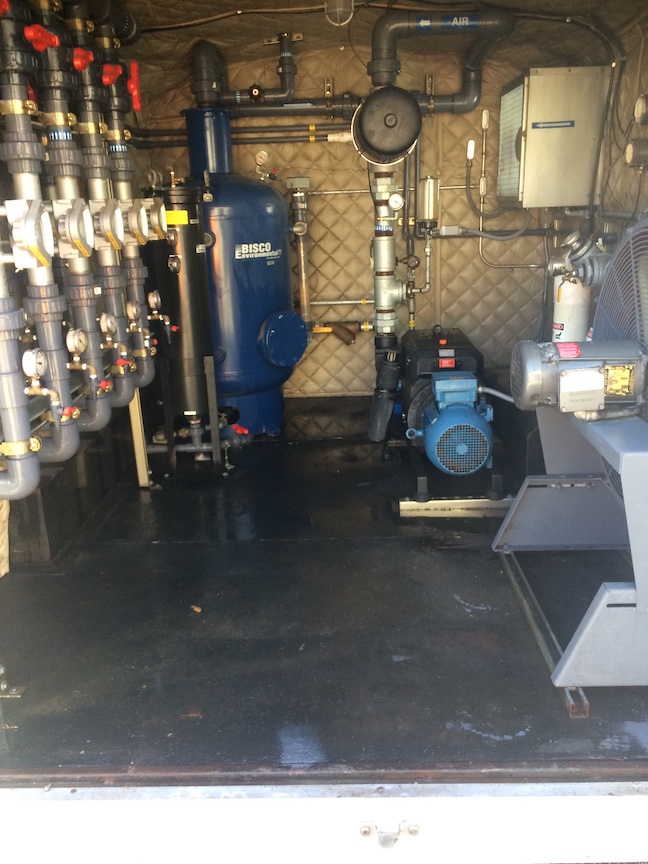

Trailer 26F   SVE/Sparge

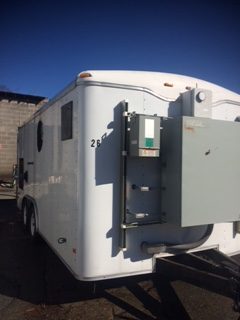

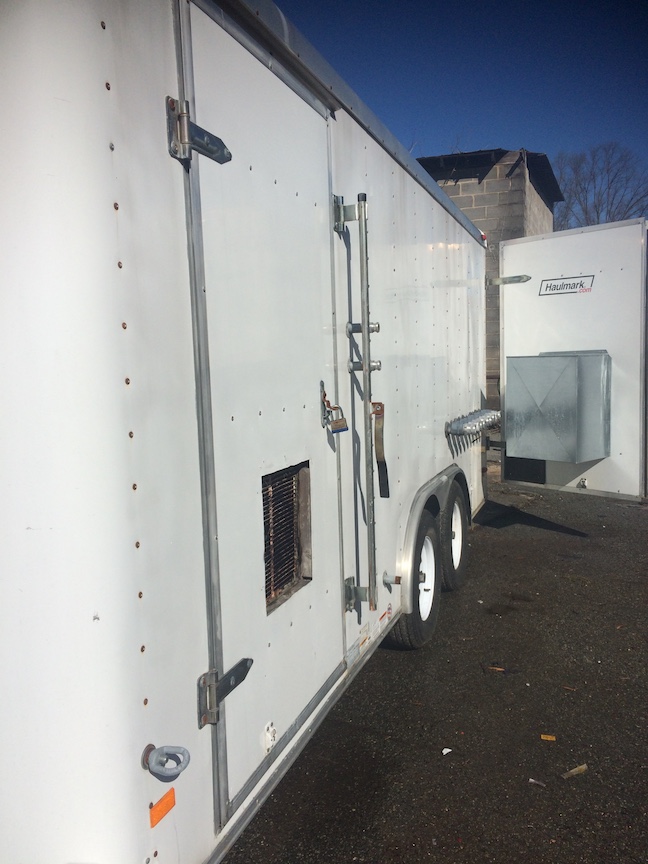

Trailer – Hallmark 17 X 8 X 7 tandem 3,500lb axles 5 lug 2 516” ball

Main Disconnect – Square D 460V 3ph 50A fused

Control Panel – Front mounted with dead front controls 42 X 36 X 12   UL listed

Control – Relay logic

SVE 1 point 3”

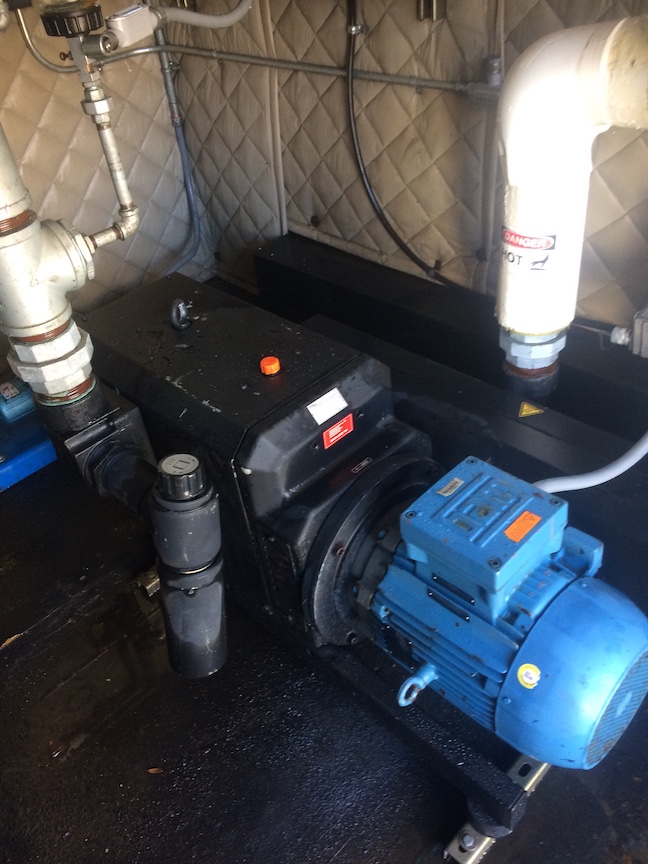

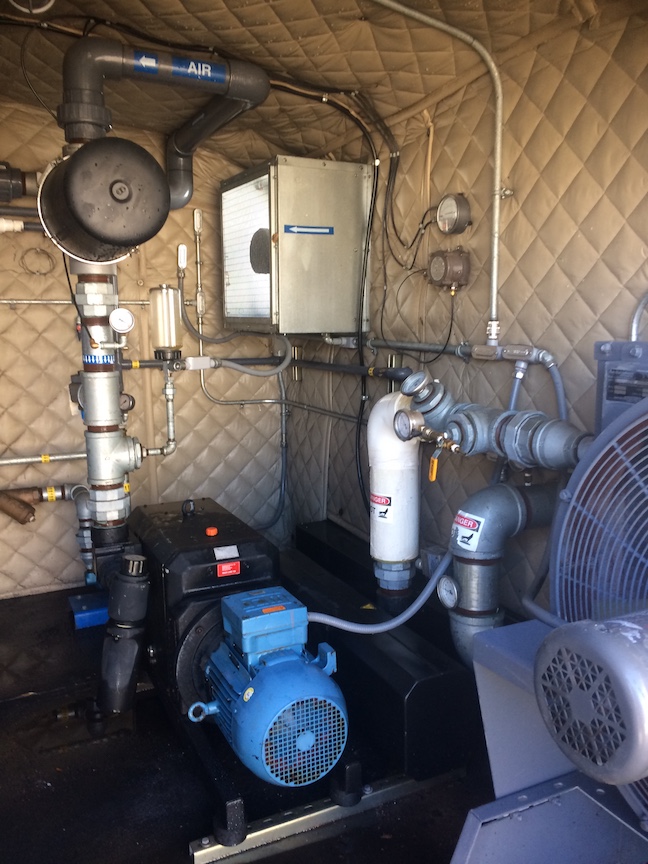

SVE Pump – Rietschle model ULR 400 10HP 460V 3ph 14FLA

Kunkle model 215V-H01-QE0016 Vacuum relief valve

Soleberg model CT-235P-300C inlet filter

Soleberg model FS31P-200 air dilution filter

Oil Rite model B-1764-4 SVE blower auto oiler

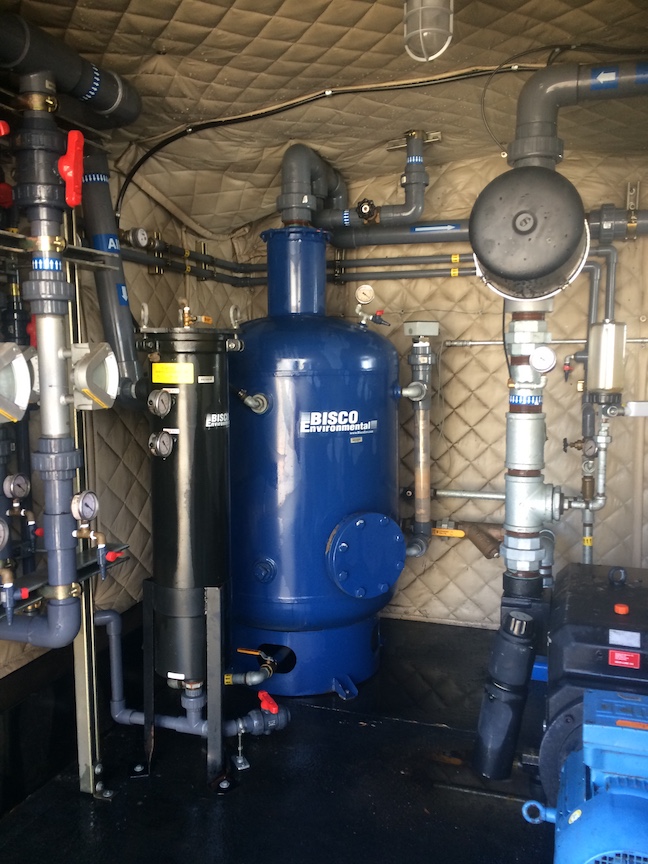

Moisture Seperator – 120 gallon with site glass and L-500 series level switches

ACS mist eliminator

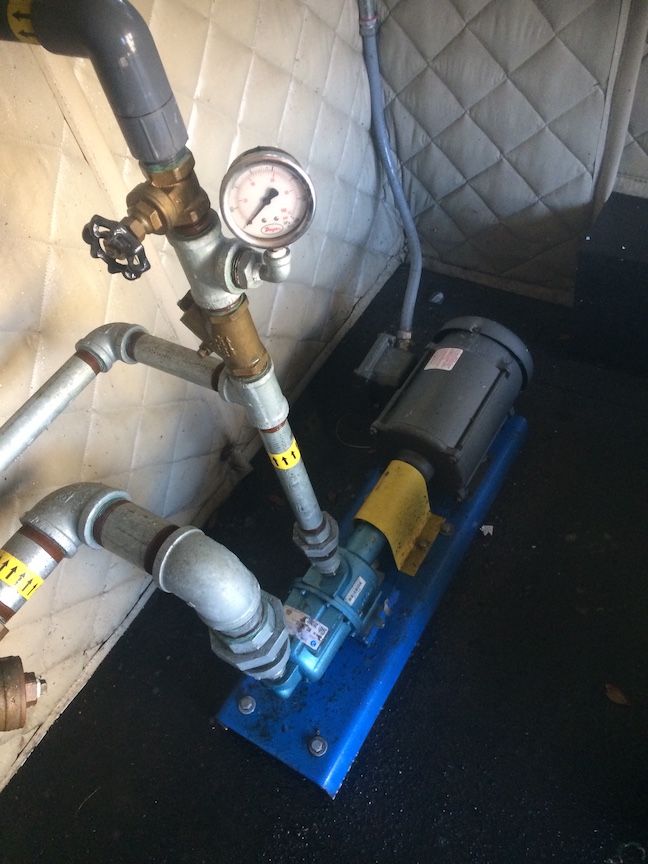

M/S Transfer Pump – Moyno model 34401

Krystal Kleer Filtration model 88 bag filter housing

Dwyer model 2010 differential pressure gauge

Dwyer Magnehelic Ddifferential pressure gauge

Dwyer model 1950P-8-2-f SVE low vacuum switch

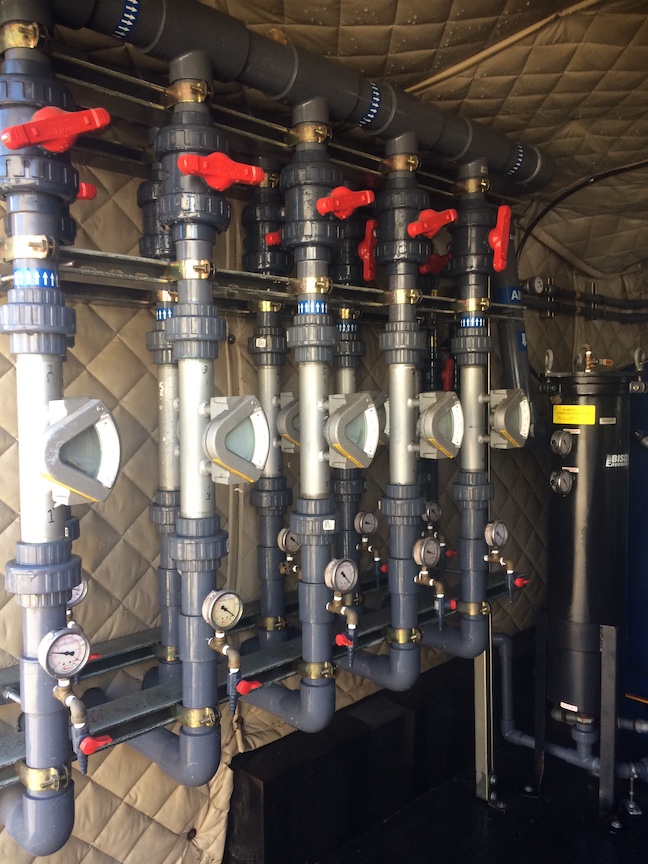

ERDCO model 711-O8T-050S SVE manifold air flow meter

Istec 1700 series M/S transfer pump flow meter

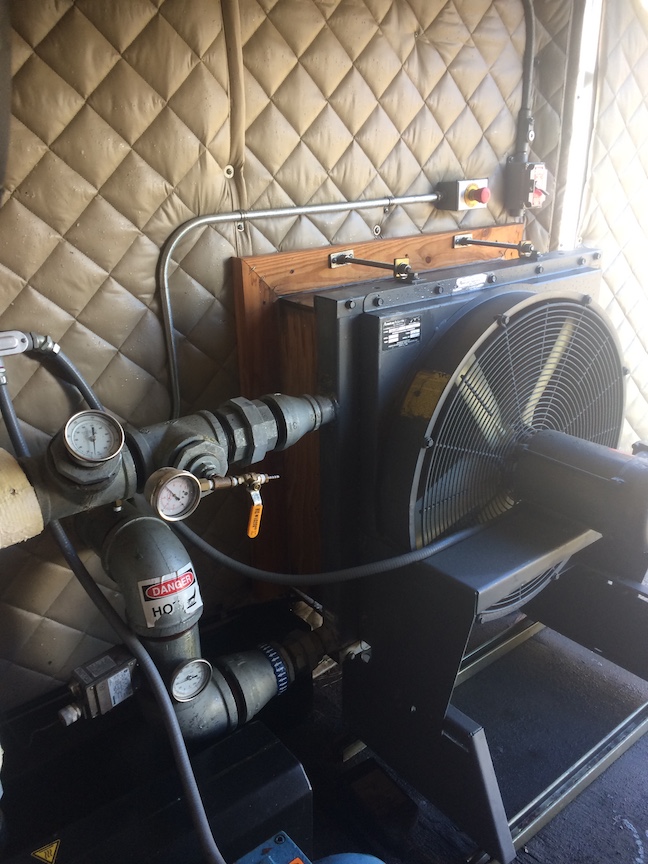

Heat Exchanger – Barksdale model ML1H with hi temperature switch

Sparge   2points

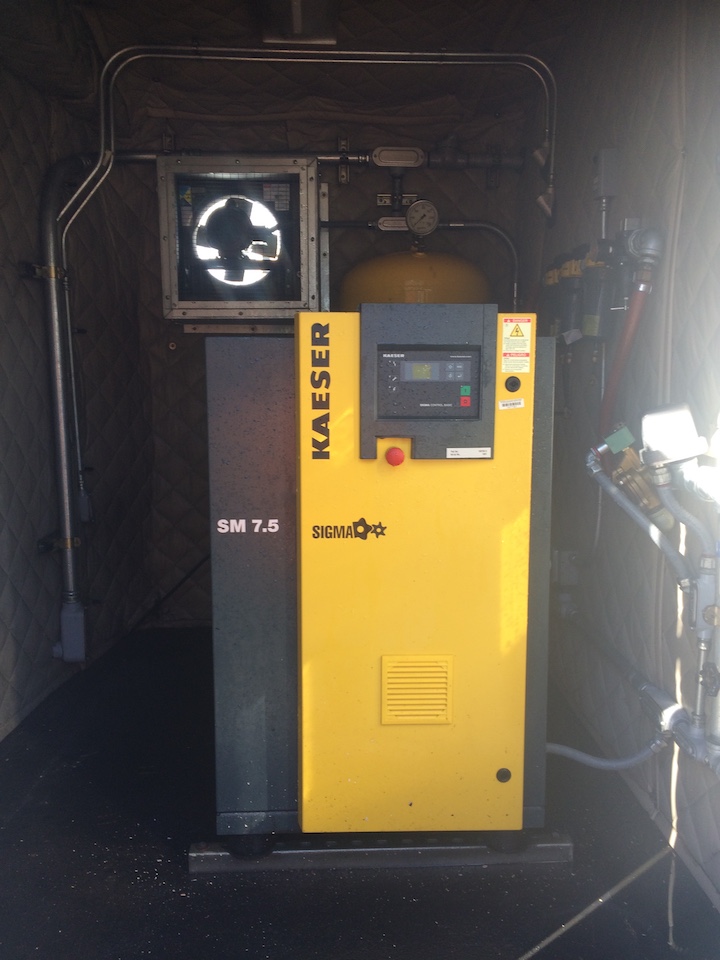

Compressor – Kaeser model SM 7.5 screw compressor 460V

Kaeser model sm sigma control

Kaeser eco-drain automatic tank drain

Mercoid series A1 air sparge pressure switch

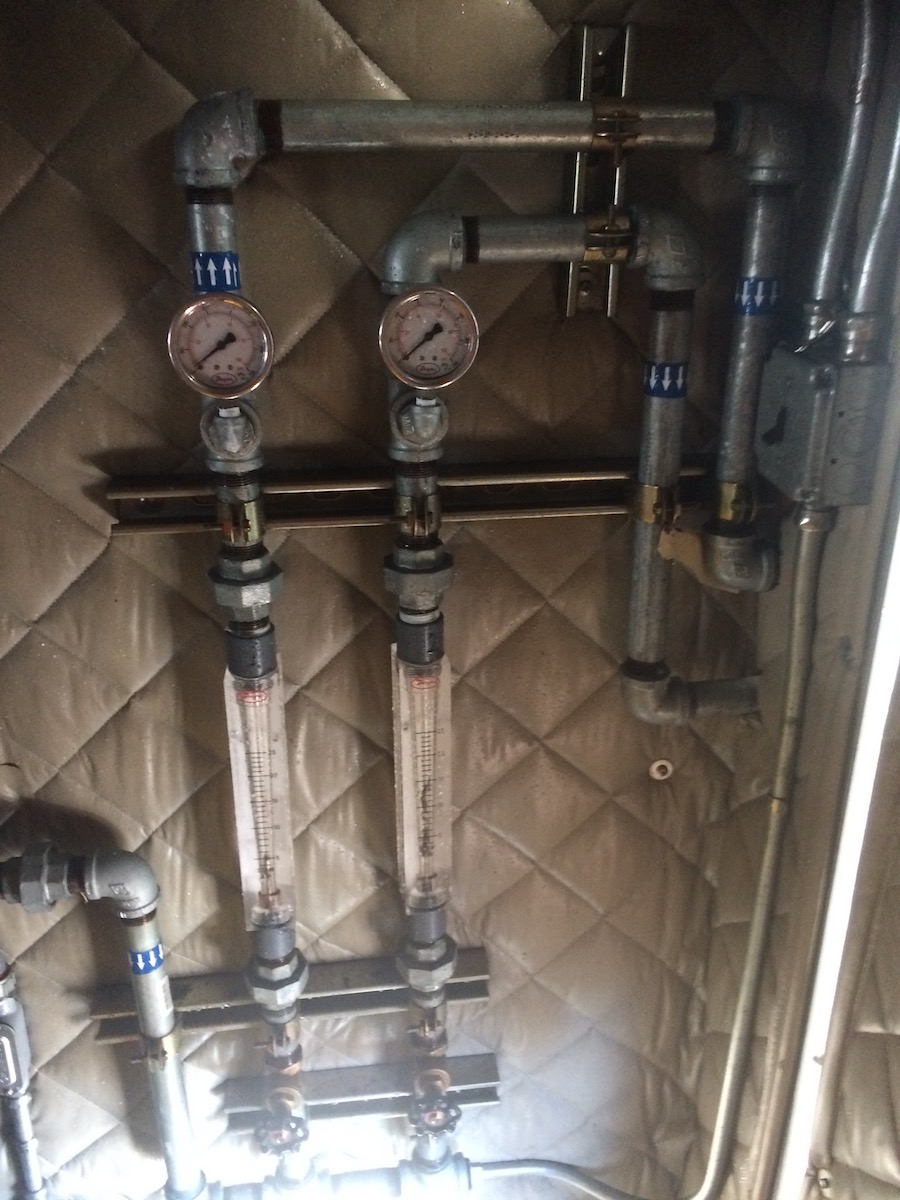

2 – Dwyer VFC-121-EC flow rate meters 0-25 scfm

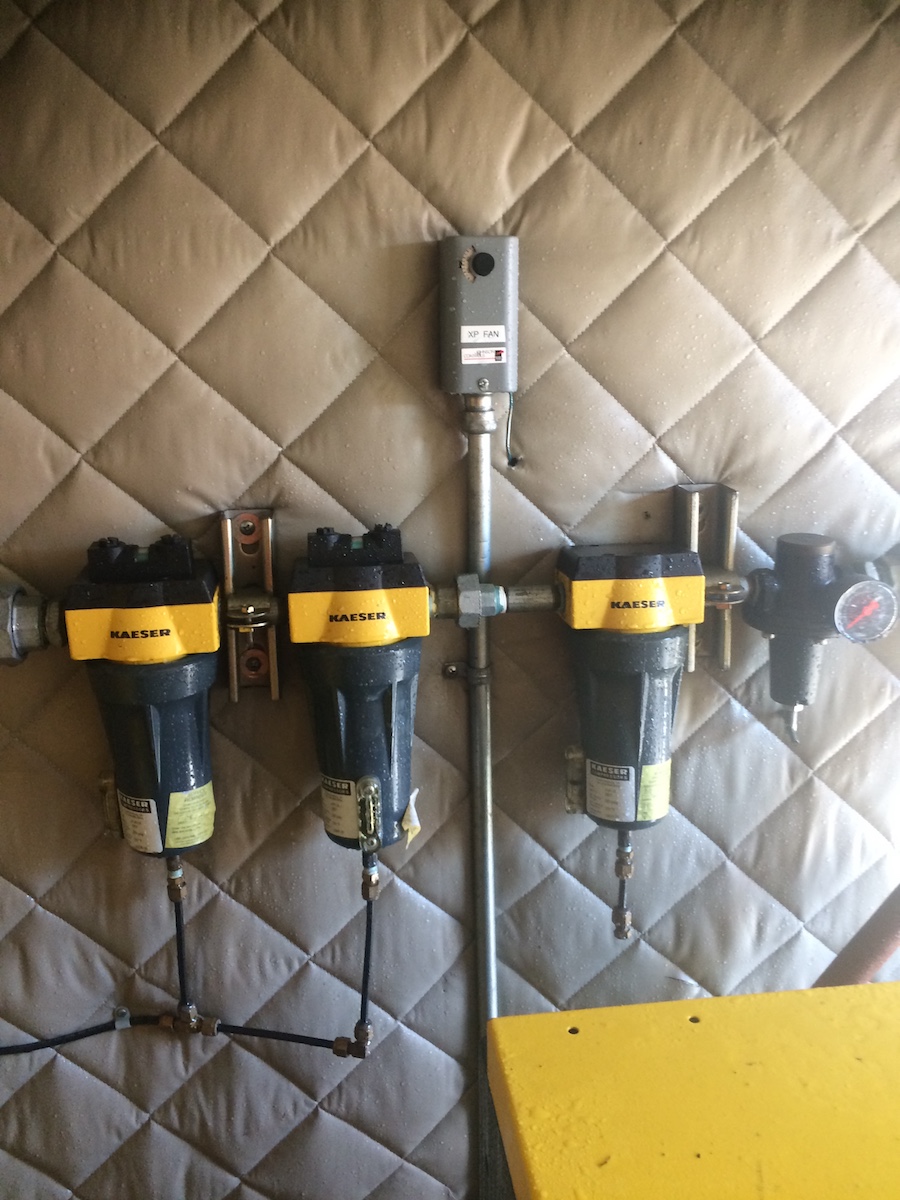

Kaeser in line oil and water filters

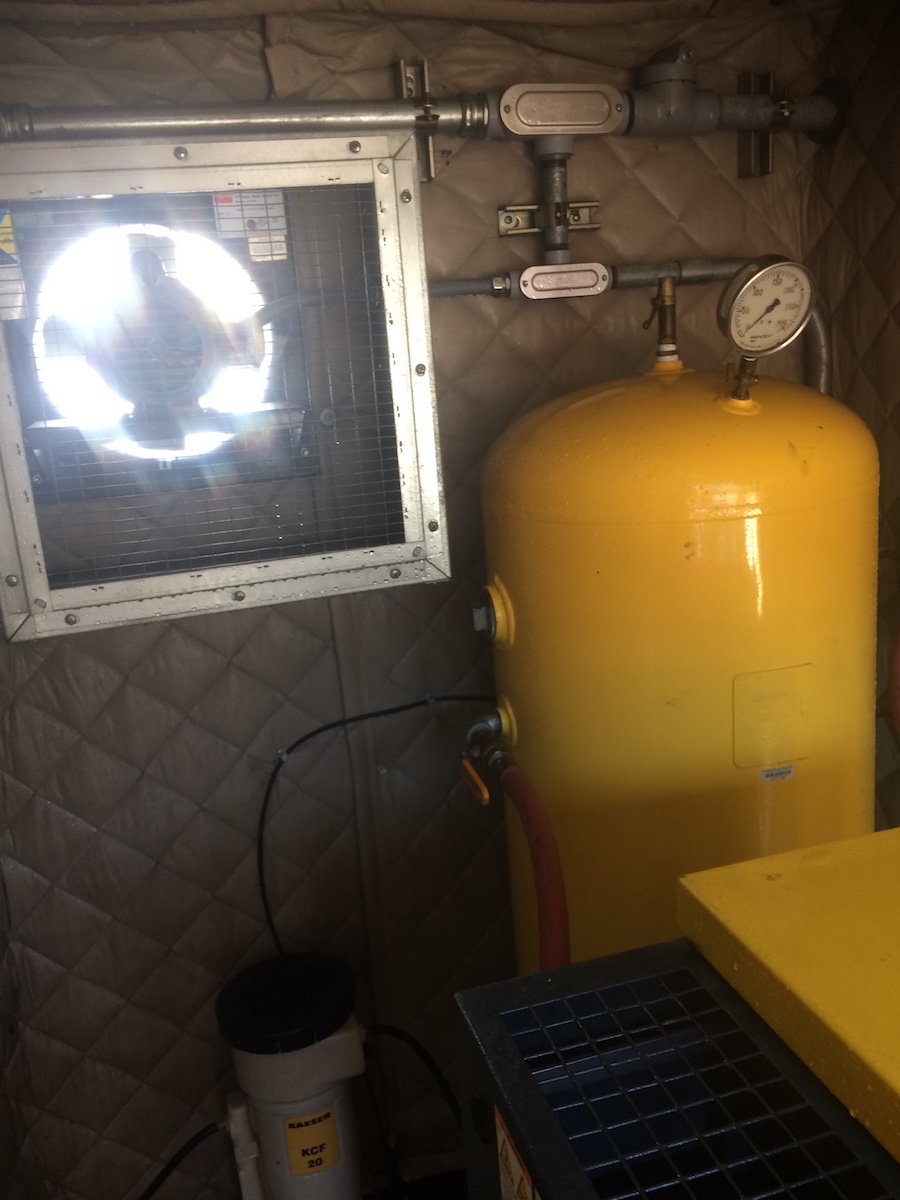

Kaeser 40 gallon air tank

XP lighting
