Trailer #33

SVE / Air Sparge Trailer

14’x7’x7’ by

Dual 3,500 pound axles, 2and 5/16” ball

SVE Blower – Rischle Blower 5.5 KW 230V 23FLA

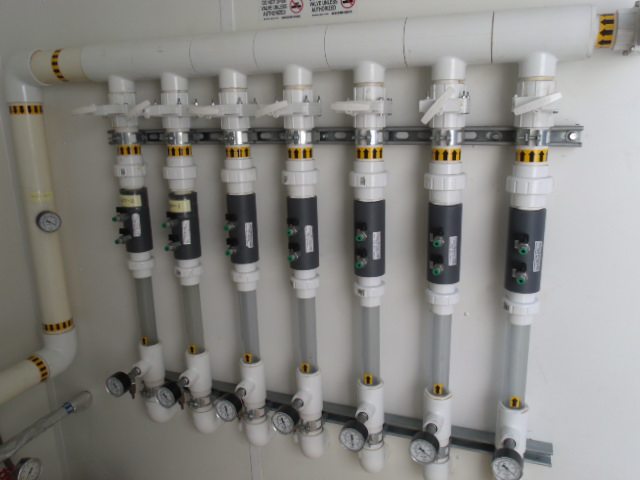

SVE Manifold, 7 – point ball valved manifold, with site glasses, pressure gauges

Lambda square, 7 flow meters (# 93141-v, Pipe 1.5”S/40, Bore 1.025)

A/W separator Tank – Specialty Systems Integrators 55 gal. With site glass and level switches. Heat tape wrapped.

Transfer Pump – Centrifugal Pump 115/208-230V 6.6/3.1-3.3FLA

Explosion Proof overhead Light and switch

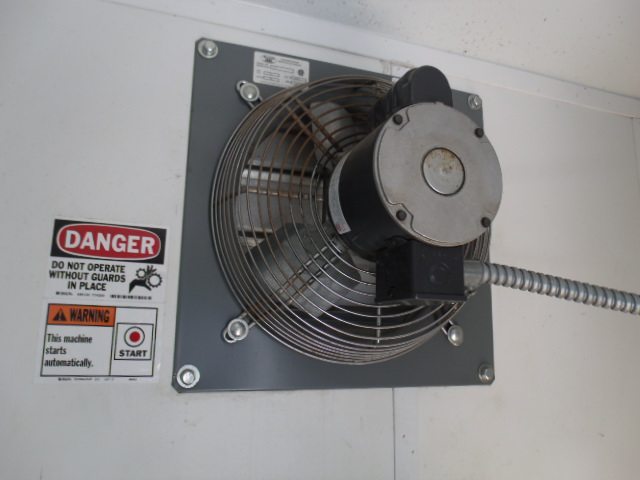

Explosion Proof Exhaust Fan – thermostatically controlled, louvered

Blower Silencer

Canister Filter

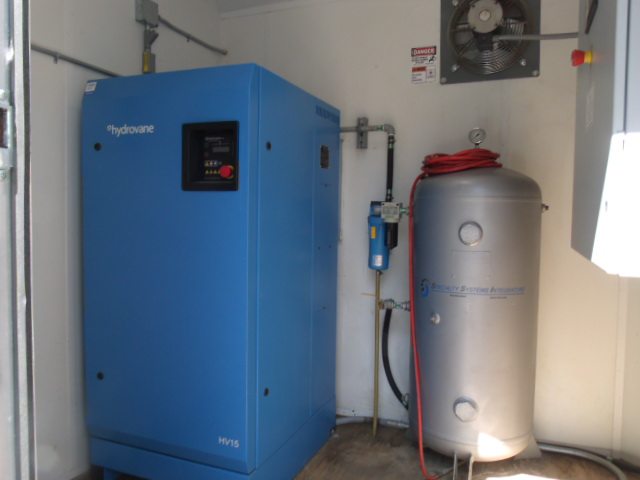

Compressor – Hydrovane Model # HVFR2B Serial#D100699, emergency stop

Max. Pressure – 9 psi. 15KW 200V 3PH

Exhaust Fan, louvered

Pressure tank, pressure gauges, regulator

Single Stage Coalescer

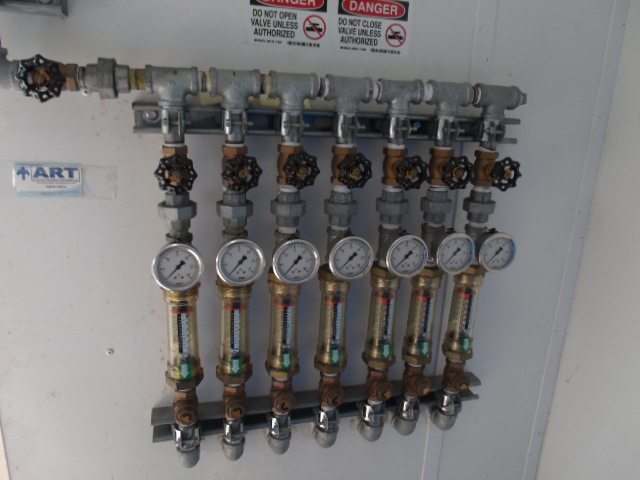

Sparge manifold , 7 point 1” galvanized, Insite flow meters, gate valves and oil filled pressure gauges.

Max. Pressure – 9 psi. 15KW 200V 3PH

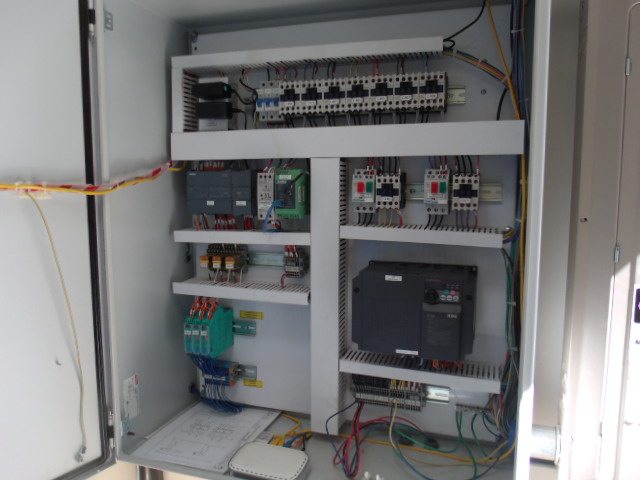

Control Panel and Breaker Panel – Nema Type 4 Internally mounted in safe room in trailer. Components

Breaker Panel, Emergency Shutdown, PLC controls, GCFI 110 outlets.
