(AIR SPARGE-30) TRAILER, AIR SPARGE (#AES027F) ( 166 CFM, 23.2 PSI, 20hp)

Trailer #27F ( 166 CFM, 23.2 PSI, 20hp)

230V 3ph input

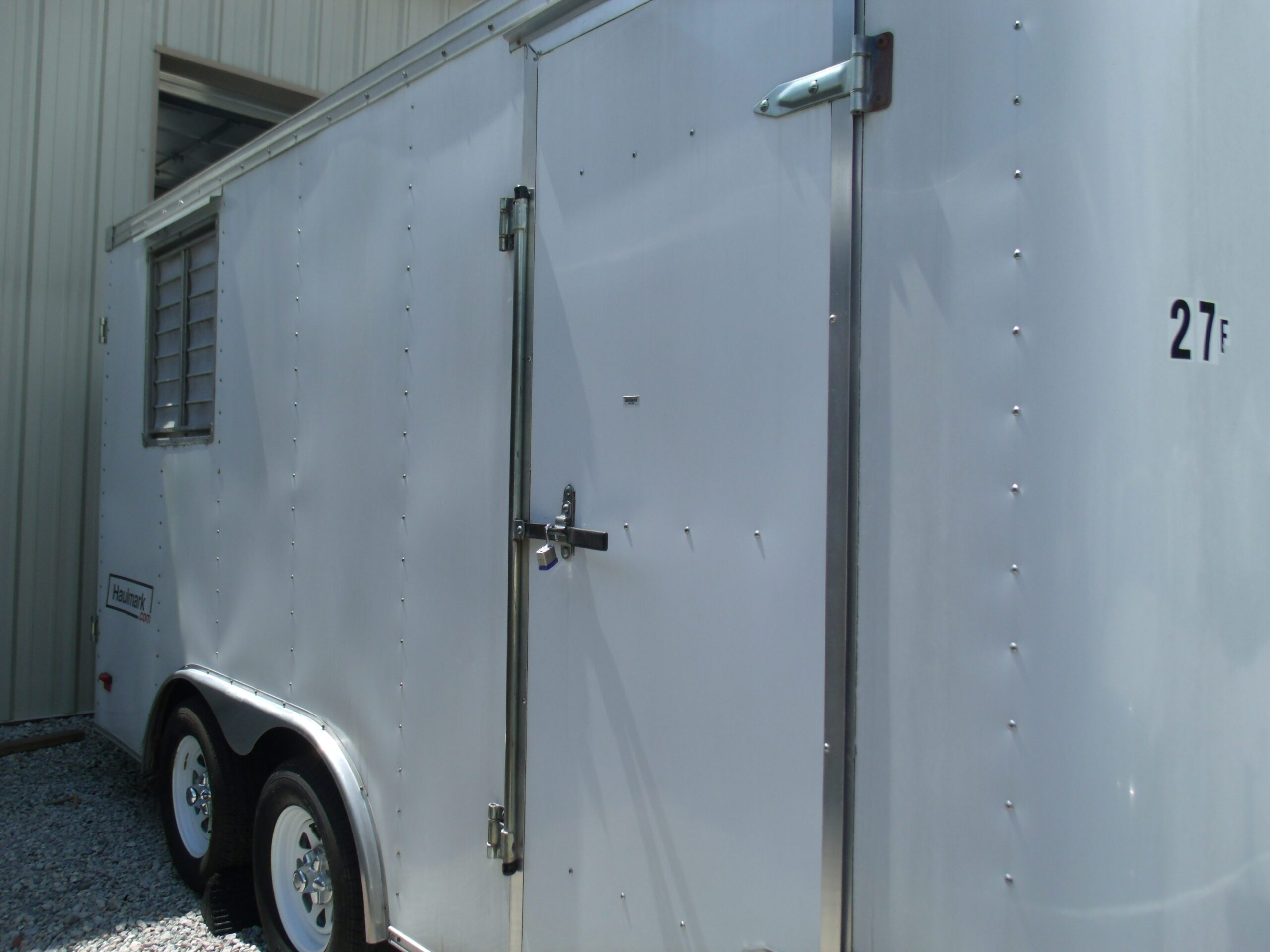

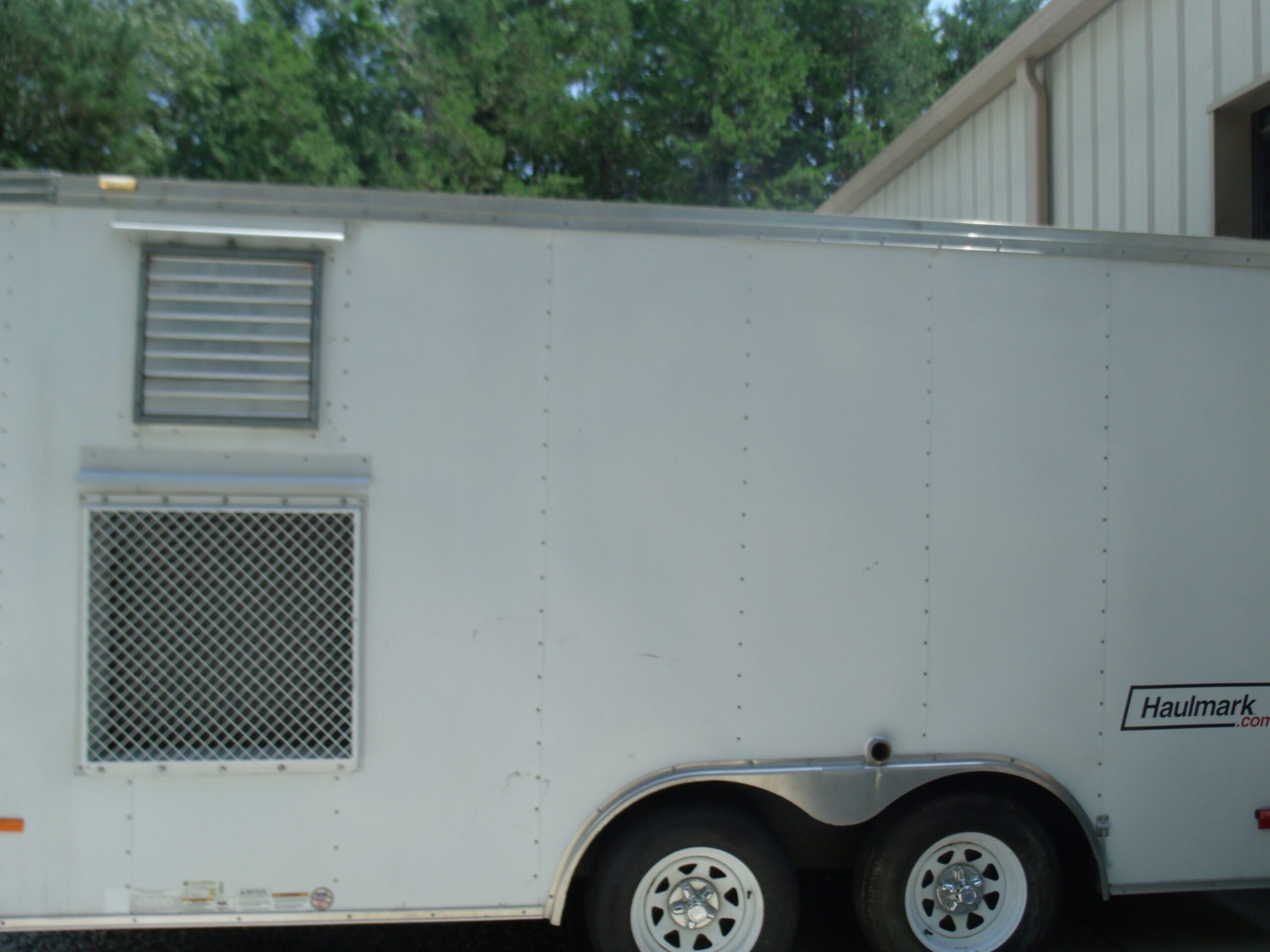

Trailer – Hallmark 15 X 8 X 7 tandem axle

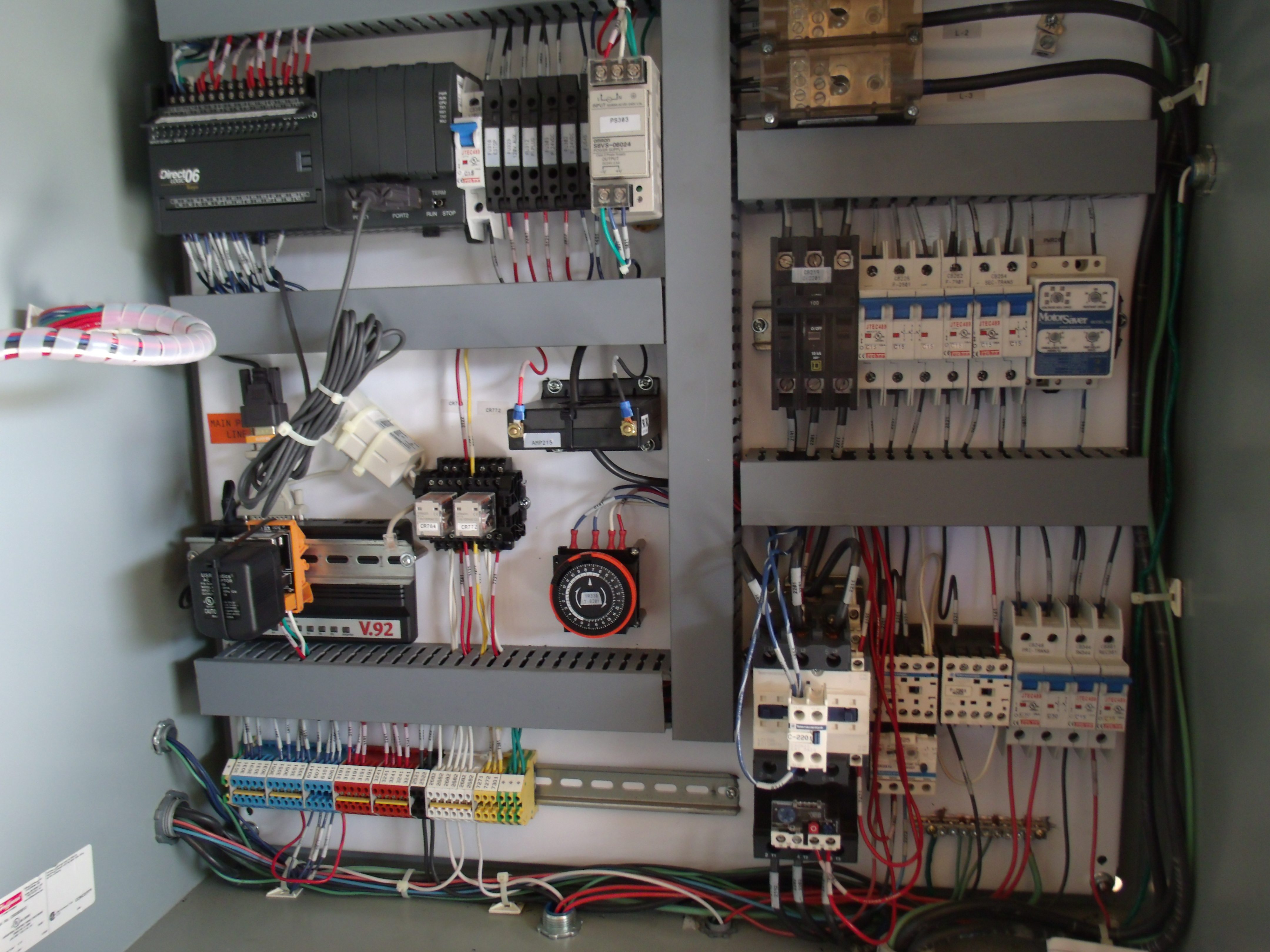

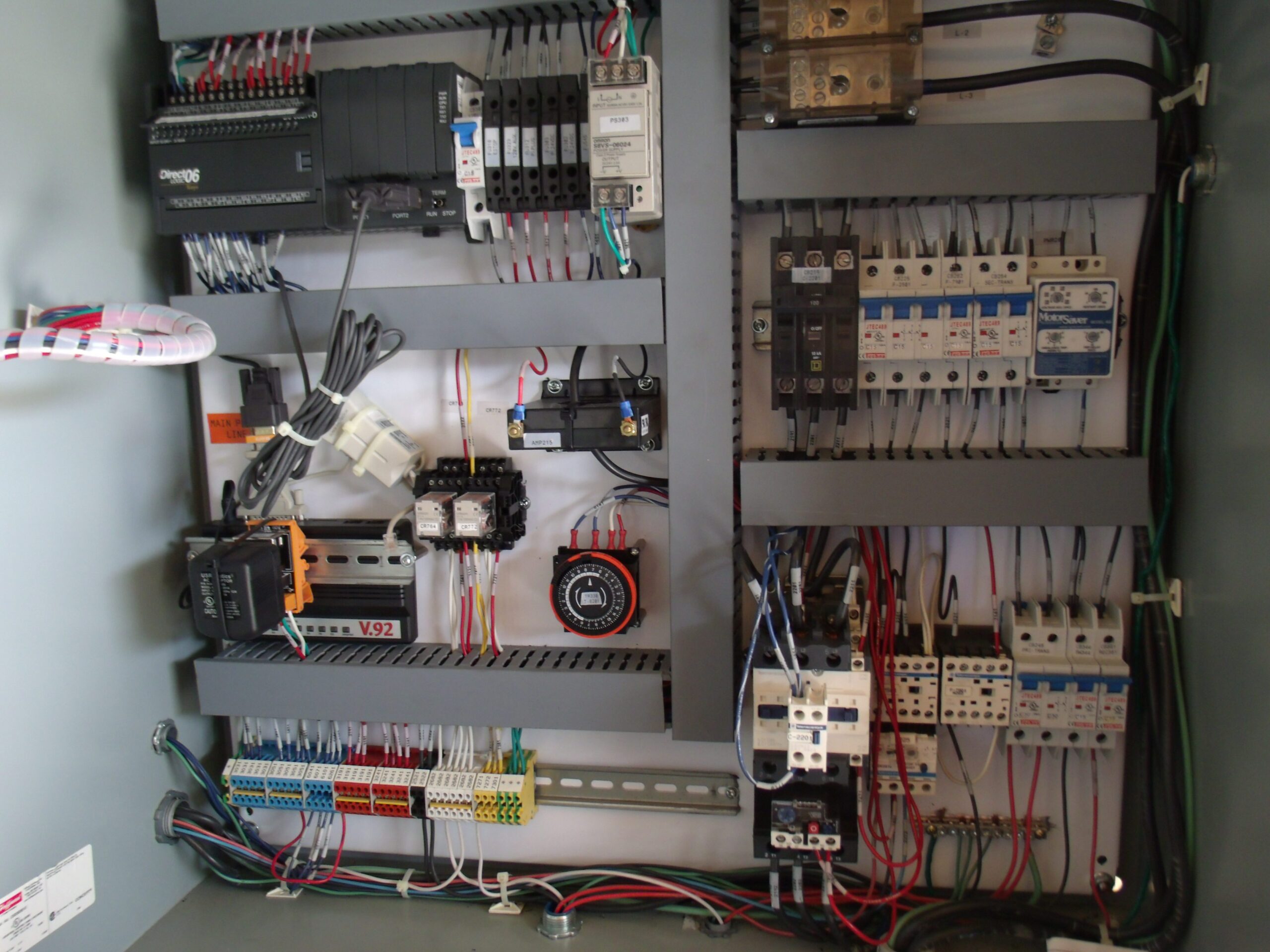

Internal Control Panel – Direct Logic 06 PLC

TE starters, front mount controls

Enclosure 30 X 30 X 12 Hoffman

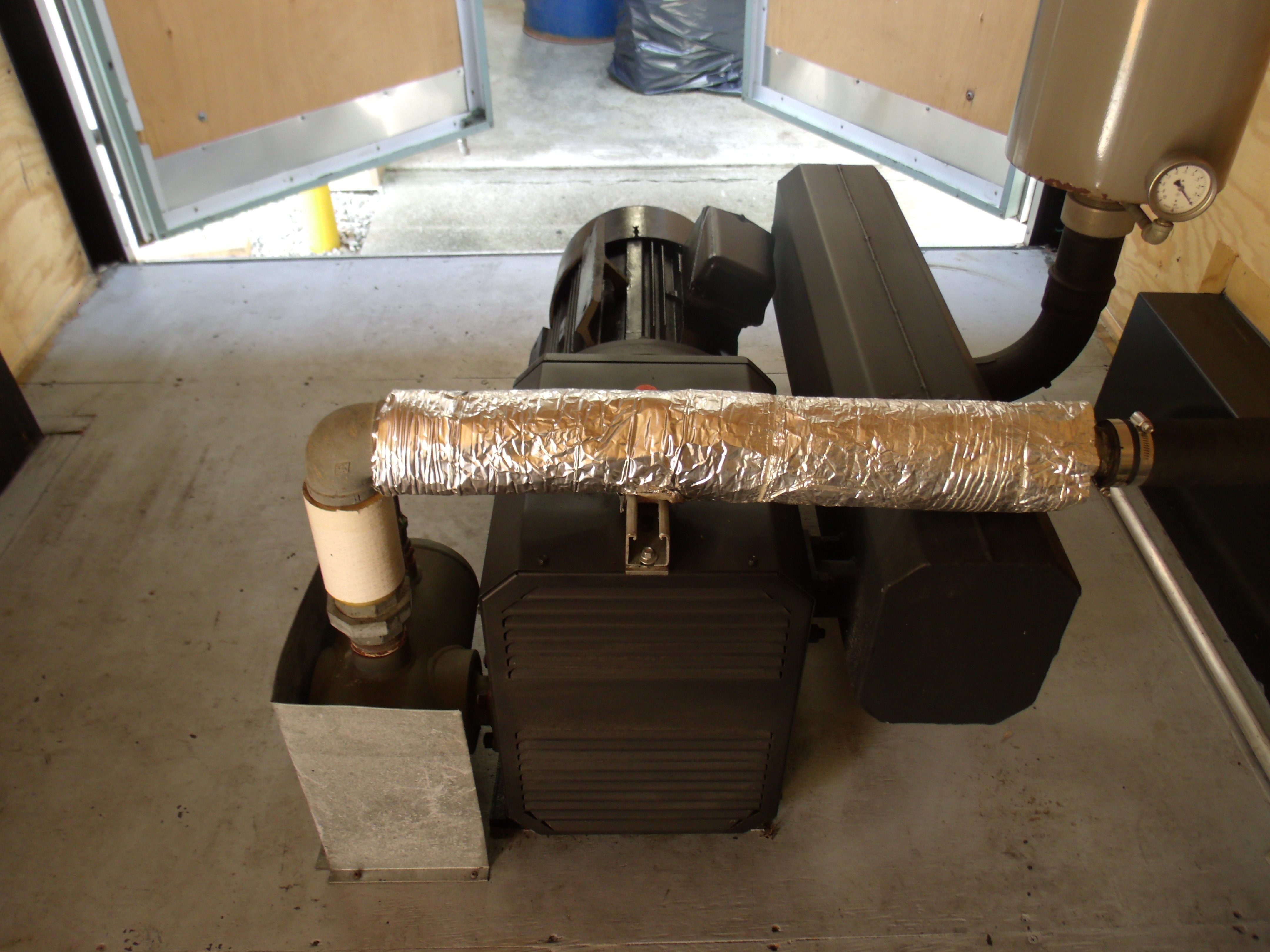

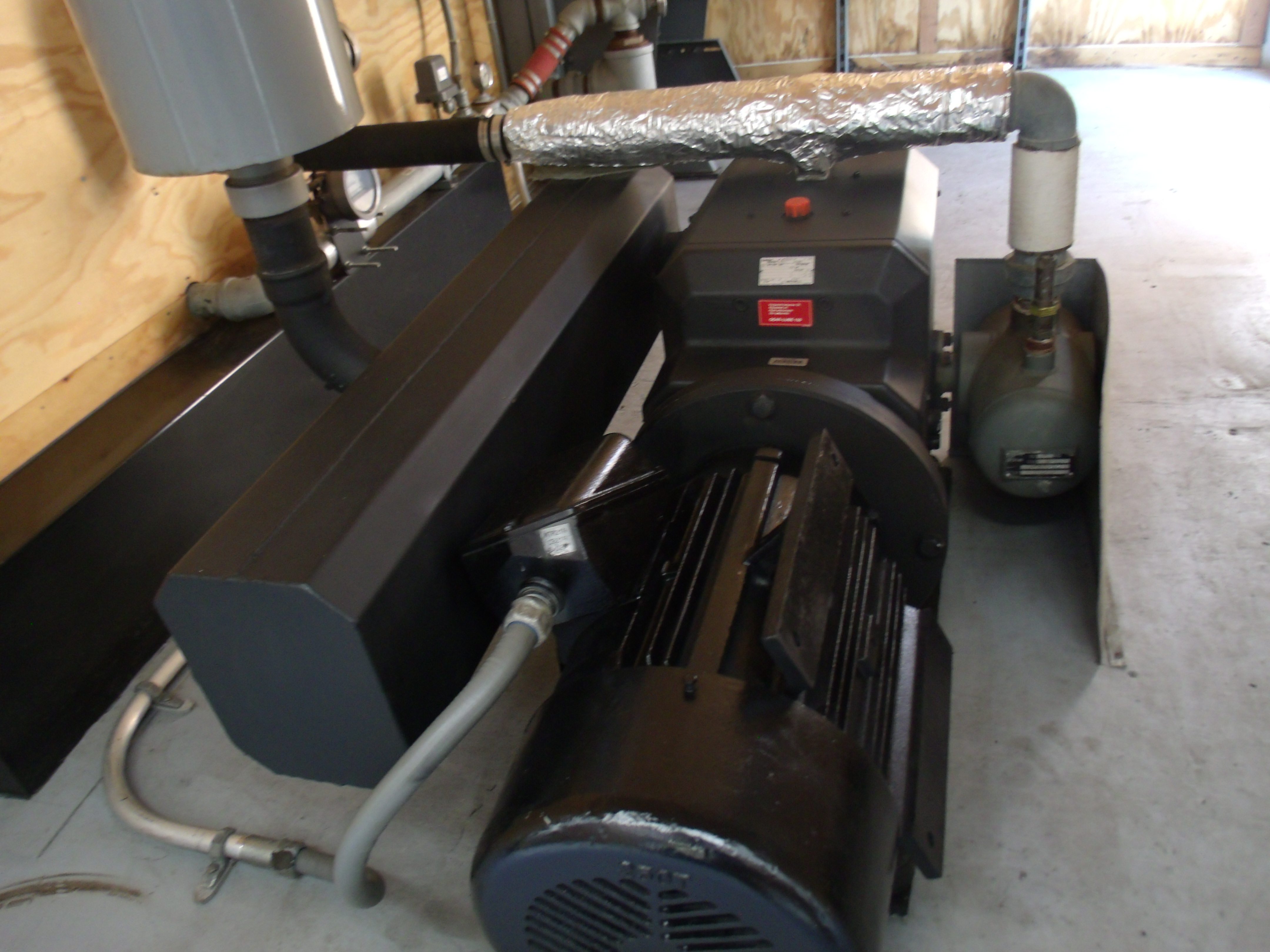

Sparge Pump – Gardner Denver DLR 250 2.2 bar

20HP, 230V 46FLA

Heat Exchanger – American Industrial ACA3302-3

Tubes 150PSI max.

Temp – 400 deg. Max

Motor – .75HP 208-230/460V 3.3-3/1.5 FLA

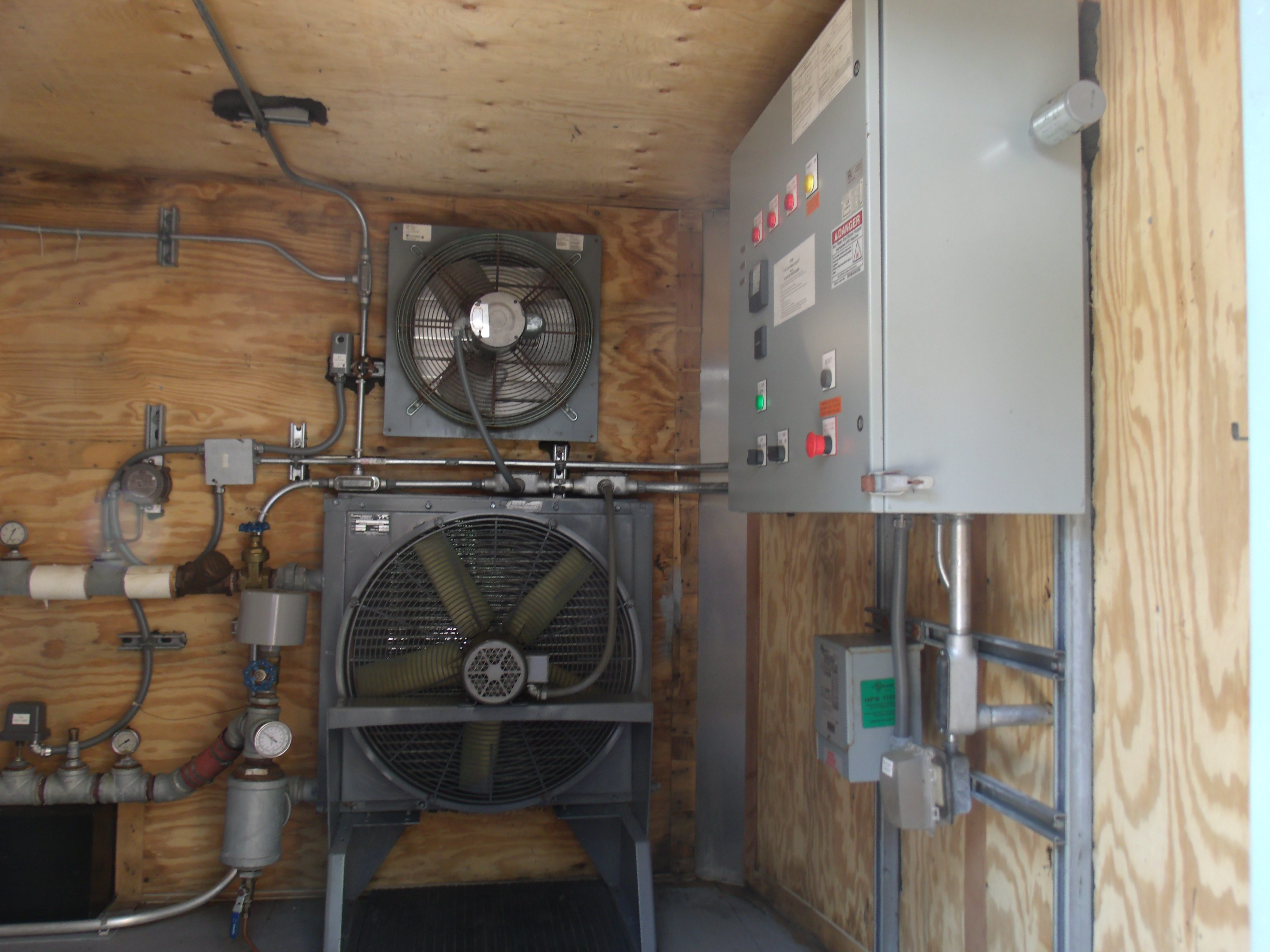

Exhaust Fan – Canarm Model S18-F1

18” 1/3 HP 4FLA
