(SVE/SPARGE-18) TRAILER, SVE/AIRSPARGE (#AES008F). *** $42,000.00 ***

(SVE/SPARGE-18) TRAILER, SVE/AIRSPARGE (#AES008F)

 Trailer 8F SVE/Sparge

Trailer – Cargo Express 14 X 8 X 7 tandem ,500lb axles 5 lug 2 5/16” ball

Disconnect – 60A 3ph breaker mounted in control panel

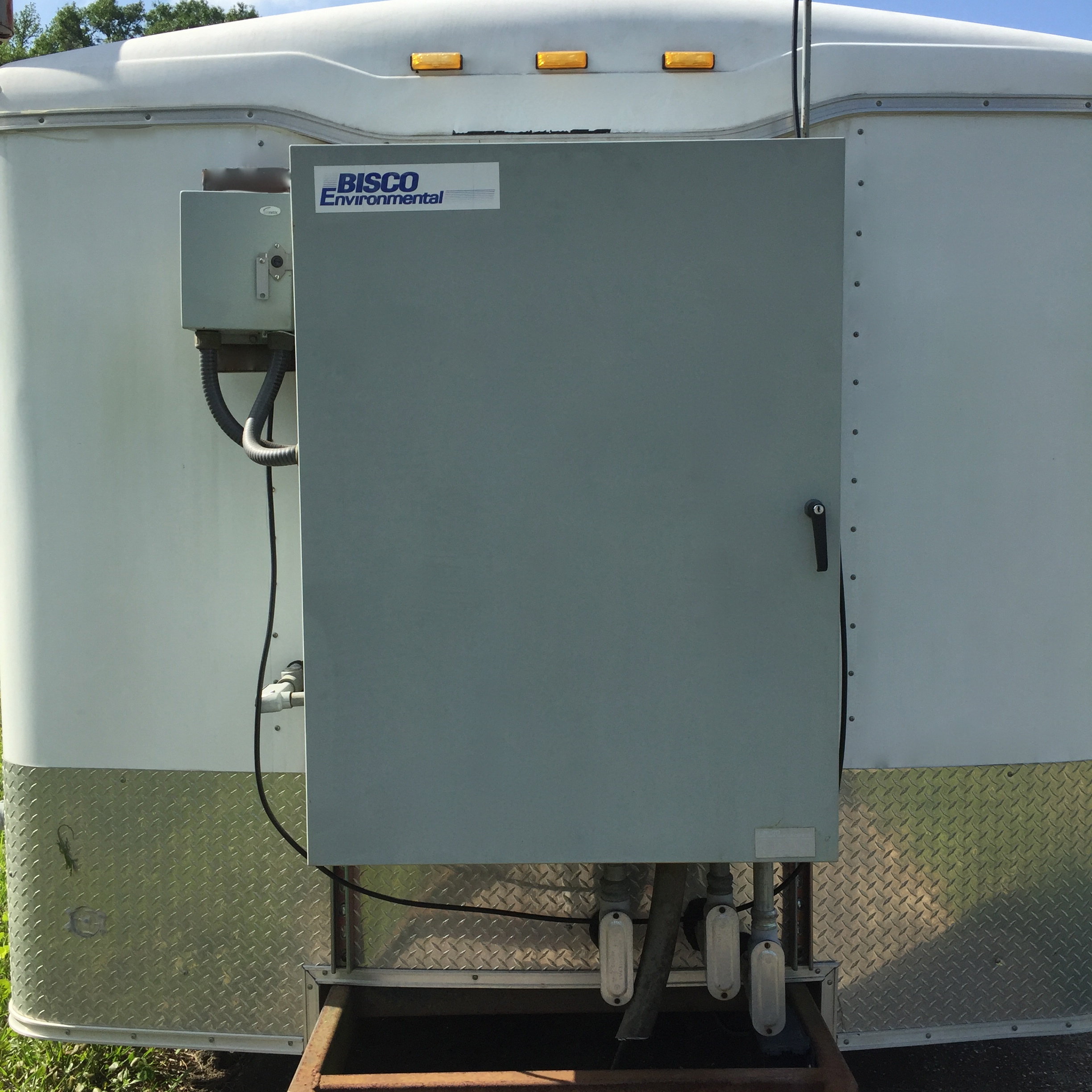

Control Panel – Front mounted with dead front controls

Control – EOS Research Pro Controls PLC

SVE 4-2” inlets

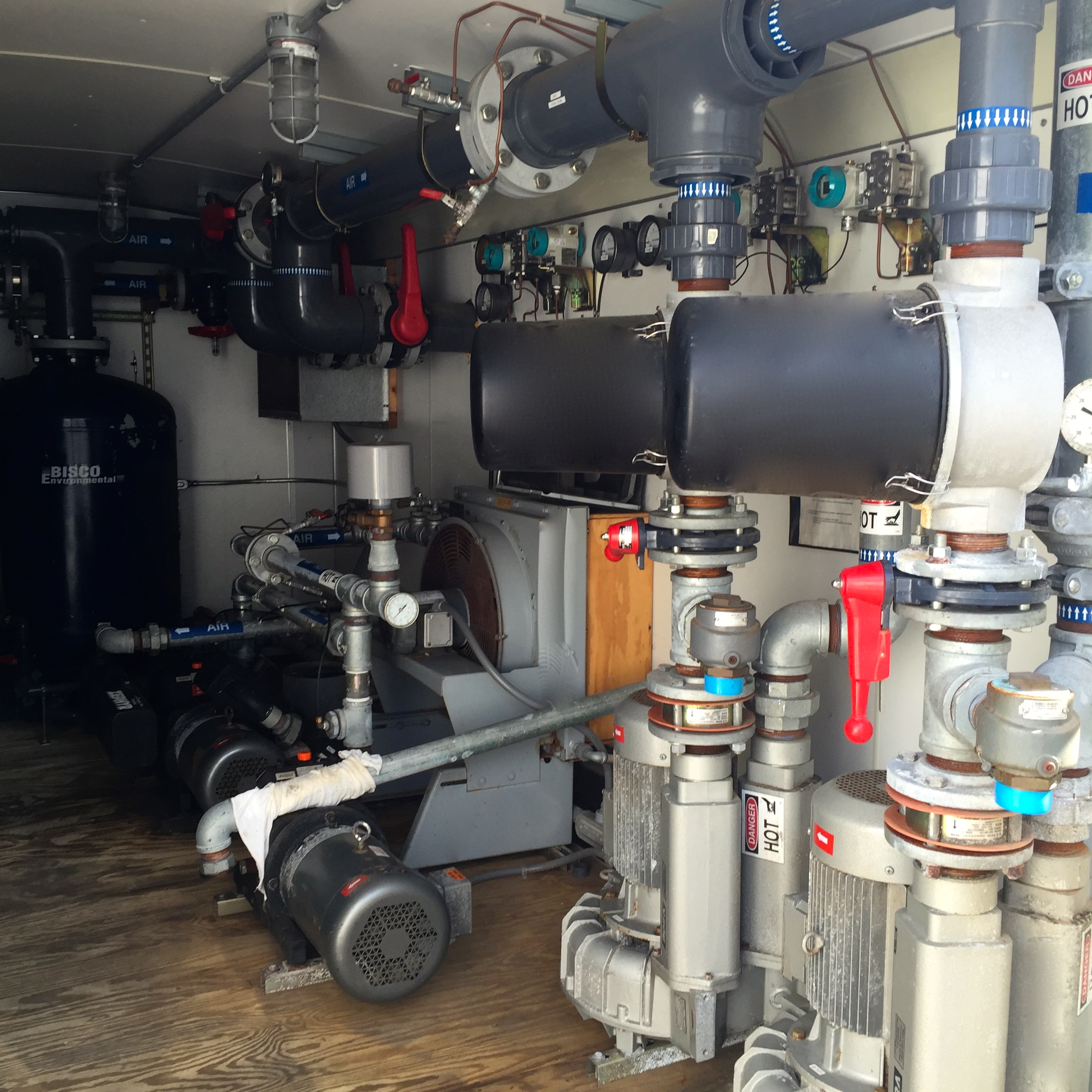

SVE Blower – Ametek model EN656M72XL 70” H2O 3HP 230V 3ph 8.2FLA

Exhaust – 2” with temperature and pressure gauges and Barsdale model ML1H-H203

Kunkle model 215V-HO1AQE pressure relief valve with marshall 0-100” H2O vacuum gauge and Dwyer 1950 Differential pressure switch

Inlet Filter – Soleberg model CSL-851-200HC

Inlet Flow Meter – ERDCO model 711-08120COS in line

AWS Tank – Steel Fab 50 gallon with site glass and 3 position level switch array 4” out

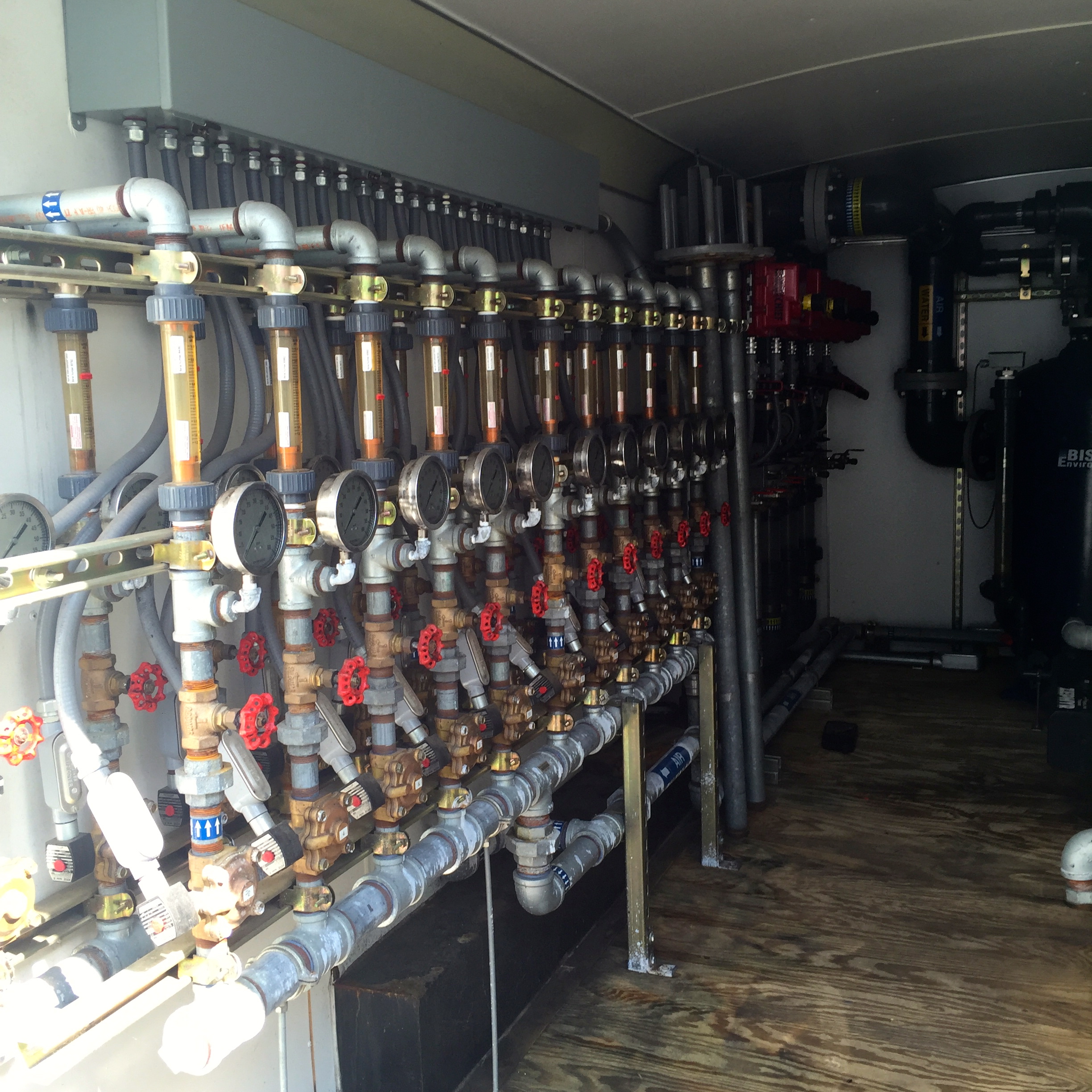

Manifold – 4” to 4-2” inlets with vacuum gauges and gate valves

AWS Transfer Pump – Gould NPE model 1ST1C5E4 ½ HP 230V 3ph 1.9FLA 1” out with pressure gauge, gate valve and sample port

Carbon Vessel – Fiberglass 90lb with pre and post pressure gauges and ball valves 1” out

Sparge 4-1” points

Sparge Pump – Gardner Denver DLR60 2 bar 5HP 230V 3ph 11.4FLA 1 ½” out with Barksdale model ML1H-H203 Temperature switch, temperature and pressure gauges

Heat Exchanger – American Industrial model ACA-3182-3 with outlet temperature and pressure gauges and Barksdale ML1H-H203 temperature switch

Manifold – 1 ½” to 4-1” with gate valves and pressure gauges

Flow Rate Meters – Dwyer0-25scfm 1”out

Lighting – Killark XP fixtures and switches

Three Stage Coalescing Filtration

100 Gallon Knockout Tank – Gallon

Float Switches

Bag Filtration with Flow Meter/Totalizer

Fire Extinguisher

Emergency Shut off
