(SVE/Sparge -10) Trailer, SVE/Sparge (#AES020)(Max. 290 CFM – 110 “h20/10.8 cfm @ 20psi)

(SVE/Sparge -10) Trailer, SVE/Sparge (#AES020)

SVE: 5HP Model SDR6P, Gast Regenair 230/460v 12.2/6.1 fla

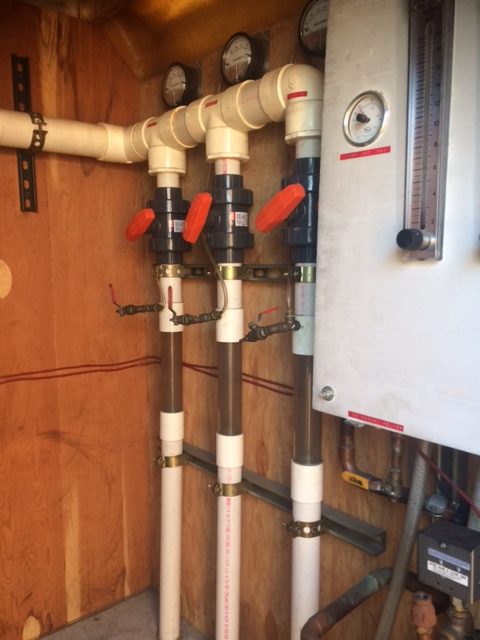

3-way SVE Manifold, valved with site glass, sample ports, magnehelic gauges

Max. 290 CFM – 110 “h20

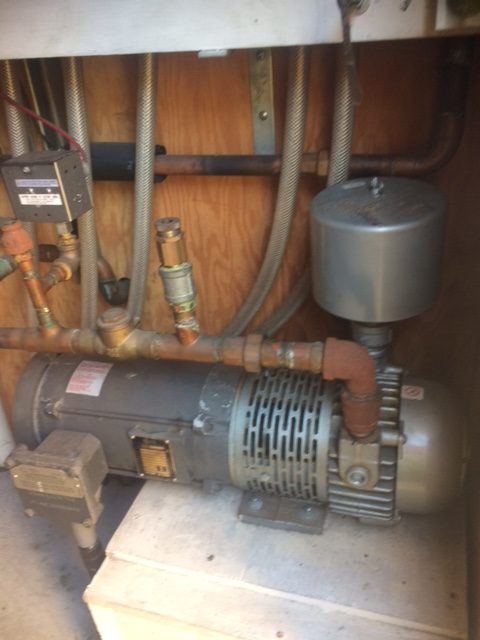

AS:  Gast 2HP Oiless Compressor 230/460 v, 6.2/3.1fla

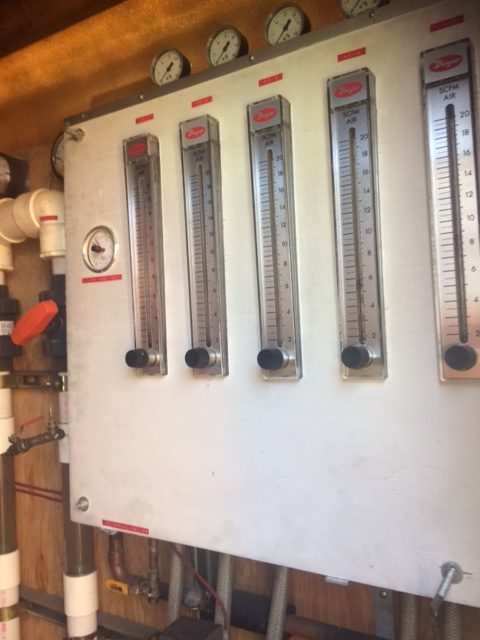

5-way AS Manifold, valved with flow meters, pressure gauges

Max 10.8 cfm @ 20psi

Explosion Proof Lighting

Explosion Proof Heater

Solberg inlet filters

Magnehelic gauges

Copper Piping

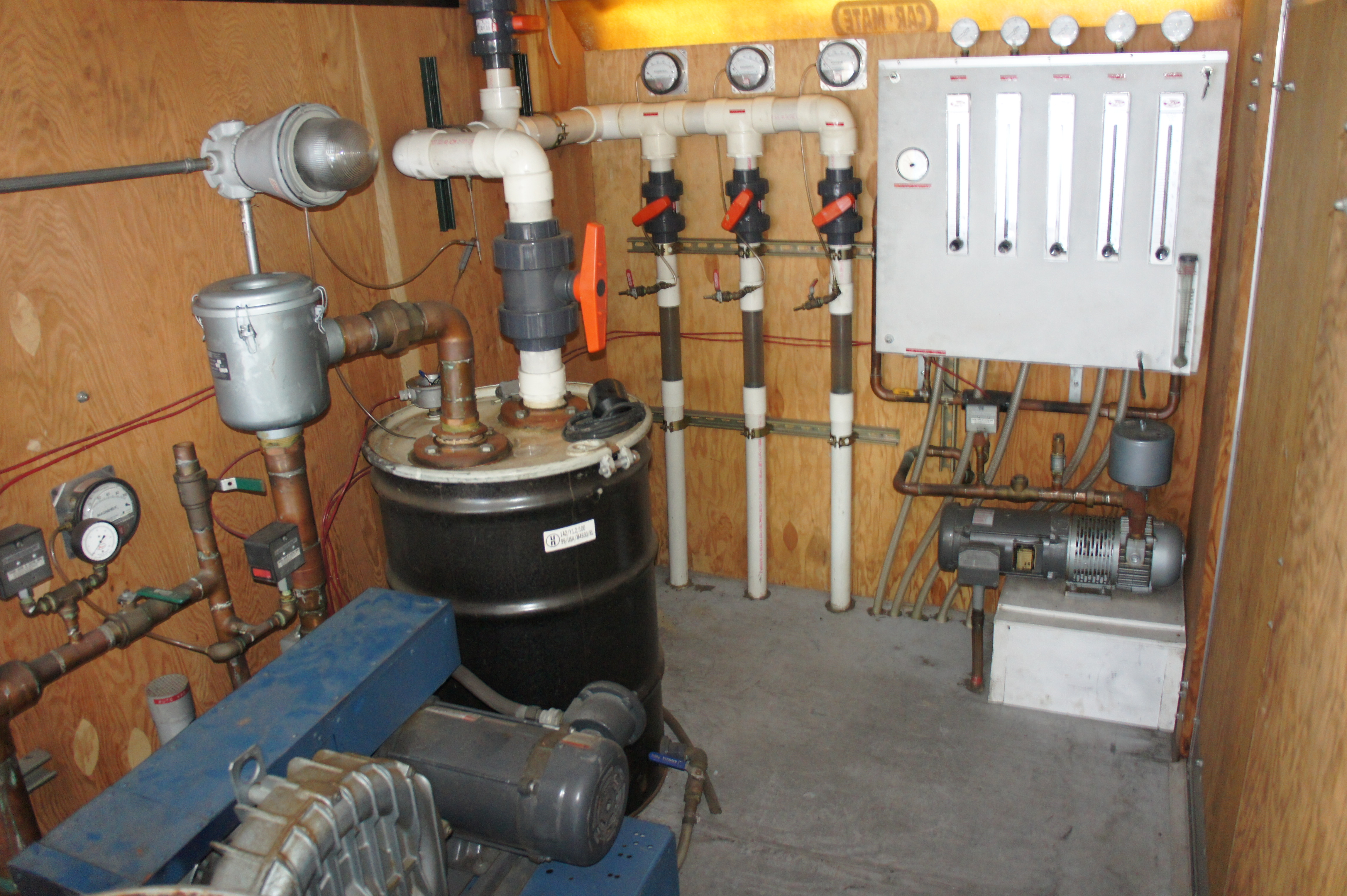

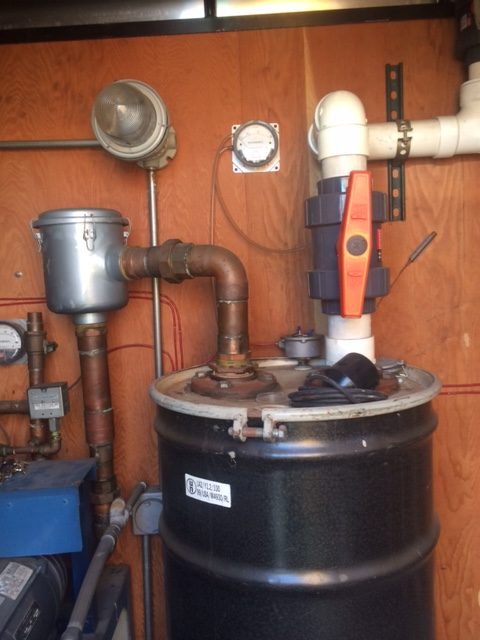

55 gallon knockout tank with Float Switch

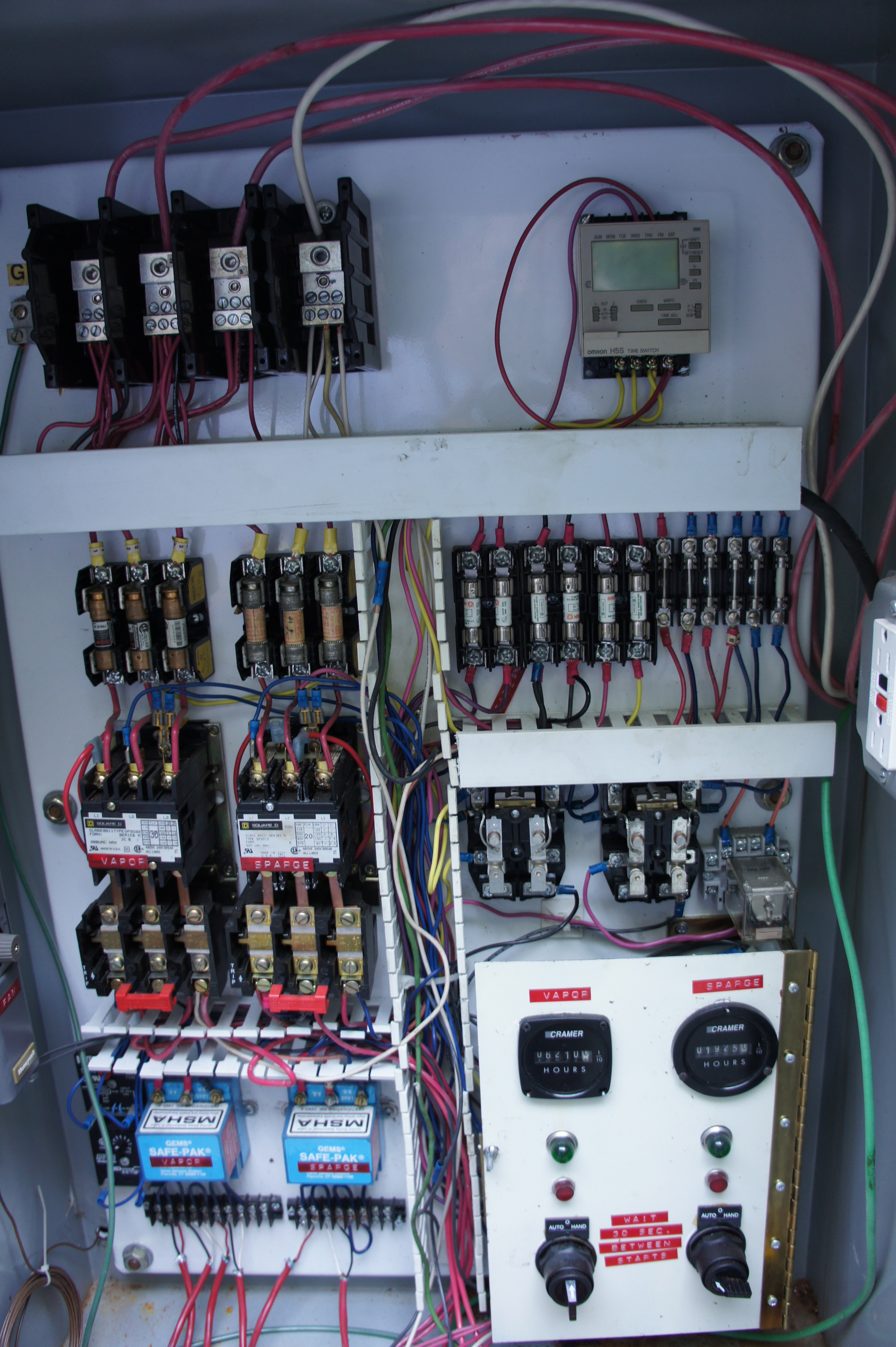

Control panel – fused, timer, auto manual switches, 110-recp.

Homesteader 10′ Single Axle Trailer, 3.5k

230, 3-Phase
