(SVE/AirSparge – 9) Trailer (AES#009)(450 CFM @ 14″hg/80 CFM @ 20 PSI). *** $39,000.00 ***

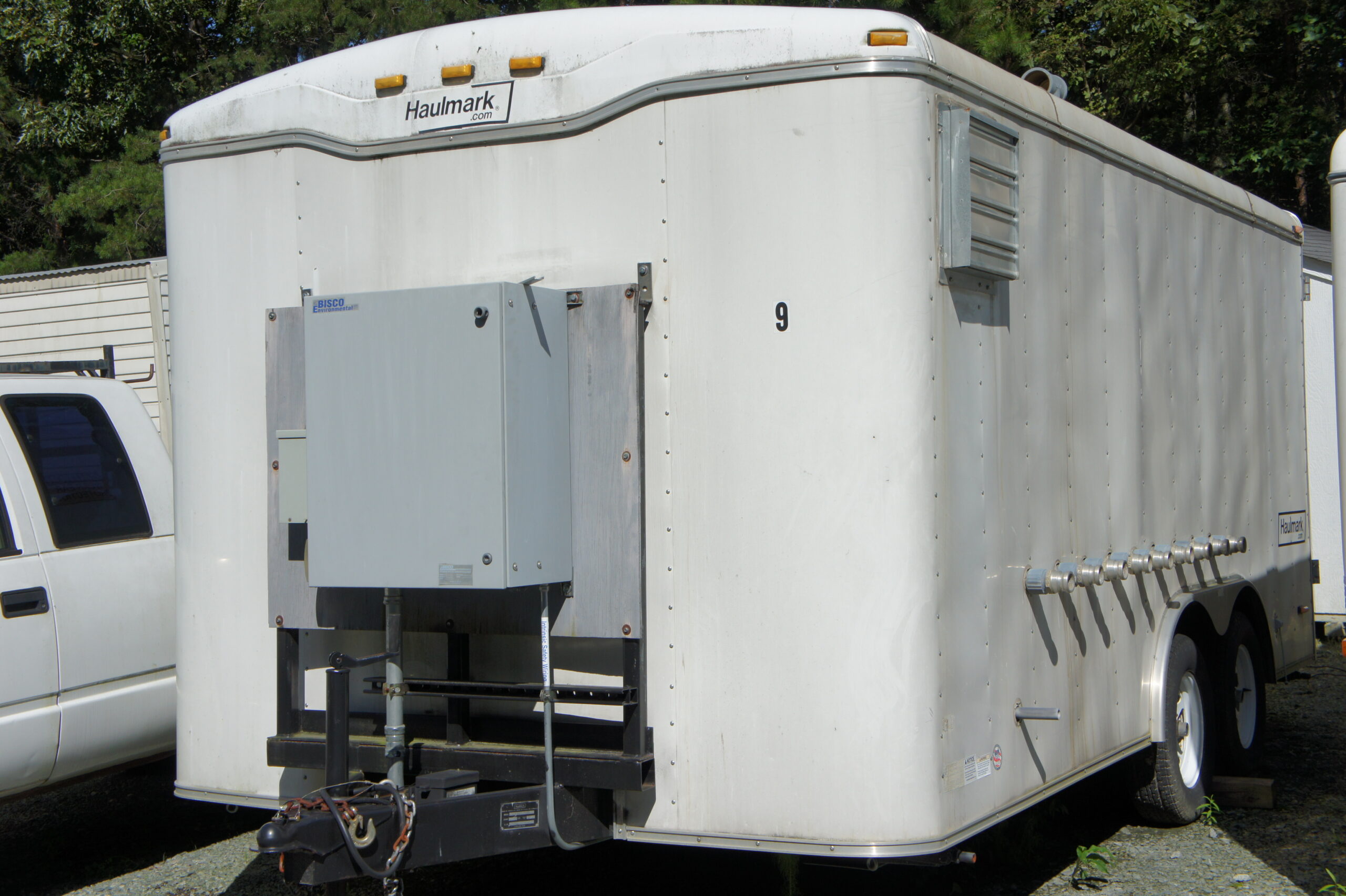

SVE/Air Sparge – 9, Trailer, SVE/Sparge (#AES009)

SVE – Roots Blower – URAI56 – 15 HP, 230/460 volts, 39/19.5 amps, Frame – 254T

(450 CFM @ 14″hg), shaft guard,

AMETEK – Knockout tank – Moisture Separator with sight glass, float switches, vacuum gauges, knockout drain with valve

SVE – 9-point gate valved manifold with camlock fittings for individual flow readings, temperature gauges and pressure sensors

Exhaust Silencer

Inlet bleed valve with filter housing

Solberg Inlet Canister Filter

Vacuum Gauges – measures in Hg”

Flow assemblies that can be individually connected to manifold for determining air flow rate (CFM)

All piping is run with schedule 80 pvc or galvanized pipe.

Piping and components have flow direction and warning lables.


Air Sparge – Becker Compressor – KDT 3.140 – EPQ III – 12 hp, 1750 rpm, 230/460 volt, 28.4/14.2 amp, Frame – 215TC

(80 CFM @ 20 PSI)

Adjustable valved bleeds

Valved Inlet filtration

Pressure Gauges – PSI

Temperature Gauge – F

American Industrial Heat Exchanger# ACA-3182-30203

XP Lighting and thermostatically controlled XP exhaust fan

Galvanized piping

20-way brass valved manifold

Pressure sensor

Temperature sensor

Individual flow meter assembly connected by camlock

Other system components:

Haulmark 16′ tandem axle (3500 pounds per axle) Rear and Side Entry Doors

All equipment inside trailer is Explosion Proof or TEFC

Explosion Proof Lighting
Thermostatically controlled, louvered explosion proof ventilation fan
Emergency Stop Switch
Exterior Mounted Control Panel with wireless monitoring (monitoring fees are additional)
