(SVE/SPARGE-70) TRAILER, SVE/AIRSPARGE (#AES-132)(210 CFM, 110″H20/173 CFM, 25 PSI)

Trailer 132 SVE/Sparge

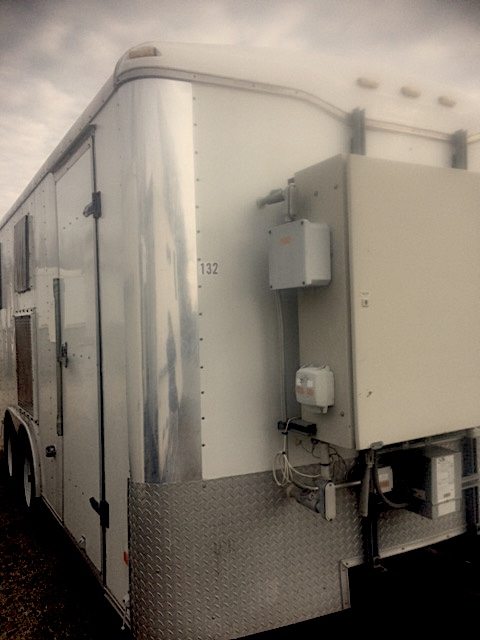

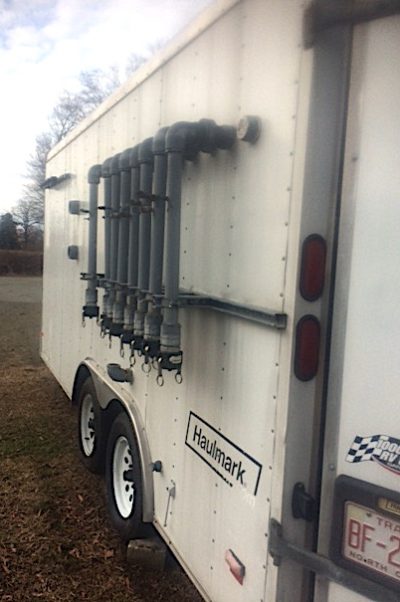

Trailer – Hallmark 18 X 8 X 7 tandem 3,500lb axles 5 lug 2 5/16 ball

Disconnect – SqD 200A 230V 3ph 110A fused

Control Panel – Front mounted with dead front controls

Control – relay logic

SVE

Vacuum Pump – Ametek model EN6F72L 5HP 230V#ph 15.8FLA

Max. – 210 CFM,  110″H20

http://catalog.ametekdfs.com/ecatalog/regenerative-blowers/en/038180

Parker PVC 3” gate valve on inlet

Ametek model 522948 muffler with temperature and flow gauge on exhaust

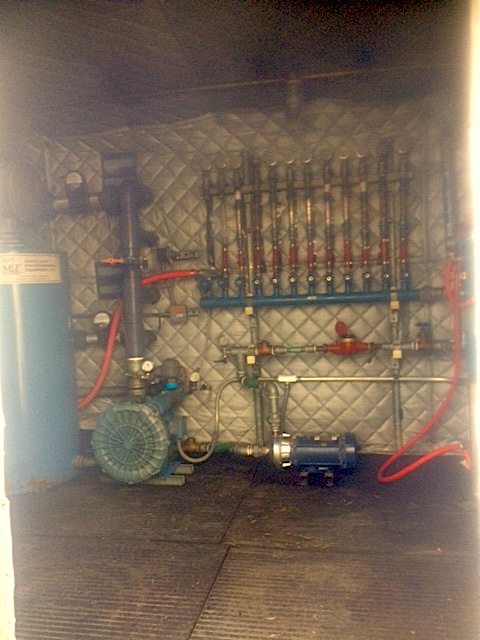

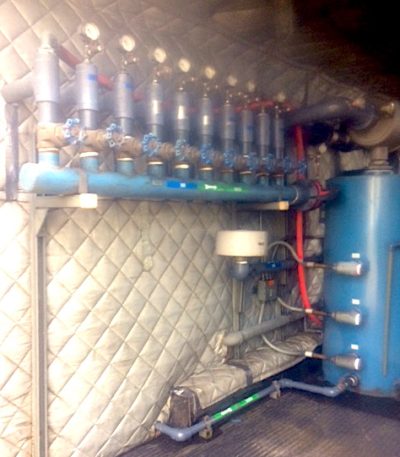

Manifold – 3” with 10 – 2” inlets with gate valves and vacuum gauges

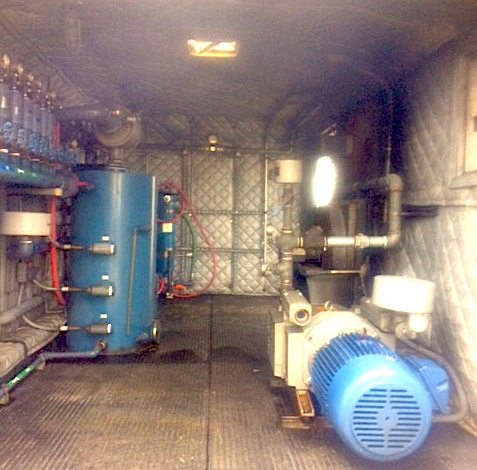

K/O Tank – Maple Leaf model VLF-100 with inlet filter, vacuum and temperature gauges

Transfer Pump – Gould NPE cat# 1 ST1FOC4 1 ½ HP 230V 1ph 7.5FLA

Bag Filter – MLE model EB112-2P with pre and post pressure gauges 1” out    (carbon vessels not present)

Air Sparge

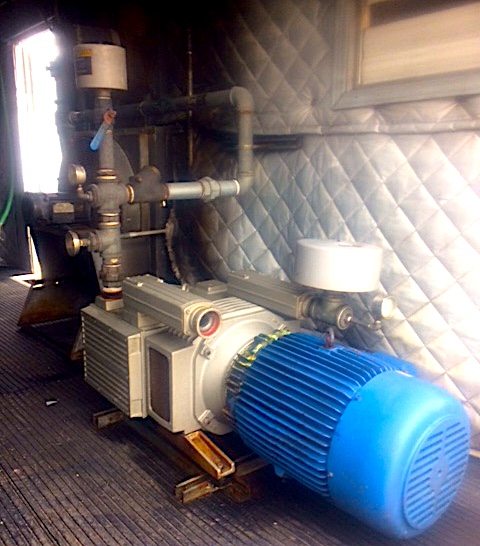

Sparge Compressor – Becker DTLF250 20HP 230V 3ph 49FLA

173 CFM, 25 PSI

http://store.kgpowersystems.com/dtlf-250-becker-oil-less-rotary-vane-compressor-173-cfm-25-psig-20-15-hp-kw-2-inch-inlet.aspx

Heat Exchanger – American Industrial model ACA-3302-3-E

High Temperature Switch – Dwyer model 1823 with temperature and pressure gauge on heat exchanger outlet

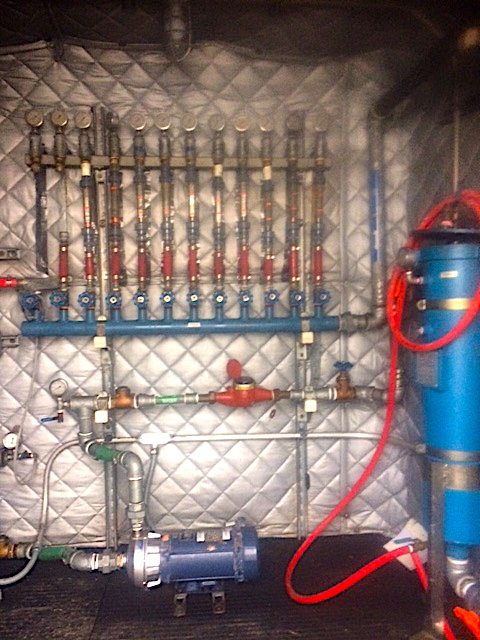

Flow – Meters – (12) Chemline model FCTOO602 with gate valves and pressure gauges to 1” outlets

XP exhaust fan thermostat controlled

Kilark XP lighting fixtures

E-Stop in trailer

3KVA control transformer mounted on front
