(SVE/SPARGE-63) TRAILER, SVE/AIRSPARGE (#AES-126F)

Trailer 126F SVE/Sparge

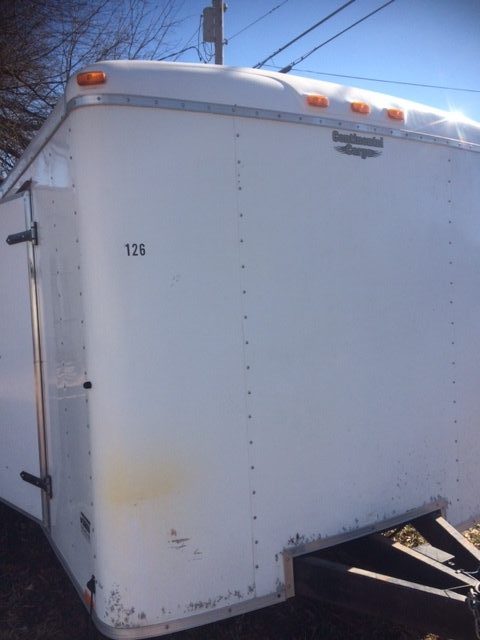

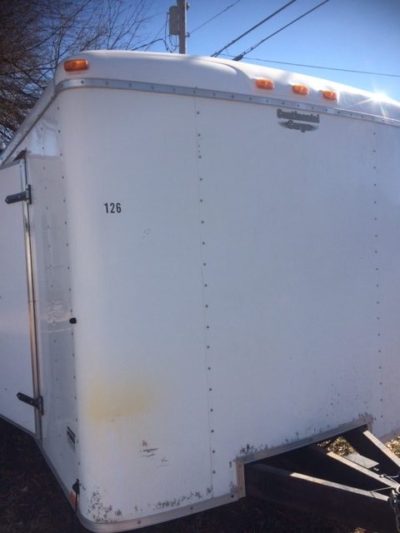

Trailer – Continental Cargo 21 X 8 X 8 tandem 3,500 lb. axles 2 5/16 ball 5 lug

Separate sparge and SVE rooms

Internally mounted Breaker panel with 150A 3ph main breaker

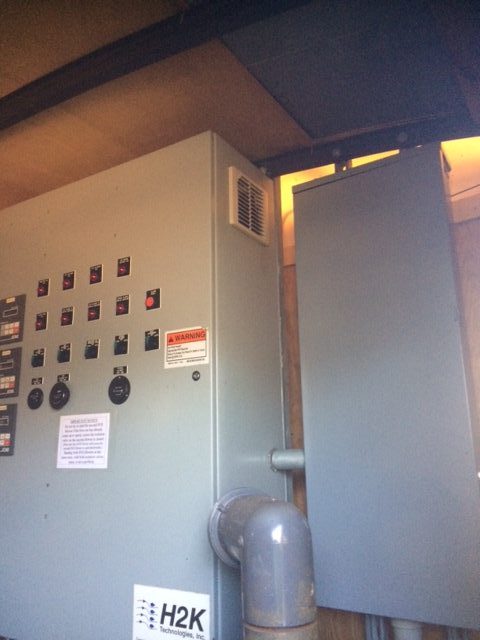

Control Panel – Internally mounted in Sparge room

Control – EOS Pro Control PLC logic

AC Tech VFDs on Pumps and Compressor

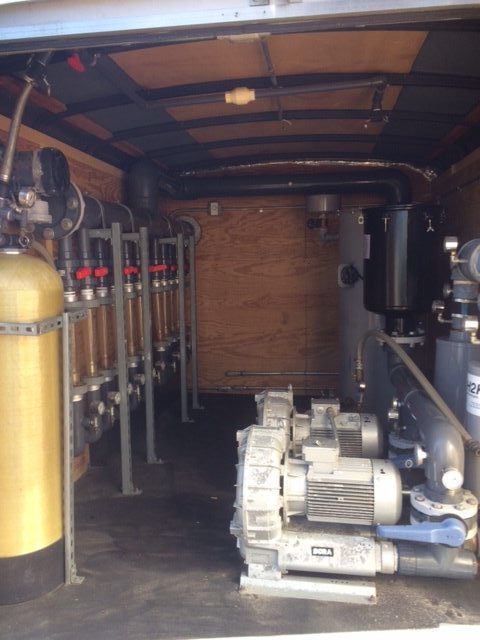

SVE

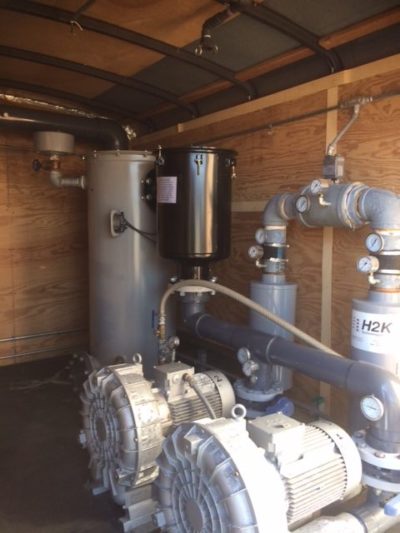

SVE Pumps – 2- Rietschle Thomas Vertical Pumps 7.5 KW 230V 3ph 29.5FLA in tandem.

4” bypass valves

In line Filter 30 X 24 8” into K/O Tank

K/O Tank 200 gallon steel with site glass and level switch array

K/O transfer pump – Myers CT-05 3/4hp 230V 3ph 2.4 FLA with pressure gauge and sample port on 1” output

8” manifold 11-2” SVE inlets with ball valves

Flow Rate Meters – Blue-White Industries model F-452N 0-240 scfm with vacuum gauges and sample ports

Carbon Vessel – Fiber glass 200 lb. with input pressure gauge and sample port

GPM Meter – Amco totalizer only 369 gallons have been recovered by this unit. 1” output



Trailer 126F (cont.)

Sparge

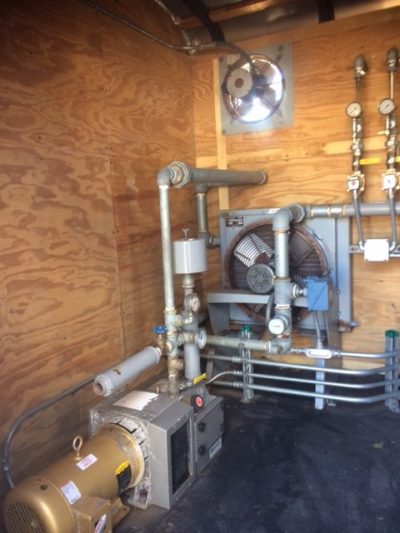

Compressor – Becker KDT 3.60 with output temp. and pressure gauge

Heat Exchanger – American Industrial model ACA3242-3 1/4hp 230V 3ph 1.4FLA

Air Actuator Valve – UE model B402-120

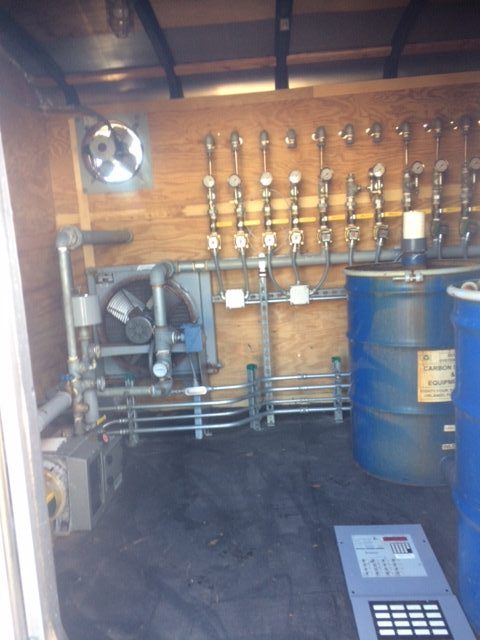

Manifold – 2” into 11- 1” with asco solenoids, ball valves and pressure gauges

Flow Rate Meters – Blue-White Industries model F450 with sample ports

1” outputs

XP lighting

E-stops in both rooms
