(SVE/SPARGE-62) TRAILER, SVE/AIRSPARGE (#AES-125F) SVE: Max:  600 cfm / 100” h2o, Sparge: 160 SCFM / 25 psig   *** $29,500.00 ***

                                       Trailer SVE/Sparge 62

Trailer AES – 125F

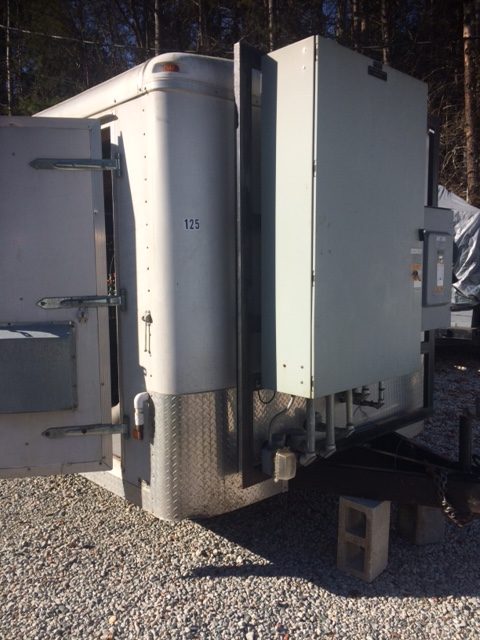

Trailer – DooLittle MFG. 18X 8 X 7

tandem 3,500 lb axles 2 5/16” ball, 5 lug

Disconnect – SqD 230V 3ph 150A fused

Control Panel – Front mounted with dead front controls

Control – relay logic

SVE

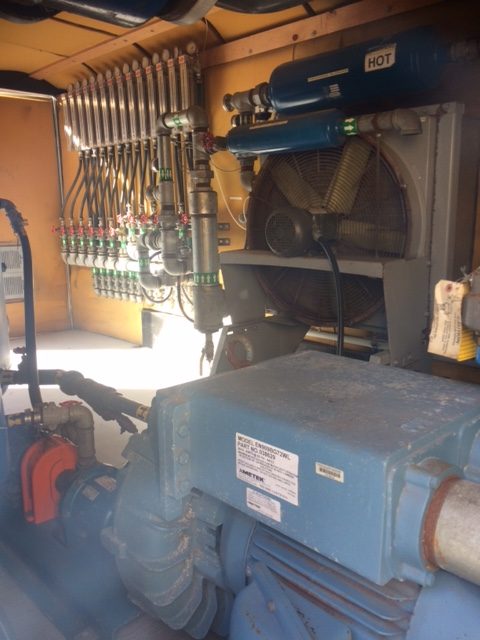

Recovery Pump – Ametek model EN909 BG72WL 15HP 230V 3ph 44FLA

Max:  600 cfm / 100” h2o  vacuum

3” exhaust

Exhaust silencer – Stoddard model D13-4

Temp, Pressure and flow gauges (cfm) on exhaust

2- 4” bypass valves

1 – 4” inline valve

K/O Tank – 200 gallon steel with 3 pos. level switch array and site glass

SVE manifold – 4” to 7-2” inlets

7-Flow Rate Meters- Blue-White Industries modelF-451 0-80scfm and gate valves

Dwyer 1950 low vaccum switch

Transfer Pump – Moyno model 35601 1HP 230V 3ph 3.6FLA

In line Bag Filter – FSI model BFNP 14 CS

Carbon vessel – TetraSolv S/N G665 200lb.

GPM meter – Niagara Flow totalizer 23,400 gallons

Sparge

Sparge Compressor – Becker model DTLF 250 (2006)

15HP 230V 3ph 46FLA

160 SCFM / 25 psig

Silencer – Stoddard model D13-2

Heat Exchanger – American Industrial model ACA3302-3 30”

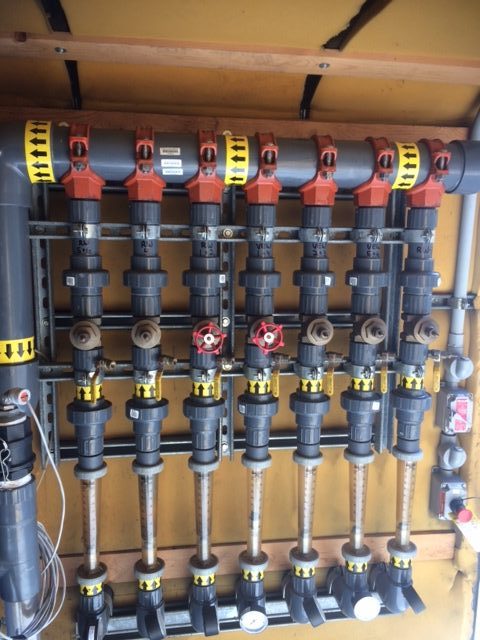

Manifolds – 2-2” 7 position with 2” Asco solenoids for switching

Flow Rate Meters – Dwyer 0-10 scfm with individual gate valves and pressure gauges

Hi Temp Switch – Ashcroft model T424T05030 XBFS

Low Pressure Gauge – Dwyer 1950

In Line pressure gauge and thermostat on 2” line to solenoids

14 – 1” out

XP E-stop and lighting in trailer
