(SVE/SPARGE-61) TRAILER, SVE/AIRSPARGE (#AES-26) ( 300 CFM @ 21”hg)

Trailer # 26 – Dual Phase Extraction and Air Sparge System

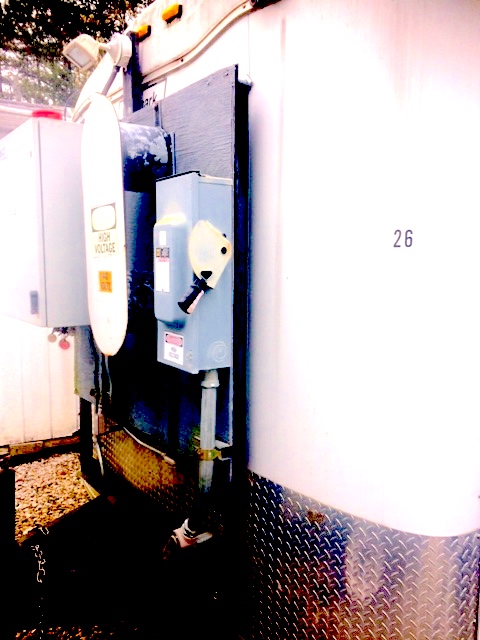

480V 3 Phase Input

System Components

  1. Dual Phase Extraction Vacuum Pump
  2. Phase Seperator
  3. Phase Seperator Transfer Pump
  4. Air Compressor

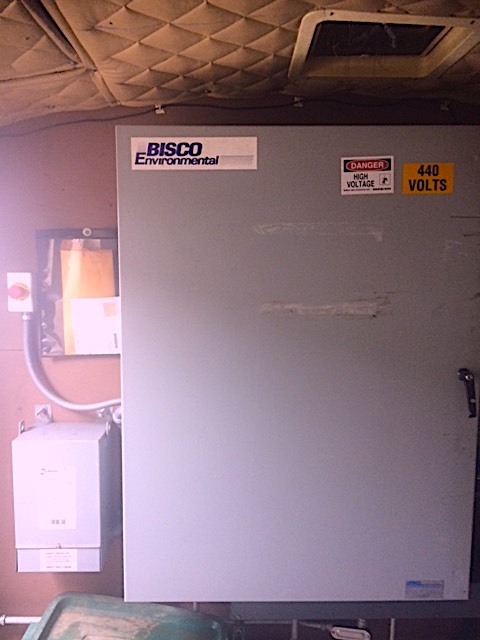

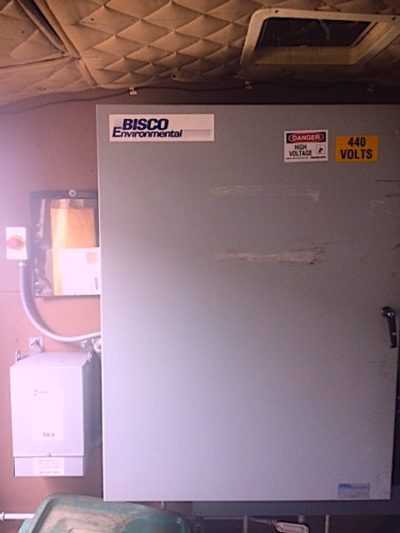

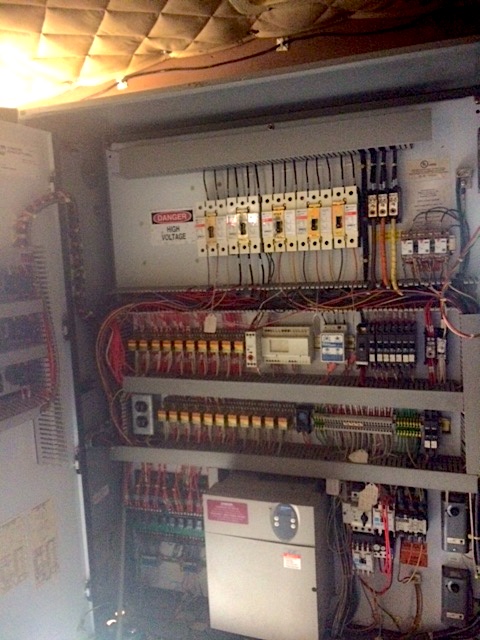

  5. Master Control Panel
  6. Security system

Components

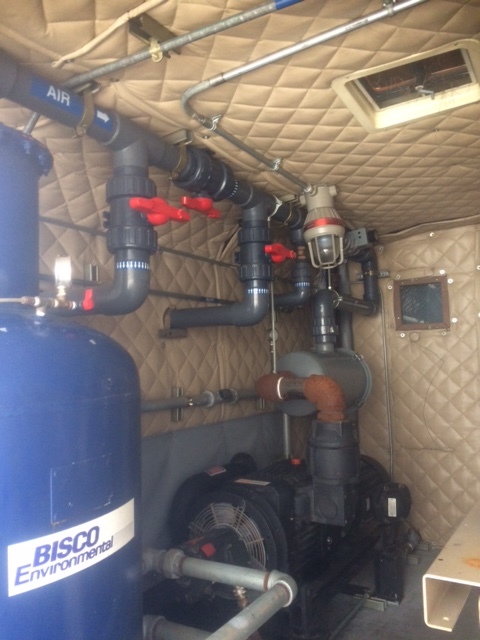

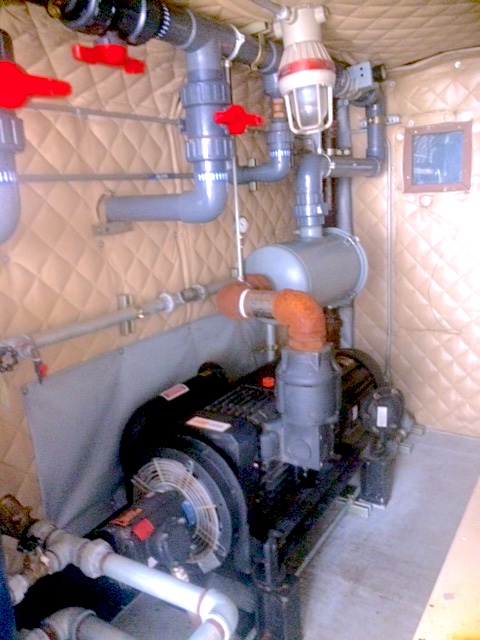

  1. Vacuum Pump – Busch Mink Model M1 1502 BV rotary Claw – 15HP 17.5FLA TEFC-XP

300 CFM @ 21”hg. 376CFM max. with Telemecanique Altivar VFD

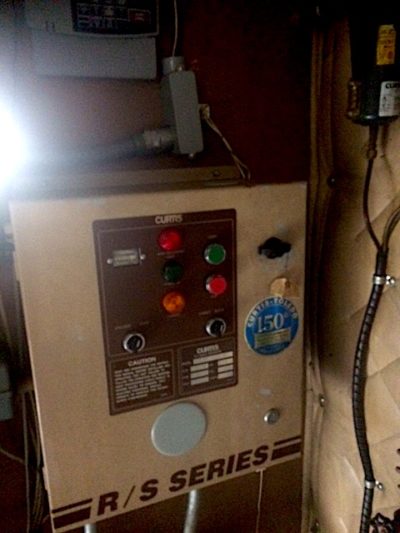

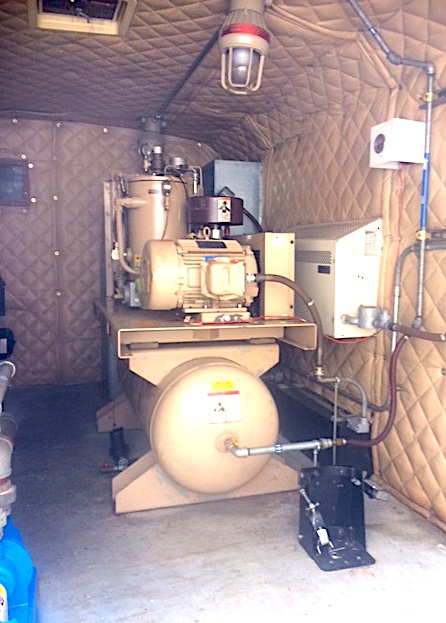

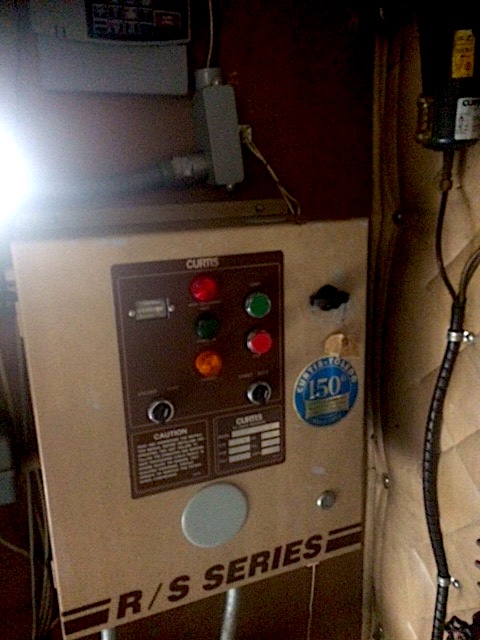

  1. Air Compressor – Curtis RS Series R/S 7T A/E3 7 1/2HP 11FLA TEFC-XP 25CFM 150PSI

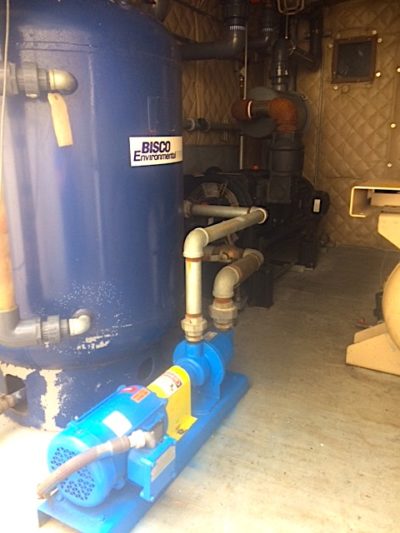

  2. Transfer Pump – Moyno Model # 35601 – 1HP 1.1FLA

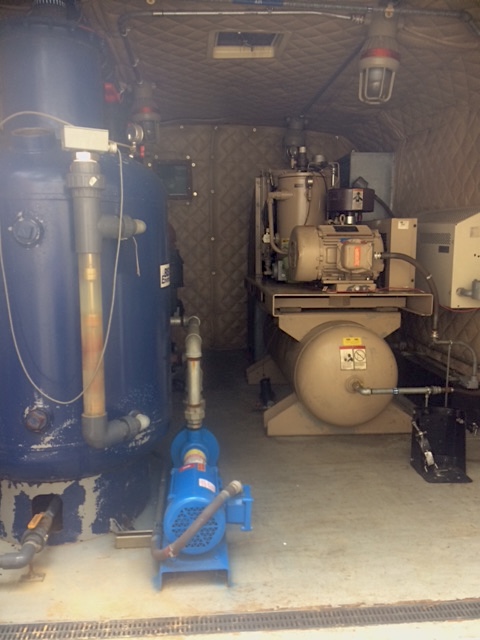

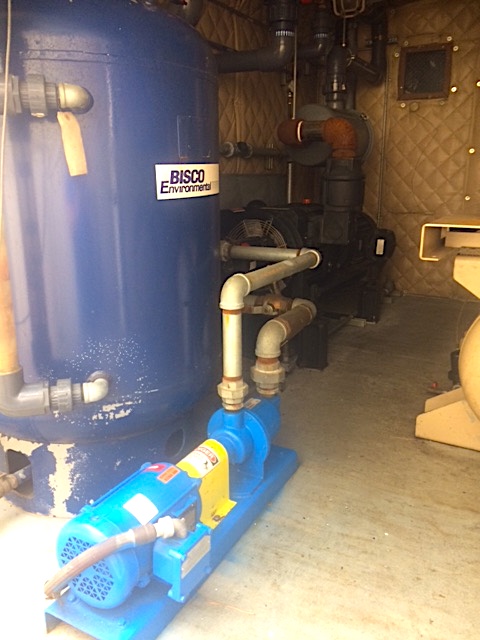

  3. Knockout tank Bisco with Innovative Solutions L500 level switches

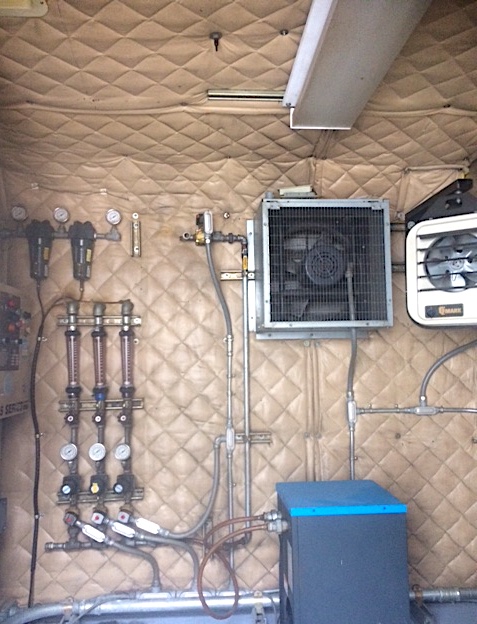

  4. Sparge Manifold – 3 Dwyer 0 – 50 SCFM Flow Rate Meters

Trailer

  1. Hallmark Grizzly model GR85X22WT4 with non-classified and hazardous rooms.

Security System

  1. Digital Security Controls Power 632 Solar Powered
