(SVE/SPARGE-59) TRAILER, SVE/AIRSPARGE (#AES-92)

Trailer 92 SVE/Sparge 1phase unit

Trailer – Express 12 X 8 X 6.5 tandem 3,500lb axles 5 lug 2 5/16” ball

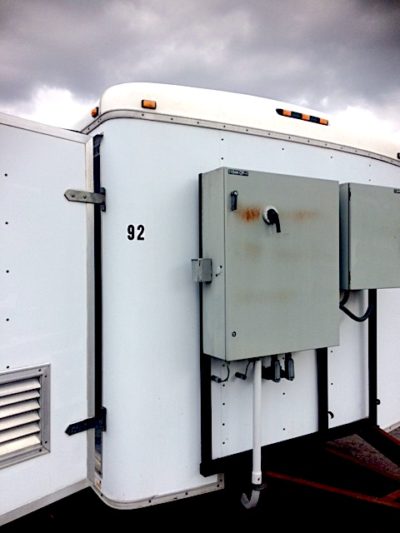

Control Panel – Front mount with dead front controls

Disconnect – SqD 2 pole 100A circuit breaker mounted in panel

Control – EOS Research Pro Controls PLC front mounted in separate enclosure

Separate SVE and Sparge rooms

                                                       SVE 5 point

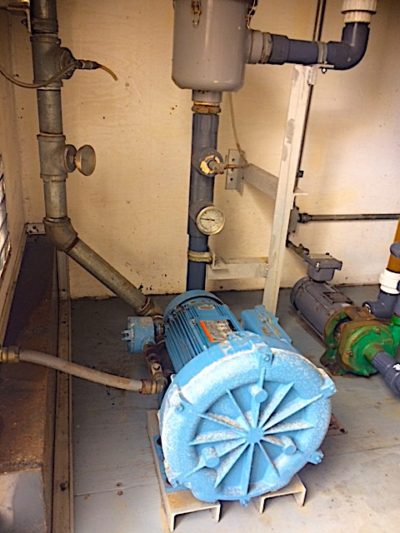

SVE Blower – Ametek model EN505CJ5ML 50”wc 2.5HP 230V 1ph 15.5FLA

Exhaust – 2” with muffler, temperature gauge and magnehelic flow gauge 0-60”wc

Inlet Filter with temp gauge and 2-magnehelic flow gauges 0-60”wc pre and post filter

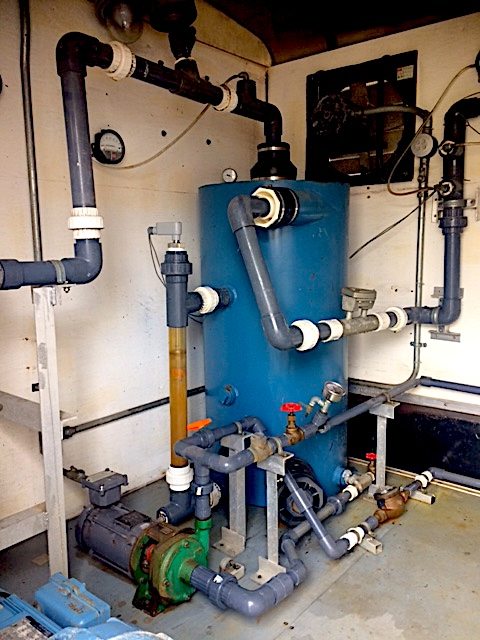

AWS Tank – 100 gallon vessel with site glass and 3 position level switch array

Transfer Pump – Myers model CT-05

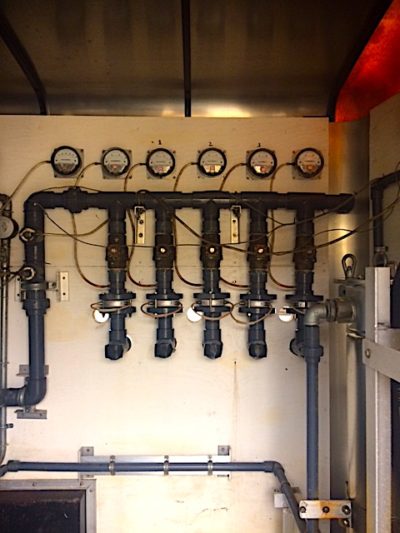

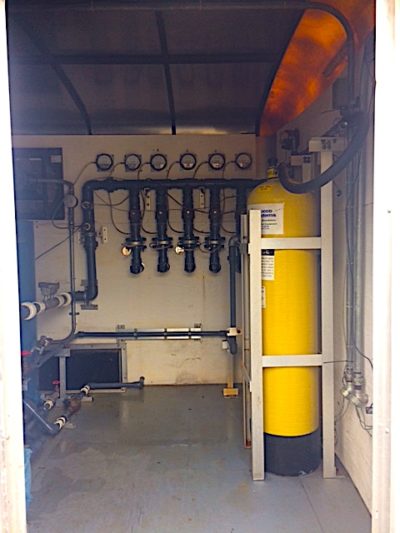

Manifold – 4” with 5-2” inlets with Dwyer model PE-F-2 valves, 2” ball valves and Magnehelic flow gauges 0-30”wc

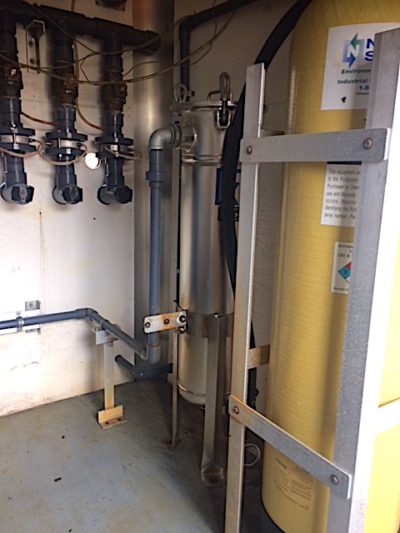

Bag Filter – Rosedale model 0083028 LCD-8

Carbon Vessel – Nepcco Systems fiberglass 90lb. 95psi max. 1” out

GPM Meter – Master Meter 1” out

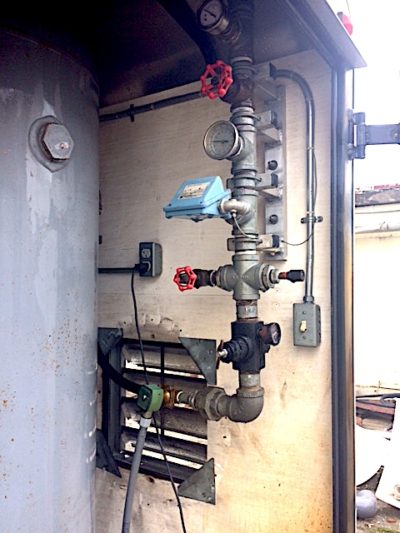

Air Sparge 2 outlets

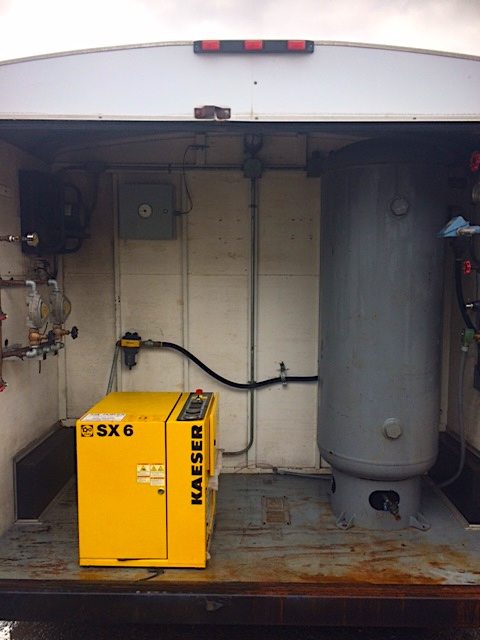

Compressor – Kaeser SX-6 with Kaeser model KOR20 in line filter

200 gallon holding tank

Temperature Switch – Barksdale model B-100-120 and temperature gauge

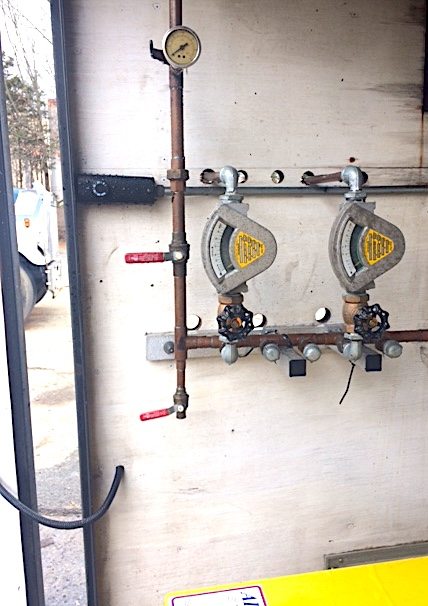

2-ERDCO model 3214-0410-1 flow rate meters with ball valves and pressure gauges

Crouse Hinds XP lighting fixtures

XP exhaust fan
