(SVE/SPARGE-59) TRAILER, SVE/AIRSPARGE (#AES-34)

Trailer 34 SVE/Sparge

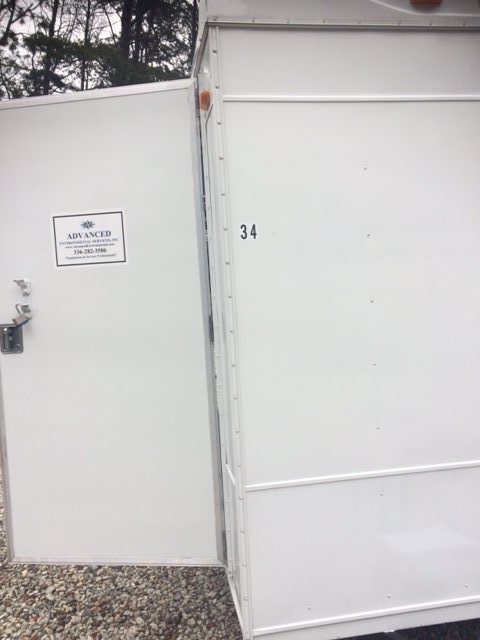

Trailer – 10 X 6 X 7 single 3,500lb axle 5 lug 2” ball

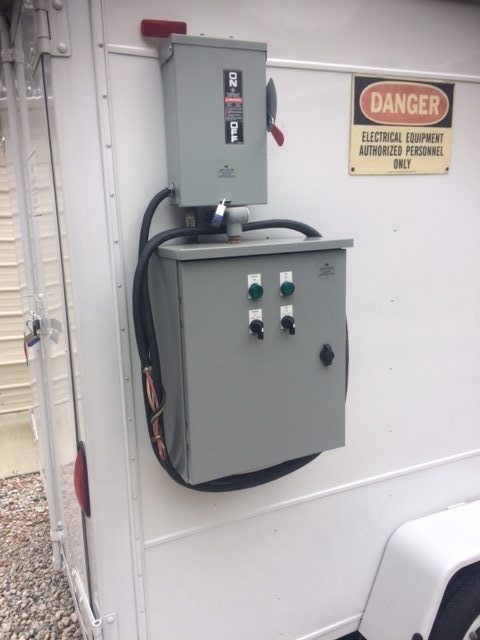

Disconnect – GE 230V 3ph 60A 30A Fused

Control Panel – side mounted with front mounted controls

Control – relay logic

SVE 2 inlets 2”

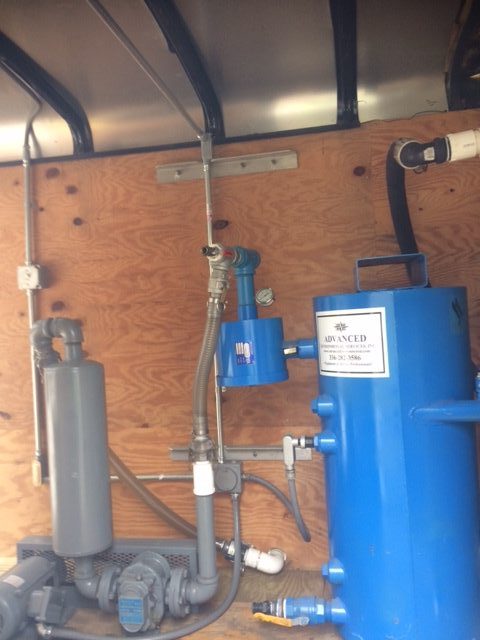

Vacuum Pump – Roots Blower model 95N belt driven 2HP 230V 3ph 6.2FLA

Inlet filter – Stoddard model F75-2 with vacuum gauge

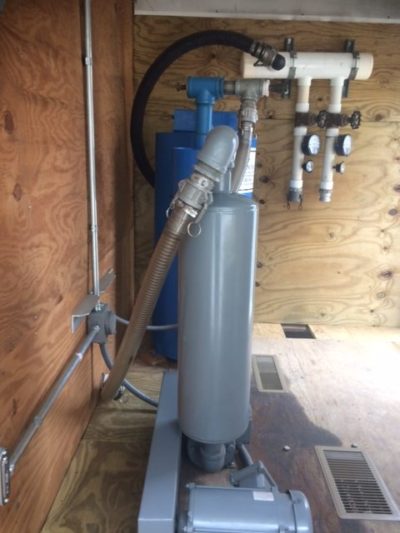

Exhaust – 2” with silencer to 4” stack

AWS Tank – 40 gallon steel with high level cutoff switch and manual drain

Manifold – 4” to 2-2” inlets with gate valves, vacuum gauges and Magnehelic flow gauges 0-100”wc

                                             Sparge 4 outlets

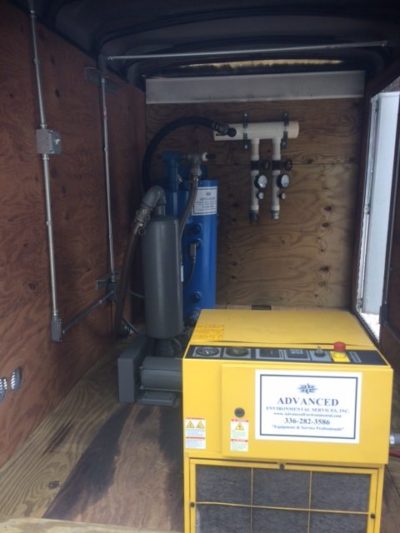

Compressor – Kaeser SX-6 5HP 230V 3ph 16.1FLA 110psi 21.3cfm

Outlet Filter – Gardner Denver model FIL20E17DG

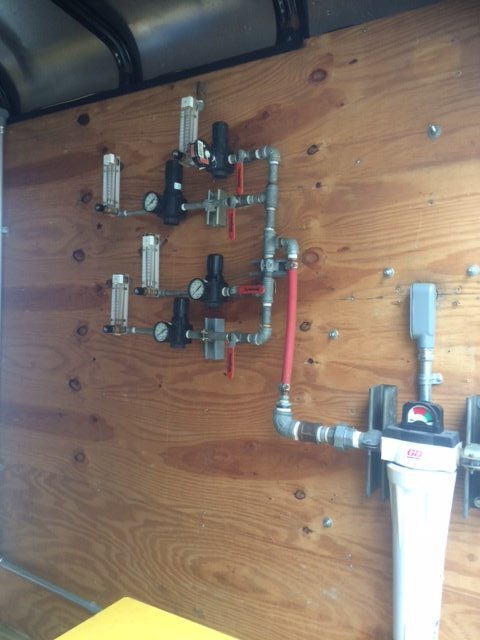

Manifold – ½” 4 outlet with ball valves, regulators and pressure gauges

Flow Rate Meters – Dwyer 0-10scfm with quik connect outlets

Exhaust Fan – Dayton 1/20HP 110V 1ph roof mounted
