(SVE/SPARGE-57) TRAILER, SVE/AIRSPARGE (#AES-9F) (max – 1,100 cfm / 6.6″hg)/(max. 80 cfm / 22 psi). *** $28,500.00 ***

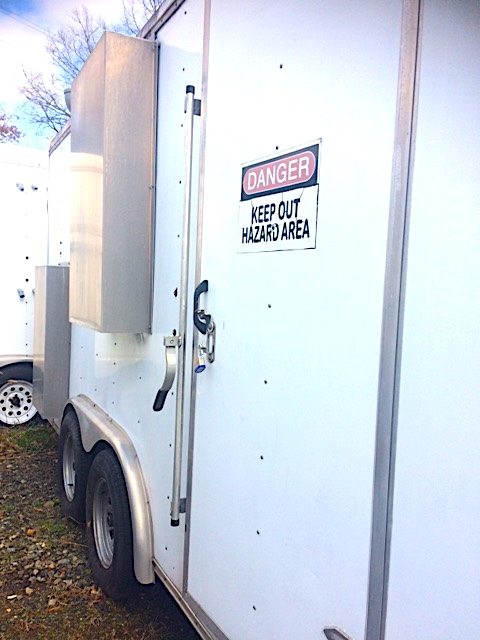

Trailer – Express 16 X 8 X 8 Tandem 3,500lb axles 2 5/16” ball 5 lug

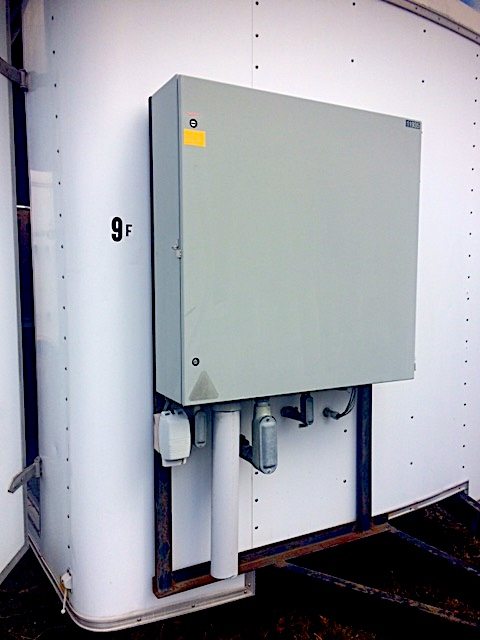

Controls – 36 X 36 X 8 Hoffman enclosure type 4 externally mounted
Disconnect- 230V 3ph 100A
EOS Pro Control plc logic with telemecanique starters
Switches and hour meters are dead front mounted

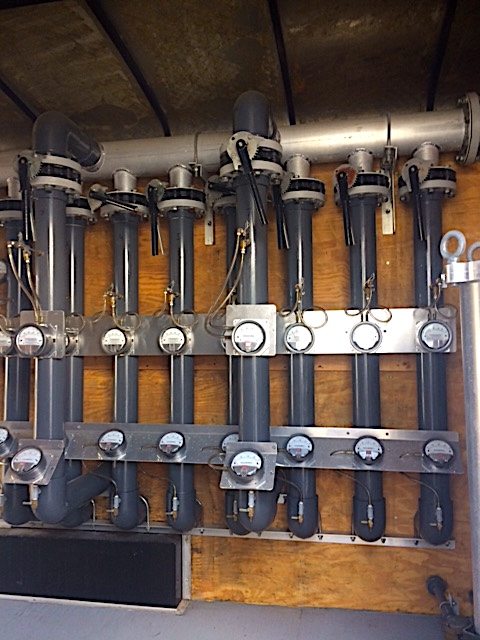

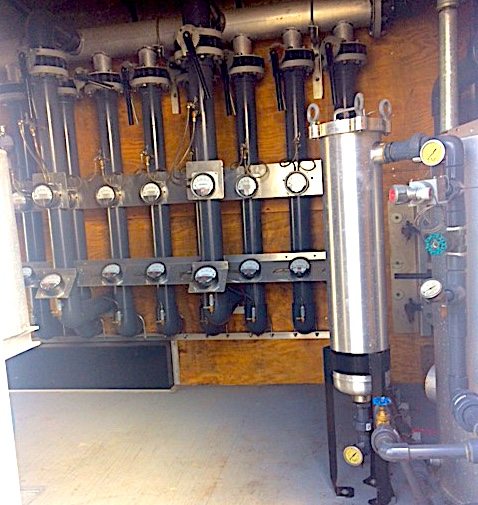

SVE System – 10 – 4″ recovery points with valves, magnahelics and sample ports.

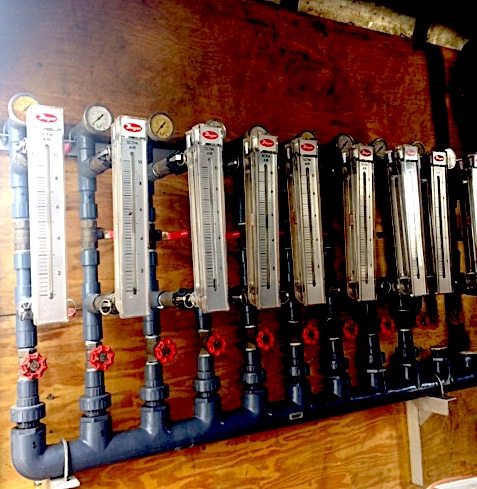

Air Sparge System – 11 1” sparge points with Dwyer 0–10 scfm flow meters with cutoff And bypass valves

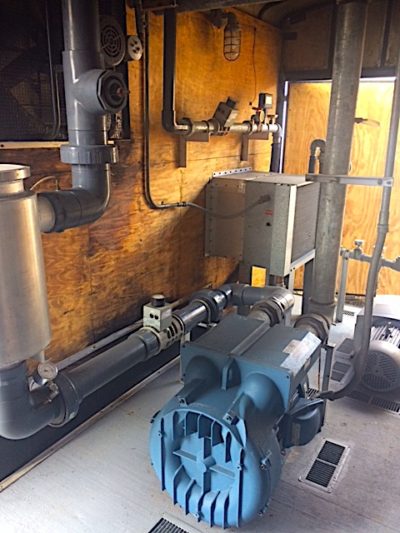

Recovery Pump – Ametek EN979BK72WL 25HP 230V 60A
(Max. 1,100 cfm/6.6″hg)
Sparge Compressor – Becker KDT 3.14 12HP 230V 28.4 FLA 1500
(max. 80 cfm / 22 psi)

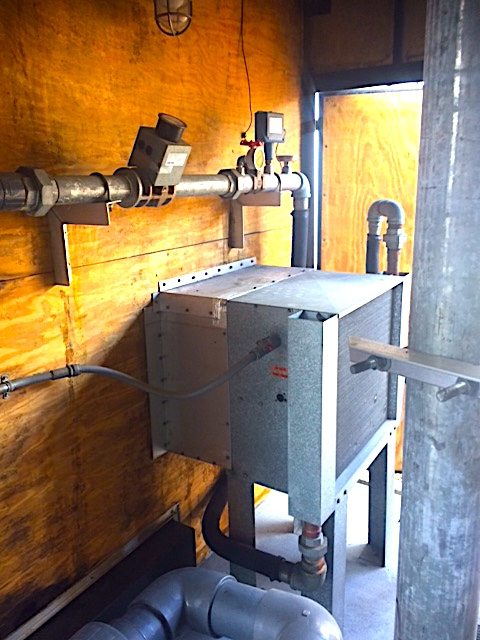

Heat Exchanger – Thermal Transfer Products model AA – 8 – 3250 psi Tubes 350 deg. Max.
Exhaust Fan – 1/2HP 0” XP

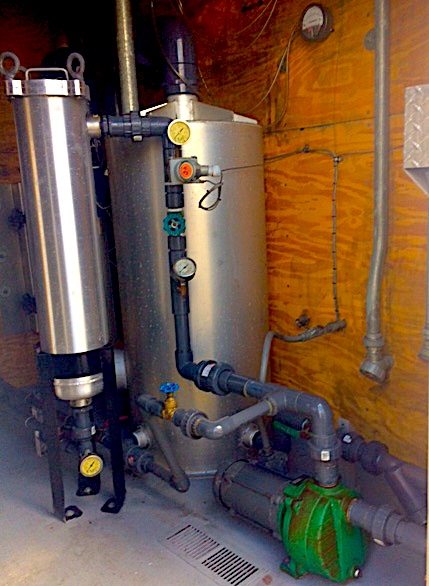

K/O Tank – 75 gal. aluminum with site glass and switch array
Transfer Pump – 1/2HP Myers CT05 230V 3ph
Bag Filter Aluminum model GP802A12
*Unit is in good shape
