(SVE/SPARGE-55) TRAILER, SVE/AIRSPARGE (#AES-80F)

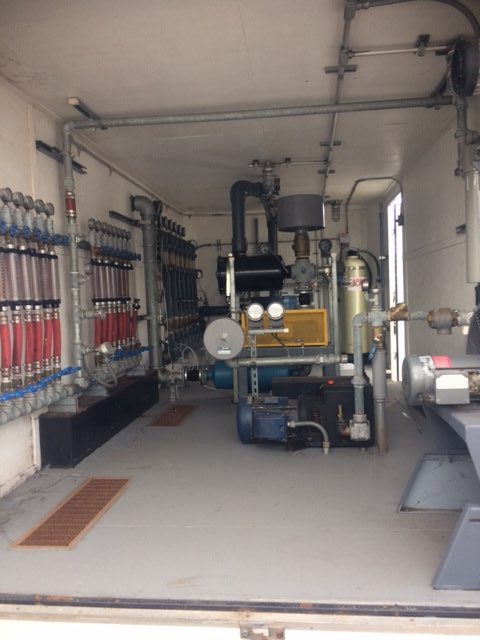

Trailer 80 SVE/Sparge

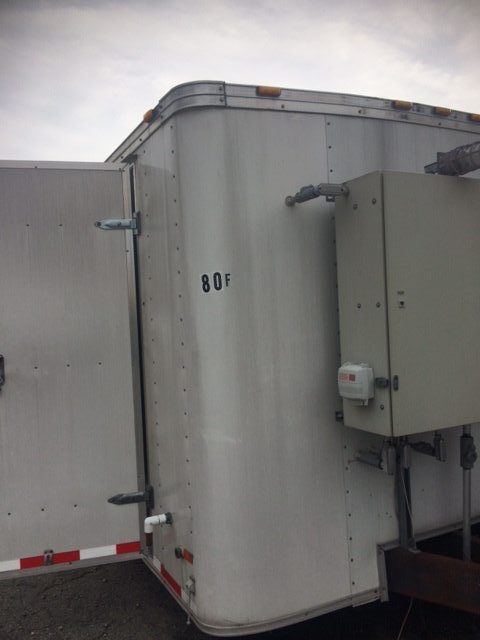

Trailer – Hallmark 20 X 8 X 7 tandem 7,000lb axles 8 lug 2 5/16” ball

Disconnect – SqD 230V 3ph 80A fused

Control Panel – Front mounted with dead front controls

Control – EOS Research Pro Controls PLC

SVE

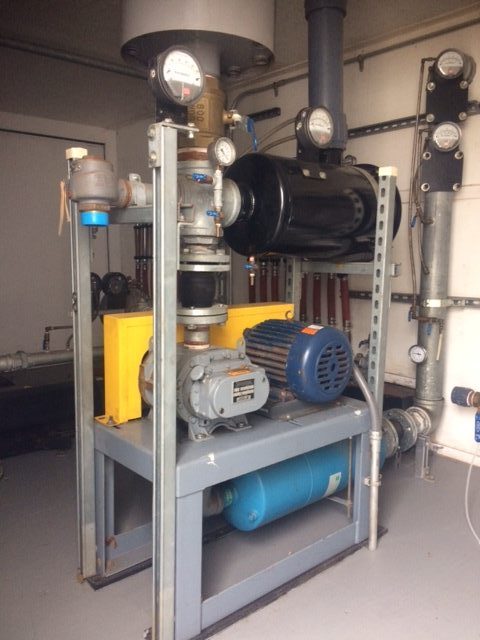

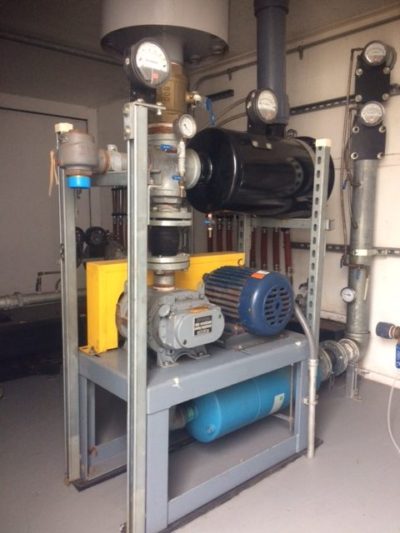

Pump – Gardner Denver Sutorbilt model GABLBPA cat.# 3-LP

5HP 230V 3ph 12.7FLA belt driven

Exhaust – Universal Silencer model URB-2.5 3”

Magnehelic gauges on flow and back pressure, temperature gauge

Magnehelic gauges pre and post on inlet filter

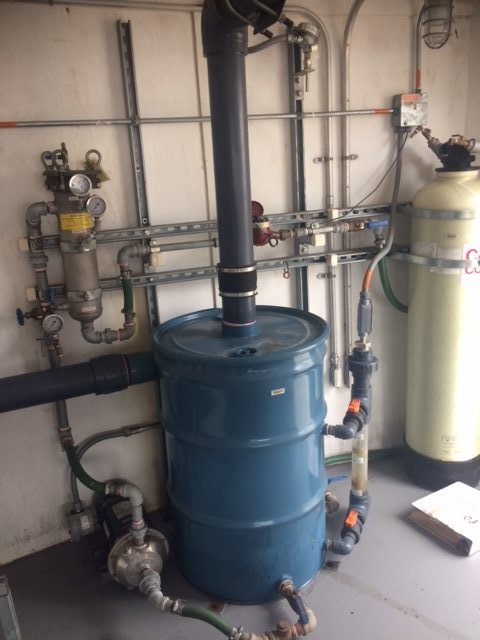

K/O Tank – 55 gallon drum type with site glass and 3 position level switch array

Transfer Pump – Gould NPE 1st1F7C4 1 ½ HP 230V 3ph 4.8FLA

Bag Filter – Krystal Kleer model L4412

Carbon Vessel – Carbtrol fiberglass 90lb

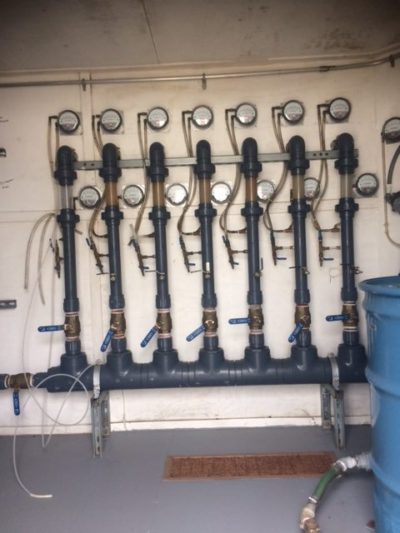

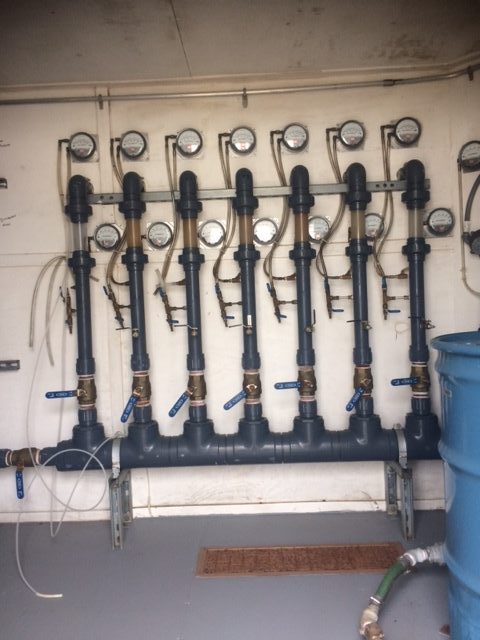

Manifold – 4” into 7-2” inlets with site glasses and magnehelic 0-100wc gauges with 2” ball valves and vacuum gauges

 Air Sparge

Sparge Pump – Gardner Denver DLR-100 7 ½ HP 230V 3ph 17.8FLA

2.2 bar

Inlet Filter – Soleberg model FS31P-200

Heat Exchanger – American Industrial ACA-3242-3-R

Trailer 80 (cont)

Temp Switch – Weed instruments

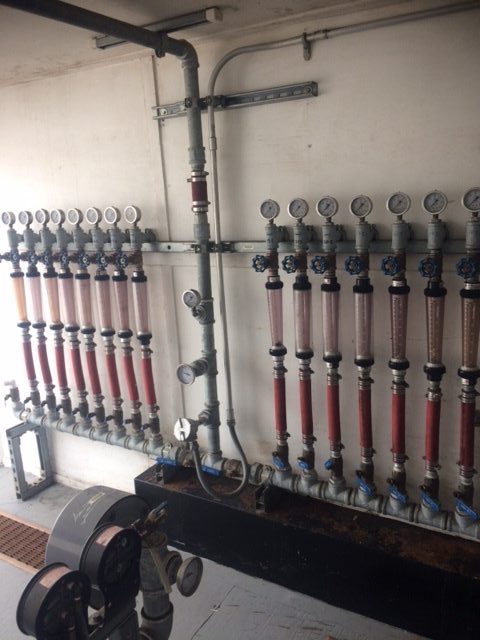

Manifold – 2-8 position manifolds with ball valves and pressure gauges

Flow Rate Meters – 16-Dwyer 0-13scfm/0-400LPM 1” outlets

Interior and exterior Killark XP lighting fixtures

Exhaust Fan – Canarm model SD12-XPF
