(SVE/SPARGE-55) TRAILER, SVE/AIRSPARGE (#AES-24F)

Trailer 24F SVE/Sparge

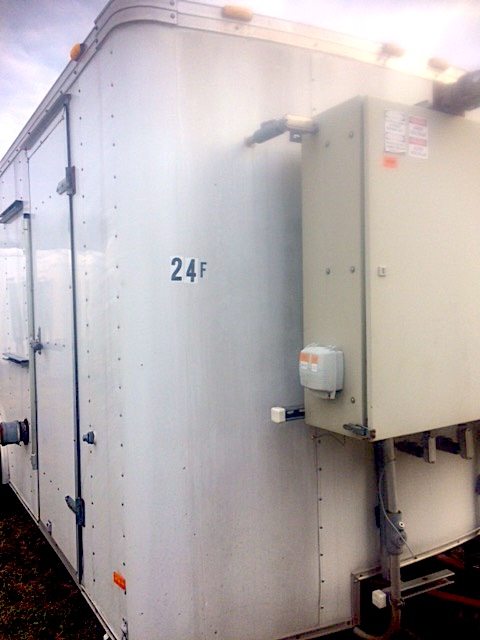

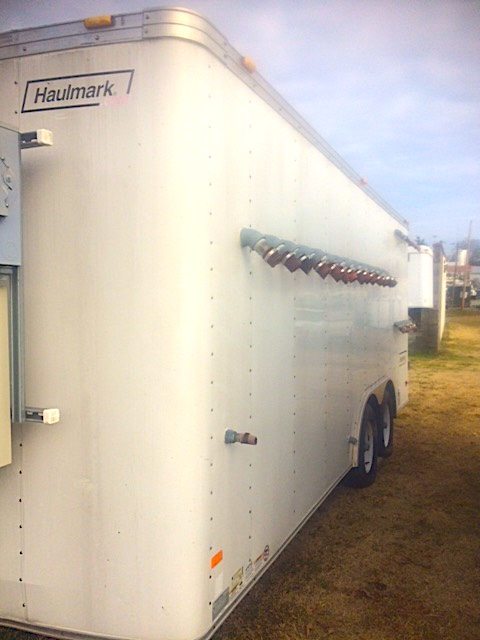

Trailer – Hallmark 18 X 8 X 6.5 tandem 5,000lb axles 6 lug 5/16” ball

Control Panel – Front mount with dead front controls

Control – EOS Research Pro Controls PLC

  SVE

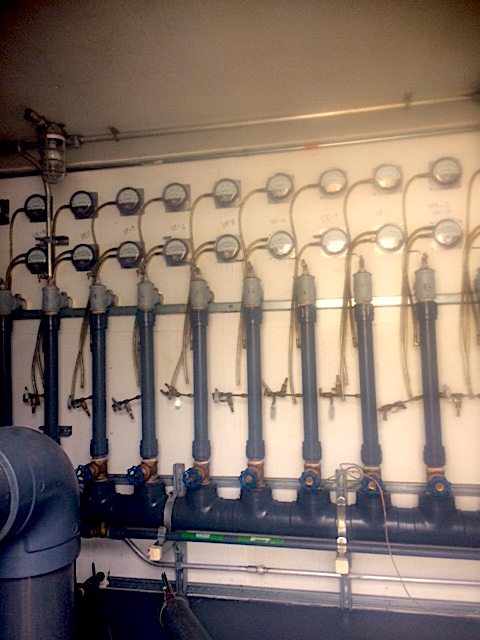

Manifold – 6” to 14-2” points with Magnehelic flow gauges 0-150wc, sample ports and gate valves. 2-6” points with bypass valves stubbed through floor

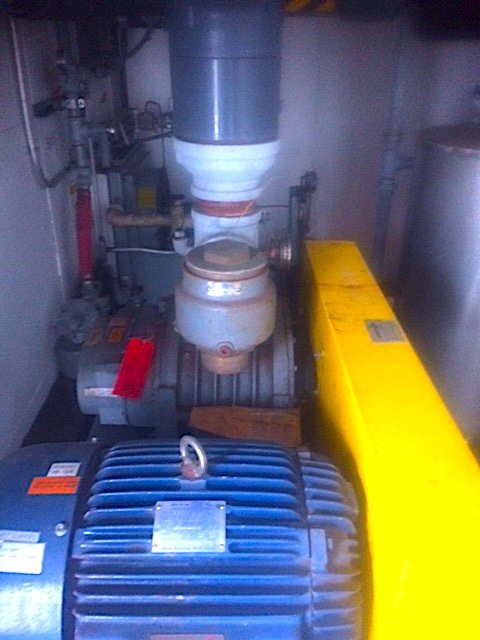

Vacuum Pump – Gardner Denver model GAELDPA belt driven cat.# 5LP

15HP 230V 3ph 34.6FLA

Magnehelic 0-150wc gauge, silencer, and temp gauge on 4” exhaust

15HP 230V 3ph 34.6FLA

K/O Tank – Maple Leaf model VLW-90 500cfm max. with site glass and Almeg 500 3 position level switch array

Asco series 43 pressure sensors

TransferPump – Gould NPE cat# 11F7C4 1 ½ HP 230V 3ph 4.8FLA

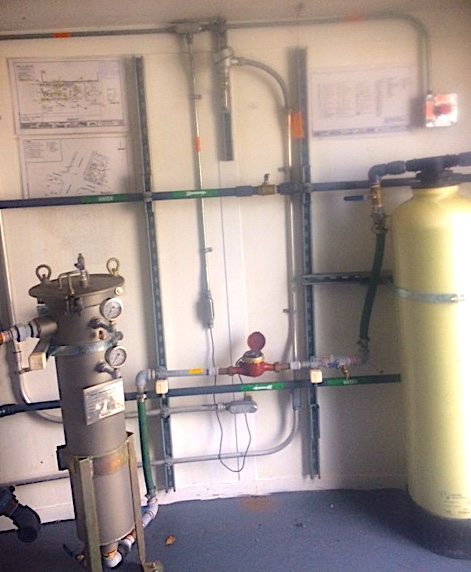

Bag Filter – Filter Innovations model S4EB112-2P-SW 150psi @250deg F

Carbon Vessel – Carbtrol fiber glass model HP-90 90lbs. to 1” out

       Air Sparge

Sparge Pump – Rietschle-Thomas DLR 100 2.2bar

5HP 230V 3ph 11.6FLA

Heat Exchanger – American Industrial model ACA-3242-3-E

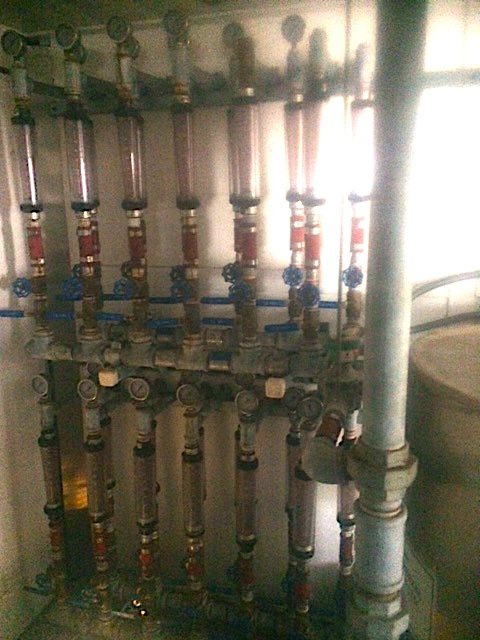

Manifolds – 4-1 ½” manifolds to 6-1” points each

Flow Meters – 24 Dwyer Ultraview 0-13 scfm/0-350 lpm with gate valves and pressure gauges

Asco 1 ½” solenoids on each manifold

GPM meter – Multijet IPG12

Exhaust Fan – Canarm model SD18-CPF

Flow Transmitter – Nuflow model FHCF33V4ADCYYAA 0-125”wc range
