(SVE/SPARGE-52) TRAILER, SVE/AIRSPARGE (#AES-07FA) SVE Max:   550 cfm / 15″hg, Sparge 47 SCFM / 22 psig *** $32,500.00 ***

                                              Trailer SVE/Sparge 52

AES# -07FA

Trailer – GT Express 16 X 8 X 8 tandem 3,500lb axles 2 5/16” ball 5 lug

Disconnect – SqD Front mounted 230V 3ph 200A fused

Control enclosure – Front mounted with dead front controls

Control – EOS Pro Controls PLC

SVE

Rotary Vacuum Blower – TutHill model 5006-22R2 15HP 230V 3ph 35.8FLA. 4” exhaust out thru silencer with gate valve belt driven

Max:   550 cfm / 15″hg

11 point SVE in – 2” each With site glasses, vacuum gauges, ball valves and sample ports

Pressure Transmitters – 3-Dwyer model 616 weather proof, 2 Dwyer model 666-4 weather proof, 2-Dwyer model 616-3, 1-Dwyer model 683-403 40, sensors are located throughout system. Mounted in front mounted enclosure

Manifold – 6” square aluminum with 4” line into K/O tank

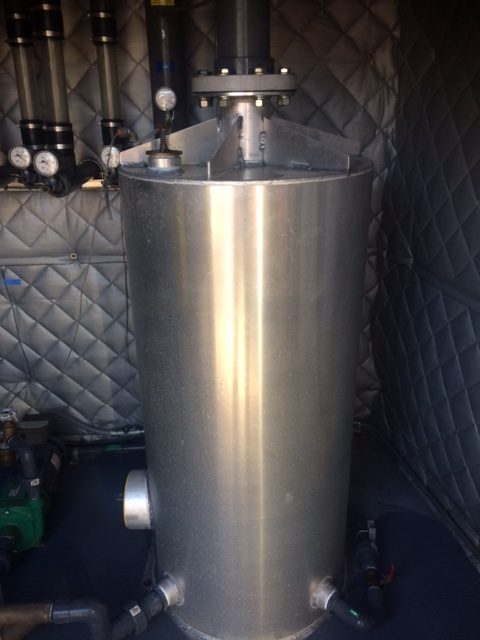

K/O Tank – 60 gallon aluminum with site glass and level switch array and in line filter

Transfer Pump – Myers model CT1C FAB 1HP 230V 3ph 3.6FLA

Dwyer model 1950P differential pressure switch

GPM Meter – Master Meter registers 0 gallons

Sparge

Sparge Compressor – Becker model KDT 3.100 10HP 230V 3ph 25.7FLA

Rated @ 47 SCFM / 22 psig

Heat Exchanger – American Industrial model ACA3203-3 pressure and temperature gauges on output to manifold with 2-Dwyer analog temperature gauges with cutoffs

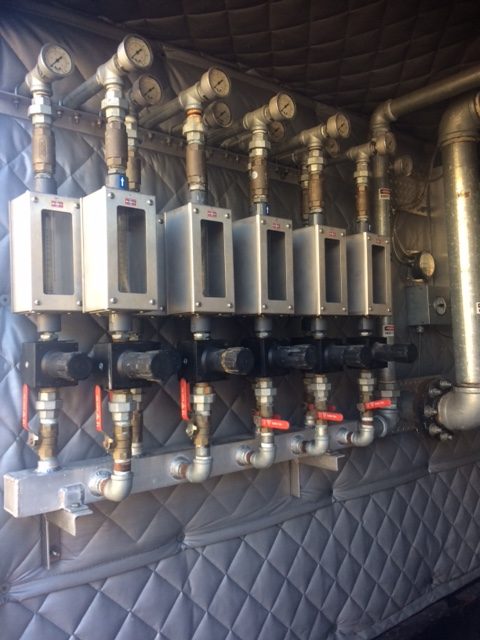

Manifold – 3” square aluminum with 11-1” points with ball valves

11 – King model 7311323044A fully enclosed flow rate meters 0-12 scfm 1” out with pressure gauges and check valves

11 – Wilkerson model R39-08-F000 regulators

1” out

XP exhaust fan

XP lighting
