(SVE/SPARGE-48) TRAILER, SVE/AIRSPARGE (#AES-33F)

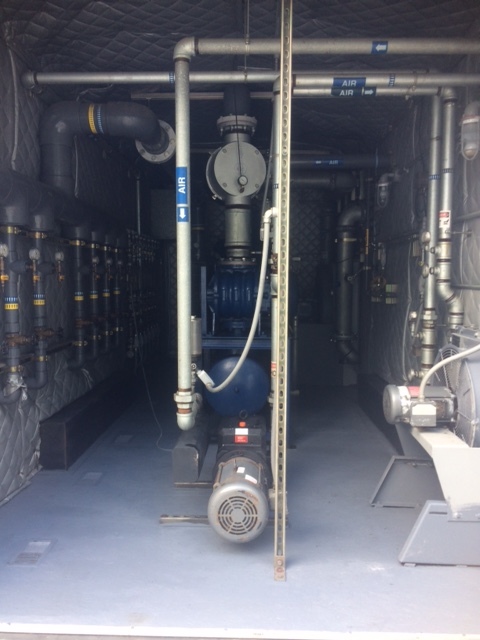

Trailer 33F Bisco unit

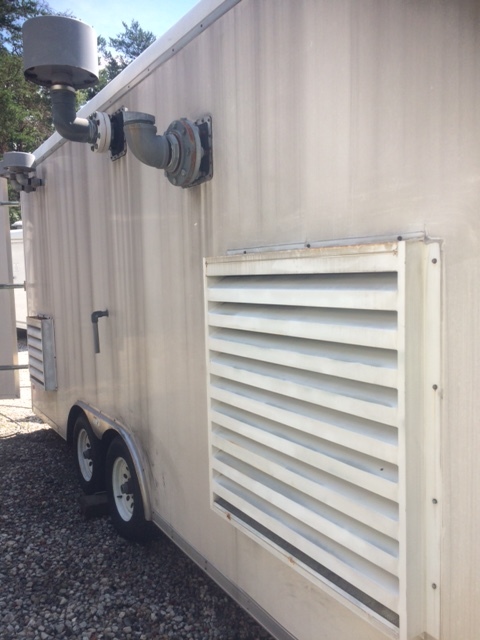

Trailer – Cargo Express 22 X 8 X 8 tandem 5,000lb axles 6 lug 2 5/16” ball

Disconnect –SqD 230V 200A fused

Control Panel –  front mount with dead front controls

Control – Tbox PLC

Control Transformer – HPS Titan 5KVA front mounted

SVE

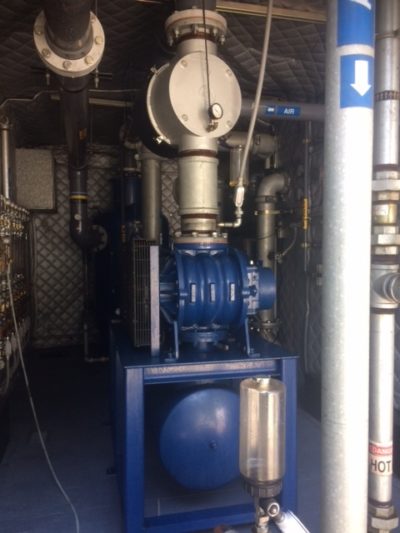

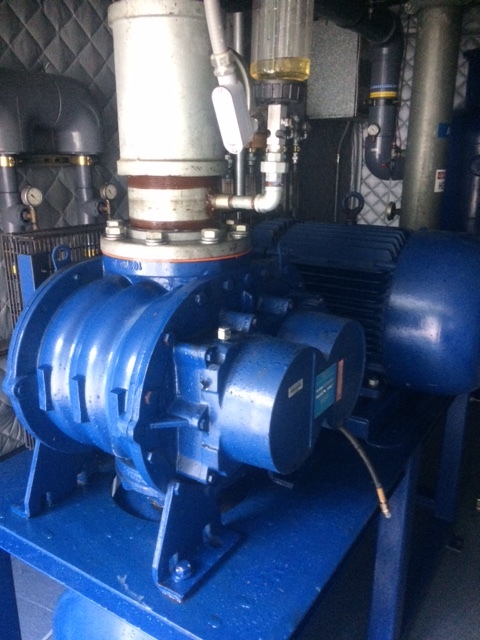

Sve Blower –  Roots model 711 U-RA1 blower 50HP 230V 3ph 130FLA belt driven Soleberg inlet filter

Silencer – Universal 72 X 24- 6” exhaust

Heat Exchanger – American Industrial model ACA6421-3-R 5HP 230V 15FLA

0-100 flow magnehelics,  temperature gauge and Barksdale model ML1H-H203 temperature switch on 4” Exhaust and inlet

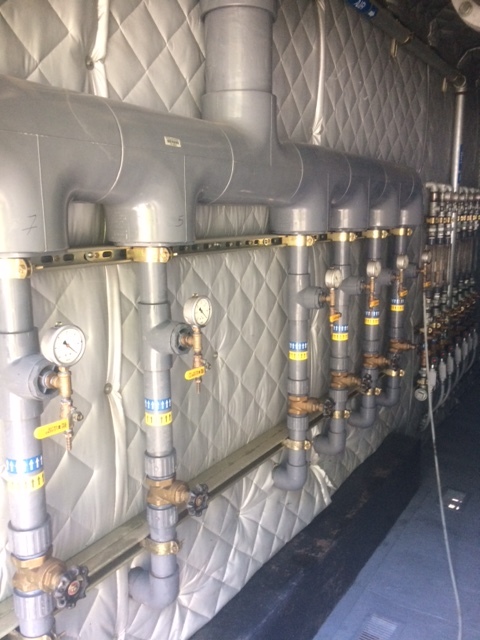

6” manifold to 8-2” inlets with gate valves and vacuum gauges

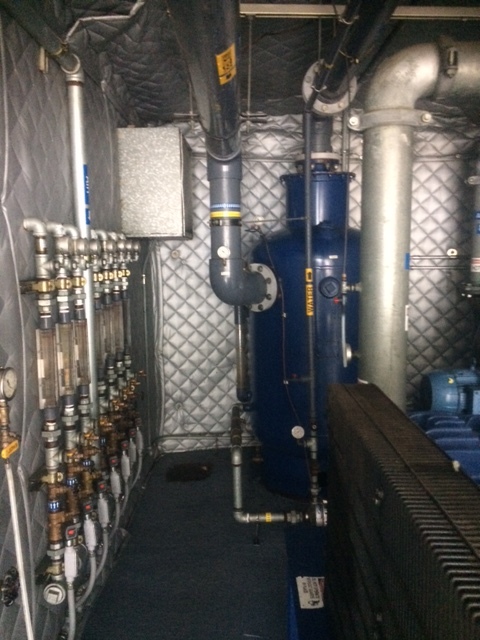

Air/Water separator Tank – Steel 200 gallon with site glass and level switch array

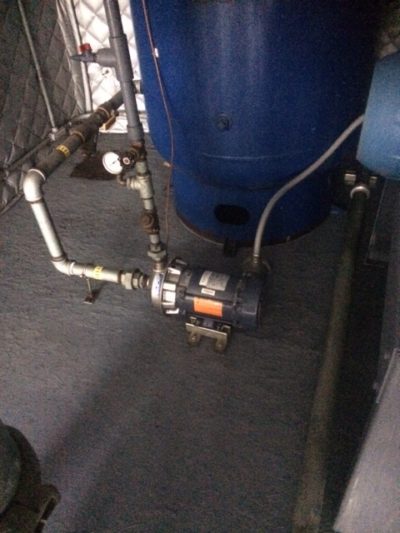

Transfer Pump – Gould 17T1E7D4 1HP 230V 3ph 1” out

KoBold totalizer model DRB1.20.8 65gpm max.

Sparge

Sparge Pump – Rietschle-Thomas model DLR-100 7.5HP 230V 16FLA 2” to heatexchanger with Barksdale modelML1H-H203 temperature switch, pressure and temp gauge

Heat Exchanger – American Industrial model 3242-3-R >33HP 1.8FLA

Manifolds – 2-2” one 4 pos. and 1-3 pos. with 2” solenoid on each manifold

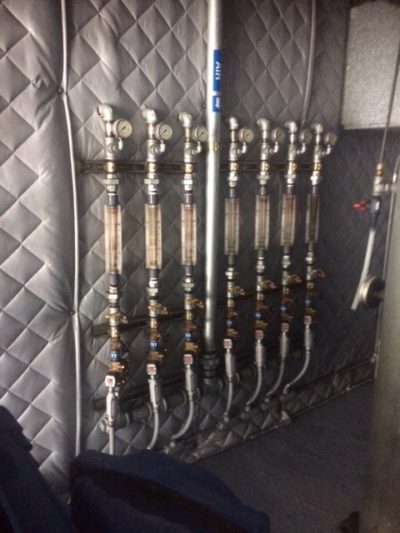

Flow Rate Meters – Dwyer 0-25scfm with gate valves and pressure gauges

XP Fan – Dayton ½ hp 230V 1PH

XP lighting
