(A+ OZONE INJECTION / SPARGE SYSTEM # 2) (AES#21F)– PEROZONE

Trailer 21F Air/Ozone Sparge

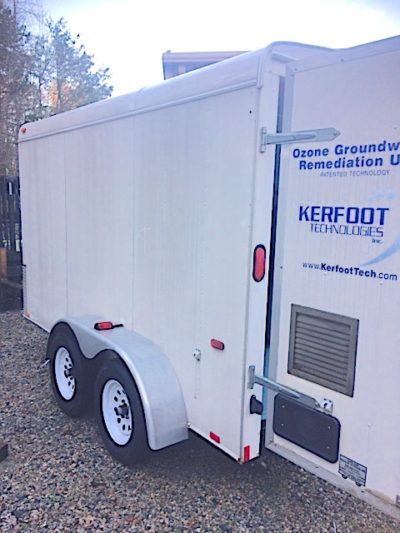

Trailer – Carmate 10 X 6 X 6 single 3,500lb axle lug 2” ball

Disconnect – SQ D 230V 1ph 100A fused side mounted

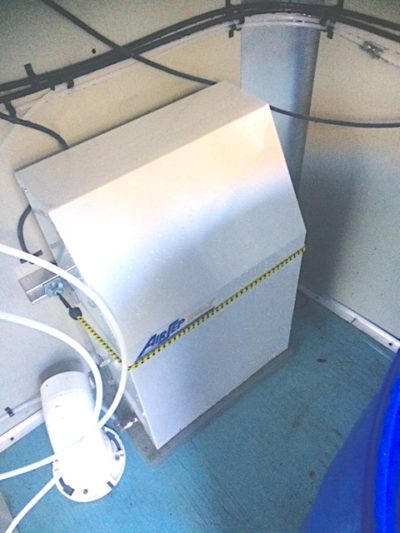

Oxygen/Air sparge mix – AirSep model AS-80 with Harris 447 50 psi manual regulator

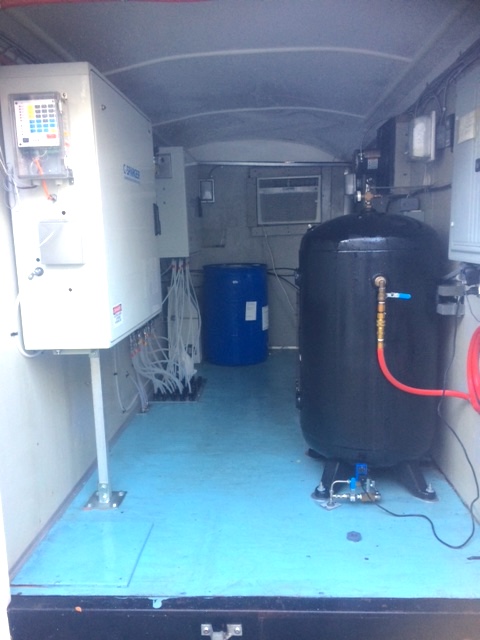

150 gallon oxygen mix tank

50 gallon air tank

Compressor – Kaeser SX-6 5HP 230V 1ph 23FLA

In line filters – Kaeser KPF 20 and Kaeser KDR 20

Dryer – Kaeser TA-5

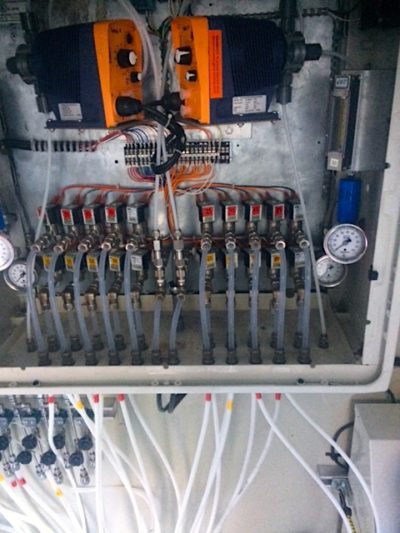

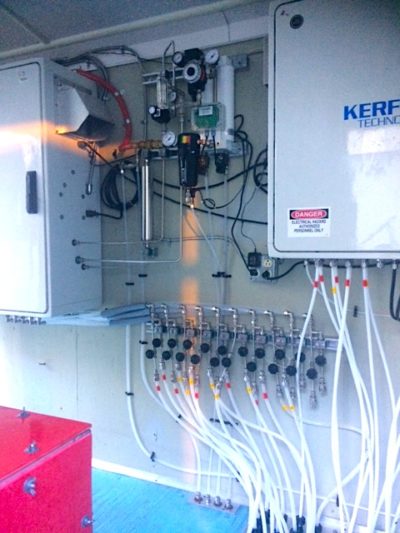

4 – 6 point manifolds

24 – Dwyer 0-100 scfh flow rate meters with 0-30psi pressure gauges and gate valves

4 intermatic model C8845 24 hr. timers

4- ASCO solenoid valves

DuoTherm air conditioner roof mounted

Circuit breaker panel with 230V 1ph 50A main breaker interior mounted

SQ D model 10S1F 10KVA transformer side mounted
