(MMPE–21) TRAILER WITH TREATMENT – OW SEPARATOR – AIR STRIPPER – (AES#29)(100 CFM @ 21″HG)

Trailer #29

230V 3 Phase Dual Phase Remediation System with Full Treatment

Components

Vacuum Pump – Atlantic Fluidics A100 oil seal liquid ring pump 7 1/2hp 20 fla

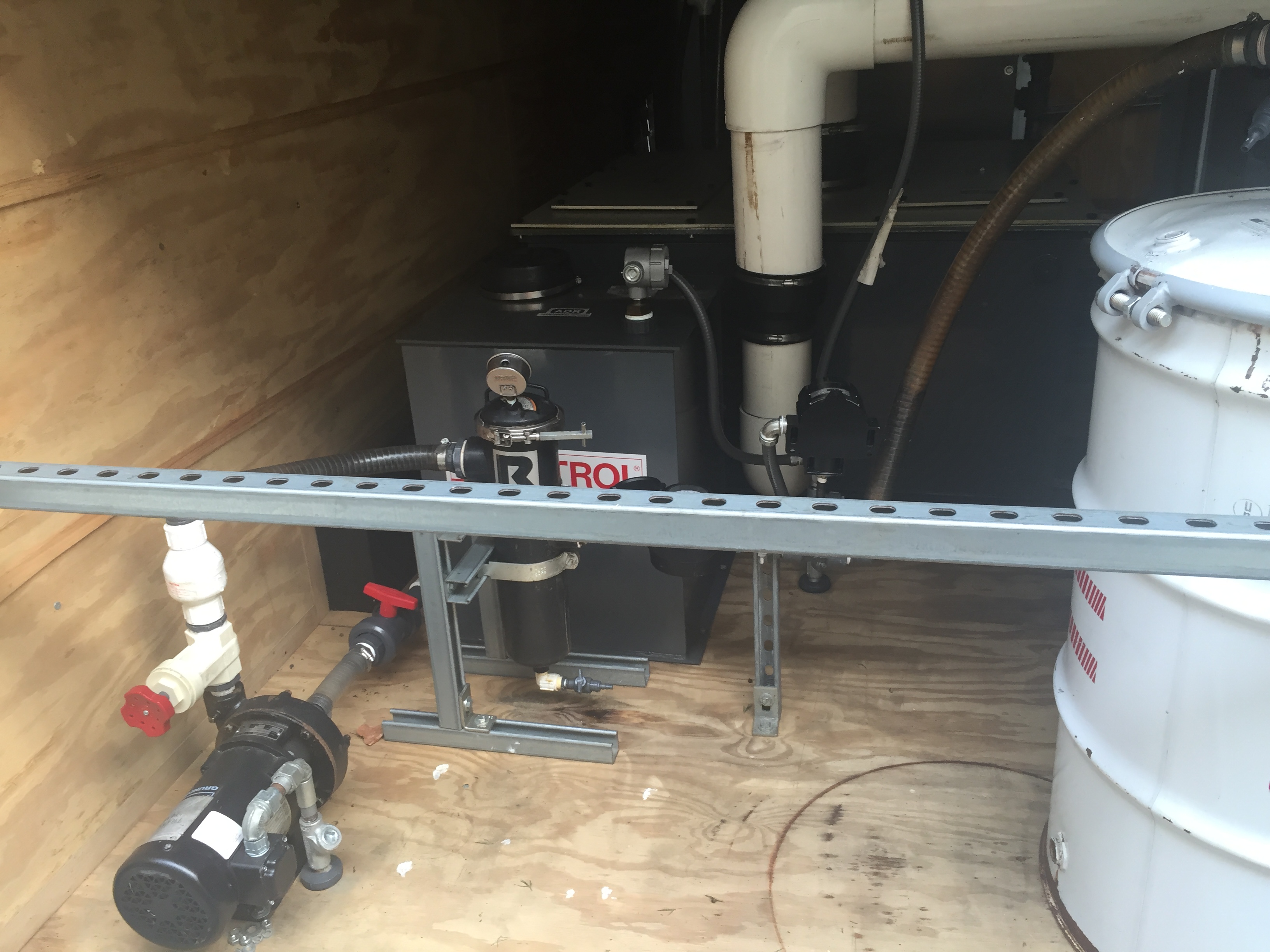

Transfer Pump – Moyno 1/2hp 2.9fla

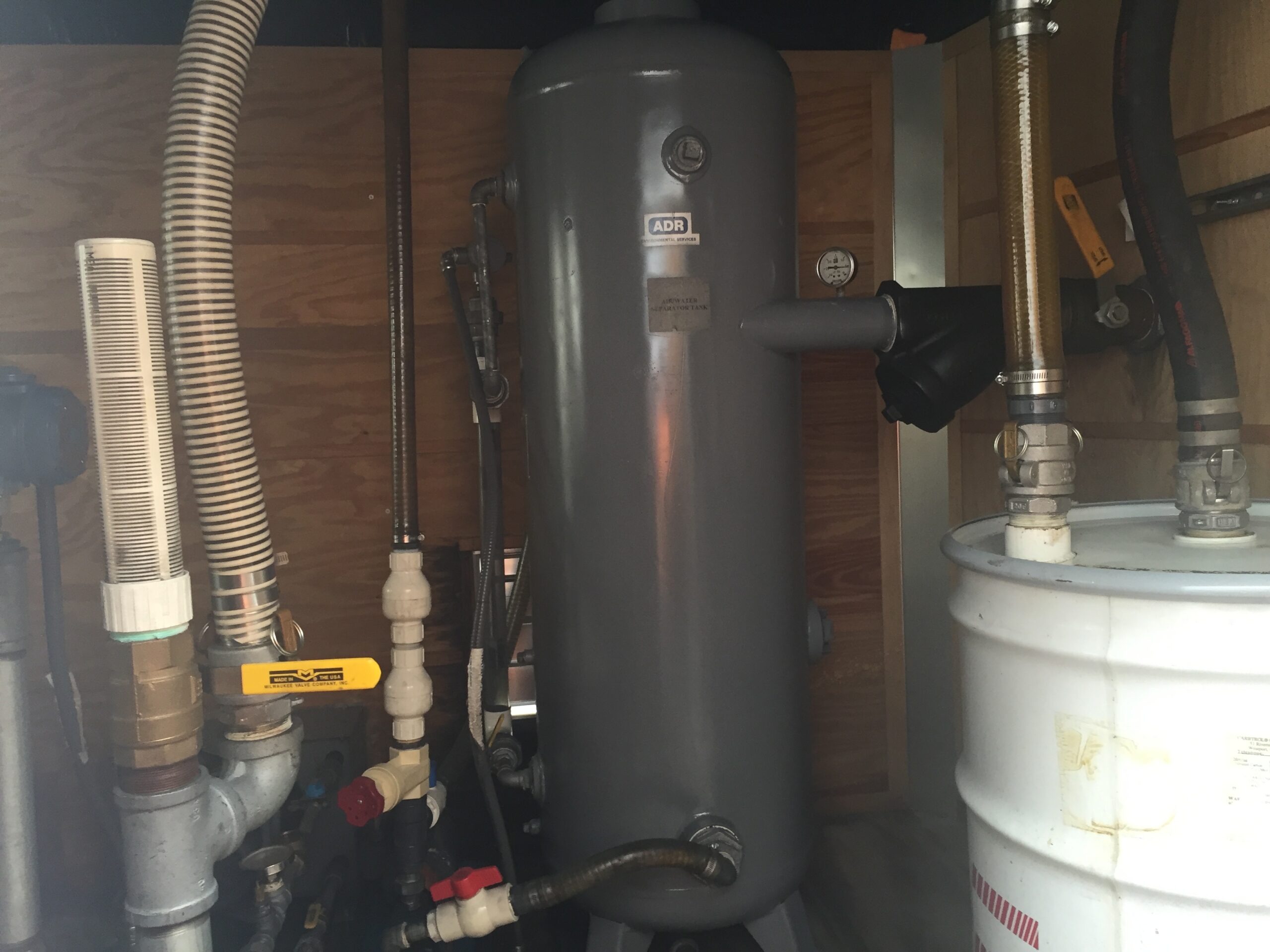

Air/water separator tank – 80 gallon with level switch array

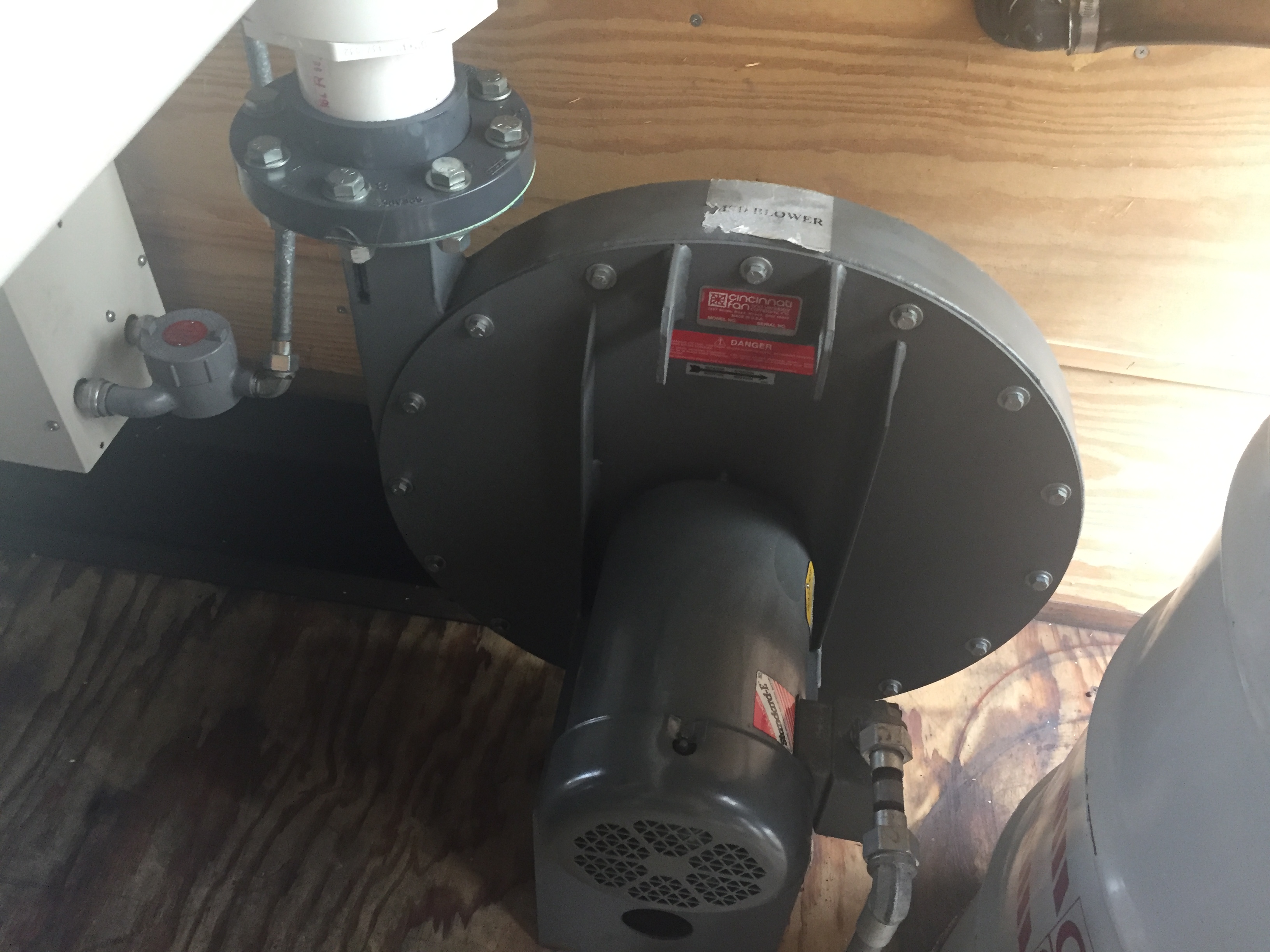

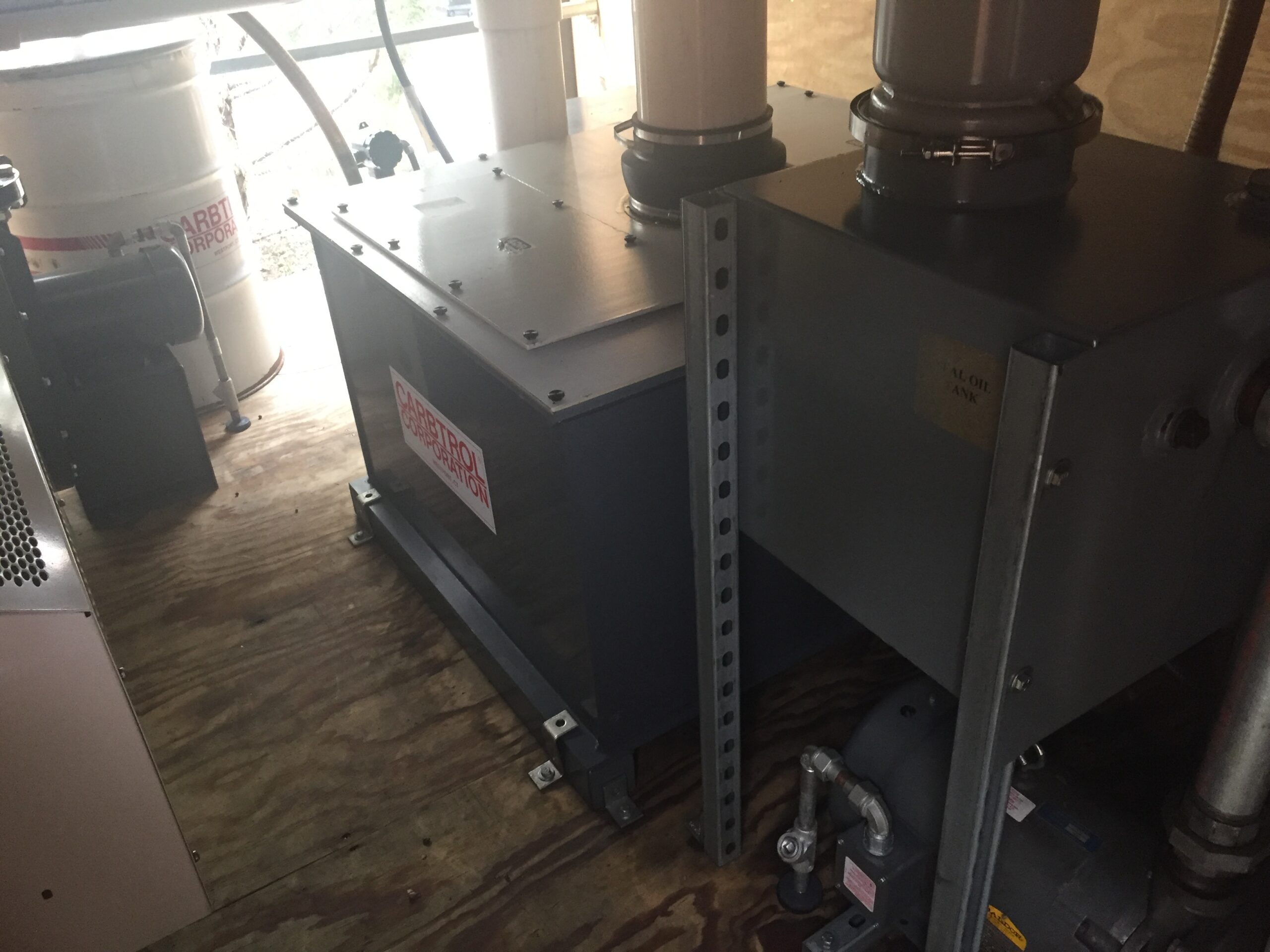

OW Separator with Air Stripper – Carbtrol with Cincinnati Fan blower 5hp 12fla

Carbon Vessels – Carbtrol 55 gal

AS transfer Pump – Grundfos HS100 1/2hp 2.1fla

Bag Filters – Inline Filter – Rosewood 200psi max

GPM Meter – Recordall Model 25

Trailer – Hercules 17’ X 8’

Master Control Panel.
