(AIR SPARGE-31) TRAILER, AIR/BIO SPARGE (#AES034F)(Flow Range 106-191(acfm) PSI Pressure Ranges 125-217(psi))

Trailer 34F BIO- Sparge 50 points

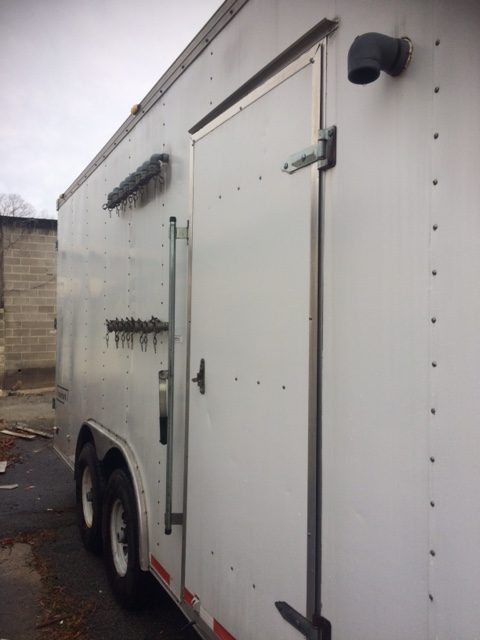

Trailer – Hallmark 18 X 8 X 8 tandem 7,000lb axles 2 5/16” ball 8 lug

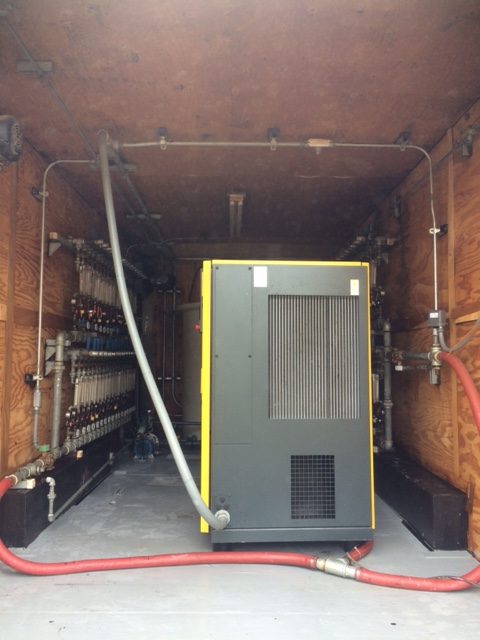

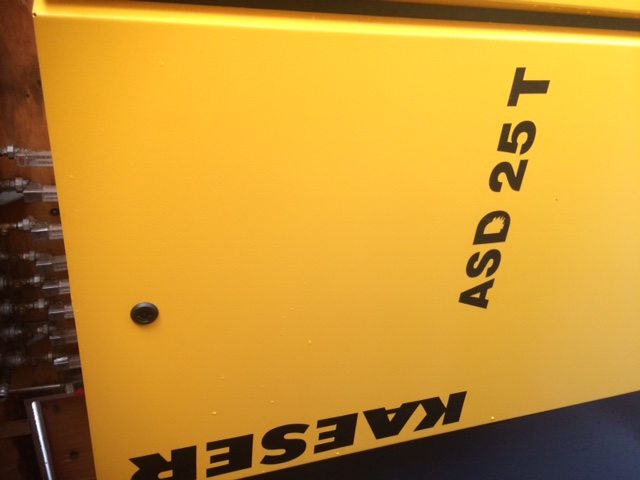

Sparge Compressor – Kaeser model ASD 25T 25HP 230V 3ph 55FLA

Flow Capacity Range 106-191(acfm) PSI Pressure Ranges 125-217(psi)

Disconnect – SqD – Front mounted 230V 3ph 100A fused

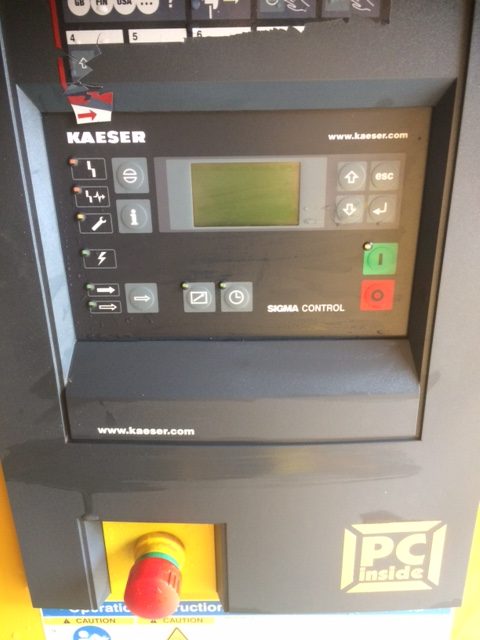

Control Panel – Front mounted with dead front controls

Control – Direct Logic 06 PLC

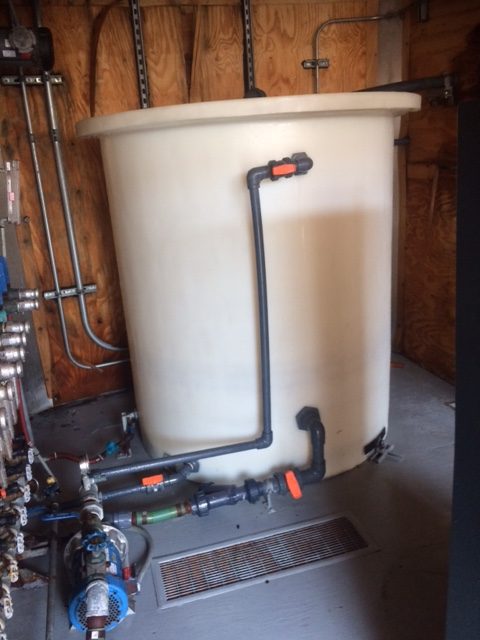

300 Gallon poly holding tank externally fed 2” line in

Transfer Pump – Gould NPE 3/4HP 3ph 2.3FLA 1” out with pressure gauge and sample port

With pressure gauge, temp gauge and temperature switches on output

4 – 1 ½” Manifolds – 1-17 pos., 1-16 pos.,1-8 pos., and 1-9 pos.

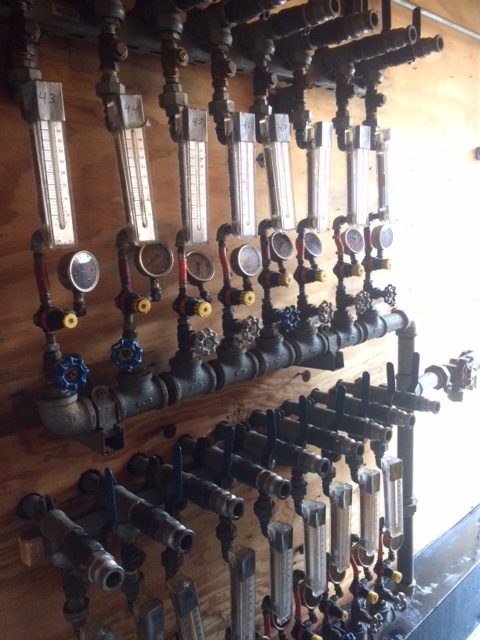

50 – Dwyer 0-200 scfh flow rate meters, each with gate valves, regulators and pressure gauges, all with 1” female quick connect outputs

2 – XP exhaust fans

E-stop in Trailer

Fluorescent Lighting
