(A+ OZONE INJECTION / SPARGE SYSTEM # 3) (AES#148)– Piper Ozone

Piper Ozone Injection – Air Sparge System

Trailer 149M SVE/Sparge/Oxygen Injection System

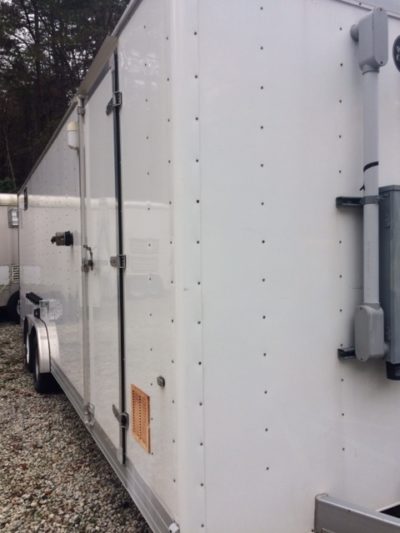

Trailer – 24 X 8 X 8 Wells Cargo Tandem 3,500lb axles 5Lug with              2 5/16 ball.

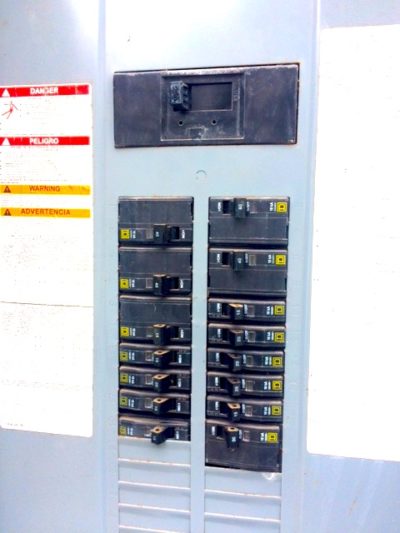

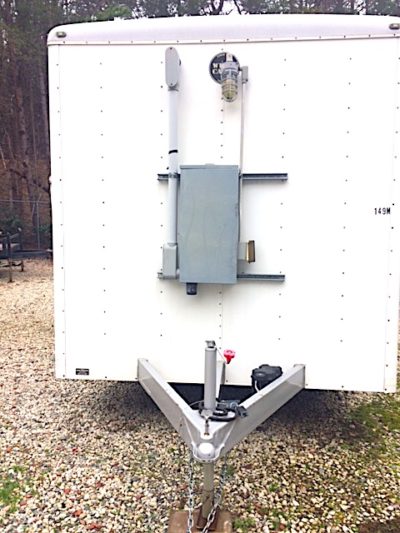

Input Power – 230V single phase with 200A main breaker in power distribution breaker panel mounted on front of trailer

Control – 1 Direct logic 06 PLC and 1 Direct Logic 05 PLC

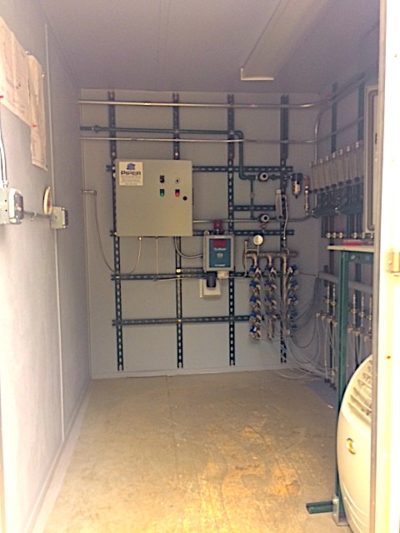

Front Room – Oxygen injection

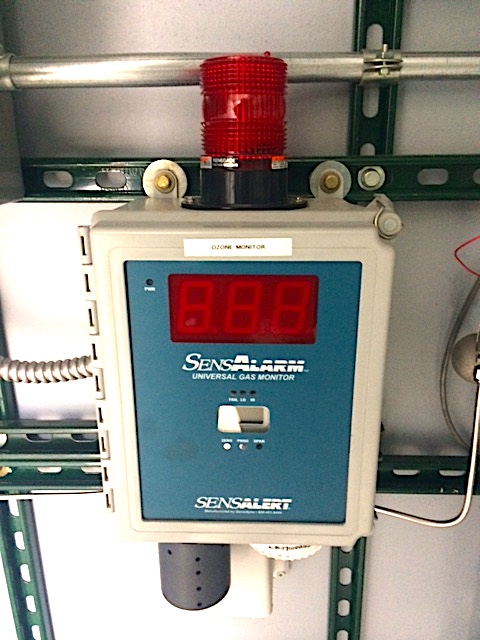

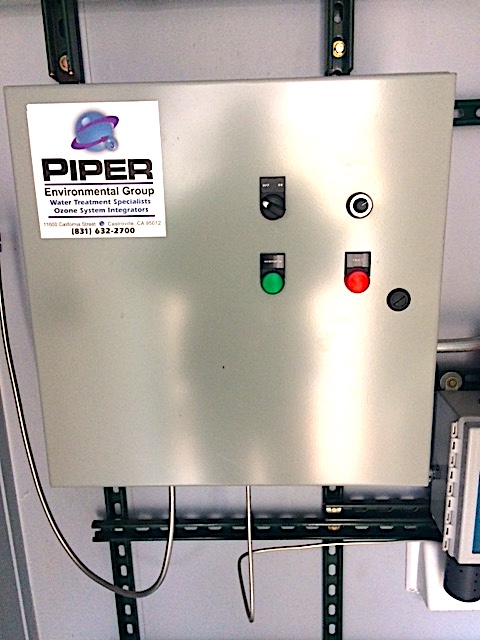

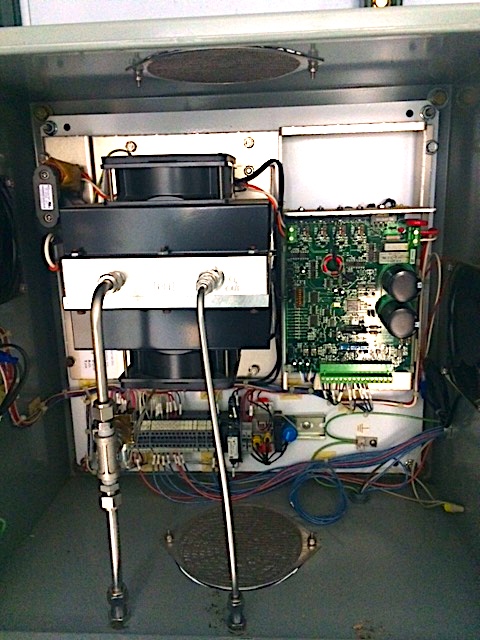

Piper Environmental Group O-Zone injection system with SensAlarm SensAlert gas monitor P/N 7013523

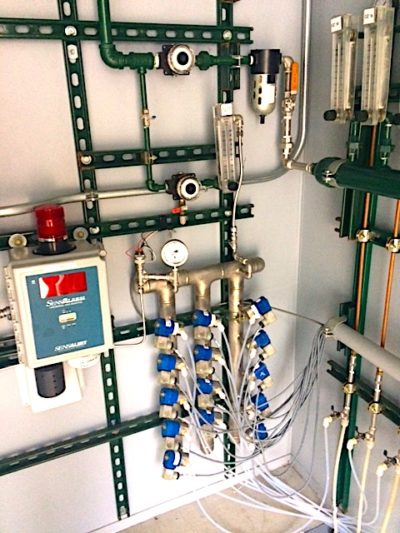

Stainless steel solenoid manifold for injection system

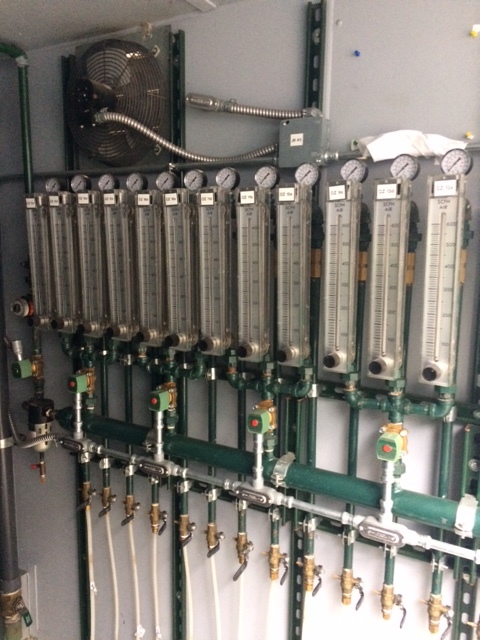

14 position injection manifold with Dwyer model RMB-53-SSV 0-100 scfh flow rate meters with 0-60psi pressure gauges and individual shutoff valves with throught the floor connectors.

Climate controlled by Power Wind AC/Heat/ Dehumidifier

Back Room – SVE/Sparge/Oxygen Generation

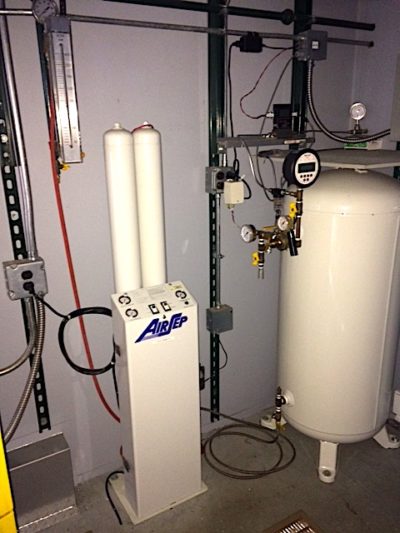

Oxygen Generator – AirSep model AS-A(25)

Smart Trac 50 series electronic flow meter

Mercoid electronic pressure switch model EDAW-N1E1

Regulator – Victor Equipment with 0-200psi pressure gauge

50 gallon oxygen receiver

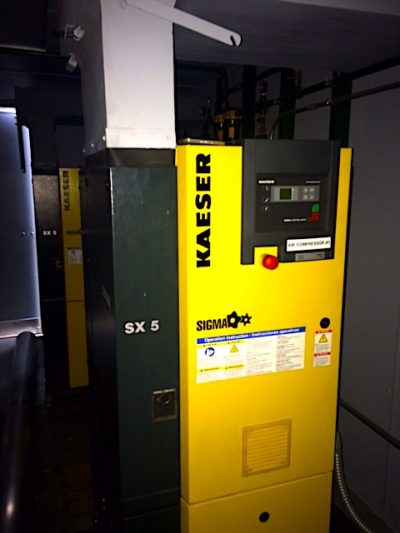

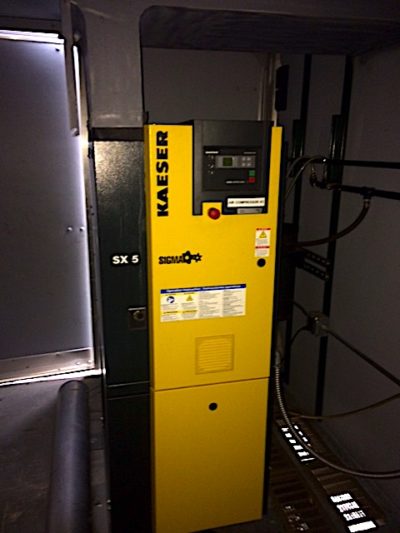

2 – redundant Compressors – Kaeser SM5 sigma model100886.0 to injection and/or sparge systems

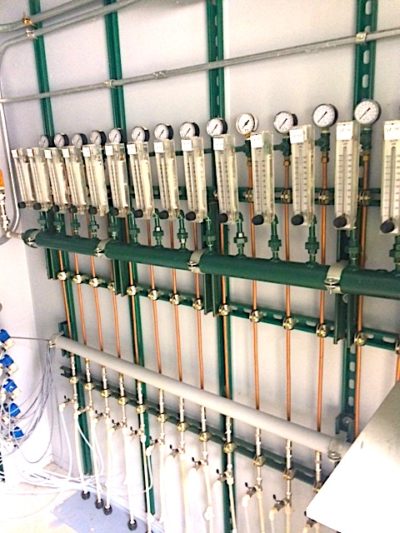

Sparge Mainfold – 2” into 5 – 3 position solenoid controlled outlets

Flow meters – Dwyer model RMC-105-SSV 0-600scfh with pressure gauges and gate valves. 1/2” poly tubing run through floor connectors

SVE – 3” line run through bulkhead to A/W separator tank

*No vacuum pump*

A/W separator tank – 200 gallon steel with high level switch and 1” drain valve

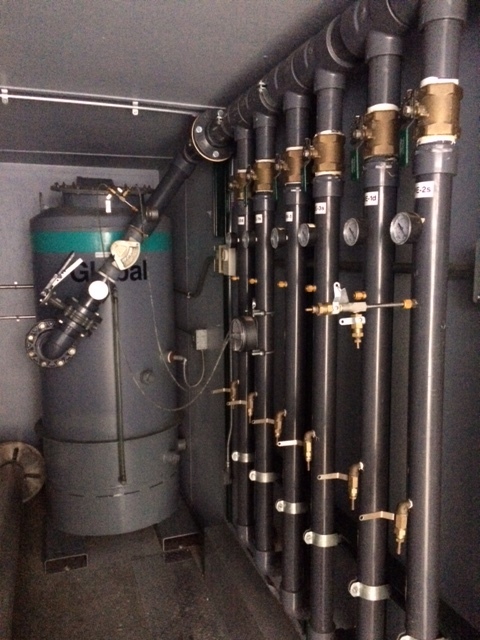

SVE manifold – 4” into 6 – 2” inlets with ball valves and 0-30”hg vacuum gauges

lLighting – 4’ florescent fixtures in front and back rooms
