(MMPE–19) TRAILER WITH TREATMENT – AIR STRIPPER – BAG FILTERS (AES#29F)(280 cfm (max) 5.9″hg)((39 CFM @ 22 PSIG)

Trailer 29F

MMPE, DPE / Air Sparge with treatment

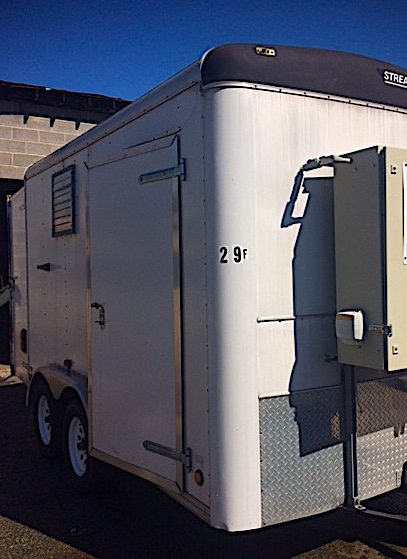

Trailer – 12 X 8 X 8 tandem 3,500lb axles 5 lug 2 5/16” ball

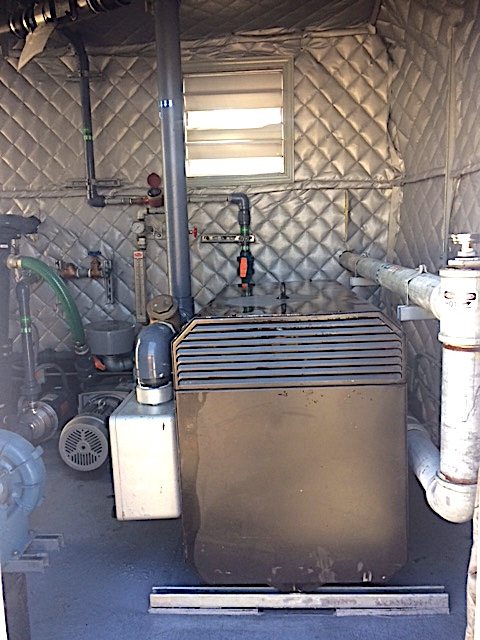

Vacuum Pump – Rietschle Thomas SMV 500 200mBar 25HP 230V 3ph 55.5FLA

280 cfm (max)  5.9″hg

Disconnect – SqD 230V 3ph 200A 150A fused front mounted

Control Enclosure – front mounted with dead front controls

Control – EOS Research Pro Controls PLC

MMPE, DPE 1 – 3” inlet

Exhaust -3” with temperature and pressure gauge 2 ½ “ bleed valve with soleberg filter

Inlet Filter – Soleberg model CSL-335P-300

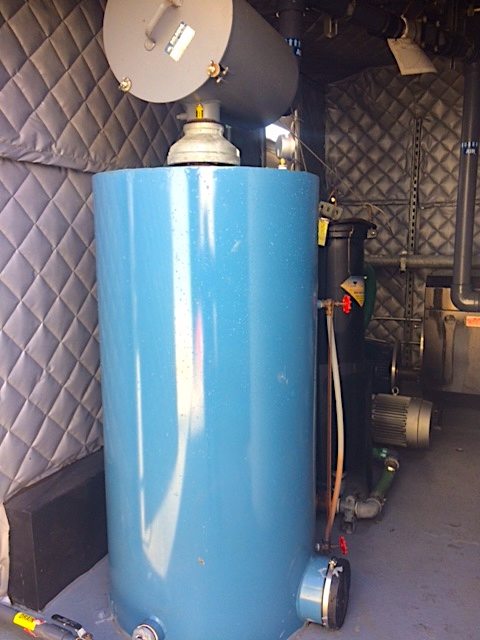

AWS Tank – MLE 100 with site tube and 3-Flote model L6EPB float switches

Bag Filter – Krystil Kleer Filtration with pre and post pressure gauges

AWS Transfer Pump – Gould NPE model 1st1E704 1HP 230V 3ph 3.2FLA with pressure gauge and sample port

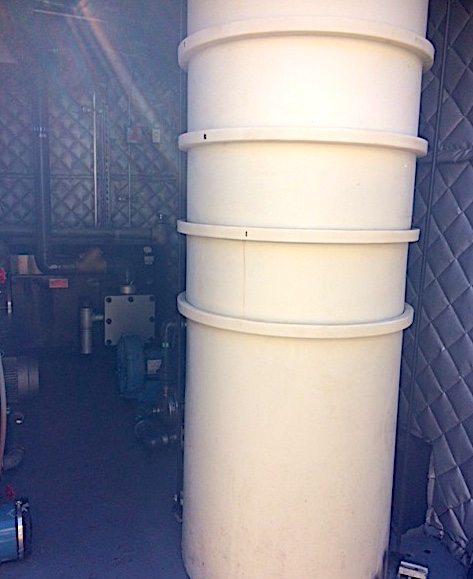

Air Stripper – QED EZ Stacker 4 tray poly with 2 float switches and site tube

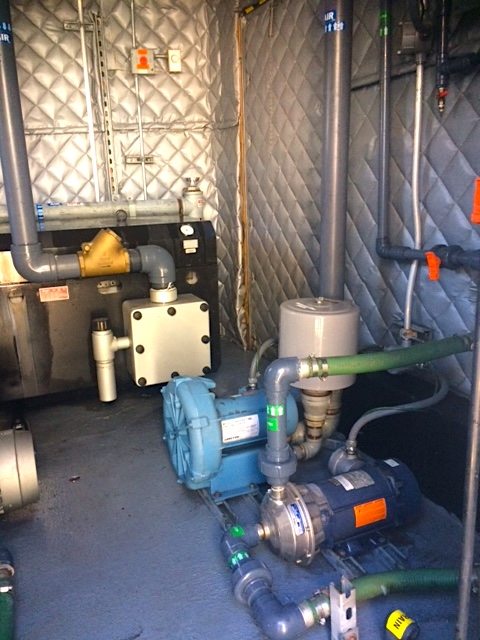

A/S Transfer Pump – Gould NPE 1ST1G784 2HP 230V 3ph 5.4FLA

A/S Blower – Ametek model EN505AX72ML 3HP 230V 3ph 6.4FLA

GPM Meter – MTH Qmax 22 gallons/minute 1” out 1,880 gallons registered

Sparge 1-1” outlet

Compressor – Becker KDT 3.60 5HP 230V 3ph 12.8FLA

(39 CFM @ 22 PSIG)

Soleberg inlet filter

Flow Rate Meter – Dwyer 0-10scfm with pressure gauge, temperature switch, gate valve and silencer 1” out

Lighting – Killark XP fixtures

E-Stop in Trailer
