(SVE/SPARGE-42) TRAILER, SVE/AIRSPARGE (#AES-111F). *** $ 28,500.00 ***

Trailer 111F

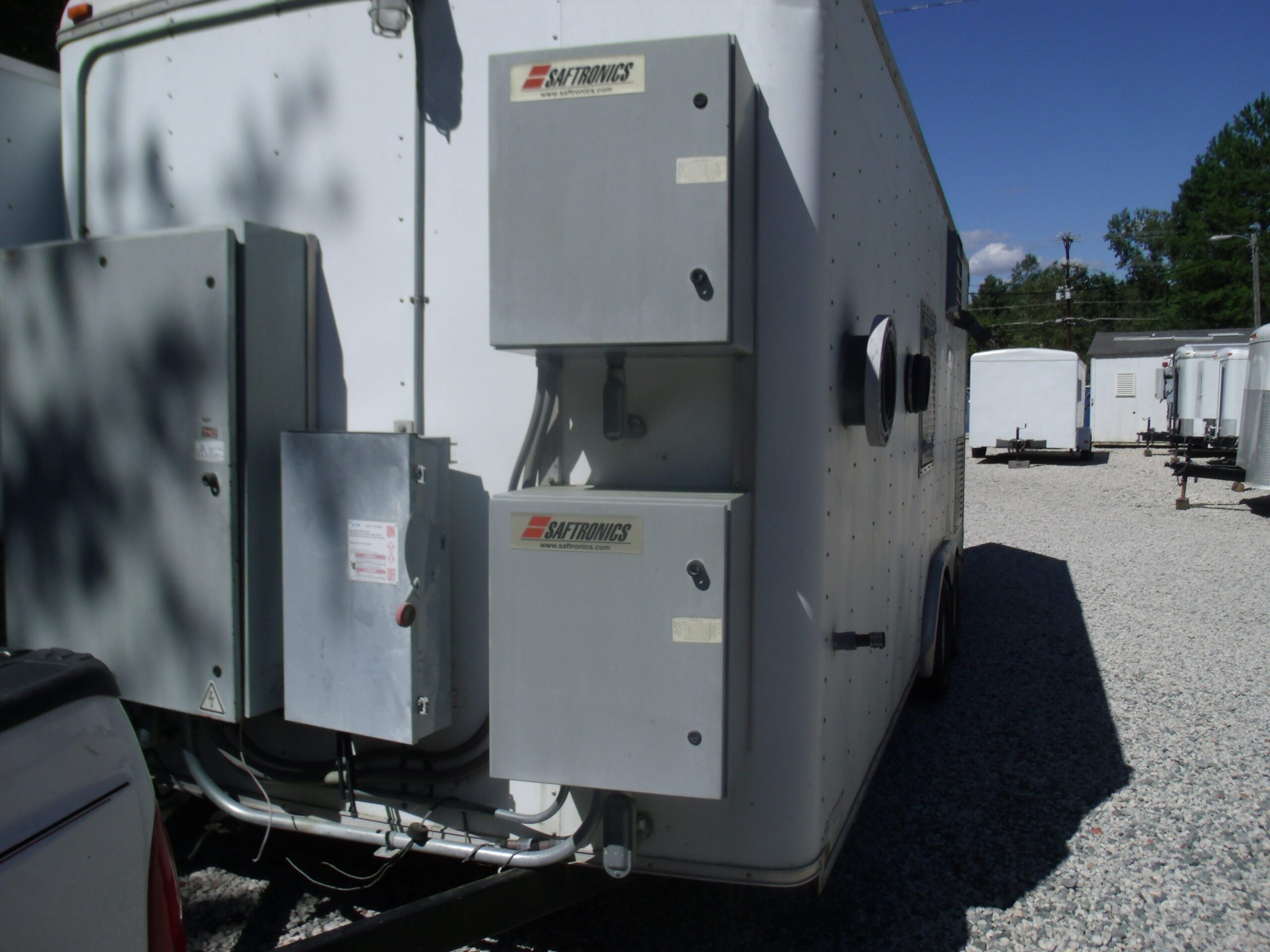

Trailer – Express 20 X 8 X 8 tandem axle 5 lug

480V 3ph input with 200A main fuses

Controls – Pro Controls plc

(2) saftronics soft starts model 328X-75 200-600V 93Acc

Telemecanique starters

1 KVA control transformer

(3) pepper and fuches intrinsically safe devices

APC ups

Surge protector – EDCO bmc series

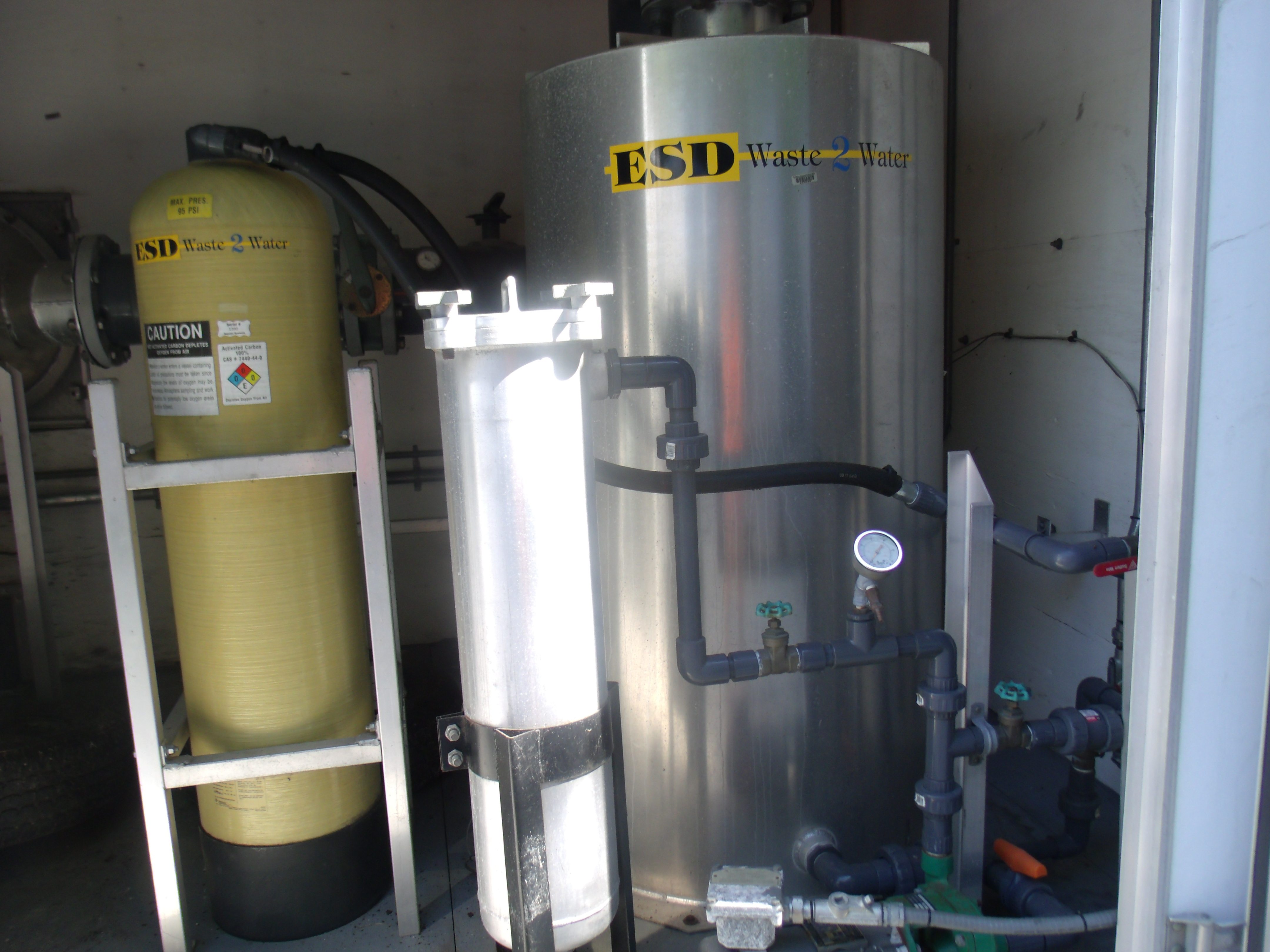

System – 8” vacuum into 200 gal. aluminum air/water sep. tank with sight glass and level switch array.

Inlet equipped with pressure sw. inlet temp gauge and vacuum gauge

Aluminum bag filter canister model# GP802ACC

Carbon vessel – NEPCCO SYS. #1392 upright 300 lb.

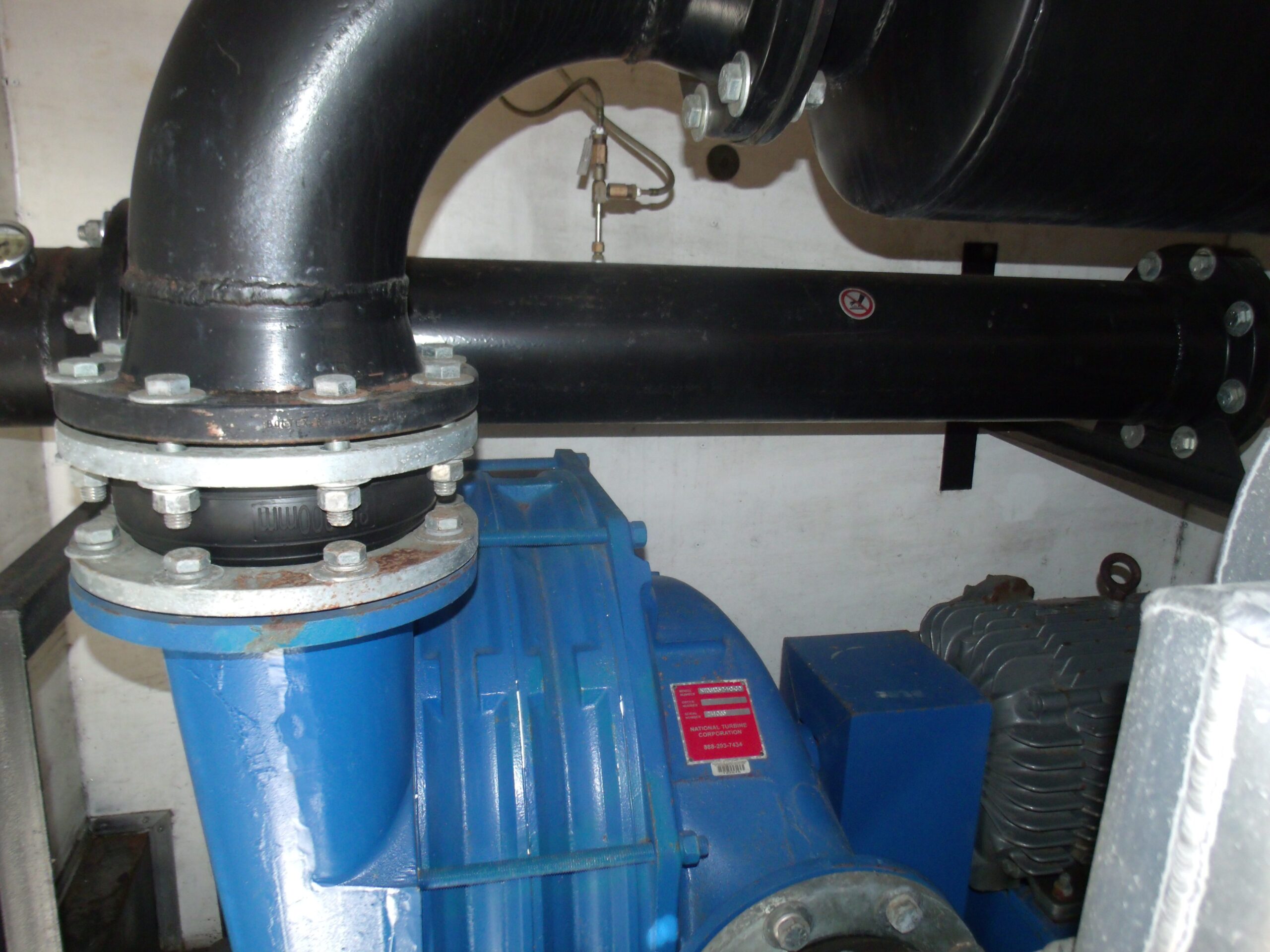

MAIN PUMP – National Turbine # NT081032103D 50hp 480v 56fla

Transfer Pump – 1/2hp centrifugal 480v 3ph .7fla 1 ½ in-1” out

SPARGE PUMP – Gardner Denver type DLR500 40hp 480V 42fla 1-3” out

Heat Exchanger – American Industrial model A1A-636Z-3. 3hp 480v 3.2 amps

Sparge Line Filter – Gate Technologies model EA62SU 232psi
