(SVE/SPARGE-26) TRAILER, SVE/AIRSPARGE (#AES016F)

Trailer 16F SVE/Sparge

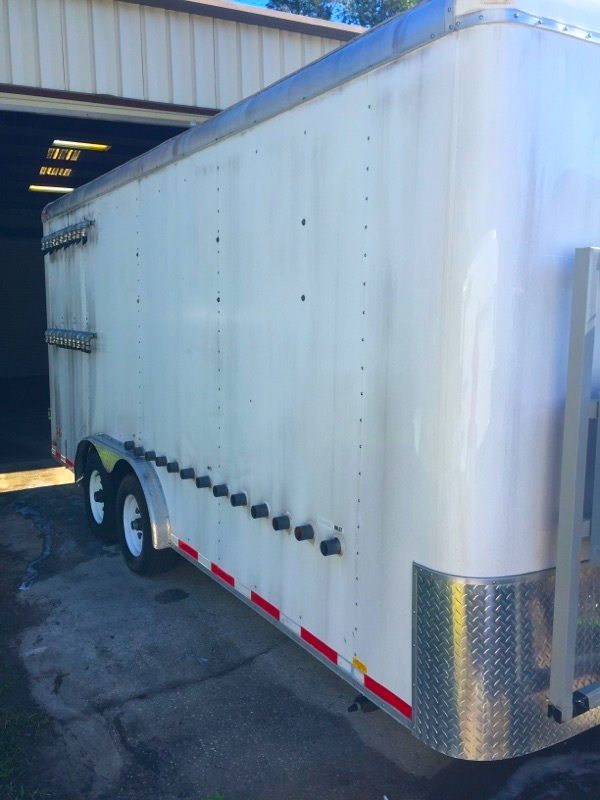

Trailer – Interstate 22 X 8 X 8 tandem 7,000lb axles 8 lug 2 5/16” ball

Disconnect – SqD 230V 3ph 4 wire high leg delta 150A fused front mounted

Control Panel – Front mounted with dead front controls

Control – relay logic

            SVE

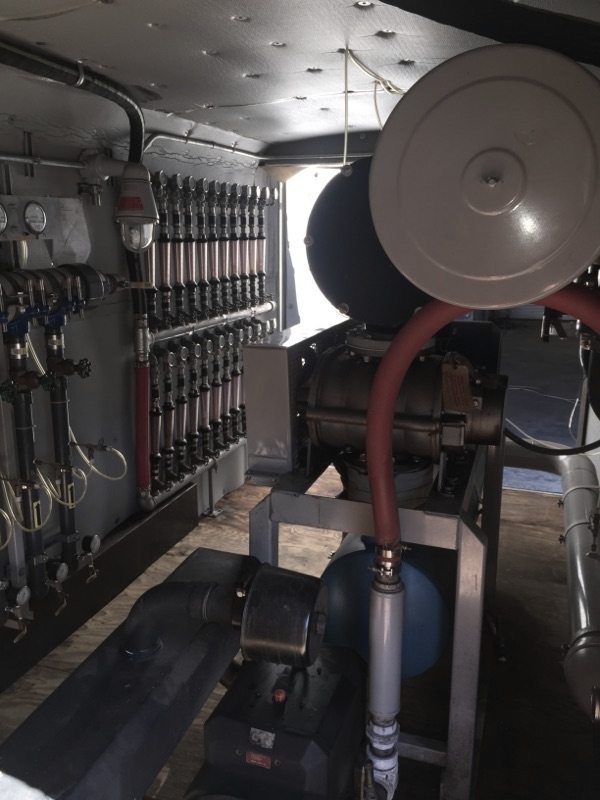

Vacuum Pump – Gardner Denver SutorBilt model 5L-RHC belt driven

595 acfm @ 85”wc (473 scfm) 20HP 230V 3ph 46.3 FLA with silencer on 3” exhaust

Manifold – 6” to 9-3” points with 6” inlet filter bypass

magnehelic 0-2”wc flow gauges, gate valves, vacuum gauges and sample ports

Inlet Filter – CLS series DN200PN10

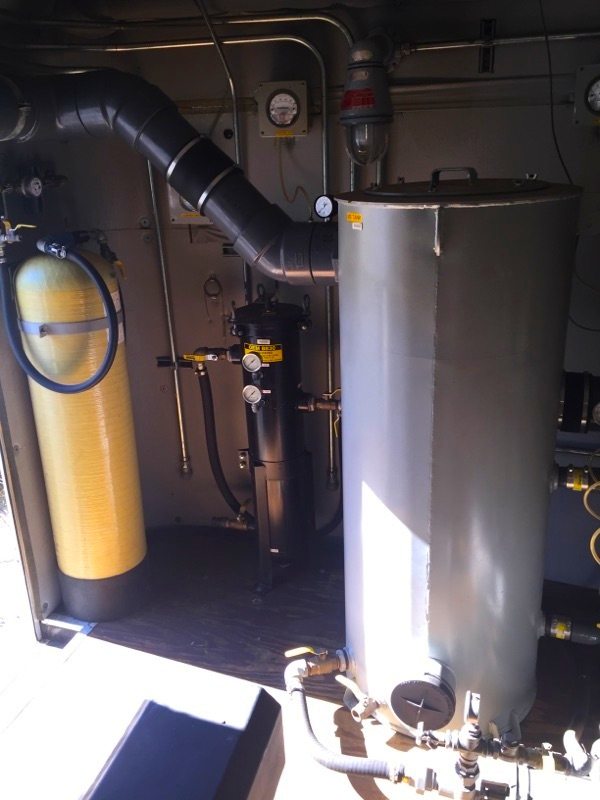

K/O Tank – Maple Leaf model VLW-140 with site glass and 3 position level switch array

Transfer Pump – Goulds NPE cat.# 1ST1E5C4W 230V 3ph 1HP 3FLA with pressure gauge and sample port on 1” out

Bag Filter – Filter Innovations #2 bag filter with pre and post pressure gauge and ball valve

Carbon Vessel – (2)MLEE model HPV-90 vessels in parallel 90lb 1” out

Flow Meter – GWF MTH totalizer

  Air Sparge

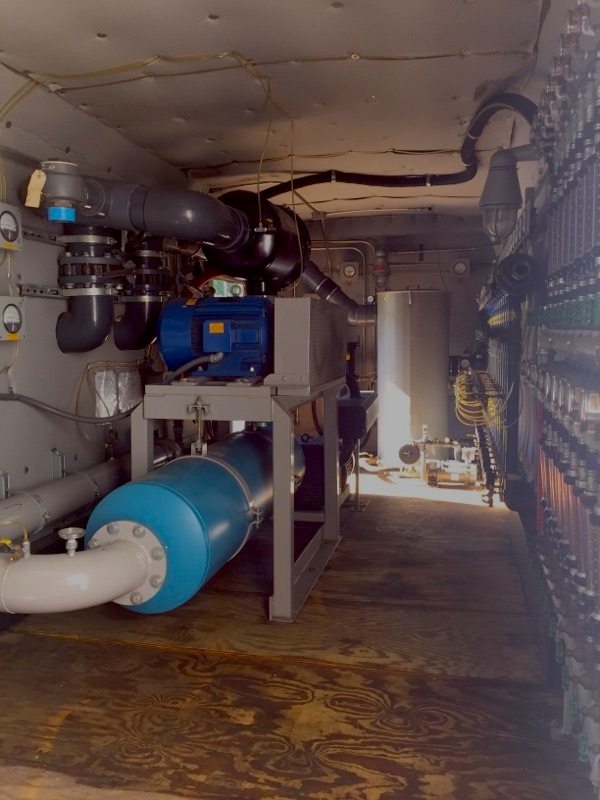

Sparge Pump – Rietschle-Thomas DLR 400 40HP 230V 3ph 58.4FLA

Heat Exchanger – American Industrial model ACA-6302-3R with outlet temperature and pressure gauge

Sparge manifold – 3” to 15-1” points with gate valves and pressure gauges

Flow Meters – Dwyer 0-30 scfm

Exhaust Fan – Canarm model SD18-XPF

Kilark XP lighting fixtures

E-stop in trailer
