(SVE/SPARGE-23) TRAILER, SVE/AIRSPARGE (#AES013F)

(SVE/SPARGE-23) TRAILER, SVE/AIRSPARGE (#AES012F) (2009)

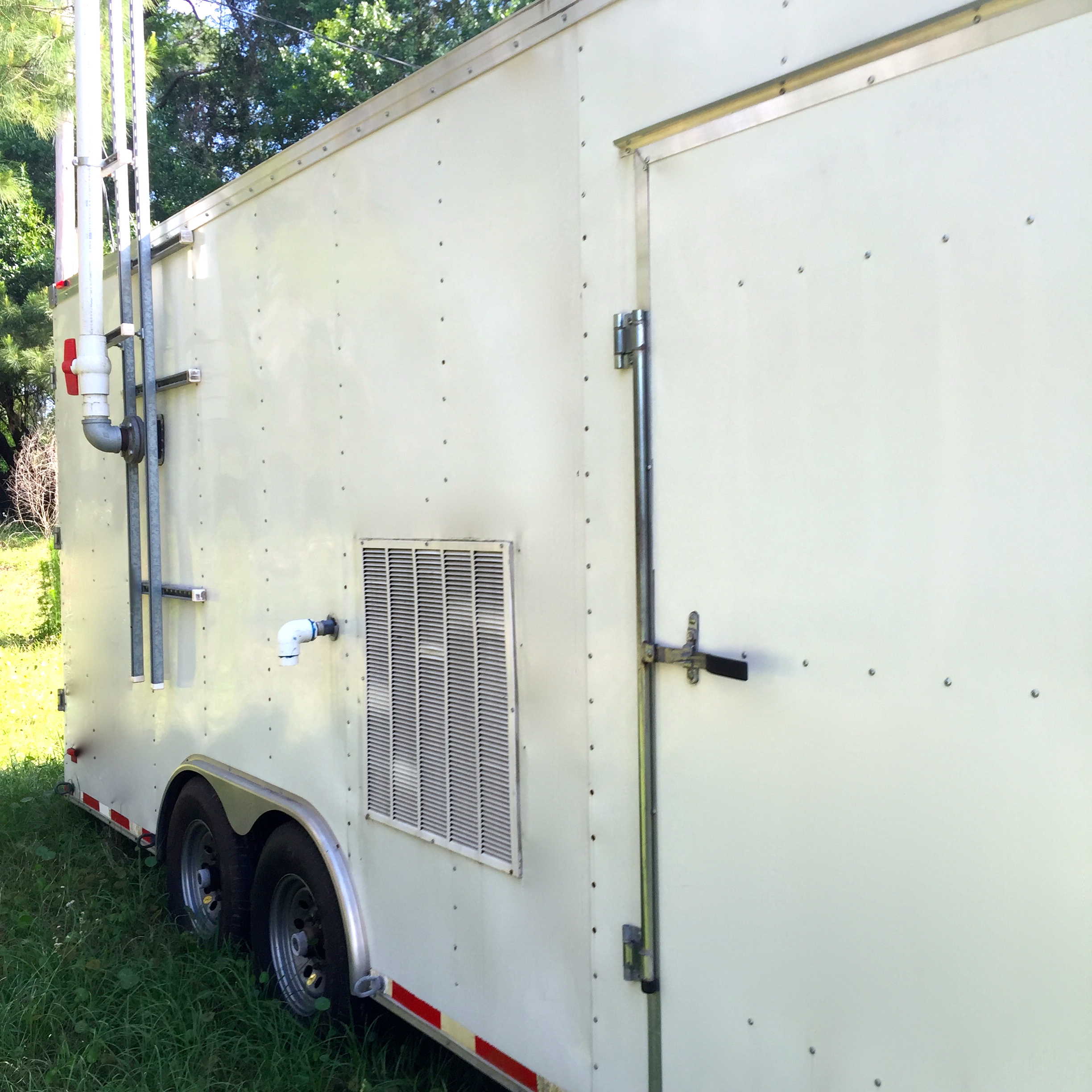

Trailer 8.5 x 20  Make/ Model—Specs: Haulmark Custom

Water Tank Capacity: Est 200 Gal

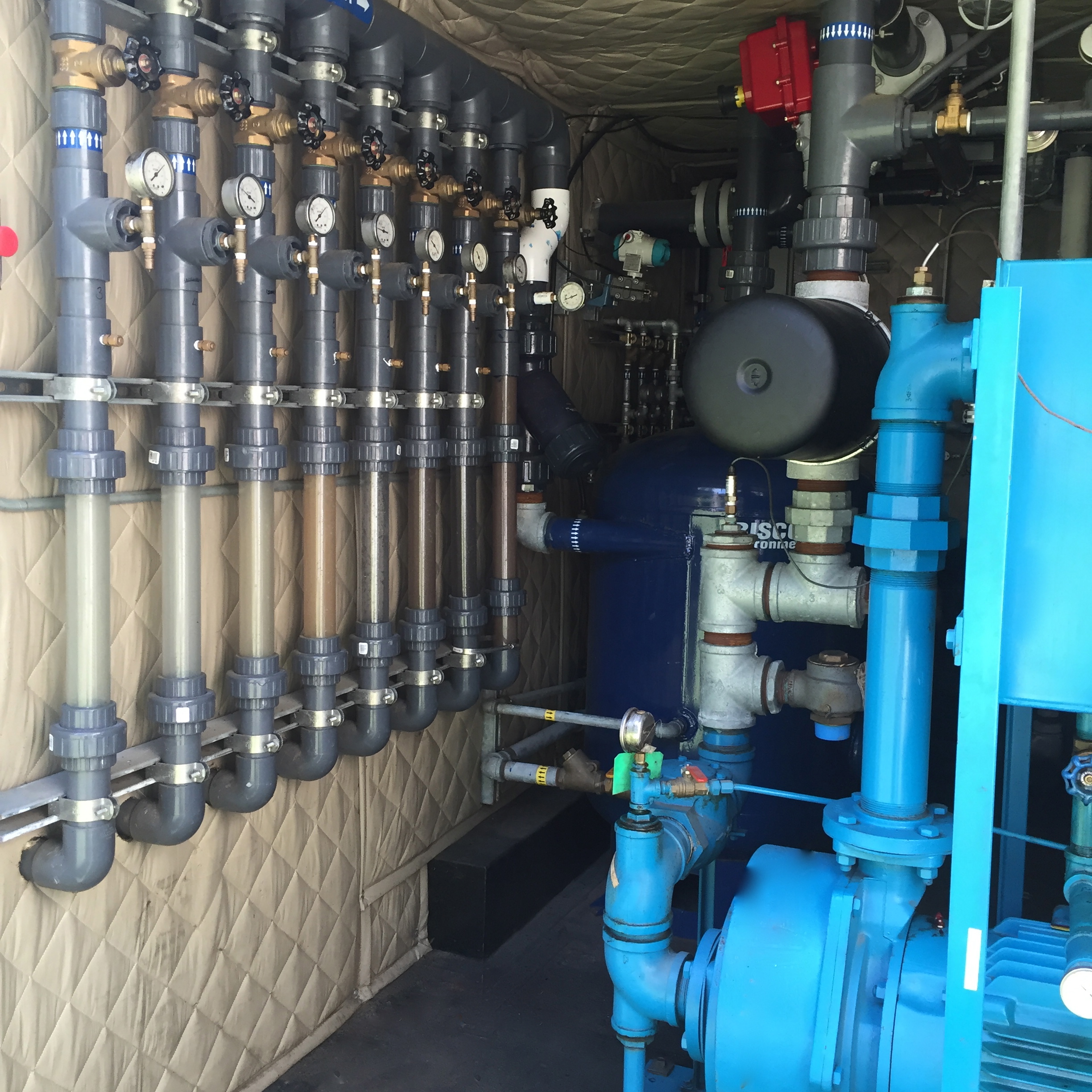

VE Manifold & Module

Heat Exchanger Year Purchased: 2009 Make/ Model—Specs: AIHTI ACA 4302-3 Power HP: 0.5 Frequency: RPM 950-1140 Flow Rate/Vapor: 4450 CFM Potential: Volts 230/460

Telemetry  Make/ Model—Specs: ProControl EOS II Potential: Volts 120 Phase: Phase 1

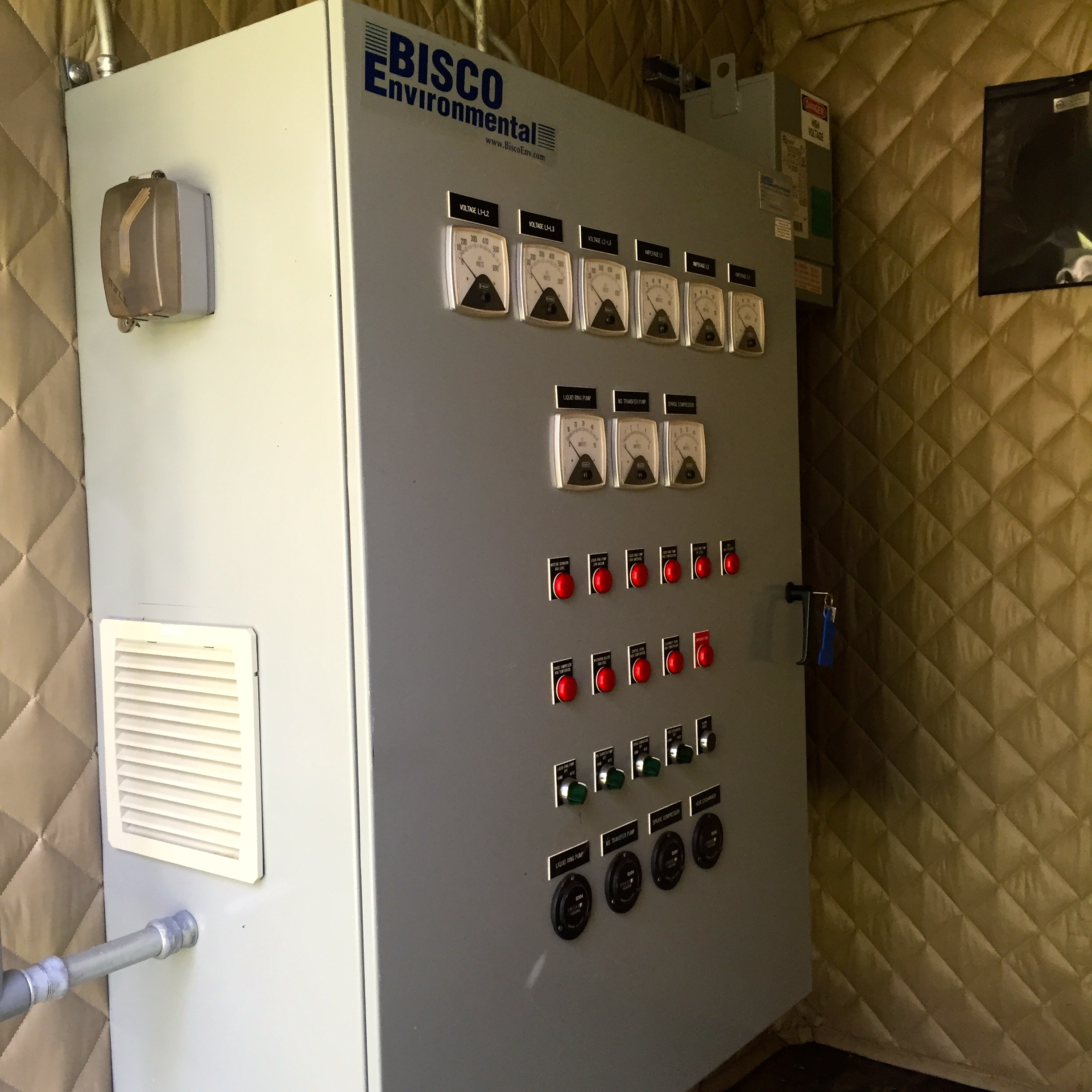

Control Panel Year Make/ Model—Specs: Bisco Custom Potential: Volts 230/460 Phase: Phase 3

Compressor Rotary Claw Year Make/ Model—Specs: Rietschle DLR 250 Power HP: 20 Frequency: RPM 3450 Flow Rate/Vapor: 166 CFM Pressure 8.7 – 32 PSIg Potential: Volts 230/460 Phase: Phase 3

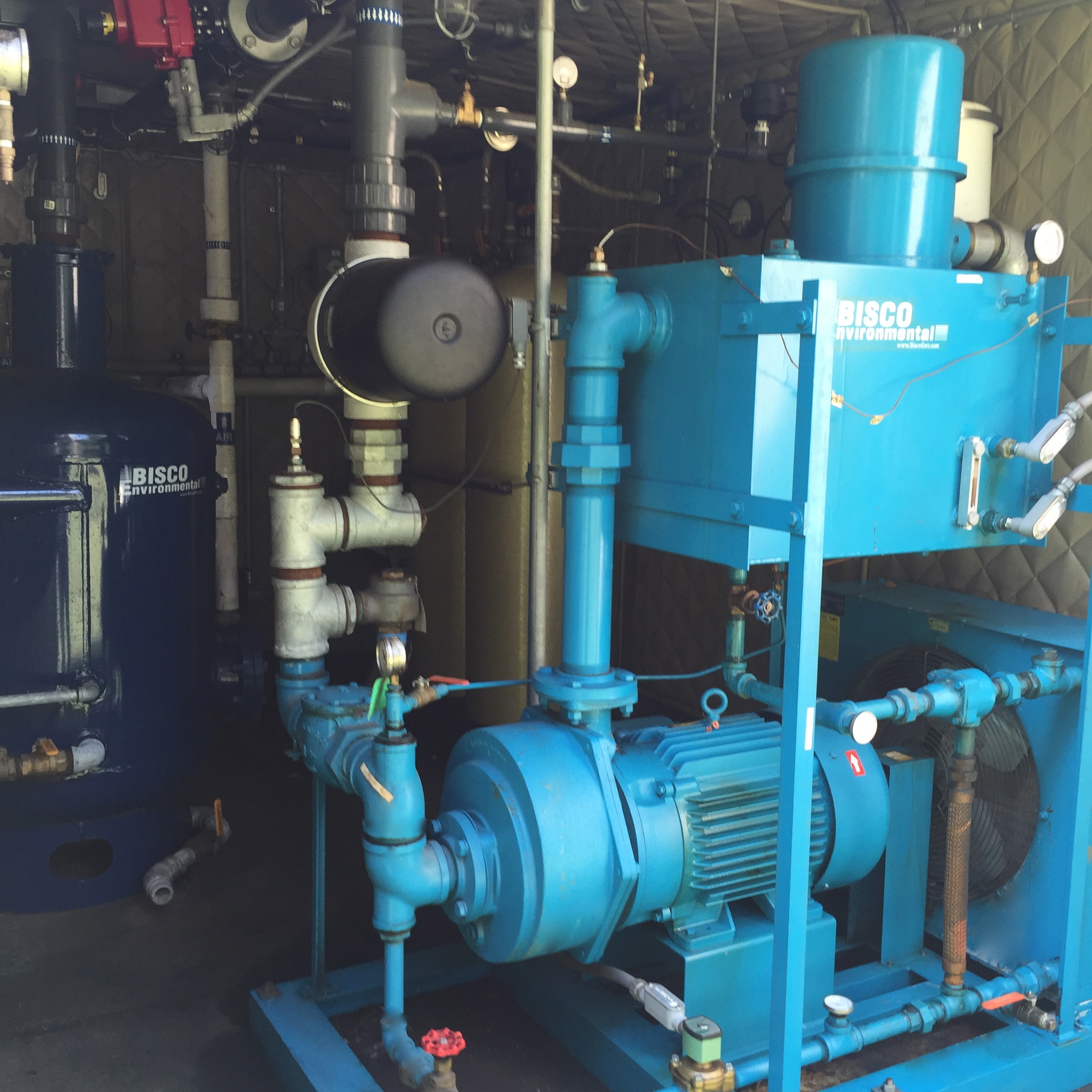

Liquid Ring Pump  Make/ Model—Specs: Atlantic Fluidics/ Tuthill OSR 300 Power HP: 20 Frequency: RPM 1160 Flow Rate/Vapor: 300 CFM Potential: Volts 460/480 Phase: Phase 3
