(SVE/SPARGE-20) TRAILER, SVE/AIRSPARGE (#AES0010). *** $ 36,000.00 ***

(SVE/SPARGE-20) TRAILER, SVE/AIRSPARGE (#AES0010F)

SVE /Air Sparge System

Trailer 10F   230V 3ph 200A

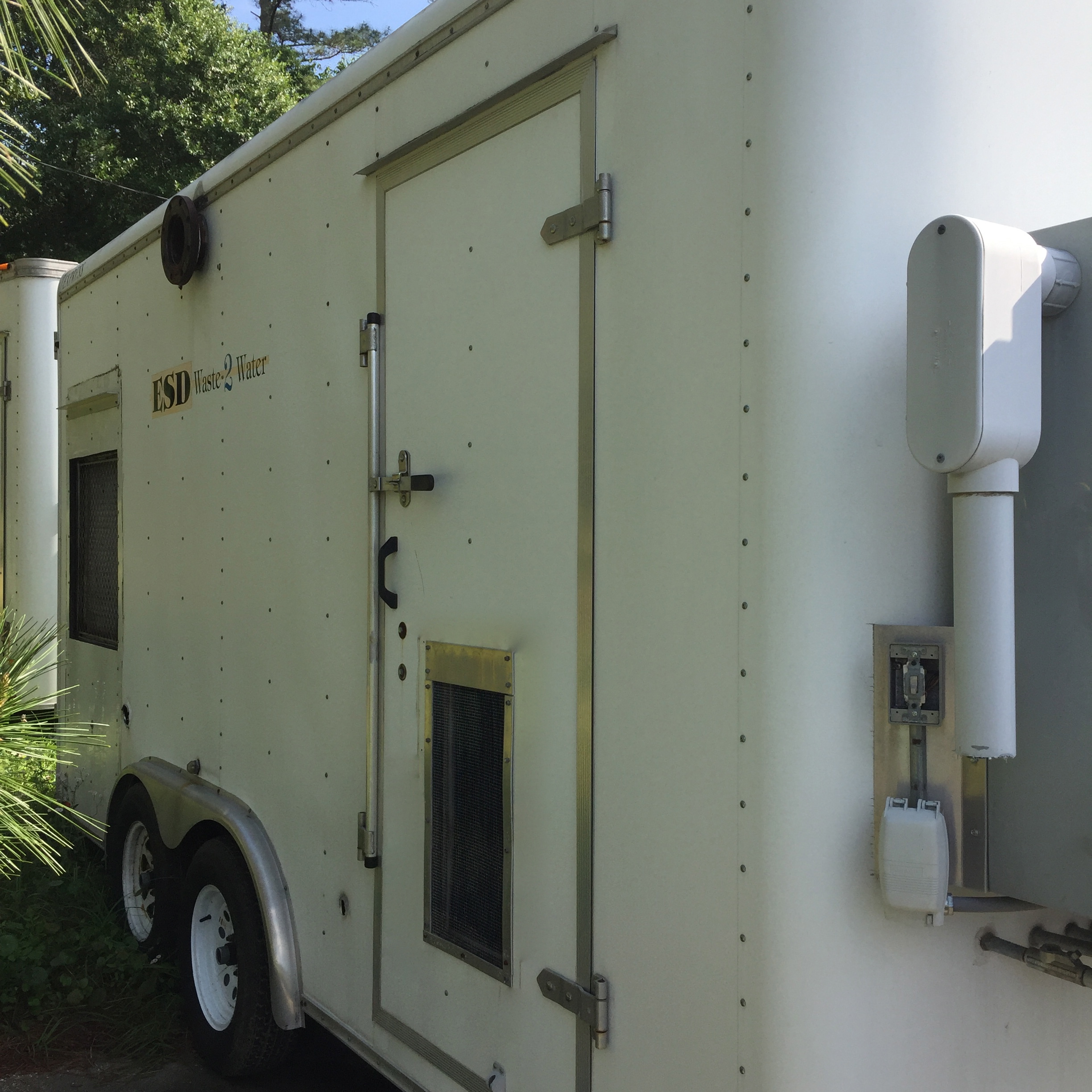

Trailer – United Express Lines 12 X 7 X 7 single axle 60” tongue length

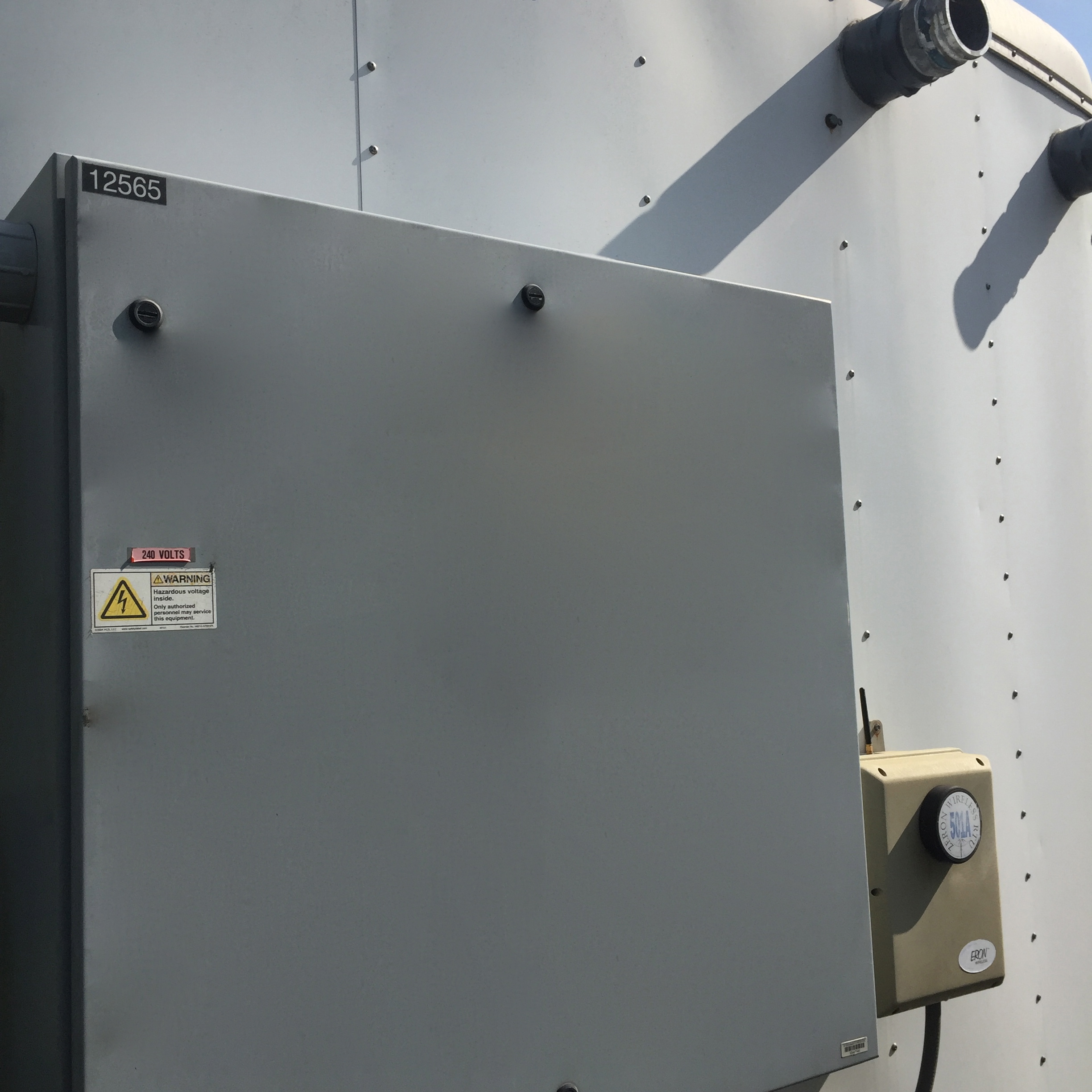

Control Panel – Rittal 30 X 30 X 12 type 4 with dead front controls

100 A main breaker with surge arrester

Intrinsically safe devices – Pepper and Fuches (2)

Motor Starters – Telemecanique Starters

*all relay logic*

Main Pump – Rietchle DLR 300 2.2 bar 300 – 360 M32

25HP 208V 3ph 66FLA

Heat Exchanger – American Industrial model ACA3302-3

Temp rating 300 deg. F

1/2HP 208V 3ph 2.7FLA

*heat exchanger ducted out through floor*

Blower –

Compressor –

Three Stage Coalescing Filtration

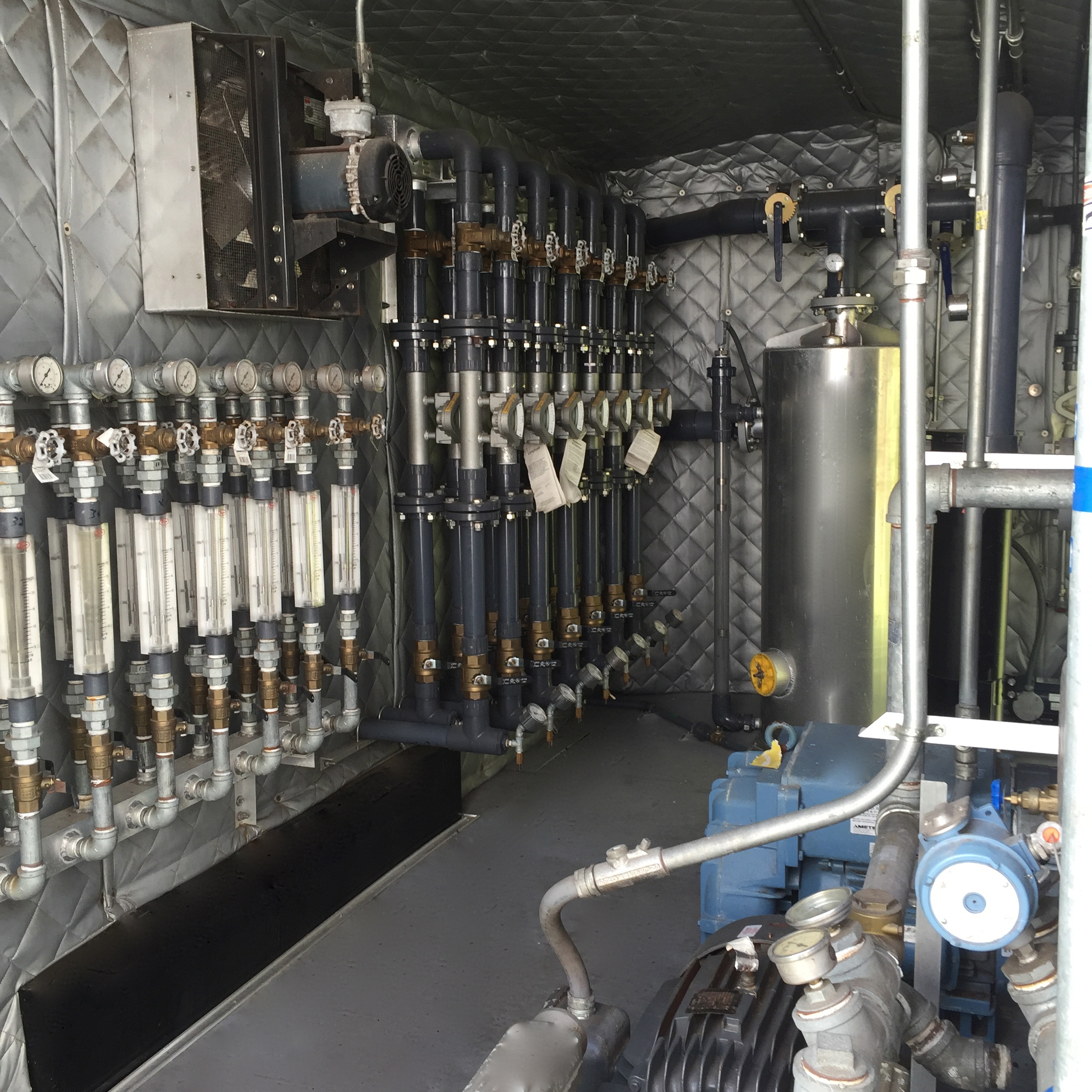

Point Sparge Manifold

Heat Exchanger

100 Gallon Knockout Tank – Gallon

Float Switches

Transfer Pump

Bag Filtration with Flow Meter/Totalizer

Fire Extinguisher

Emergency Shut off

Point SVE Manifold
