(SVE/SPARGE-19) TRAILER, SVE/AIRSPARGE (SVE Max: 1,050 cfm / 90″ h2O, Sparge Max: 80 cfm  /  22 psi) (#AES009F) *** $35,000.00. ***

(SVE/SPARGE-19) TRAILER, SVE/AIRSPARGE (#AES009F)

      Trailer SVE / Air Sparge – 19, AES# 009

Trailer – Express 16 X 8 X 8 Tandem 3,500lb axles 2 5/16” ball 5 lug

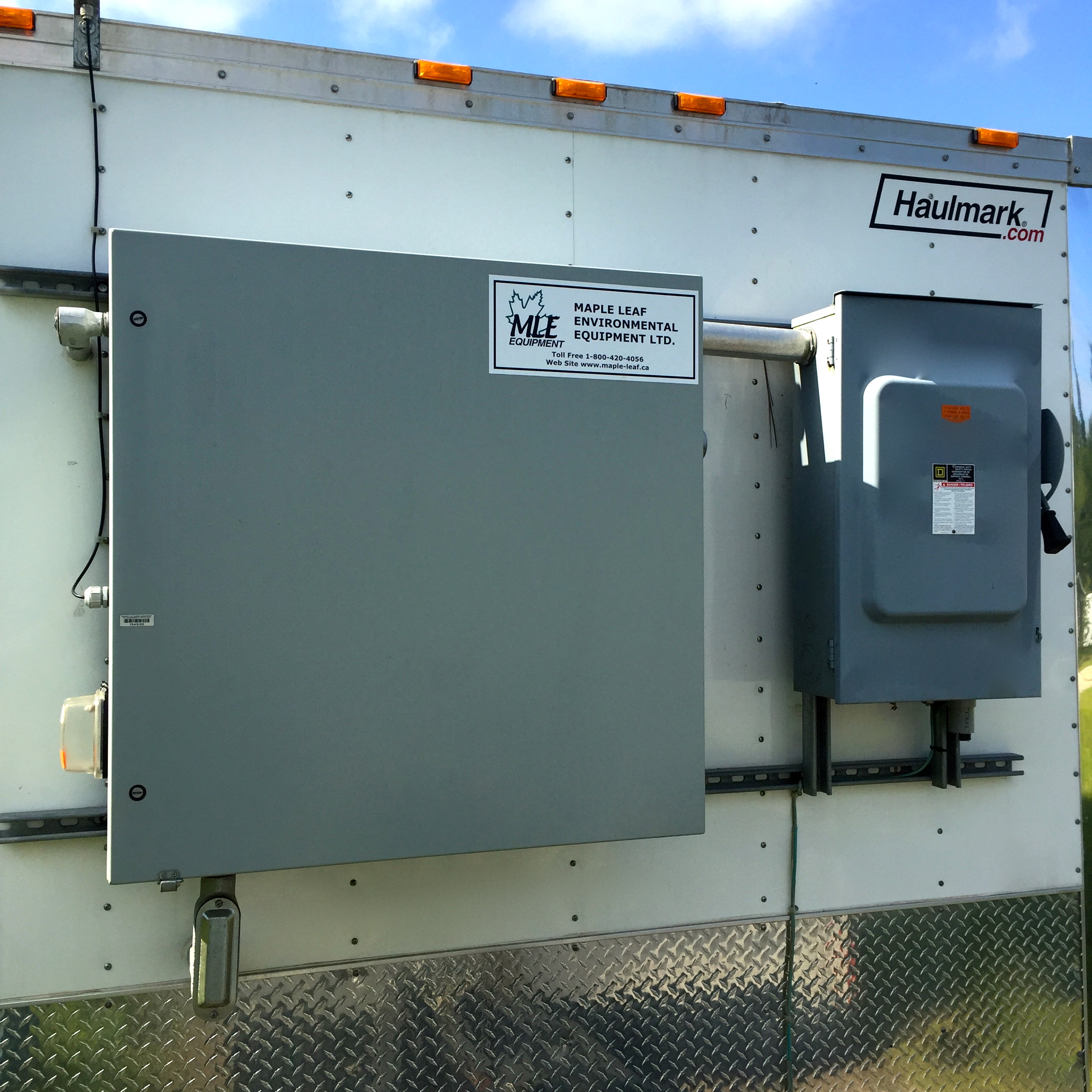

Controls – 36 X 36 X 8 Hoffman enclosure type 4 externally mounted

Disconnect- 230V 3ph 100A

EOS Pro Control plc logic with telemecanique starters

Switches and hour meters are dead front mounted

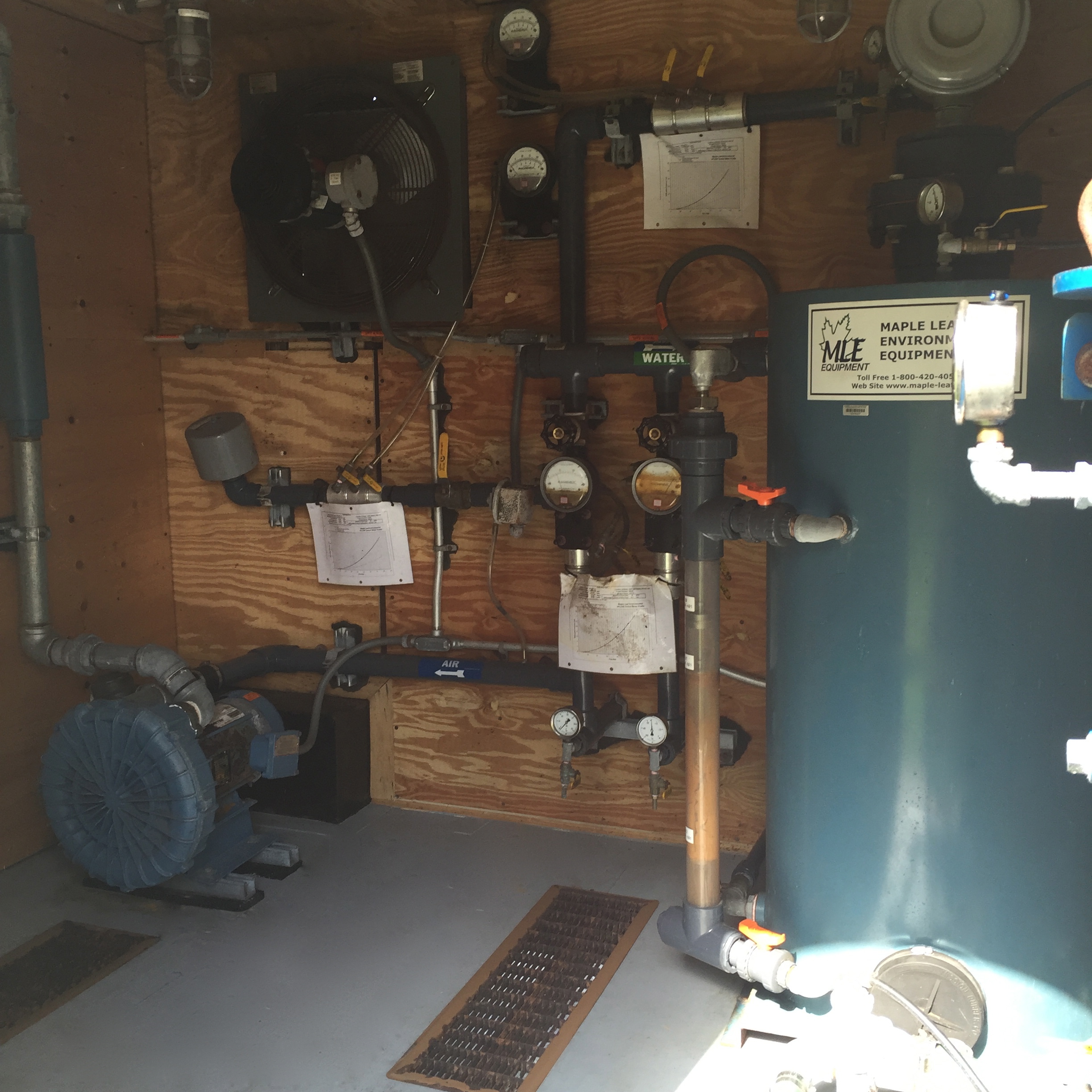

SVE System

10 – 4in. SVE points with valves, magnahelics and sample ports.

SVE Blower – Ametek EN979BK72WL 25HP 230V 60A

https://www.ametekdfs.com/-/media/ametekdfs/files/brands/rotron%20regenerative/rotron%20regenerative%20blowersen979cp979%20200hp.pdf

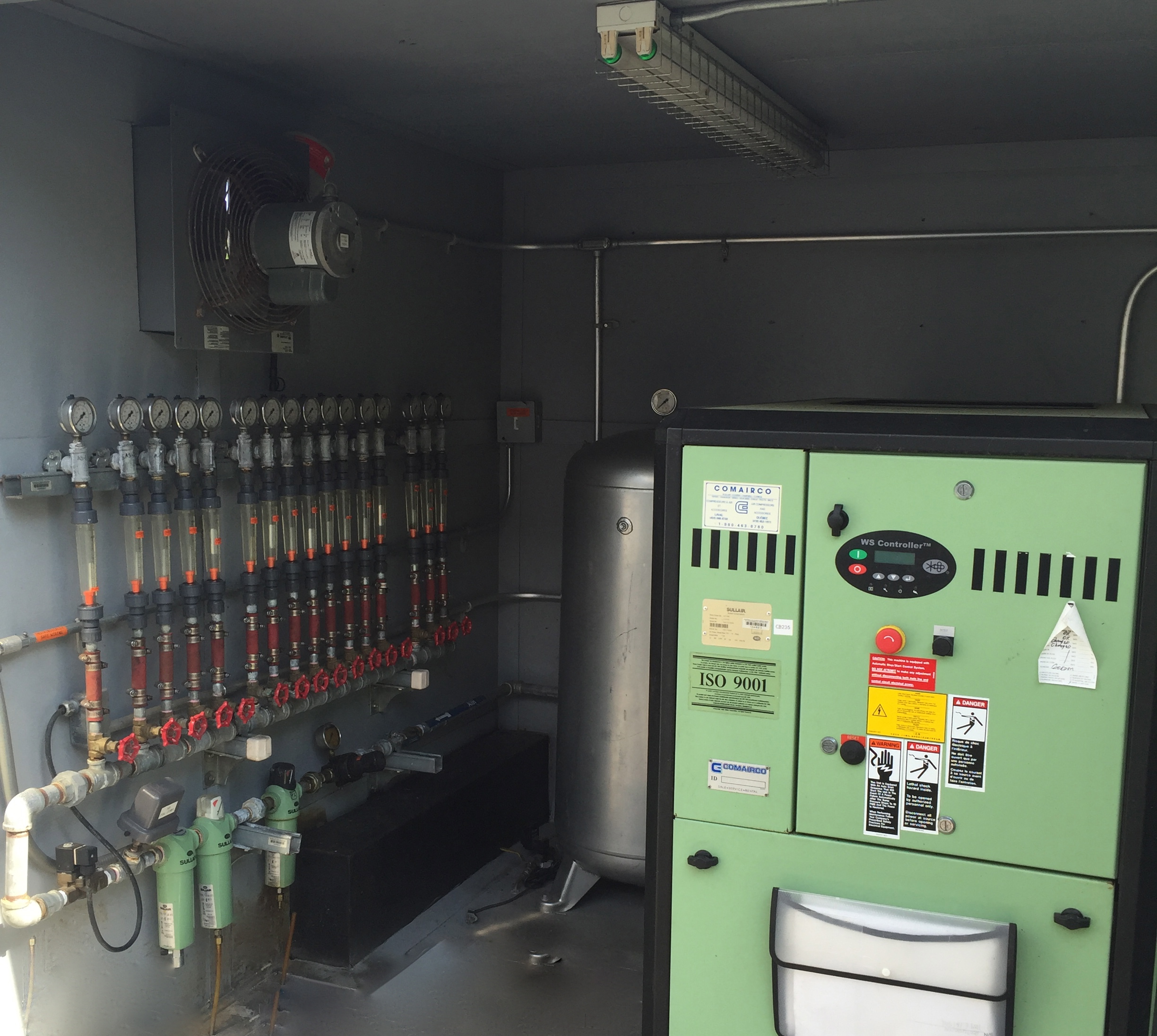

Air Sparge System:

Air Sparge Compressor – Becker KDT 3.14

11  1”sparge points with Dwyer 0–10 scfm flow meters with cutoff  and bypass valves

12HP

230V @ 28.4 FLA

Max. 80 cfm  /  22 psi

Heat Exchanger – Thermal Transfer Products model AA – 8 – 3

250 psi Tubes 350 deg. Max.

Exhaust Fan – 1/2HP 0” XP

K/O Tank – 75 gal. aluminum with site glass and switch array

Transfer Pump – 1/2HP Myers CT05 230V 3ph

Bag Filter Aluminum model GP802A12

Three Stage Coalescing Filtration

Heat Exchanger

Transfer Pump

Bag Filtration with Flow Meter/Totalizer

Fire Extinguisher

Emergency Shut off
