(SVE/SPARGE-24) TRAILER, SVE/AIRSPARGE (#AES014F)

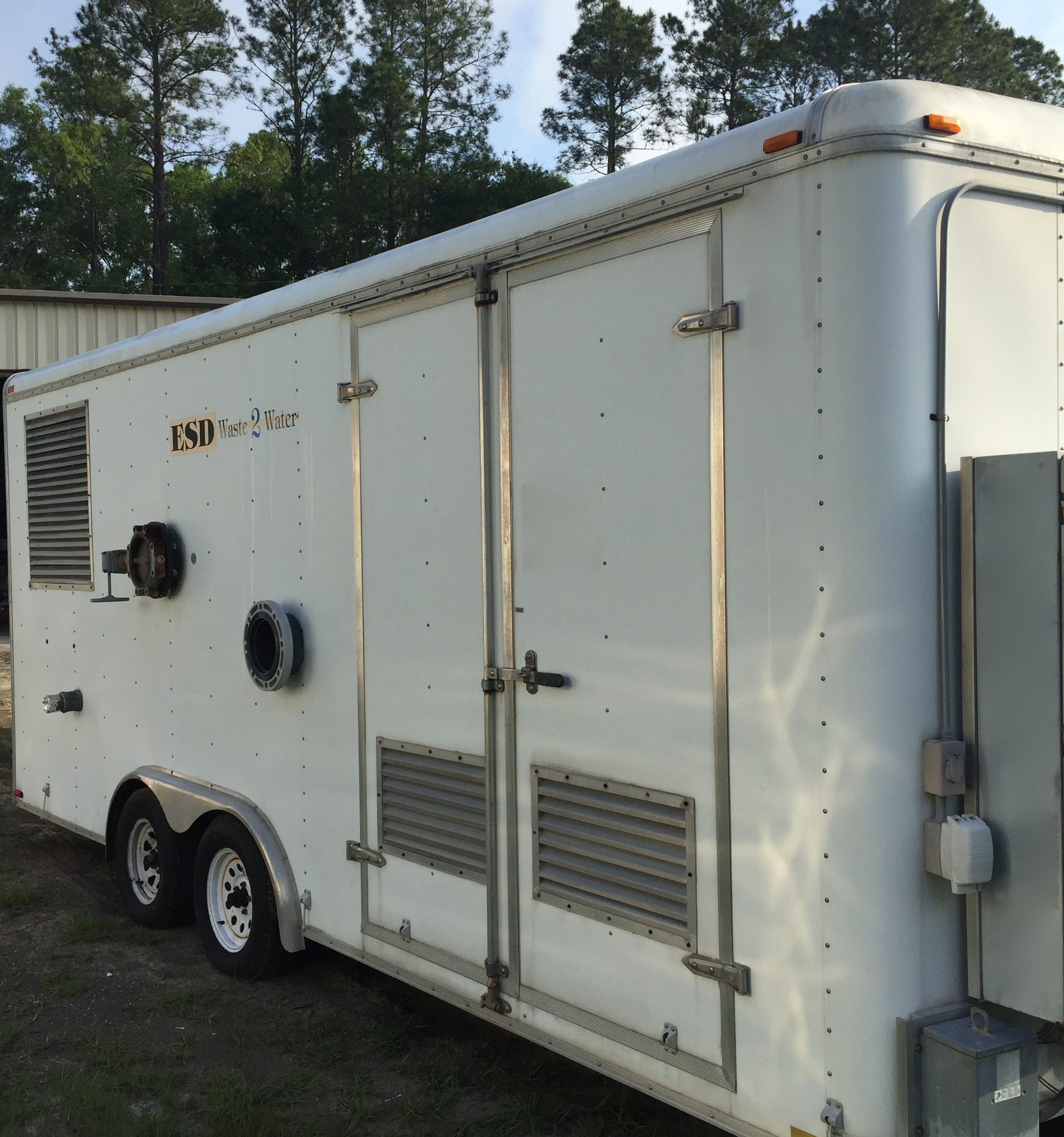

Trailer 8 x 20 x 8

Trailer AS/SVE 8 x 20 x 8

2006 Make/ Model—Specs:  Custom Weight: LBS: 10,000 lbs

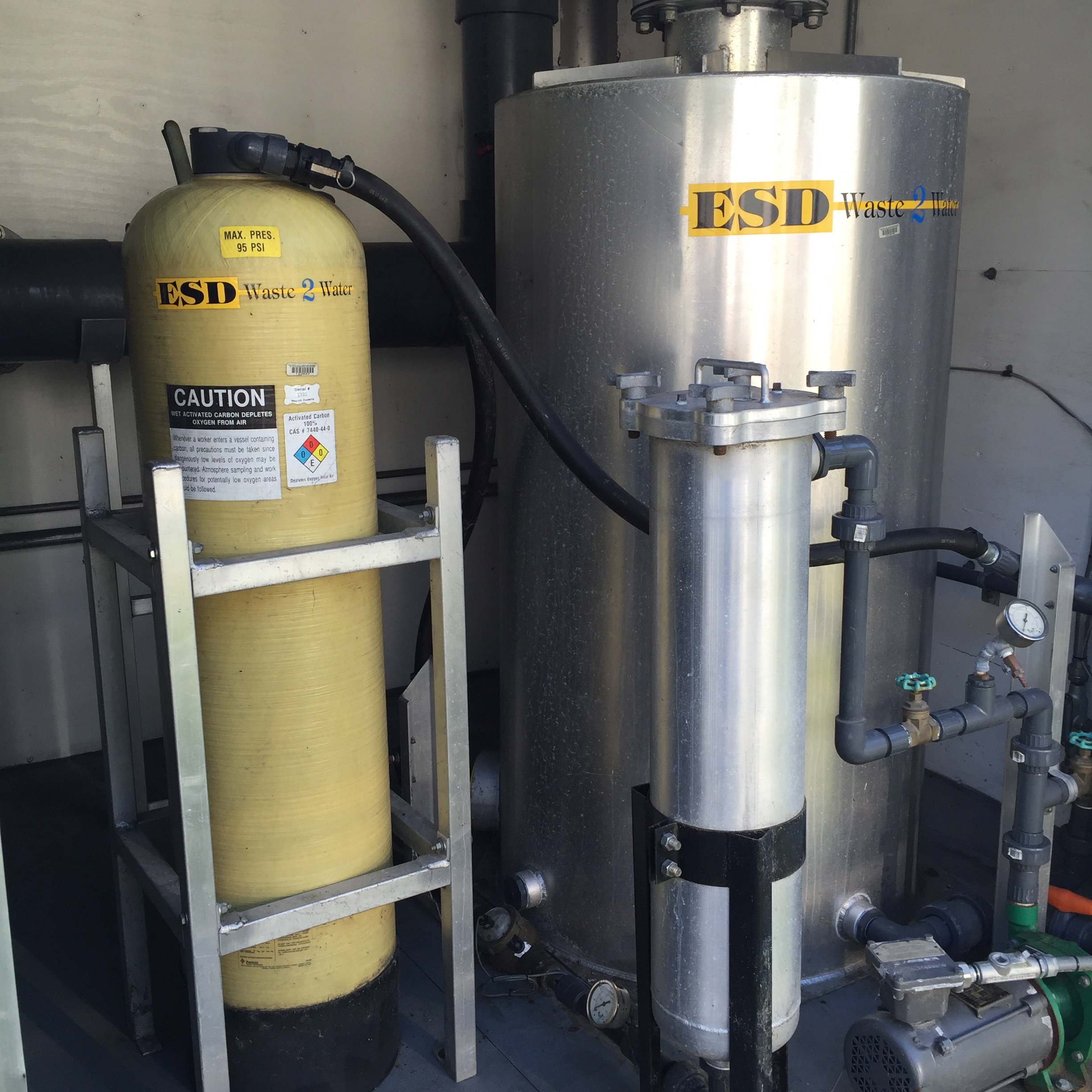

Description: Moisture Separator Year 2006

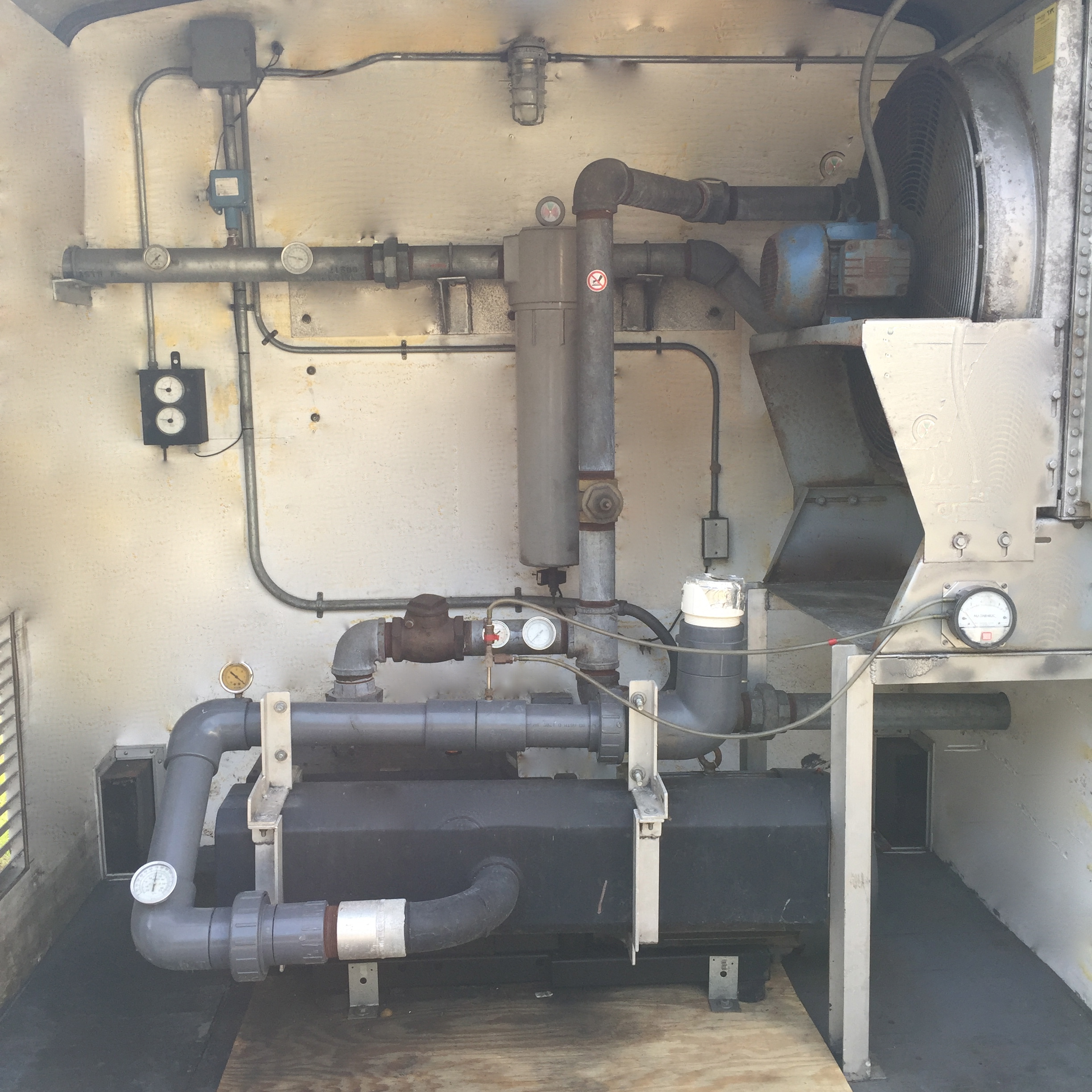

Heat Exchanger Year Purchased: 2006 Make/ Model—Specs: AIHTI ACA Model

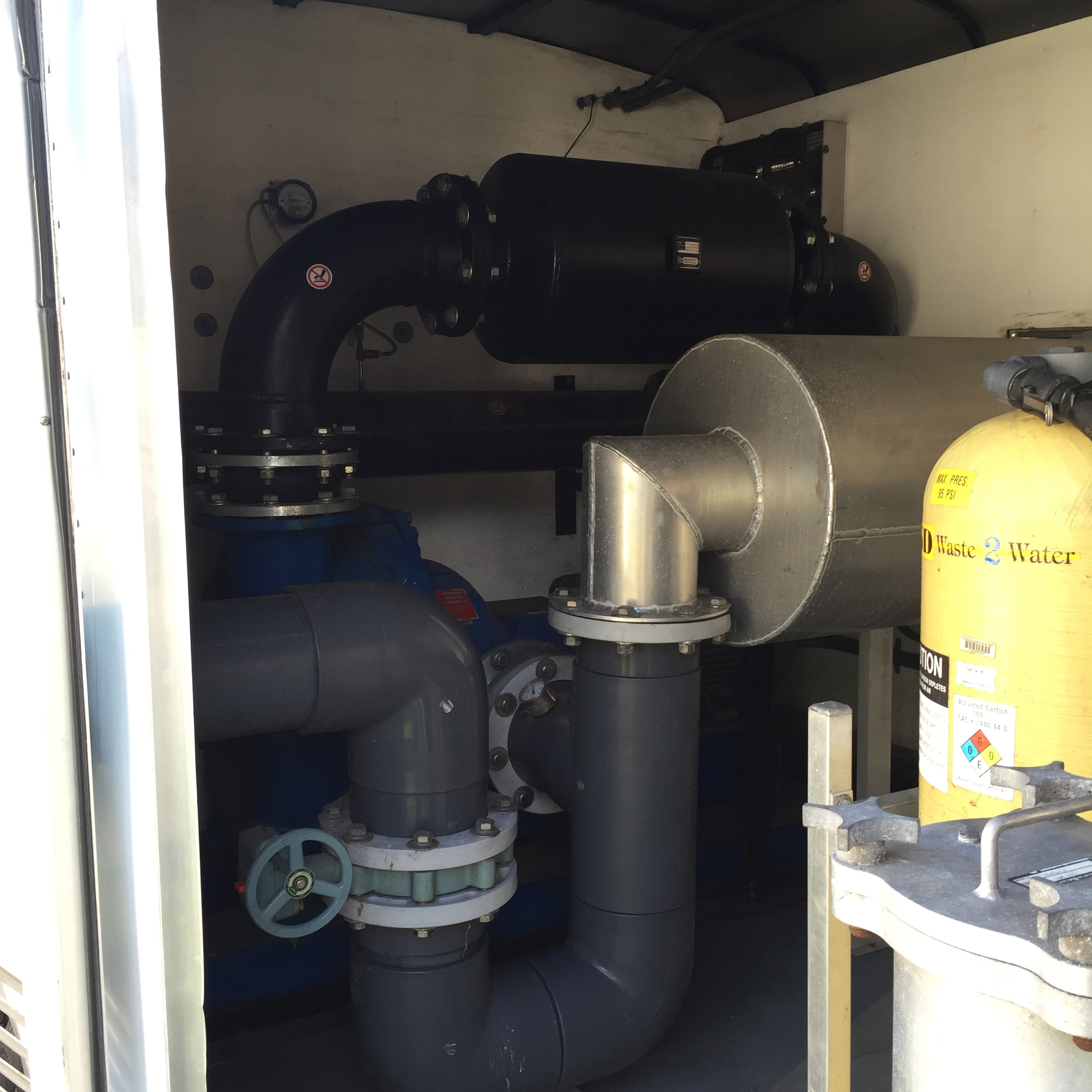

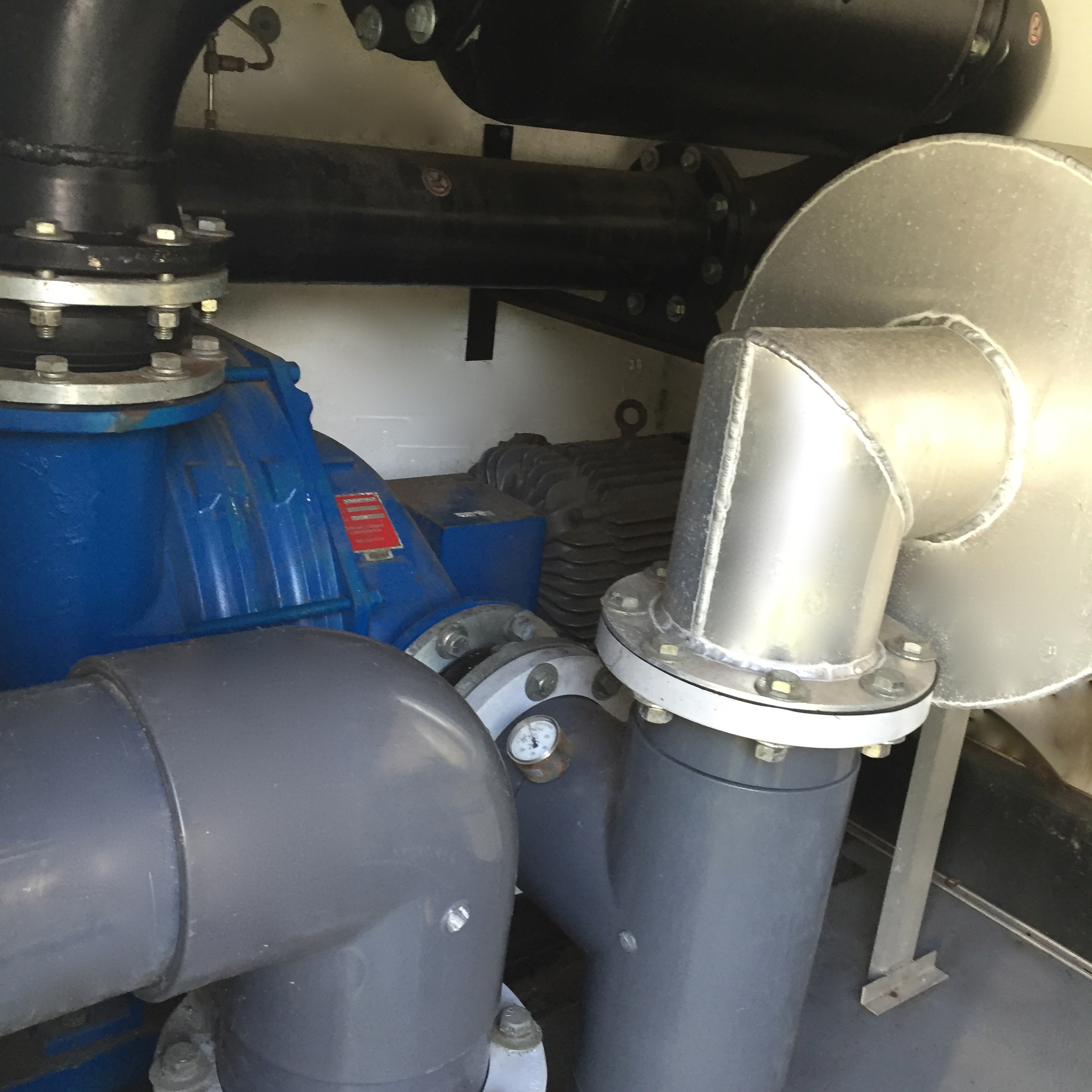

Compressor Rotary Claw  2012 Make/ Model—Specs: Rietschle DLR 250 Power HP: 15 Frequency: RPM 3450 Flow Rate/Vapor: 166 CFM Pressure 8.7 – 32 PSIg Potential: Volts 230/460 Phase: Phase 3

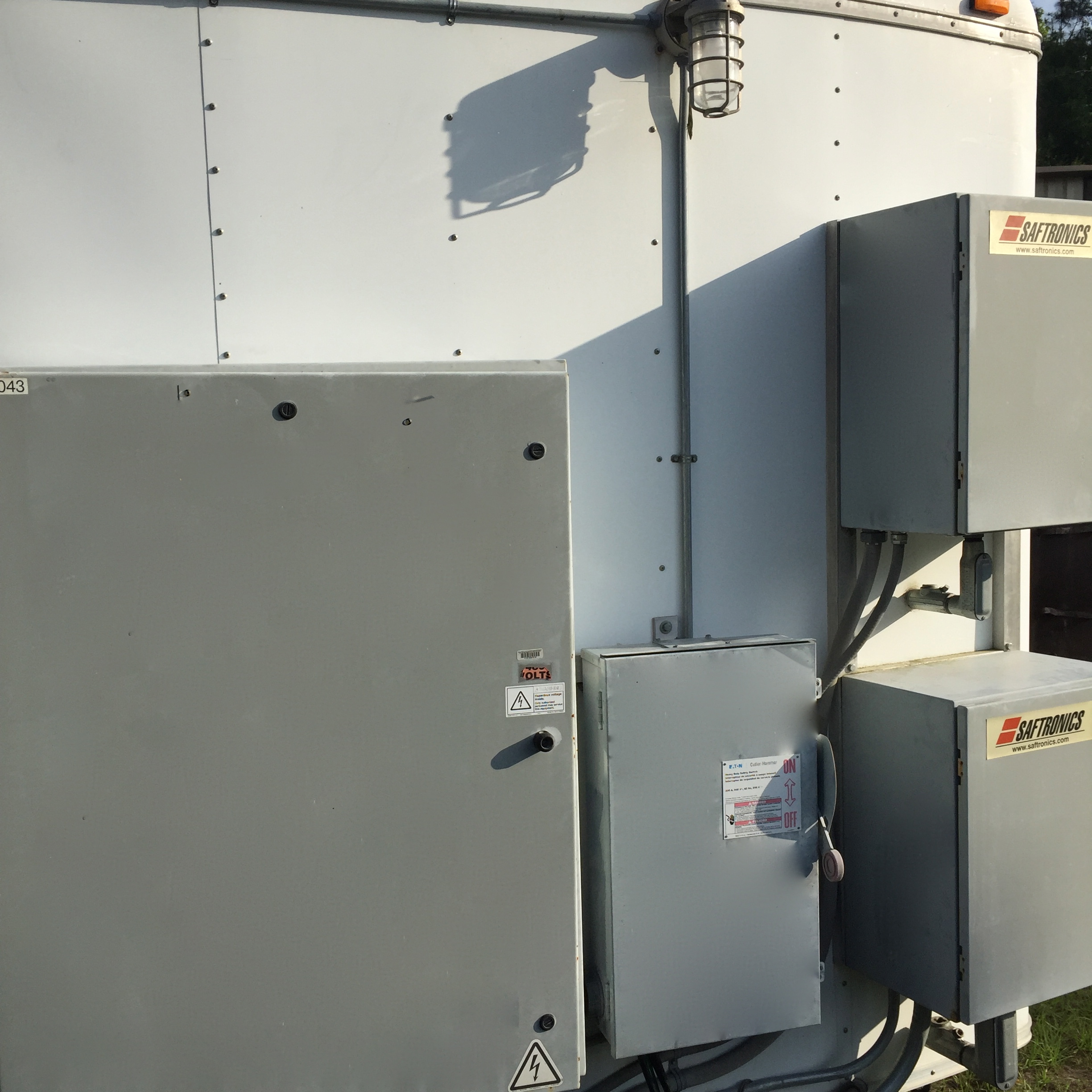

Control Panel :  –  Volts 460 Phase: Phase 3 NEMA 4

AS Manifold & Module  Custom
