(SVE/SPARGE-13) TRAILER, SVE/AIRSPARGE (#AES003F)

SVE /Air Sparge System – 2013

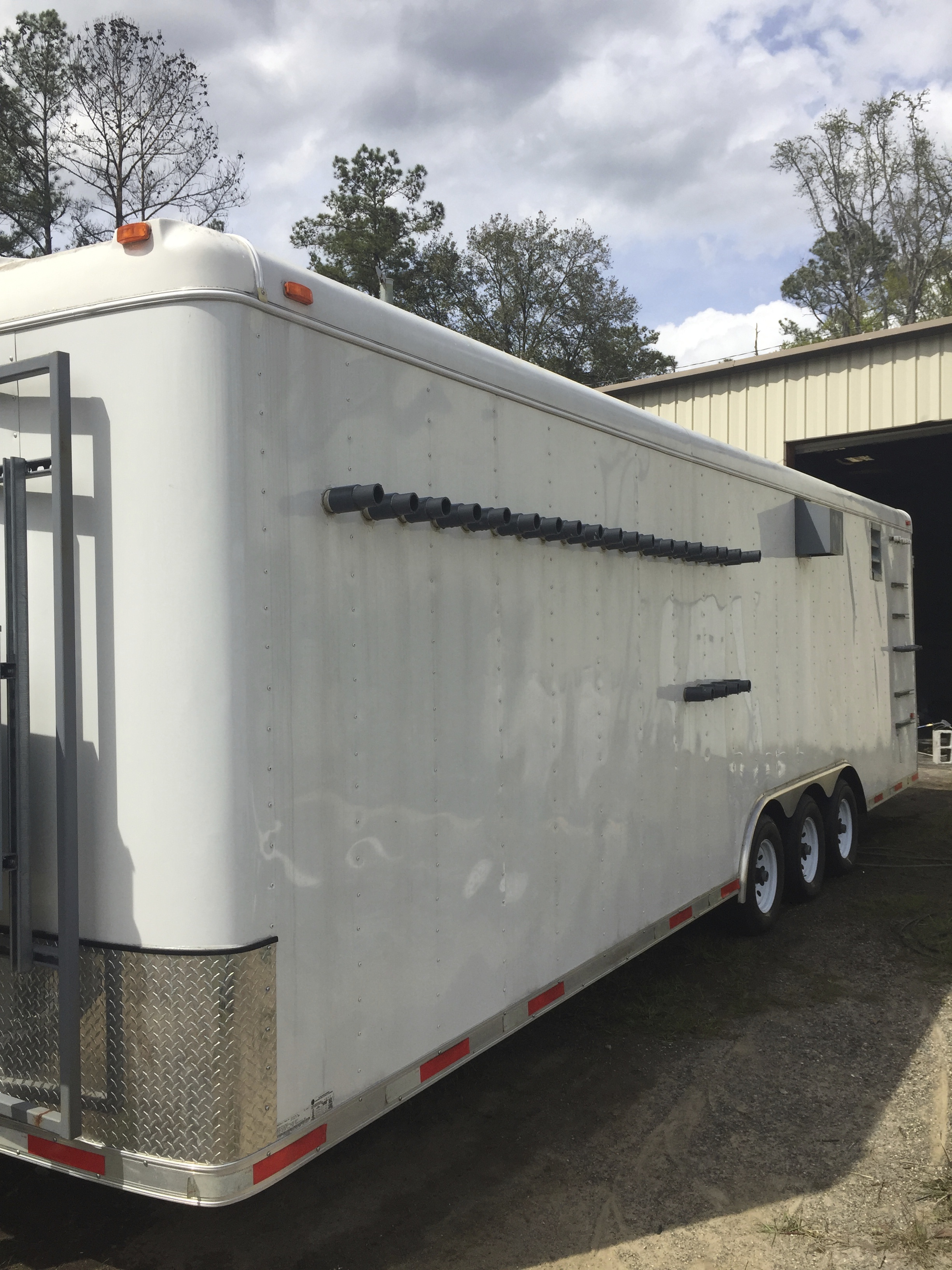

28′ x 8 ‘ Enclosed Trailer Flight Way Technologies

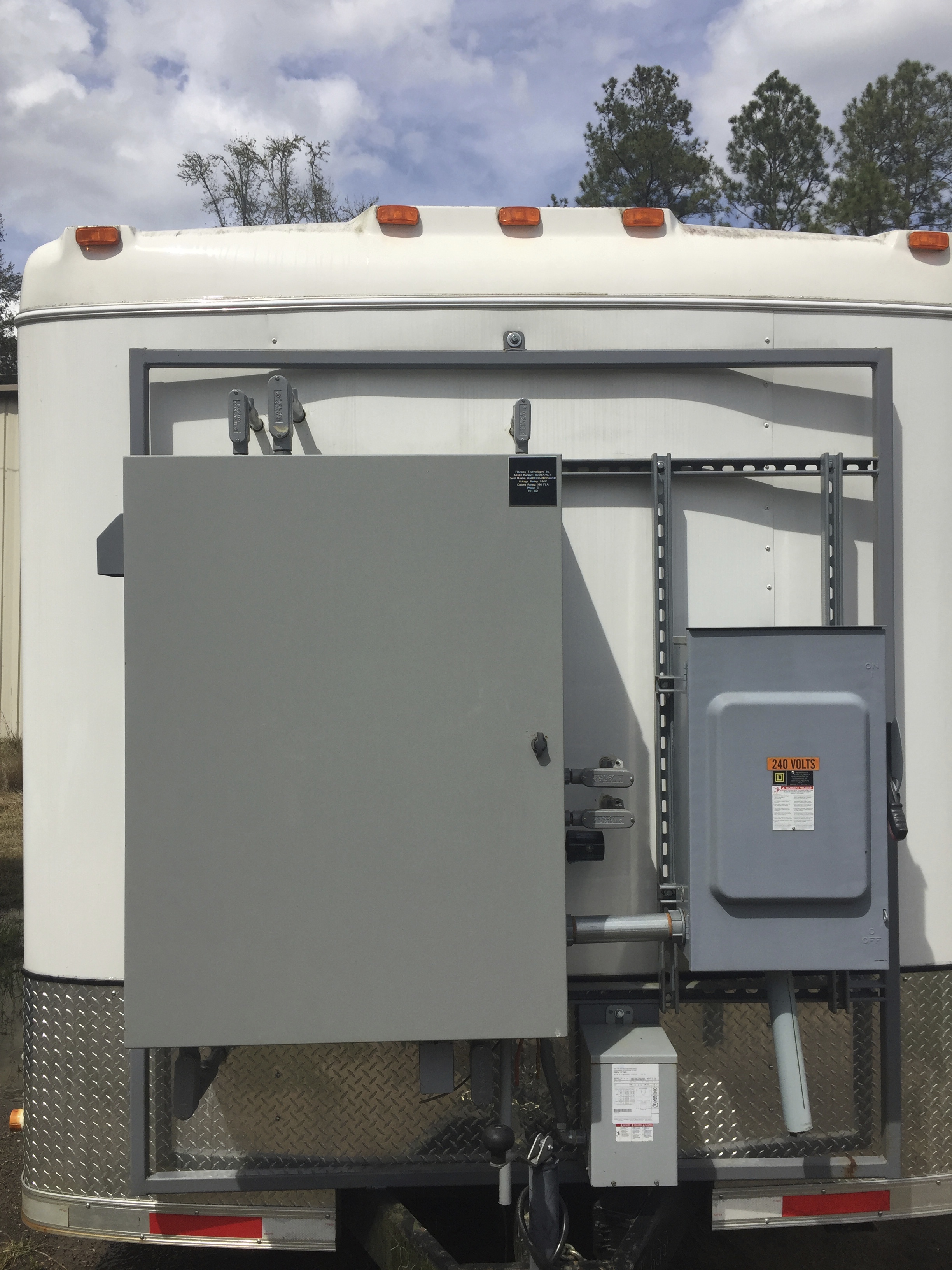

Control Panel 240/460 – Three Phase

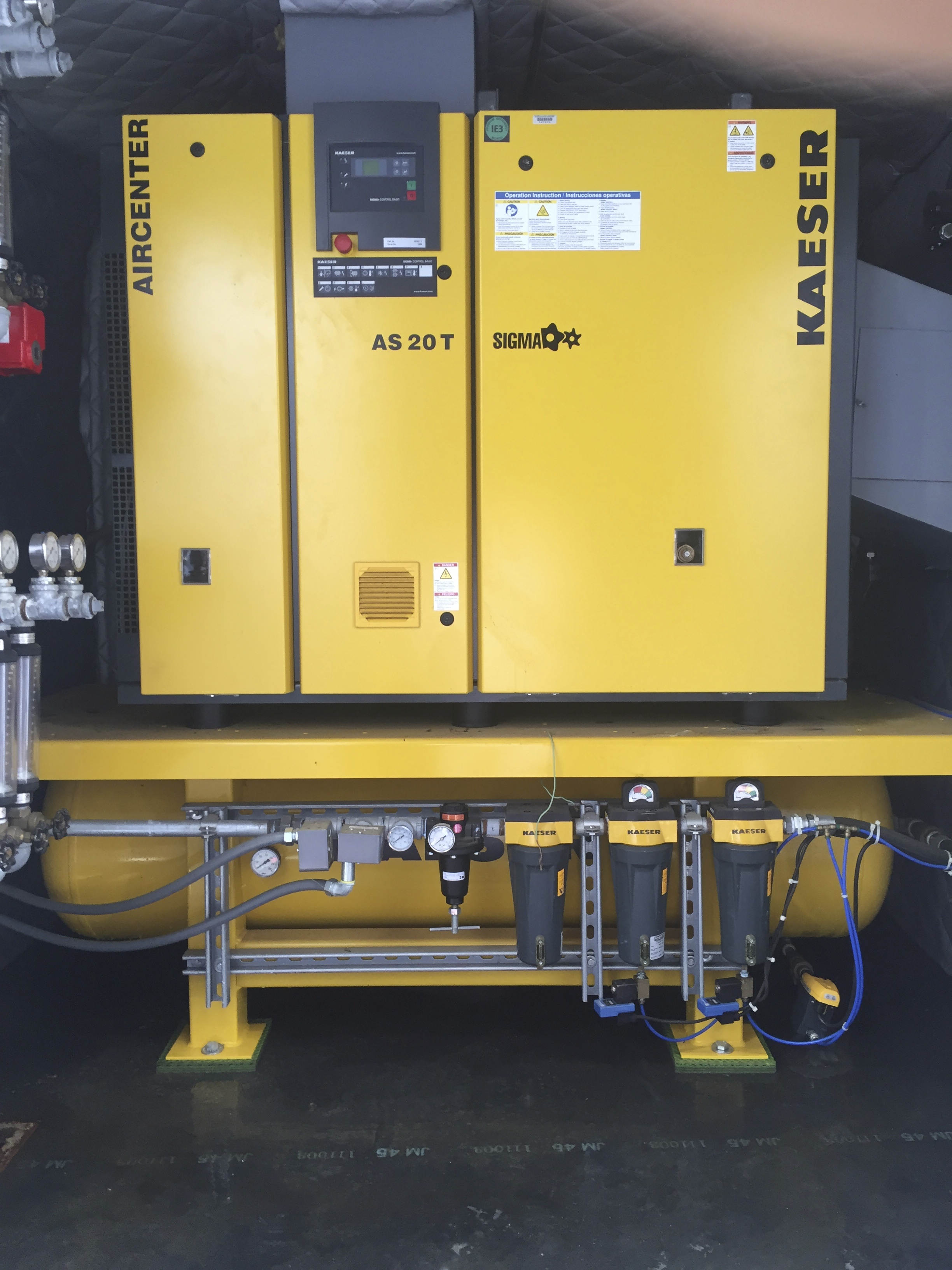

Kaesar – Sigma – AS 20T Compressor – Air Center (20 hp) – 92 SCFM pressure 125 PSI potential

Three Stage Coalescing Filtration

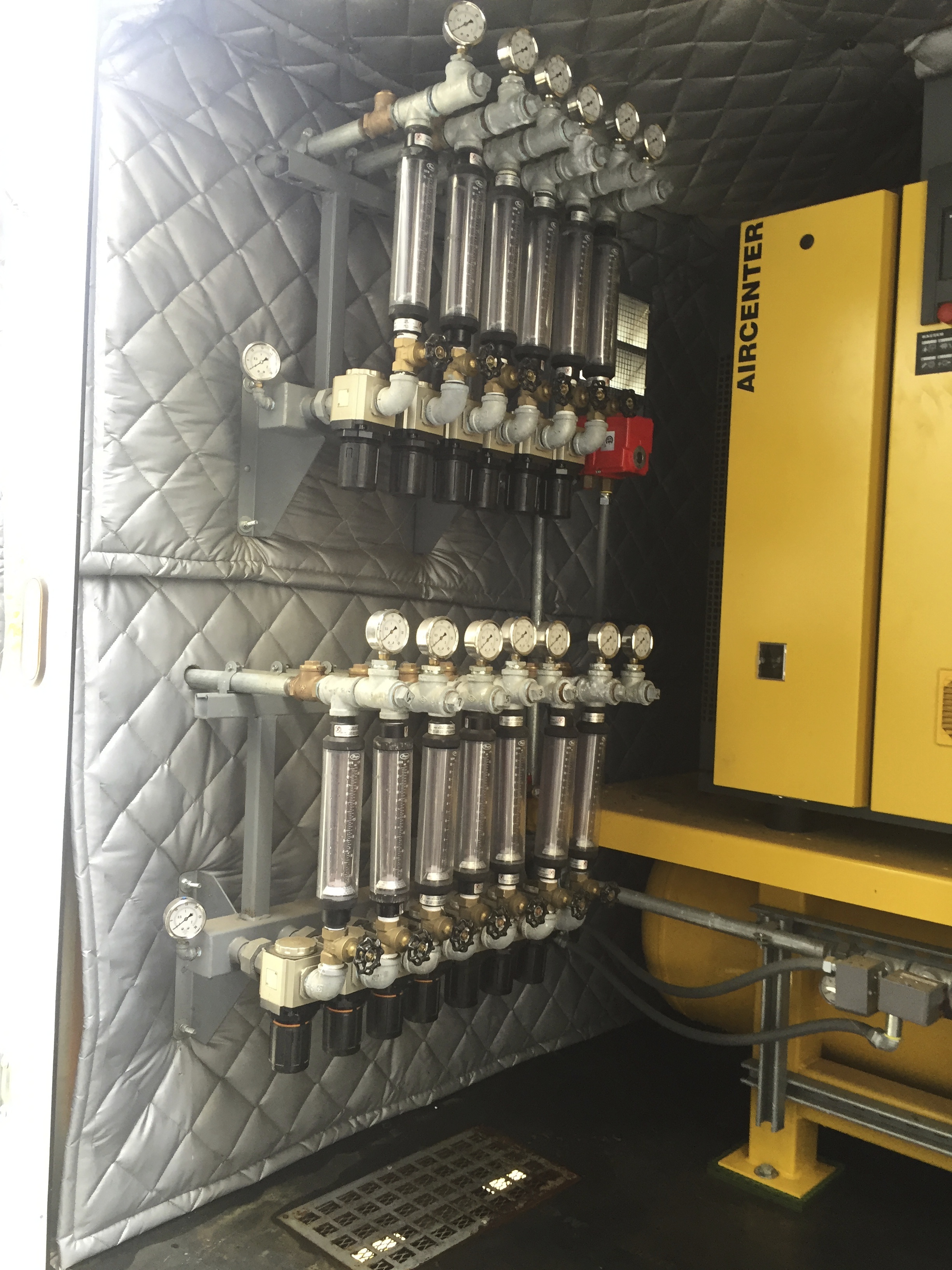

12 Point Sparge Manifold

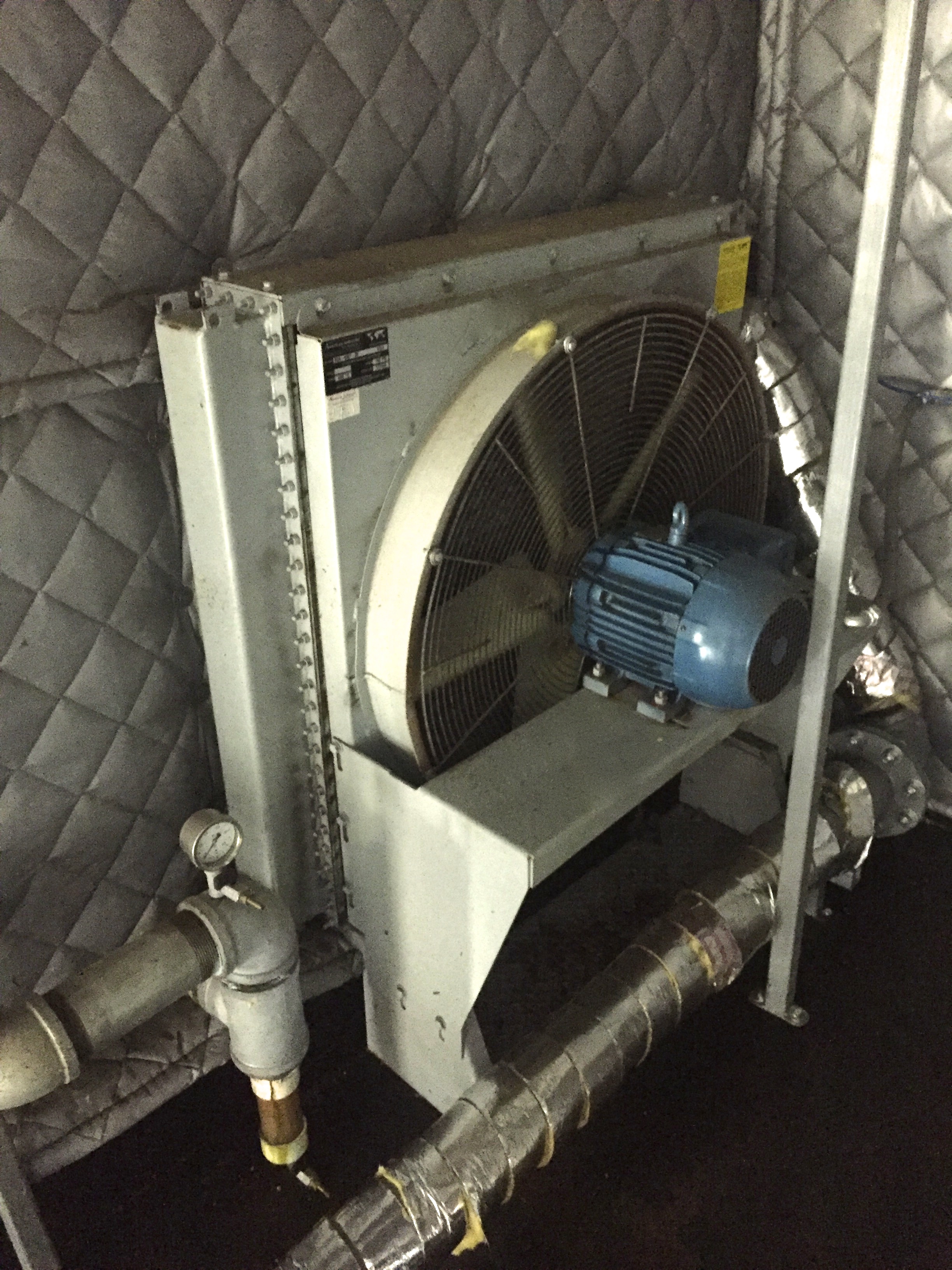

Heat Exchanger – AIHTI ACA 6361-3  (3hp)

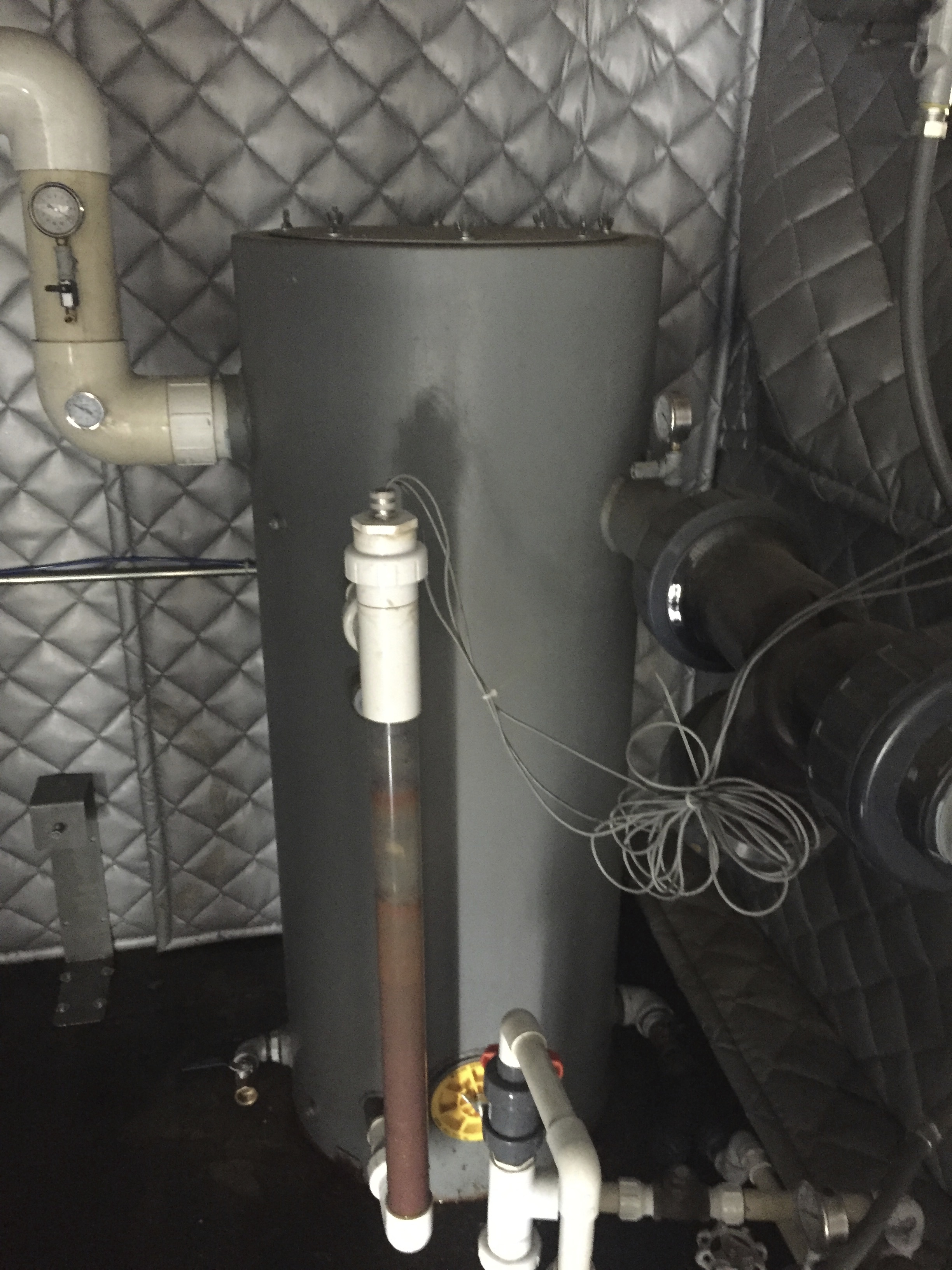

Knockout Tank – 117 Gallon

Float Switches

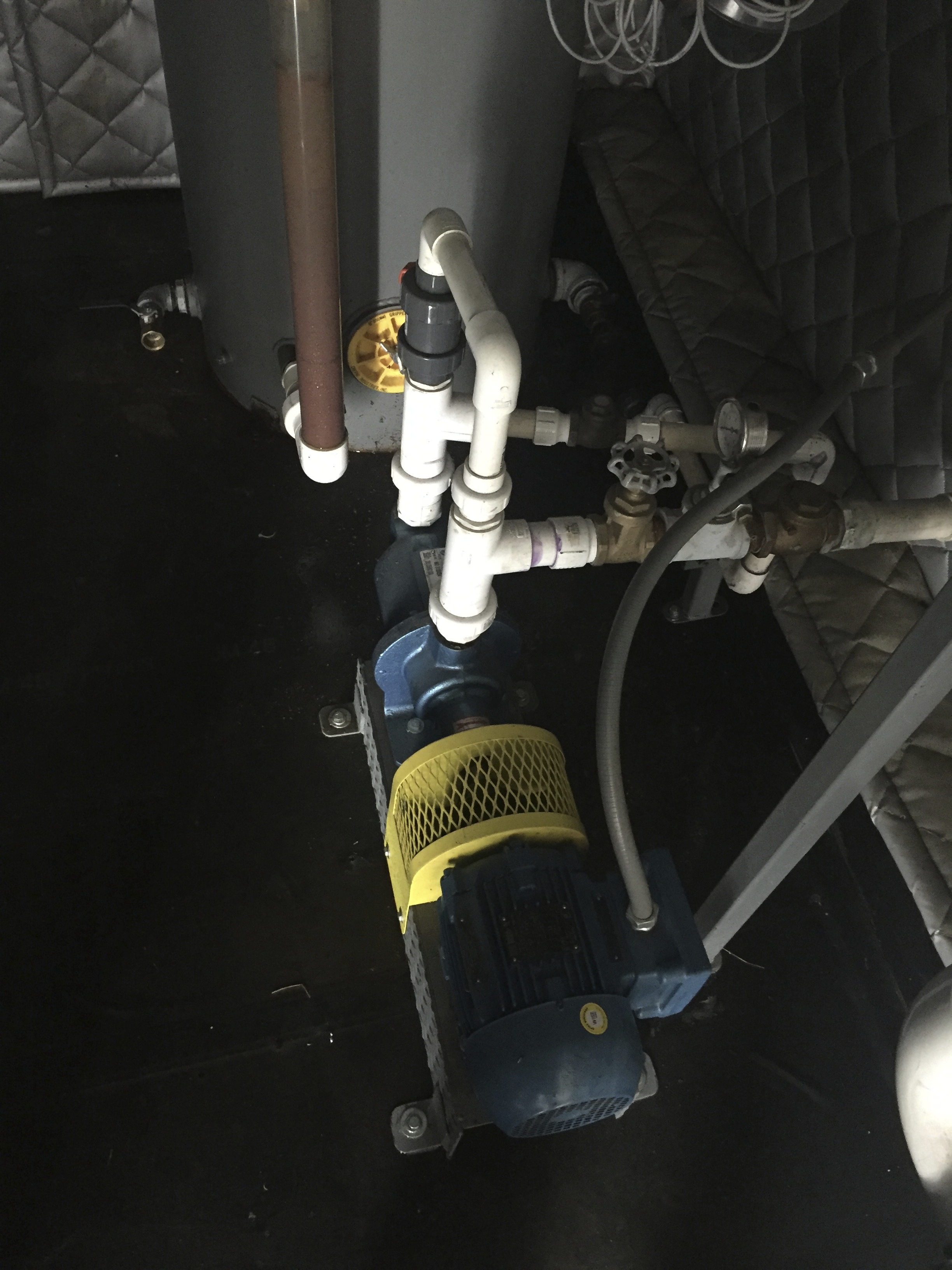

Moyno Transfer Pump

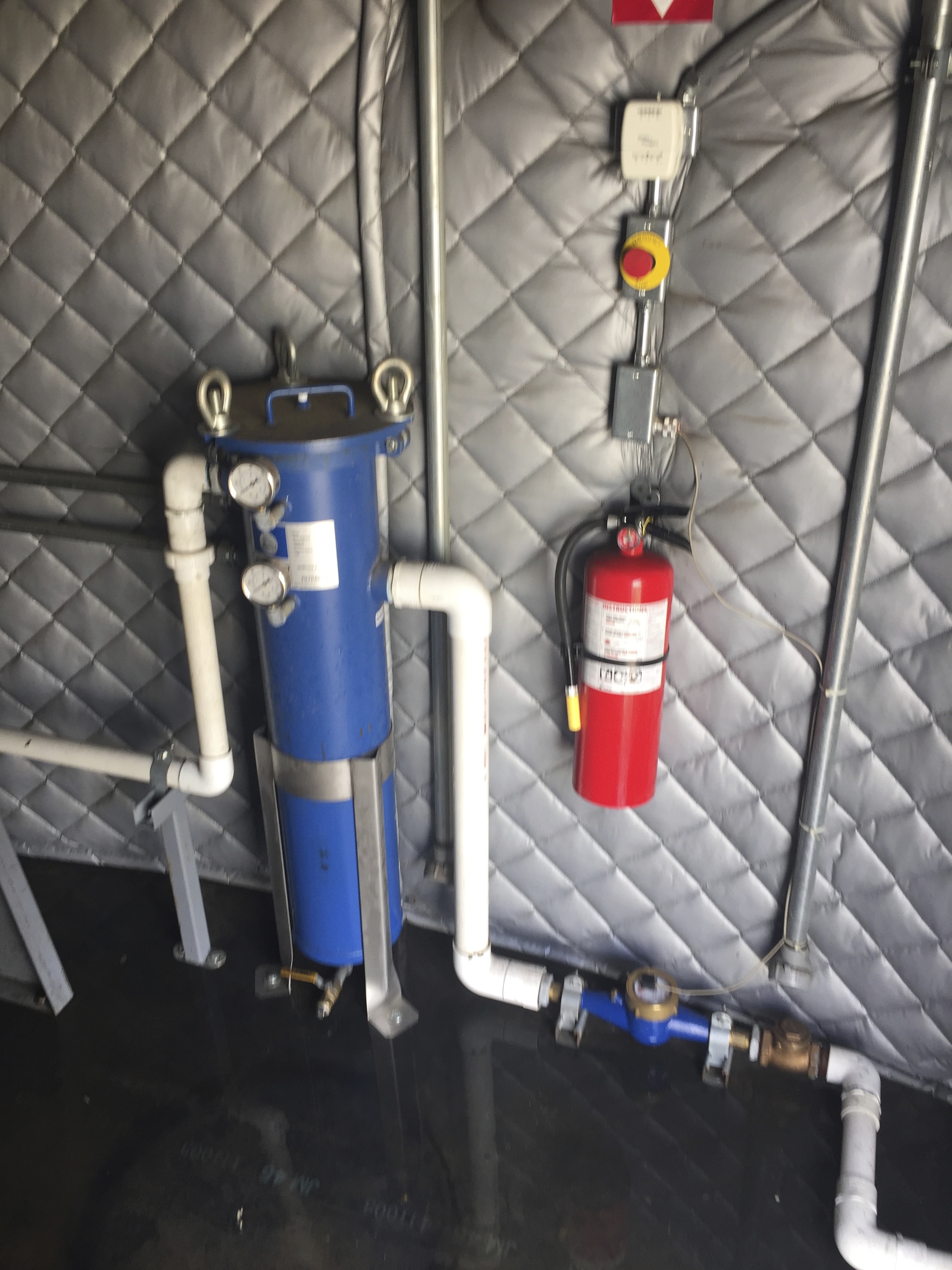

Bag Filtration with Flow Meter/Totalizer

Fire Extinguisher

Emergency Shut off

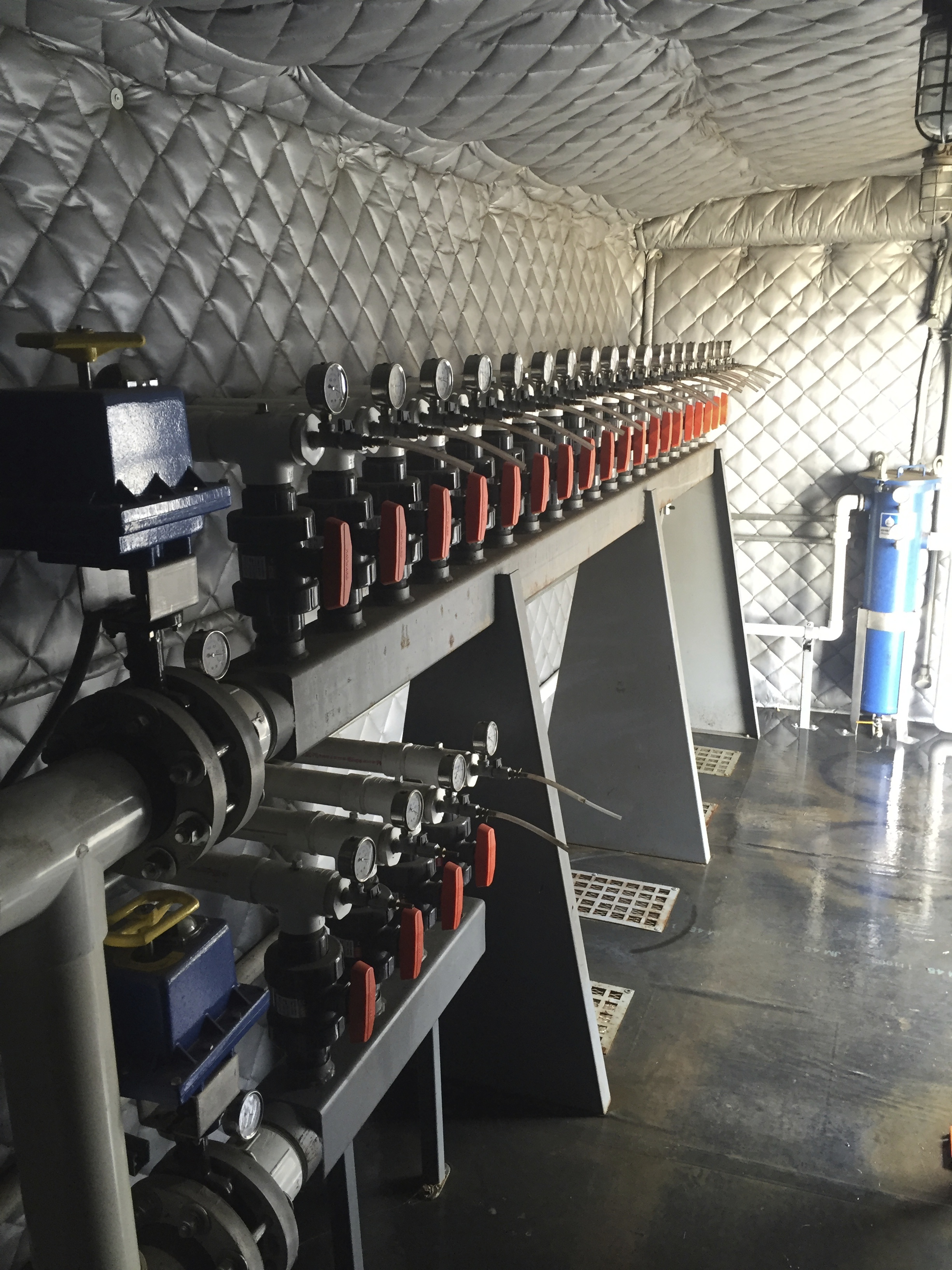

24 Point SVE Manifold

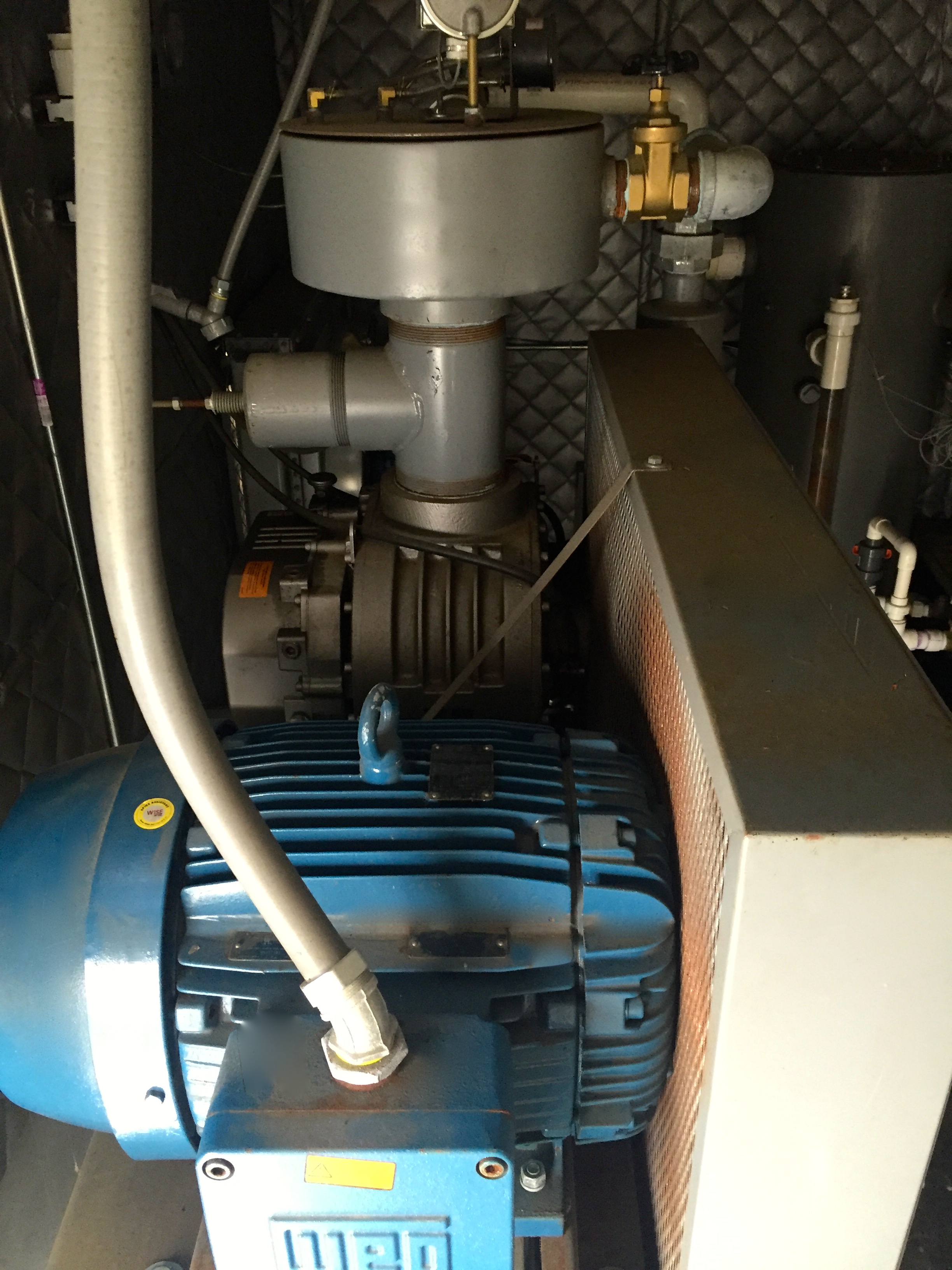

Sutorbuilt 6MR  Rotary Lobe Blower – (25hp) 270 @ 12″hg
