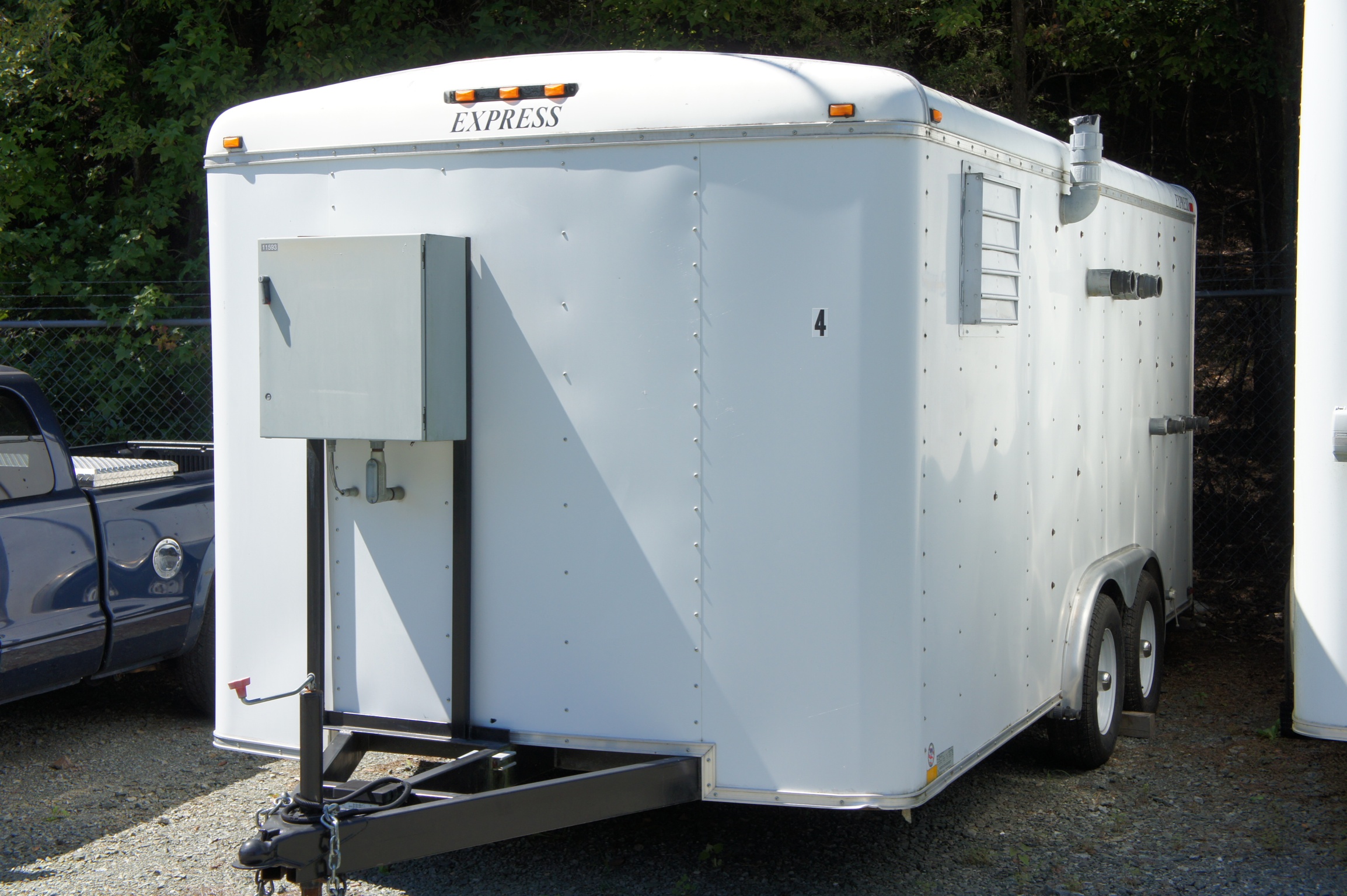

(SVE/1) Trailer (AES#004) Max 295-345 cfm, 4.5-6″ hg

Ametek Blower #EN707F72MXL

295-345 CFM,  88 – 56 “h20, 4.5 – 6” hg

5Hp, 230 Volt, 14 Amps, Frame 184TCZ

Ametek Moisture Separator, Mod# MS350B

  • Manufactured in the USA – ISO 9001 compliant
  • Maximum flow: 295 or 345 SCFM
  • Maximum pressure: 88 or 56 IWG
  • Maximum vacuum: 84 or 64 IWG
  • Standard motor: 5.5 HP, explosion-proof
  • Cast aluminum blower housing, cover, impeller &

    manifold; cast iron flanges (threaded); teflon lip seal

  • UL & CSA approved motor with permanently

    sealed ball bearings for explosive gas

    atmospheres Class I Group D minimum

  • Sealed blower assembly
  • Quiet operation within OSHA standards

Bag Filter

liquid Phase Carbon vessel

Solberg Filter, #CSL-235P-300

Dayton Fan, #6K7995, ¼ hp, 115 Volts. 4.5 Amps

3 Point manifold

F.E. Myers Transfer Pump #BT 306239, ¾ Hp, 230 volts, 2.6 Amps, Frame 56C
