(MMPE–17) TRAILER WITH SVE (AES#022F)

Trailer # 22F

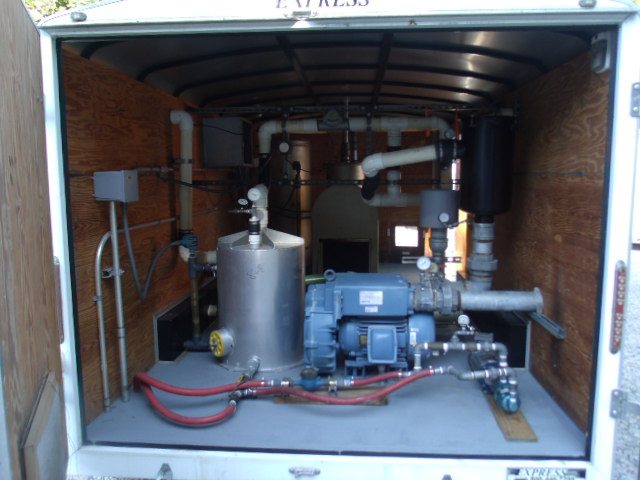

DPE Recovery System

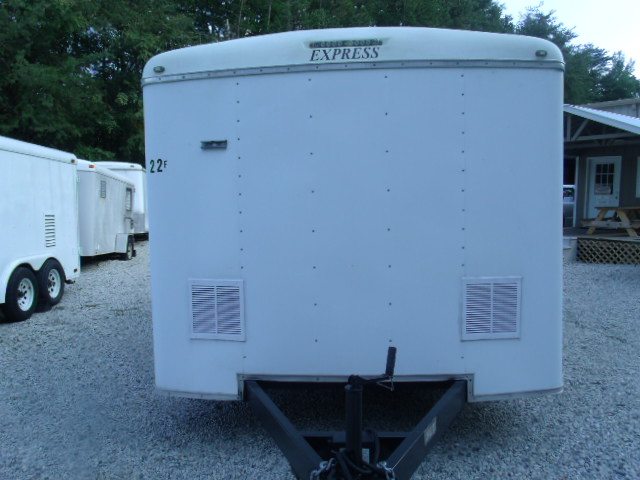

Trailer – Express 16 X 8 X 7 tandem axle Vin# 5GLBE16226C000400

*There is no control panel on this unit. All components are stubbed through the floor and cut off. Controls are run to junction box on wall*

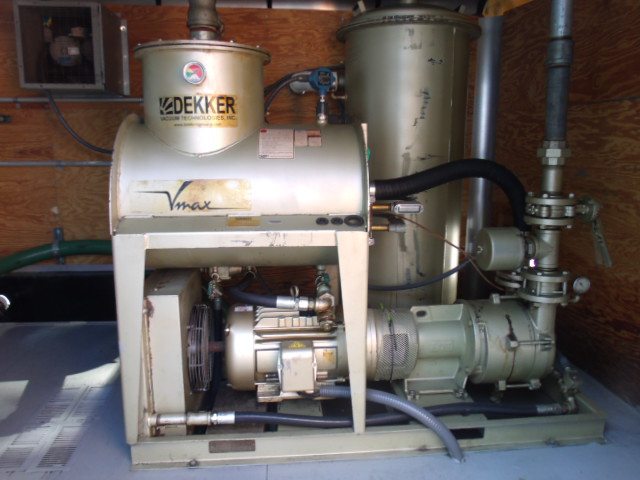

Vacuum Pump – Dekker VMX0303KA1-20-KO serial # H18653

Mfg date 0306   20hp 230/460V 48/24FLA

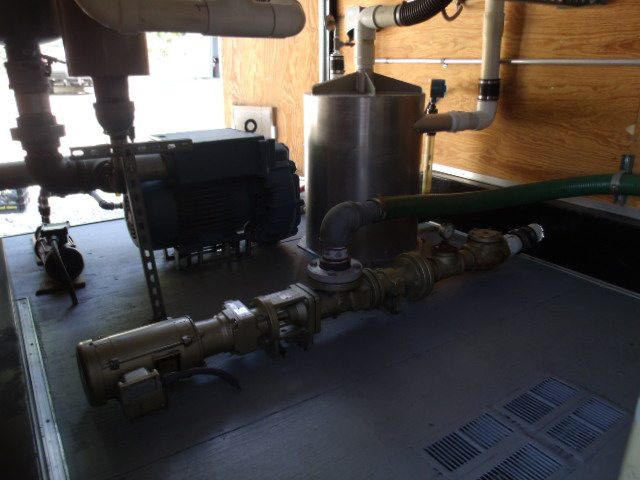

Transfer – Moyno B1ECD03SPA 1000 1 1/2hp 230/460V 3ph 4.4/2.2FLA

A/W Separator Tank – 120 gal. with gems level switch array and site glass

SVE System

AS Blower – Ametek EN909BG72WL 20hp 230/460V 44/22FLA

Max. in. H2O 100 suction or 120 pressure.

SVE K/O Tank – 40 gal. aluminum

SVE transfer pump – Moyno 34401 1hp 230/460V 3.6/1.8FLA

GPM meter – Neptune
